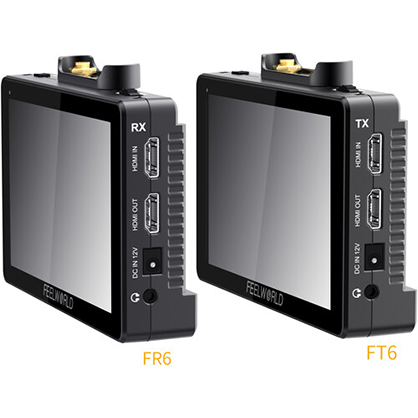

FeelWorld Two 5.5" On-Camera HDMI Monitors FT6 and FR6

SKU: 1019812 | MPN: ft6 fr6

$1,598.00 *
$1,389.57 excl. GST (tax free price)

In Stock
term
months
from $ per week

Details for FeelWorld Two 5.5" On-Camera HDMI Monitors FT6 and FR6

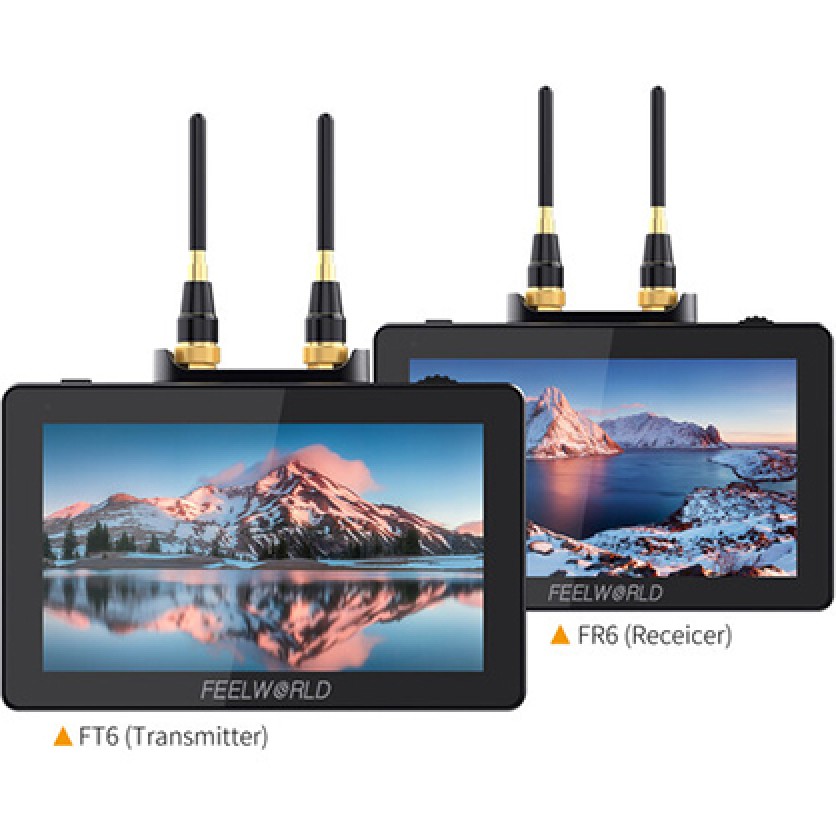

The FeelWorld Two 5.5" On-Camera Monitors with Wireless Transmitter & Receiver System includes a 5.5" monitor with an integrated wireless transmitter and a 5.5" monitor with an integrated receiver. The monitors transmit and receive video with a resolution up to 1080p, though they will each support a 4K signal directly through the HDMI input. The monitors both feature a touchscreen display with a 1920 x 1080 resolution and a brightness of 500 cd/m². Each monitor comes with four built-in LUTs for monitoring HDR footage in Rec. 709, and you can upload up to 50 user LUTs to choose from for monitoring your image.

Multiple power options include a 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, and a USB Type-C port that allows you to upload .cube format logs with an optional USB Type-A to Type-C adapter. Two L-series battery slots allow you to hot-swap batteries for uninterrupted runtimes. A single 1/4"-20 mounting thread is provided on the bottom for mounting. Each monitor includes a removable sunshade to protect from glare and bright skies.

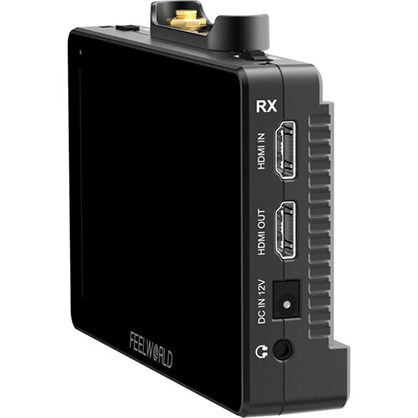

FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Receiver

The FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Receiver features a touchscreen display with a 1920 x 1080 resolution and brightness of 500 cd/m². The monitor receives up to a 1080p signal, which can be transmitted by an optional FeelWorld FT6 wireless receiver/monitor combo. It has an HDMI input port that supports signals up to DCI 4K24 and UHD 4K30, and an HDMI output for connecting to local monitors and other devices. The monitor comes with four built-in LUTs for monitoring HDR footage in Rec. 709, and you can upload up to 50 user LUTs to choose from for monitoring your image.

A large set of software features includes waveform, vectorscope, histogram, and anamorphic mode. These can be accessed via the menu wheel on top of the monitor. The menu system is simple, with touchscreen tabs on the sides and a clean look, and it provides a live view of most settings as you go through the tabs, including in the LUT tab where log profiles are selectable.

Multiple power options include a 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, and a USB Type-C port that allows you to upload .cube format logs with an optional USB Type-A to Type-C adapter. Two L-series battery slots allow you to hot-swap batteries for uninterrupted runtimes. A single 1/4"-20 mounting thread is provided on the bottom for mounting. The monitor includes a removable sunshade to protect from glare and bright skies.

Key Features

Receives 1080p video to an optional FT6 monitor

Touchscreen display with a 1920 x 1080 resolution

500 cd/m² brightness

HDMI input signals up to DCI 4K24 and UHD 4K30

Software Features

Supports 3D LUT Log to Rec. 709, user 3D LUT upload

Supports up to 50 user-uploadable LUTs

HDR monitoring

Support touch menu

Parade (RGB, YUV, Y)

Vector

Brightness histogram

Peaking focus assist (red, green, blue, white, yellow, five peaking colors optional; 1~10 peaking level adjustable)

False colors

Exposure (1~100%, adjustable)

Check field (red, green, blue, gray)

Scan mode (underscan, overscan)

Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)

Flip H / Flip V (all open, H/V flip)

Image freeze

Nine-grid

Center marker

Safety marker (70/80/90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)

Marker Color (red, green, blue, white, black, yellow)

Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)

Color temperature adjustment

Zoom (100~300%)

Aspect ratio

Pixel-to-pixel

FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Transmitter

The FeelWorld 5.5" On-Camera Monitor with Built-In Wireless Transmitter features a touchscreen display with a 1920 x 1080 resolution and brightness of 500 cd/m². The monitor transmits up to a 1080p signal, which can be received by an optional FeelWorld FR6 wireless transmitter/monitor combo. It has an HDMI input port that supports signals up to DCI 4K24 and UHD 4K30, and an HDMI output for connecting to local monitors and other devices. The monitor comes with four built-in LUTs for monitoring HDR footage in Rec. 709, and you can upload up to 50 user LUTs to choose from for monitoring your image.

A large set of software features includes waveform, vectorscope, histogram, and anamorphic mode. These can be accessed via the menu wheel on top of the monitor. The menu system is simple, with touchscreen tabs on the sides and a clean look, and it provides a live view of most settings as you go through the tabs, including in the LUT tab where log profiles are selectable.

Multiple power options include a 12 VDC input, an 8 VDC output for connecting optional dummy battery cables, and a USB Type-C port that allows you to upload .cube format logs with an optional USB Type-A to Type-C adapter. Two L-series battery slots allow you to hot-swap batteries for uninterrupted runtimes. A single 1/4"-20 mounting thread is provided on the bottom for mounting. The monitor includes a removable sunshade to protect from glare and bright skies.

Key Features

Transmits 1080p video to an optional FR6 monitor

Touchscreen display with a 1920 x 1080 resolution

500 cd/m² brightness

HDMI input signals up to DCI 4K24 and UHD 4K30

Software Features

Supports 3D LUT Log to Rec. 709, user 3D LUT upload

Supports up to 50 user-uploadable LUTs

HDR monitoring

Support touch menu

Parade (RGB, YUV, Y)

Vector

Brightness histogram

Peaking focus assist (red, green, blue, white, yellow, five peaking colors optional; 1~10 peaking level adjustable)

False colors

Exposure (1~100%, adjustable)

Check field (red, green, blue, gray)

Scan mode (underscan, overscan)

Anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)

Flip H / Flip V (all open, H/V flip)

Image freeze

Nine-grid

Center marker

Safety marker (70/80/90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)

Marker Color (red, green, blue, white, black, yellow)

Ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)

Color temperature adjustment

Zoom (100~300%)

Aspect ratio

Pixel-to-pixel

Specifications

  • LCD Panel ... Size: 5.5" / 13.9 cm
  • Resolution: 1920 x 1080
  • Pixel Pitch: 0.0639 x 0.0213 mm
  • Aspect Ratio: 16:9
  • Brightness: 500 cd/m²
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle: 160° L/R, U/D
  • Input and Output Connectors ... Input
  • 1 x HDMI Type-A
  • Output
  • 1 x HDMI Type-A
  • 1 x 3.5 mm (Audio, Headphone)
  • Video ... 4096 x 2160: 24
  • 3840 x 2160: 23.98/24/25/29.97/30
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080i: 50/60
  • 720p: 50/59.904/60
  • 576p: 50/59.904/60
  • 576i: 50/59.904/60
  • 480p: 50/59.904/60
  • Wireless ... Frequency: 5.1 to 5.9 GHz
  • System Latency: 70 ms
  • Transmission Range: 820.21' / 250 m
  • Power ... Input Voltage: 7 to 24 VDC
  • Consumption: 18 W
  • Output: 8 VDC
  • 2 x Integrated L-Series Battery Plates
  • Mounting ... 3 x 1/4"-20
  • Dimensions ... 5.8 x 4.07 x 1.6" / 14.8 x 10.35 x 4.1 cm
  • Weight ... 13.05 oz / 370 g
  • Packaging Info
  • Package Weight ... 1.705 lb
  • Box Dimensions (LxWxH) ... 7.4 x 5 x 3.5"
  • FeelWorld 5.5" On-Camera Monitor With Built-In Wireless Transmitter Specs
  • Display
  • Panel Type ... LCD
  • Display Size ... 5.5" / 14.0 cm
  • Resolution ... 1920 x 1080
  • Aspect Ratio ... 16:9
  • Touchscreen ... Yes
  • Image Controls ... Anamorphic De-Squeeze, False Color, Focus Assist, Histogram, Image Flip, Pixel Zoom, Vectorscope, Waveform, Zebra
  • I/O
  • Antenna Ports ... 2 x RP-SMA
  • Video ... 1 x HDMI Type A (HDMI 1.4) Input
  • 1 x HDMI Type A (HDMI 1.4) Output
  • HDCP Support ... Not Specified by Manufacturer
  • Embedded Audio ... HDMI
  • Audio ... 1 x 1/8" / 3.5 mm Headphone Output
  • Power I/O ... 1 x Barrel (12 VDC) Input
  • 1 x Barrel (8 VDC) Output
  • Other I/O ... 1 x USB Type-C Input
  • Media/Memory Card Slot ... Not Specified by Manufacturer
  • Wireless
  • Wireless Range ... 800' / 243.8 m (Line-of-Sight)
  • Frequency Range ... US: 5.1 to 5.9 GHz
  • Latency ... 70 ms
  • Wi-Fi ... None
  • Bluetooth ... Not Specified by Manufacturer
  • Format Support
  • Video Format ... HDMI
  • DCI 4K: 24
  • UHD 4K: 30/29.97/25/24/23.98
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080i: 60/59.94/50
  • 720p: 60/59.94/50
  • 576p
  • 576i
  • 480p
  • Audio Format ... PCM Audio
  • Wireless Video Compression ... Compressed
  • Timecode Support ... No
  • Power
  • DC Input Power ... 12 VDC
  • Battery Type ... 2 x L-Series
  • Power Consumption ... 18 W
  • Mounting
  • Mounting ... 1 x 1/4"-20 Female
  • Environmental
  • IP Rating ... None
  • Operating Temperature ... -4 to 131°F / -20 to 55°C
  • Storage Temperature ... -22 to 149°F / -30 to 65°C
  • General
  • Dimensions ... 5.8 x 4.1 x 1.6" / 148 x 103.5 x 41 mm
  • Weight ... 13.1 oz / 370 g
  • Warranty Length ... Limited 1-Year Warranty
  • Packaging Info
  • Package Weight ... 1.78 lb
  • Box Dimensions (LxWxH) ... 7.4 x 4.9 x 3.3"
