Sennheiser ew 112P G4-B Lavalier

Product Features

•B Band (626 to 668 MHz)

•EK 100 G4 Camera-Mountable Receiver

•SK 100 G4 Bodypack Transmitter

•ME 2-II Omnidirectional Clip-On Lav Mic

•1680 Tunable Frequencies Across 42 MHz

Overview

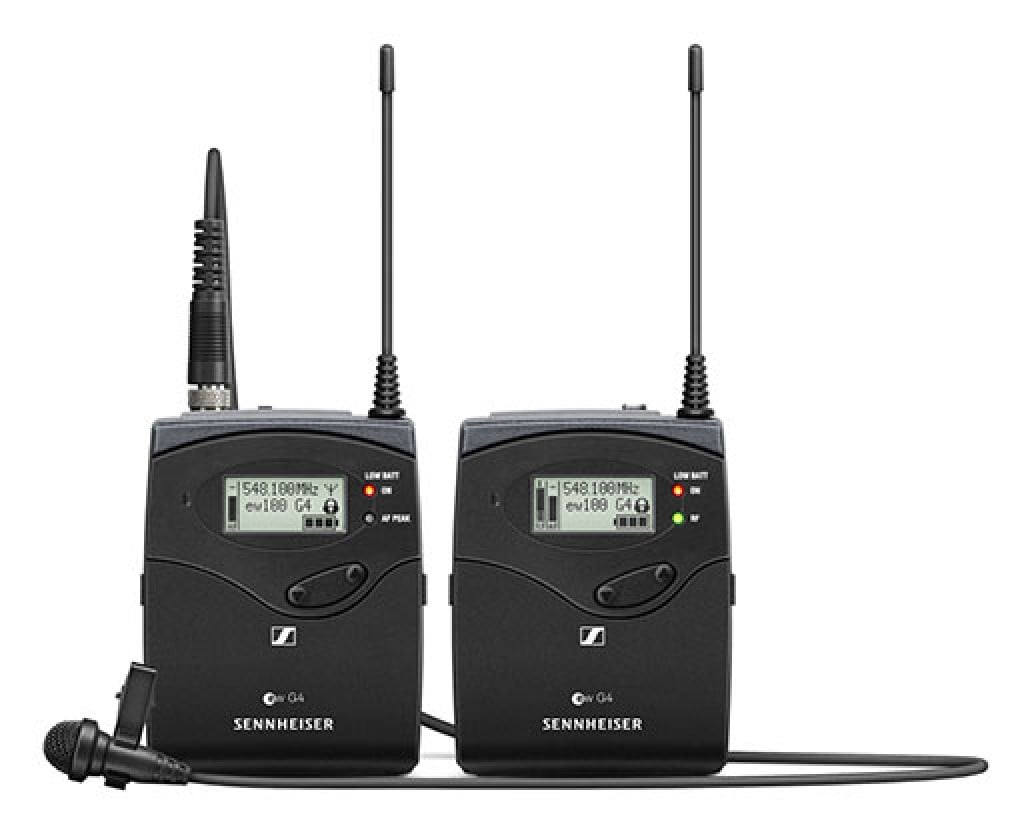

The ew 112P G4 Camera Mount Wireless Microphone System from Sennheiser is the latest addition to Sennheiser's evolution family of wireless microphones and is fully compatible with all previous series. This package includes the EK 100 G4 camera mount receiver, SK 100 G4 bodypack transmitter, and ME 2-II lavalier microphone. Accessories include a CA 2 camera mount, 1/8 to 1/8" cable, and a 1/8" to XLR cable. It can be used to capture audio for live sound, broadcast and film, business, and educational applications.

Key Features

•Rugged all-in-one wireless system with high flexibility for broadcast quality sound

•Excellent sound and construction quality

•Easy to use and fast setup time

•Powerful and reliable wireless transmission

•Range: up to 100 meters

•Up to 8 hours of operation time

• EK 100 G4 Wireless Camera-Mount Receiver B: (626 to 668 MHz)
• Modulation Wideband FM
• Frequency Band B: (626 to 668 MHz)
• Receiving Frequency Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
• 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
• 1 frequency bank with up to 12 programmable channels
• Switching Bandwidth Up to 42 MHz
• Nominal/Peak Deviation ±24 kHz / ±48 kHz
• Principle of Operation Adaptive diversity
• Sensitivity < 1.6 µV for 52 dBA eff S/N (with HDX, peak deviation)
• Adjacent Channel Selectivity = 65 dB
• Intermodulation Attenuation Typically = 65 dB
• Blocking = 70 dB
• Squelch Low: 5 dBµV
• Middle: 15 dBµV
• High: 25 dBµV
• Pilot Tone Squelch Can be switched off
• Antenna Inputs 2 x BNC sockets
• Compander Sennheiser HDX
• Signal to Noise Ratio = 110 dBA (1 mV, peak deviation)
• Total Harmonic Distortion (THD) = 0.9%
• Maximum AF Output Voltage 1/8" /3.5 mm Jack: +12 dBu (mono, unbalanced)
• Output Level Range 42 dB, adjustable in steps of 6 dB
• Temperature Range 14 to 131°F (-10 to 55°C)
• Power Supply 2 x AA 1.5 V batteries, or BA 2015 accupack
• Nominal Voltage 3 V battery / 2.4 V rechargeable battery
• Current Consumption Nominal Voltage: Typical 180 mA
• With Receiver Switched Off: = 25 µA
• Operating Time Typically 8 hours
• Dimensions (L x W x H) 82 x 64 x 24 mm
• Weight 160 g
• SK 100 G4 Wireless Bodypack Transmitter B: (626 to 668 MHz)
• Modulation Wideband FM
• Frequency Range B: (626 to 668 MHz)
• Transmission Frequencies Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
• 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
• 1 frequency bank with up to 12 programmable channels
• Switching Bandwidth Up to 42 MHz
• Nominal/Peak Deviation ±24 kHz / ±48 kHz
• Frequency Stability = ±15 ppm
• RF Output Power Maximum 30 mW at 50 Ohms
• Pilot Tone Squelch Can be switched off
• Compander Sennheiser HDX
• AF Frequency Response Mic: 80 Hz to 18 kHz
• Line: 25 Hz to 18 kHz
• Signal to Noise Ratio = 110 dBA (1 mV, peak deviation)
• Total Harmonic Distortion (THD) = 0.9%
• Maximum Input Voltage Microphone/Line: 3 V eff
• Input Impedance Microphone/Line: 40 kOhms, unbalanced / 1 MOhms
• Input Capacitance Switchable
• Input Sensitivity Range 60 dB, adjustable in 3 dB steps
• Temperature Range 14 to 131°F (-10 to 55°C)
• Power Supply 2 x AA batteries, 1.5 V or BA 2015 accupack
• Nominal Voltage 3 V battery / 2.4 V rechargeable battery
• Current Consumption At Nominal Voltage: Approximately 180 mA
• With Transmitter Switched Off: = 25 µA
• Operating Time Typically 8 hours
• Dimensions (W x L x H) 82 x 64 x 24 mm
• Weight 160 g
• ME 2-II Omnidirectional Lavalier Microphone (Black)
• Compatibility AVX, evolution wireless D1, SpeechLine Digital Wireless, XS Wireless 1, XS Wireless 2
• Transducer Permanent polarised condenser
• Polar Pattern Omnidirectional
• Sensitivity 20 mV/Pa
• EIN 36 dB
• Maximum SPL 130 dB
• Operating Voltage 7.5 V
• Frequency Response 50 Hz to 18 kHz
• Connector Threaded EW 3.5 mm connector
• Windscreen Integrated, fixed
• RF 100% compliant RF compatibility
• Cable Length 1.6 m
• Diameter 0 10.5 mm
