Experience comfortable and precise viewing with this spotting scope, featuring a compact, lightweight design and easy-to-use zoom from 20x to 50x. Its waterproof, nitrogen-filled body and rubber coating ensure durability in all conditions, while multi-layer optical coatings provide a bright field of view. The straight design aids in quick subject location, and the side focus knob allows for rapid adjustments, making it ideal for observing on the move.
Features

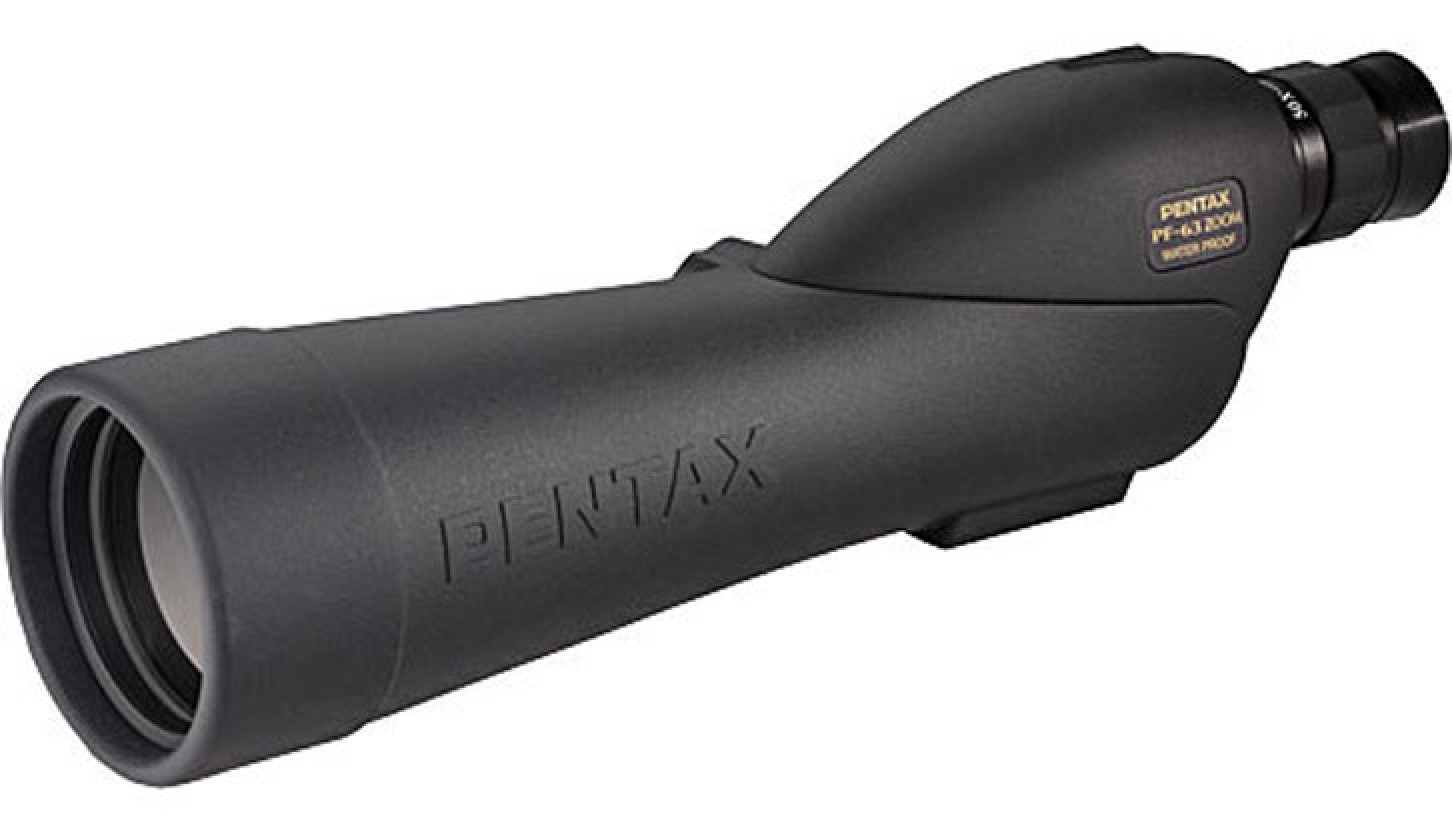

The PENTAX PF-63Zoom spotting scope offers one of the most ergonomically comfortable designs on the market. The waterproof and nitrogen filled body features a side focus knob for easy adjustment and zooms from 20x-50x, while the full rubber coating makes the scope extremely tough, even in the most challenging viewing conditions.
Compact and Lightweight Design
A compact and lightweight body is realized through a 63mm compact objective lens, and an inner-focus type eyepiece that is integrated with the main body.
Zoom function for easy change in magnification - The eyepiece has a magnification range of 20 to 50 times. The magnification can be changed quickly in response to changes in the subject.
Straight type is convenient for observation while in motion and enables for easy subject spotting.
A bright field of view is achieved by greatly improving the amount of transmitted and reflected light by using multi-layer optical coatings on the lens, and prisms that use the highly refractive BaK4 glass.
A rubber coating has been applied to the body's exterior, making it easier to hold as well as offering some protection from shocks and impact.
The PF-63 Zoom has a waterproof construction (JIS Class 6 equivalent, water resistant to a depth of 1 meter*). Observations can be conducted even in rain or fog due to the airtight structure of the integrated eyepiece.*The spotting scope cannot be used underwater.
The PF-63 Zoom is equipped with a target line on the top part of the body, allowing for the subject to be rapidly spotted with a high line of sight.
Focusing knob with a 180-degree rotation angle enables quick focusing.
Specifications
Type
Porro-prism Straight type, non-removable eyepiece
Lens Construction
4 elements - 3 groups 3 elements - 3 groups
Body design
Fiber reinforced polycarbonate
Focusing
Inner focusing
Coating (Lens)
(Porro-prism)
Multi coating Single coating
Prism
BaK4
Optical Specifications
Magnification
20x ~ 50x
Objective lens diameter
63 mm
Real field of view
1.6º ~ 0.9º
Apparent field of view
32º ~ 45º
Field of view at 1000 m
28 ~ 16 m
Field of view at 1000 yards
84 ~ 48 ft.
Exit pupil
3.2 ~ 1.3 mm
Eye relief
22 ~ 17 mm
Relative brightness
10.2 ~ 1.7
Focusing range
About 12 m to infinity
Eyepiece ring
About 39.4 ft. to infinity
Body colour
Black
Dimensions
328 mm (W) x 100 mm (H) x 98 mm (D) 12.9 inches x 3.9 inches x 3.8 inches
