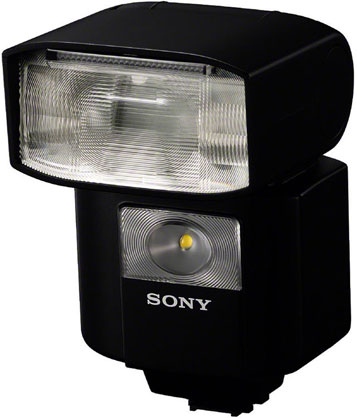

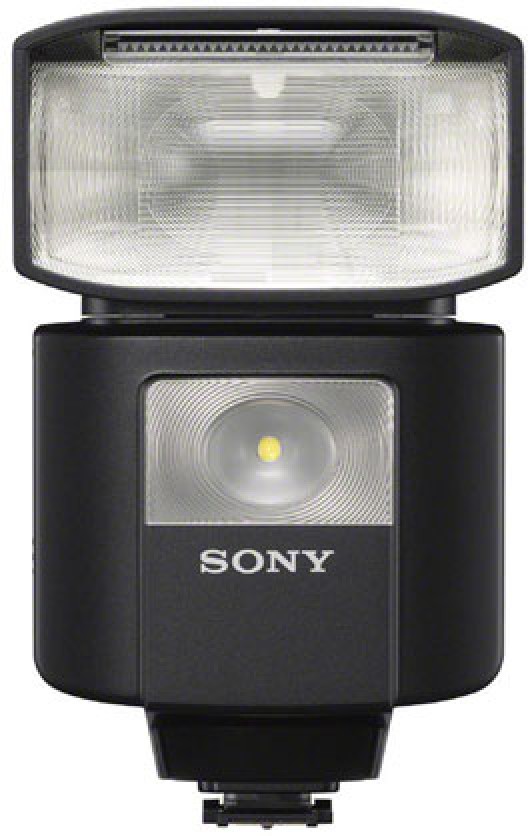

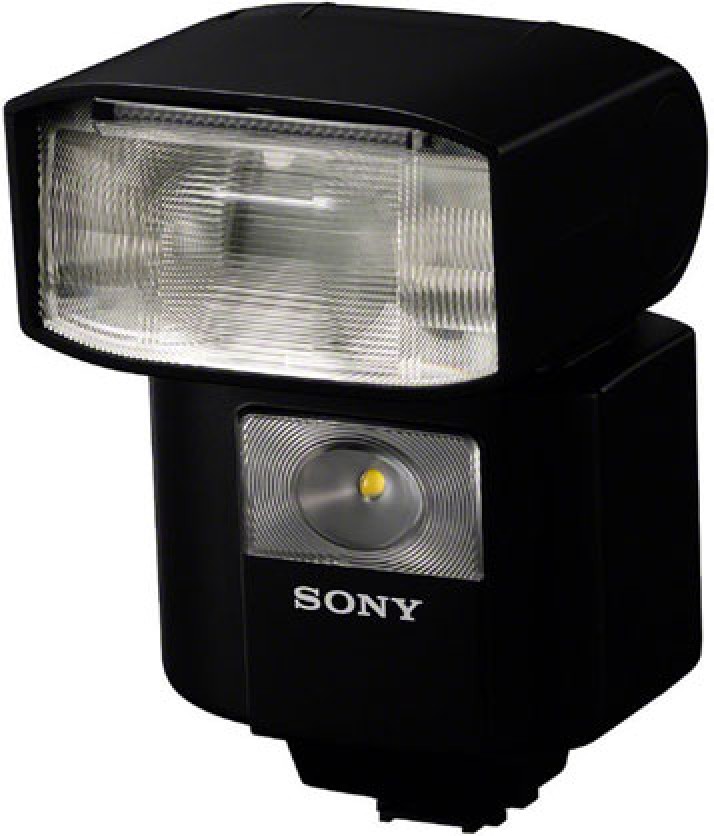

Sony HVLF45RM Quick shift bounce Flash

Features

• 2.4 GHz Radio Transceiver with 98' Range
• Compatible with Sony ADI / P-TTL
• Guide Number: 148' at ISO 100 and 105mm
• Zoom Range: 24-105mm (15mm with Panel)
• Tilts from -8 to 150°
• Rotates Left & Right 180°
• Radio or Optical TTL Commander or Remote
• LED Light with 400 lux Output at 1.6'
• Flash Distribution and Memory Settings
• Dust- & Moisture-Resistant Construction

Portable Lighting Setups

Equipped with a built-in 2.4 GHz radio transceiver, the HVL-F45RM Wireless Radio Flash from Sony will help users quickly create portable lighting setups with complete support for P-TTL / ADI metering. This flash can be set as a commander or a remote that fully supports Sony's existing radio commanders and receivers, including ratio control, the ability to work with up to 15 flashes in five groups, and access to 14 channels. The flash works within Sony's optical wireless flash system as well, where it is also able to operate as either a commander or remote unit.

Improvements and Features

Improving upon the previous model, the HVL-F45RM reduces size and weight by over 10% while improving the guide number to 148' at ISO 100 and 105mm and improving the recycle time to 2.5 seconds. Full bounce capabilities are available as well with tilt from -8 to 150° and a total of 360° of rotation. Also, it has a zoom head of 24-105mm which can be expanded to 15mm with a pull-out diffusion panel alongside an LED light useful for video. The flash offers vastly improved controls via the rear LCD, including customizable buttons and flash distribution and memory settings. Additionally, the flash has a dust- and moisture-resistant construction.

Radio Wireless System

Equipped with a 2.4 GHz radio transceiver, the HVL-F45RM is able to operate as either a radio commander or remote as part of Sony's radio wireless system, including the FA-WRC1M Wireless Radio Commander and FA-WRR1 Wireless Radio Receiver. This system has an operating range of 98' and does not require line-of-sight. Also, it will support up to 15 flashes in five groups on one of 14 channels. Additionally, it has full support for Sony's P-TTL / ADI metering system, including high-speed sync and ratio control.

Compatible Cameras

• a7 II
• a7R II
• a7S II
• a99 II
• a6500

Advanced Features

Advance Distance Integration (ADI) flash metering works with cameras and lenses with distance encoders to more accurately balance flash output with ambient light and subject reflectivity by taking camera-to-subject distance into account

Support for optical wireless TTL in both commander or remote modes with up to three groups in one of four channels.

Compared to its predecessor, the HVL-F45RM has a reduction in size and weight of greater than 10%, making it ideal for use on smaller camera bodies, such as the mirrorless a7 series.

• Guide number of 148' at ISO 100 and 105mm with the ability to produce approximately 210 full-power flashes on a single set of batteries.
• The flash is equipped with an 5500K LED light with an output of 400 lux at 1.6' / 0.5m and 10 power levels. It has coverage for 35mm lenses and will illuminate subjects approximately 3.3' / 1m away when set to ISO 3200 and f/5.6 during movie shooting. Additionally, it will run for about 4 hours on a fully charged set of batteries.

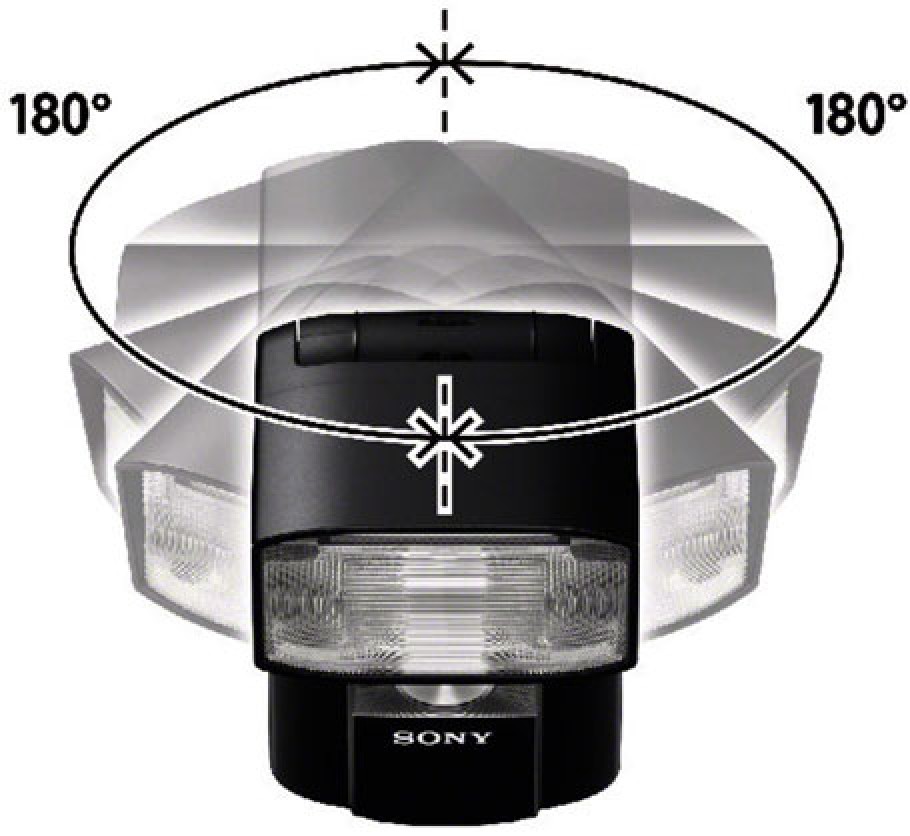

• Flash head offers -8 to 150° of tilt along with a total of 360° of rotation for full bounce flash capabilities.

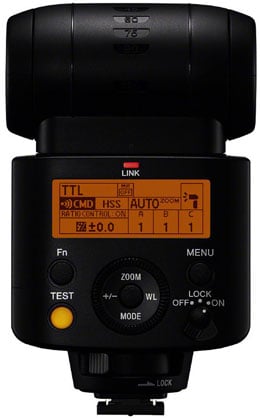

• Offers a high-visibility dot-matrix LCD and tab-structure menu. Also, the main Quick Navi control interface provides more direct control over commonly accessed settings. Additionally, the main keys can be reprogrammed to rapidly access specific settings.
• Can fire continuously for up to 40 flashes at a rate of 10 flashes per second.
• Slow, high-speed, 1st and 2nd curtain sync is supported on cameras with TTL communication.
• Zoom head of 24-105mm as well as a pull-out diffusion panel which covers 15mm.
• Flash distribution settings of standard, center (guide number priority), and even (wide angle priority) will adjust how the flash affects the scene or subject.
• Two memory settings are available for near instant recall of different setups.
• Manual flash control from 1/1 to 1/128 power in 1/3 or 1/2 EV steps.
• Recycle time of 0.1-2.5 seconds.
• Pull-out bounce card.
• Micro-USB port can be used for firmware updates.
• Compatible with Sony Multi Interface Shoe.
• Dust and moisture-resistant construction for operating in less-than-ideal environments.

Specifications

Mount

Shoe

Guide No.

147.64' (45 m) ISO100 at 105 mm position

Exposure Control

ADI / P-TTL, Manual

Vari-Power

1/1 - 1/128

Bounce Head

-8° to +150°

Swivel Head

360°

Coverage

15 mm - 105 mm (Full frame)

Zoom Head

Full frame: 24 mm - 105 mm

Recycle Time

Approximately 0.1 - 2.5 seconds

Flash Duration

0.0017 sec @ Full Power

Flash-Ready Indicator

Yes

Compensation

-3 EV to +3 EV (in 1/3 and 1/2 EV steps)

Wireless Operation

Method: RF

Distance

Up to 98.43' / 30 m

Method

Optical pulse

Distance

Up to 16.40' / 5 m

Wireless Communication Channels

14 Channels

Wireless Groups

5 Groups

Power Source

4x AA Alkaline, Rechargeable NiMH Batteries

Dimensions (WxHxD)

2.7 x 4.5 x 3.5" / 69.4 x 113.7 x 88.3 mm

Weight

11.182 oz / 317 g

Packaging Info

Package Weight

1.25 lb

Box Dimensions (LxWxH)

6.9 x 5.4 x 4.5"
