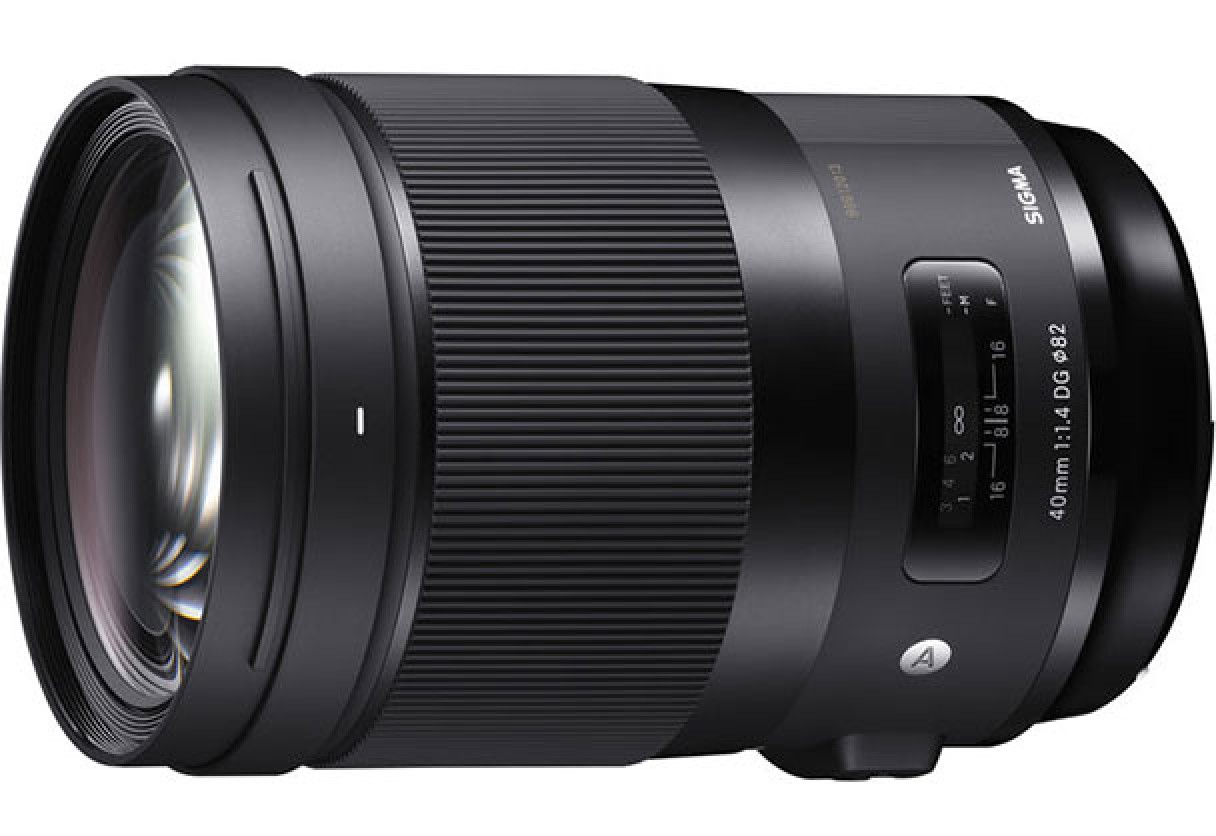

Sigma 40mm f/1.4 DG HSM Art Lens for Sony E mount FF

Features

• E-Mount Lens/Full-Frame Format
• Aperture Range: f/1.4 to f/16
• Three FLD Elements, Three SLD Elements
• One Aspherical Element
• Super Multi-Layer Coating
• Hyper Sonic AF Motor, Manual Override
• Weather-Sealed, Protective Front Coating
• Rounded 9-Blade Diaphragm

Design and Optical Features

Designed within the rigorous tolerances of a cine lens, the Sony E-mount Sigma 40mm f/1.4 DG HSM Art Lens is a wide normal-length lens characterized by a bright design and sophisticated optical layout. The fast f/1.4 maximum aperture helps to achieve shallow depth of field and selective focus effects, and also suits working in difficult lighting conditions. The optical design incorporates a series of low dispersion and aspherical elements, which help to improve sharpness and clarity by controlling both spherical and chromatic aberrations. A Super Multi-Layer Coating is also featured, and helps to minimize flare and ghosting for greater contrast and color accuracy when working in strong lighting conditions.

Autofocus and Build

Complementing the imaging capabilities, the lens sports a Hyper Sonic Motor to produce quick, smooth, and quiet autofocus performance with full-time manual focus override. The physical design features a brass bayonet mount, which offers rigidity and mounting precision along with a seal to guard against dust and moisture. Additionally, a rounded nine-blade diaphragm contributes to a pleasing bokeh quality.

Art Line and Compatibility

As part of the Art line within Sigma's Global Vision series, this lens is designed to achieve truly notable optical performance and is ideally suited for creative and artistic applications.

Short-normal prime is designed for full-frame Sony E-mount mirrorless cameras, however is also suitable for APS-C models where it provides a 60mm equivalent focal length.

Key Features

• Impressively bright f/1.4 maximum aperture is well-suited for working in low-light conditions and also provides greater control over the focus position when using shallow depth of field techniques.
• Three F Low Dispersion (FLD) and three Special Low Dispersion (SLD) elements are featured in the optical design, and help to reduce color fringing and chromatic aberrations for improved clarity and color accuracy.
• One aspherical element is used to help limit distortion and spherical aberrations and also contributes to greater overall sharpness and accurate rendering.
• A Super Multi-Layer Coating has been applied to lens elements in order to minimize lens flare and ghosting and contribute to producing contrast-rich and color-neutral imagery, even in backlit conditions.
• Rounded nine-blade diaphragm contributes to a smooth and pleasing bokeh quality.
• The integrated HSM (Hyper Sonic Motor) realizes quick and quiet autofocusing, which is further complemented by an optimized AF algorithm to produce smoother focusing performance. The HSM also permits full-time manual focus control simply by rotating the focus ring at any time.
• Specialized electromagnetic aperture mechanism provides greater exposure control stability that is especially beneficial when working with fast continuous shooting rates.
• The bayonet mount is constructed from brass for ensured accuracy and durability. Additionally, rubber sealing is incorporated in the mount design to render it dust- and splash-resistant.
• Protective coating has been applied to the front element and is both water and oil-repellent to aid in cleaning.

Specifications

Focal Length

40mm

Aperture

Maximum: f/1.4
Minimum: f/16

Camera Mount Type

Sony E

Format Compatibility

35mm Film / Full-Frame Digital Sensor

Angle of View

56.8°

Minimum Focus Distance

1.31' / 40 cm

Magnification

0.153x

Maximum Reproduction Ratio

1:6.5

Optical Design

16 Elements in 12 Groups

Diaphragm Blades

9, Rounded

Features

Image Stabilization

None

Autofocus

Yes

Physical

Filter Thread

Front: 82 mm

Dimensions (DxL)

3.46 x 5.16" / 87.8 x 131 mm

Weight

2.65 lb / 1.2 kg
