SmallRig Mini V-Lock Battery Plate with Claw-Shaped Clamp 2989

Features

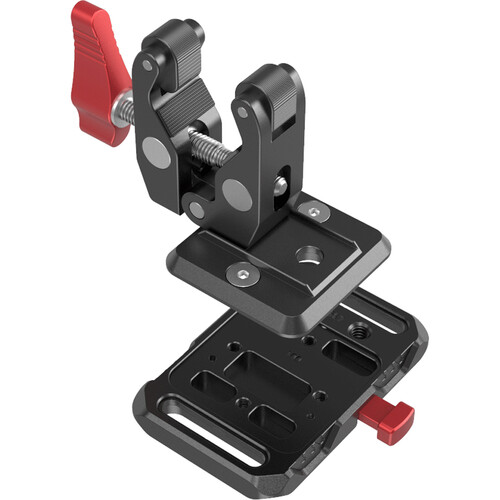

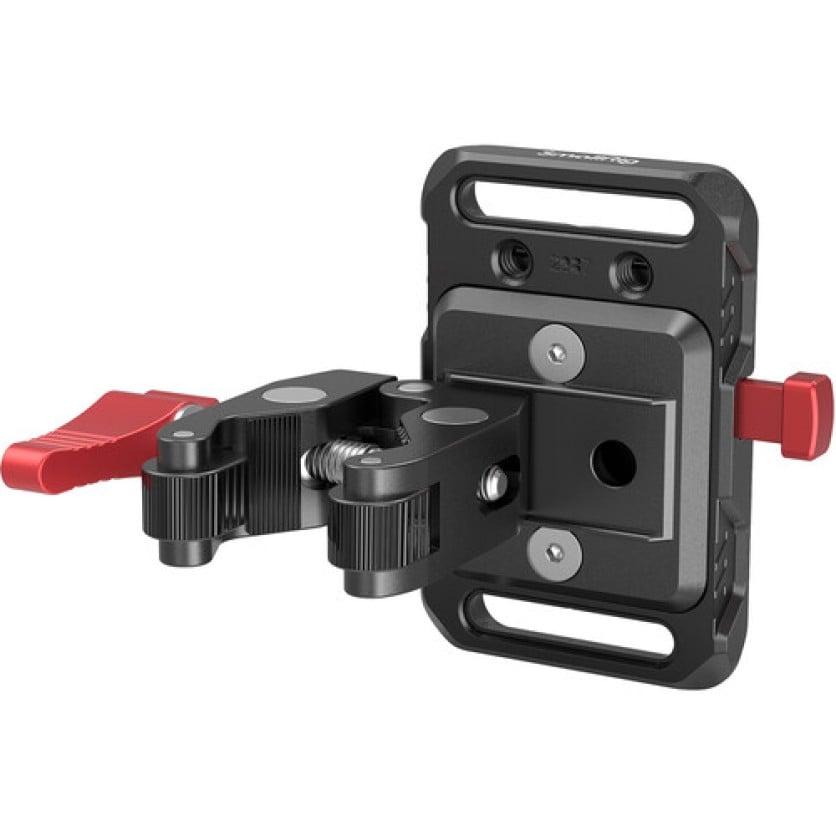

Mount a V-mount battery onto your rig with this Mini V-Lock Battery Plate with Claw-Shaped Clamp from SmallRig. The mount features a V-lock mount with a quick release lever that fits most V-mount batteries, and a claw-shaped clamp that mounts onto a rod, tube, or surface measuring 0.6 to 1.2" wide.

Mount Features

The mount features two 1/4"-20 countersunk holes, two 1/4"-20 threads, and four M4 threads to mount a variety of gear such as clamps, rod mounts, extension arms, or other accessories and mounting gear. It is constructed with durable aluminum and weighs only 2.2 oz. The mount has no electronics and is meant to mount a battery that has its own power outputs to power your gear.

Note:

This is a V-lock plate with no electronics for mounting a V-mount battery with power outputs on a rig.

Compatibility

• Fits most V-mount batteries (however, it does not fit PAGlink series V-mount batteries or the Patona Premium Battery for BP-190WS)

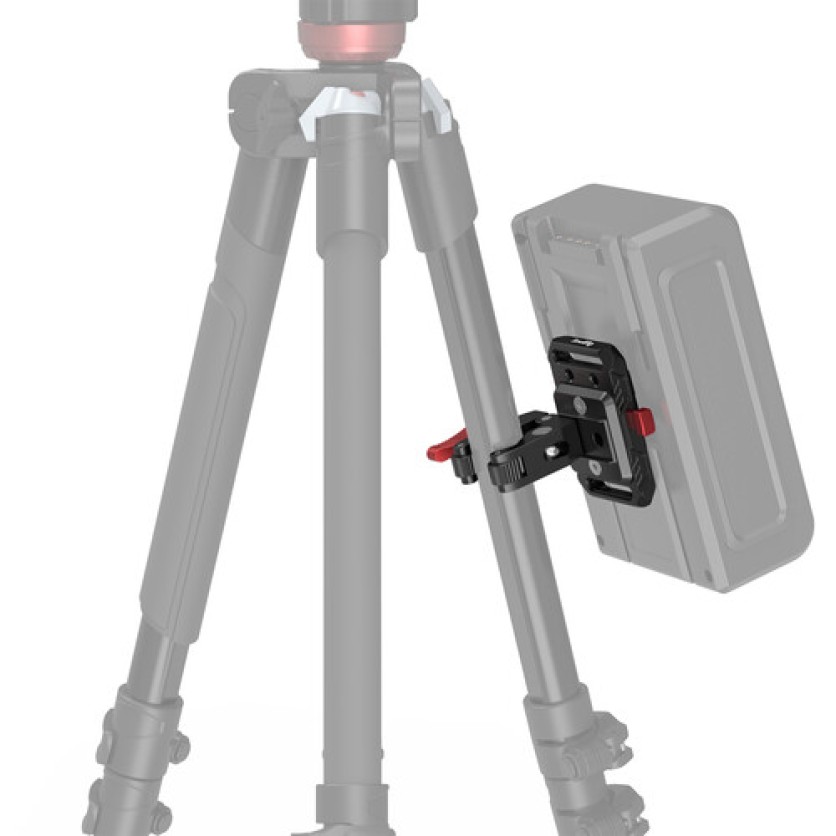

• Clamp mounts onto a rod, tube, or surface measuring 0.6 to 1.2" wide
• There are no electronics on the plate

Specifications

General

Camera Power Method

Connector

Plate Rear Mount

V-Lock

Specifications

Number of Battery Bays

1

Accessory Mounting

1/4"-20 Female, M4 Female

Material of Construction

Aluminum

Dimensions

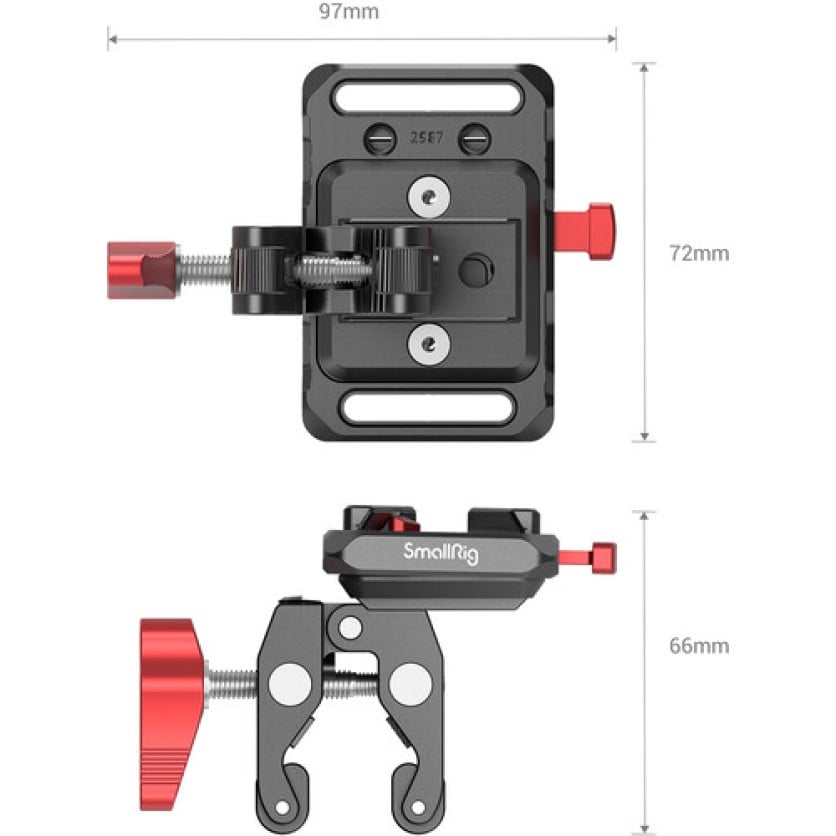

3.8 x 2.8 x 2.6" / 97 x 72 x 65 mm

Weight

5.3 oz / 150 g
