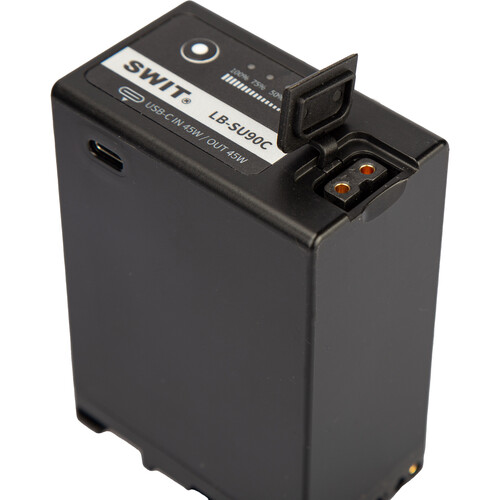

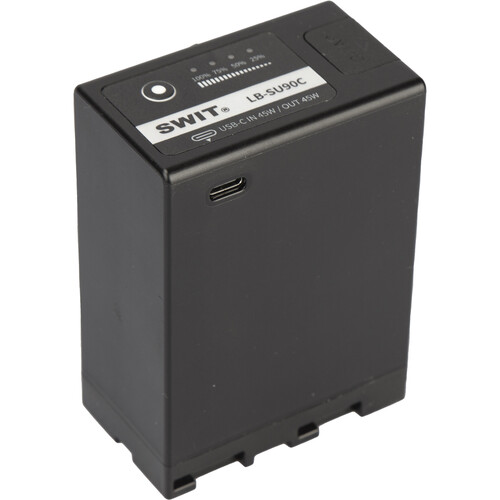

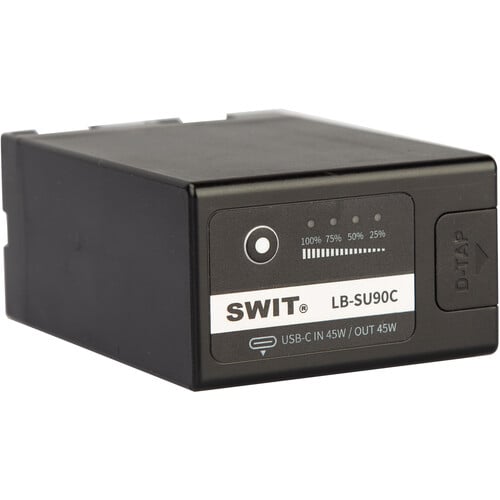

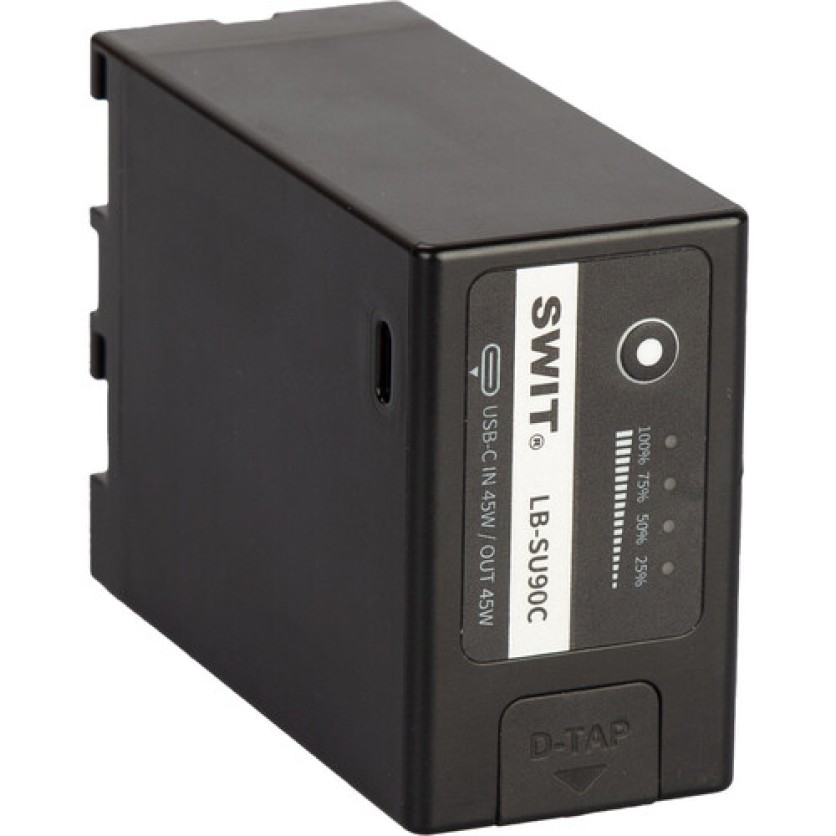

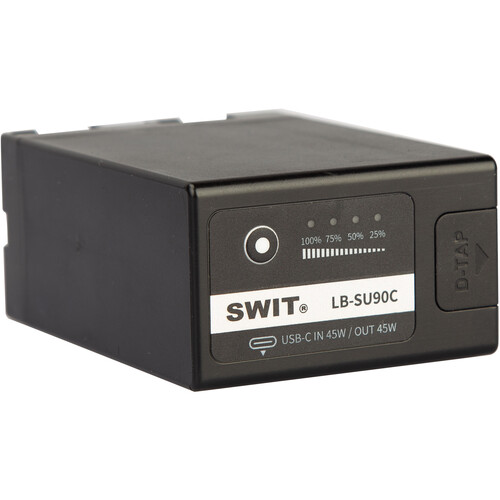

SWIT 90Wh/14.4V Sony BP-U Series Battery with D-Tap and USB-C I/O

Features

The 90Wh/14.4V Sony BP-U Series Battery with D-Tap and USB-C I/O from SWIT is a lithium-ion BP-U battery comparable with gear that uses the Sony BP-U30 BP-U60, or the BP-U100 batteries such as Sony cameras such as the PXW-FS5/FS7, PXW-FX6/FX9, PXW-Z280, and PXW-X280.

The battery features a 14.4V D-Tap input/output

that can be used to charge the battery using an optional D-Tap charger. It also features 45W USB-C input/output that can charge the battery using an optional 45W charger. Other features include a 4-LED status gauge, internal circuit protection, and a maximum 70W/6A draw.

NOTE: This battery is not compatible with the original Sony battery charger and requires a SWIT charger, D-Tap charger, or USB-C charger.

Compatibility

• Cameras that use Sony BP-U30, BP-U60, or BP-U100 batteries such as the PXW-FS5, PXW-FS7, FX6, FX9, PXW-Z280, and PXW-X280
• SWIT Dual charger S-3602U
• SWIT Quad charger LC-D421U
• SWIT D-Tap charger PC-U130B2 or other brand D-Tap charger
• USB-C charger (45W)

Specifications

Mount / Series Type

Sony BP-U Series

Chemistry

Lithium-Ion

Battery Specifications

Battery Capacity

90 Wh

Output Voltage

14.4 VDC

Maximum Load

70 W, 6 A (Peak)

Accessory I/O

1x D-Tap / P-Tap Input/Output

14.4 VDC, 50 W, 4 A Regulated

1x USB-C Input/Output

45 W; 5/9/12/15/20 VDC, 2.25 A Regulated

Maximum Load (Accessory I/O)

70 W, 6 A (D-Tap)

USB Output

20 V, 2.25 A

15 V, 2.25 A

12 V, 2.25 A

9 V, 2.25 A

5 V, 2.25 A

Temperature

Charging Temperature

32 to 104°F / 0 to 40°C

Discharging Temperature

-4 to 122°F / -20 to 50°C

Dimensions & Weight

Dimensions (W x H x D)

2.8 x 3.8 x 1.7" / 70 x 96 x 42 mm

Weight

16.3 oz / 462 g
