SmallRig Advanced V-Mount Battery Plate Kit Mounting System 4063B

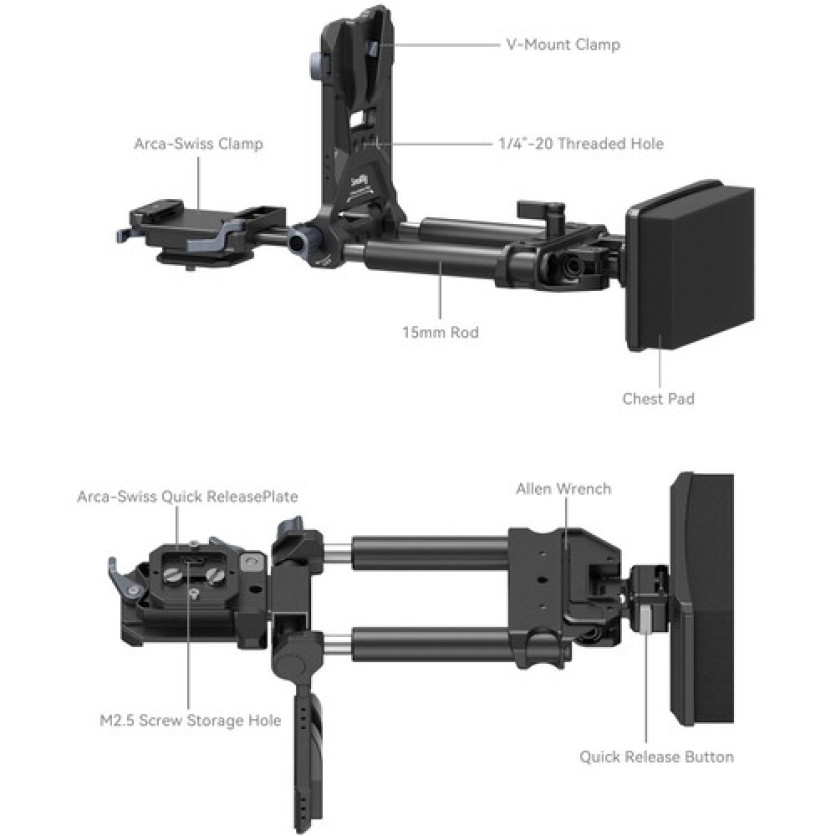

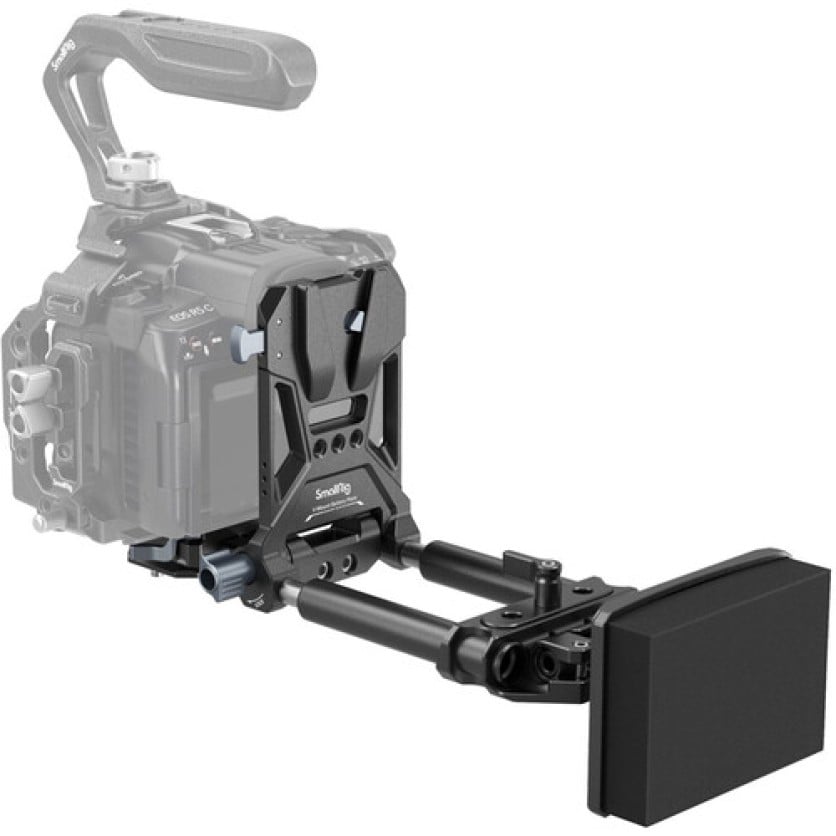

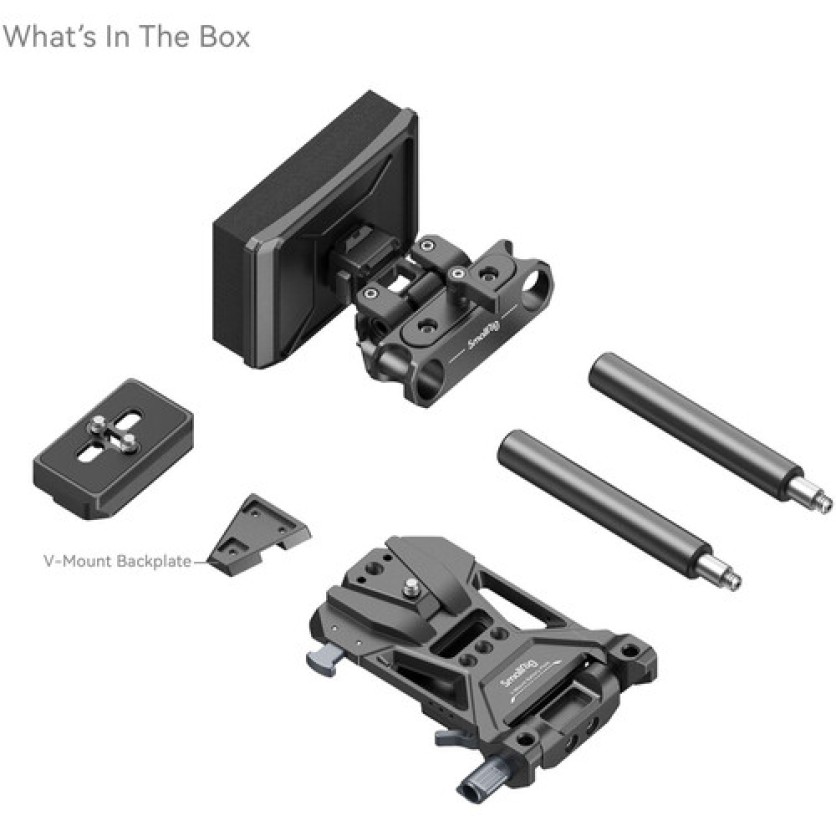

Add a V-mount battery or a power solution of your choice to your camera rig with SmallRig's Advanced V-Mount Battery Mounting System, which includes a V-mount battery plate, an Arca-type quick release plate to easily mount your camera, two 15mm rods that attach to the chest pad for handheld shots, a V-lock accessory wedge, and a replacement V-mount backplate.

The modular design of the baseplate features two 1/4"-20 and one 3/8"-16 thread to mount a quick release plate of your choice. The included Arca-type quick release plate is compatible with DJI RS-series gimbals, and multiple 1/4 "-20 threads on the battery plate allow you to mount accessories or power solutions apart from a V-mount battery, such as an NP-F battery plate or a battery bank holder. In tandem with the V-lock accessory wedge, you can attach any power solution to your camera rig quickly via V-mount.

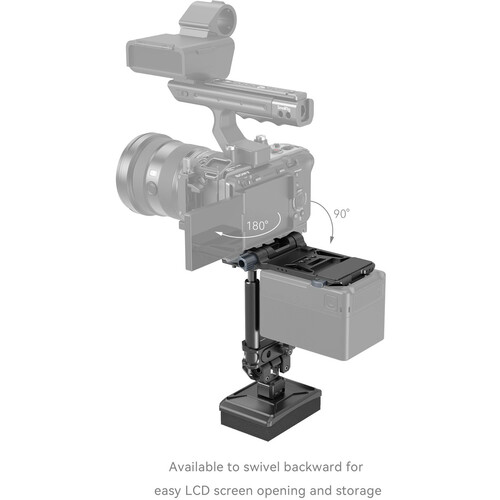

The versatility continues with a dampened battery plate that can rotate 90°, allowing for an unobstructed view of your camera's viewfinder and enough room for articulating screens. The adjustable baseplate can extend 1.44" to fit cameras up to 4.37" in depth, and the shortened 4.13" 15mm rods, in combination with a larger chest pad, increase stability and reduce fatigue for prolonged handheld shots. The chest pad mount integrates an Allen key on the bottom and features a quick release button to adjust the configuration easily.

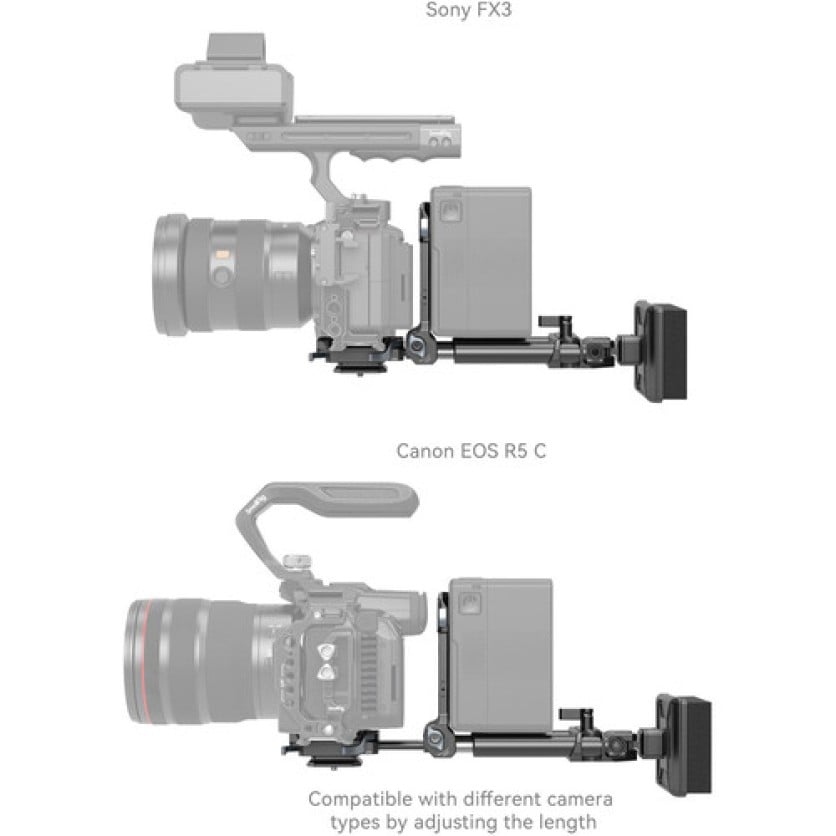

Compatible Cameras and Gimbals

Compatible with mirrorless and DSLR cameras less than 4.37" in depth, such as:

Sony a7R V, a7 IV, a7S III, a7C, FX3, FX30

Canon EOS R, RP, R5, R5 C, R6, R6 Mark II, R7, R10

Panasonic Lumix GH5, GH6, S1, S1H, S1R, S5, S5 II

DJI RS-series gimbals

• General
• Compatibility
• Sony a7C / a7S III / a7 IV / a7R V / FX3 / FX30
• Canon EOS R5C / EOS R5 / EOS R6 / EOS R6 Mark II / EOS R7 / EOS R10 / EOS R / EOS RP
• Panasonic LUMIX GH5 / LUMIX GH6 / LUMIX S1H / LUMIX S1R / LUMIX S1 / LUMIX S5 / LUMIX S5 II
• DJI RS Series Gimbals
• Physical
• Mounting
• 2x 15mm Rod
• 1x V-Mount Battery Plate
• 1x V-Lock Accessory Wedge
• 1x V-Mount Battery Wedge
• 1x Arca-Swiss
• 1x 3/8"-16 Thread
• Multiple 1/4"-20 Threads
• Load Capacity
• 11 lb / 5 kg
• Color
• Black
• Material of Construction
• Aluminum Alloy, Stainless Steel, EPDM
• Environmental Resistance
• No

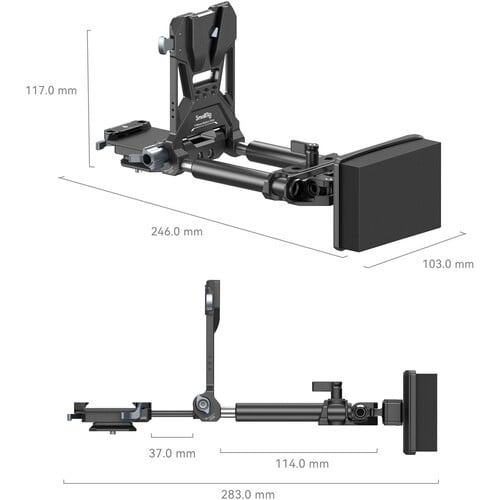

• Dimensions
• 9.7 x 5.5 x 3.7" / 245.5 x 140 x 95 mm
• Weight
• 16.8 oz / 475 g
