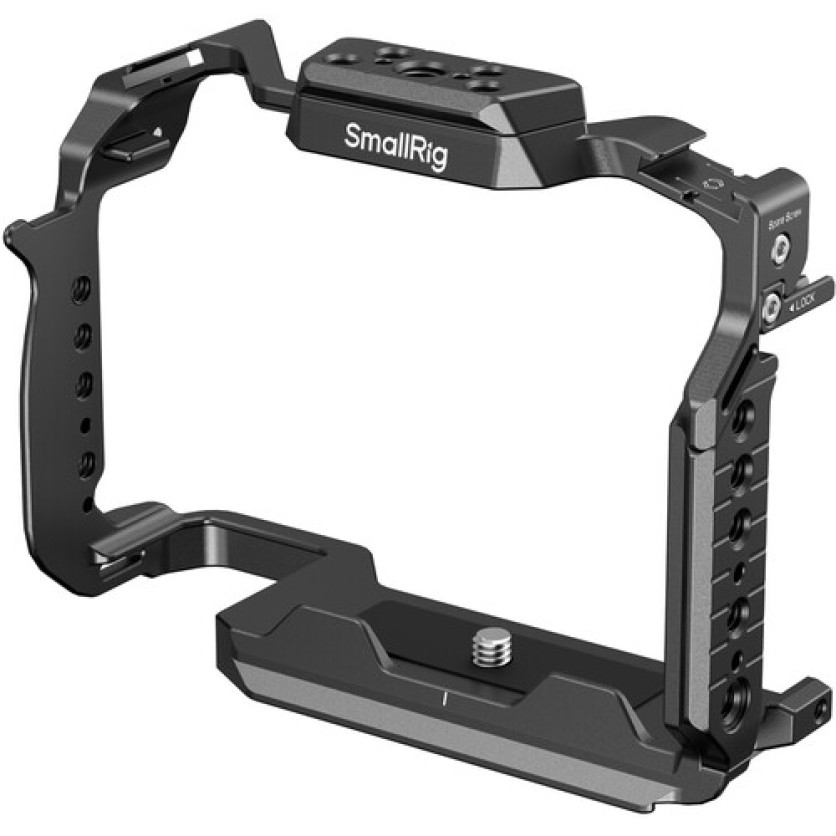

SmallRig Camera Cage for Panasonic LUMIX S1R II, S5 II, S5 IIX and G9 II 4902
In Stock
This camera cage enhances your Panasonic LUMIX mirrorless camera by providing a protective, secure structure for mounting a wide range of accessories. Its design includes multiple threads, NATO rails, and cold shoe mounts, allowing for extensive expandability. The Arca-type quick release base enables quick transitions between tripod, gimbal, or shoulder rig. Made from lightweight, durable aluminum, it ensures comfortable, all-day shooting while maintaining secure, anti-twist camera connections.
Features
Expand the capabilities of your Panasonic LUMIX mirrorless camera with the Camera Cage from SmallRig. Designed to securely mount onto the camera body, it provides a protective structure to attach all kinds of accessories via its 1/4"-20 and 3/8"-16 threads, two NATO rails on top and side, and two cold shoe mounts. Its three-point locking design prevents the camera from moving or twisting inside the cage. The cage can be used with the Panasonic DMW-XLR1 and DMW-XLR2 microphone adapters, and it is compatible with the optional SmallRig Top Lift Handle.
Versatile Mounting Options
On-the-fly swaps from a tripod to a motorized gimbal or shoulder rig happen via the integrated Arca-type quick release base, and you can also utilize the quick disconnect (QD) socket as well as the 1/4"-20 and 3/8"-16 threads on the bottom. The lightweight and durable aluminum cage is designed with ergonomics in mind, enabling shoots that last all day.
Expandability
Panasonic LUMIX cameras reach their full potential when combined with an array of monitors, larger batteries, lens hoods, etc. This cage enables you to attach lots of optional gear, far more than you would otherwise be able to use with your camera (available separately). These optional items attach via the 1/4"-20 and 3/8"-16 threading, the two NATO rails, and the two cold shoe mounts, as well as the QD port and strap slots.
The cage can also be used with the Panasonic DMW-XLR1 and DMW-XLR 2 microphone adapters, and if a top handle is required, the SmallRig Top Lift Handle 3082 is compatible.
Secure Connections
The Arca-type quick release base holds your rig firmly in place when you need it but doesn't cause a delay when you need to swap camera supports. A three-point anti-twist locking method, including a built-in magnetic camera key, keeps your lens pointed straight downrange.
Complete Compatibility
- LUMIX S1R II
- LUMIX S5 II
- LUMIX S5 IIX
- LUMIX G9 II
Specifications
- Support Type
- Cage
- Grip Type
- No
- Camera Compatibility
- Panasonic DC-G9 II, Panasonic DC-S1R II, Panasonic DC-S5 II, Panasonic DC-S5 IIX
- Mounting
- Battery Plate Type
- No

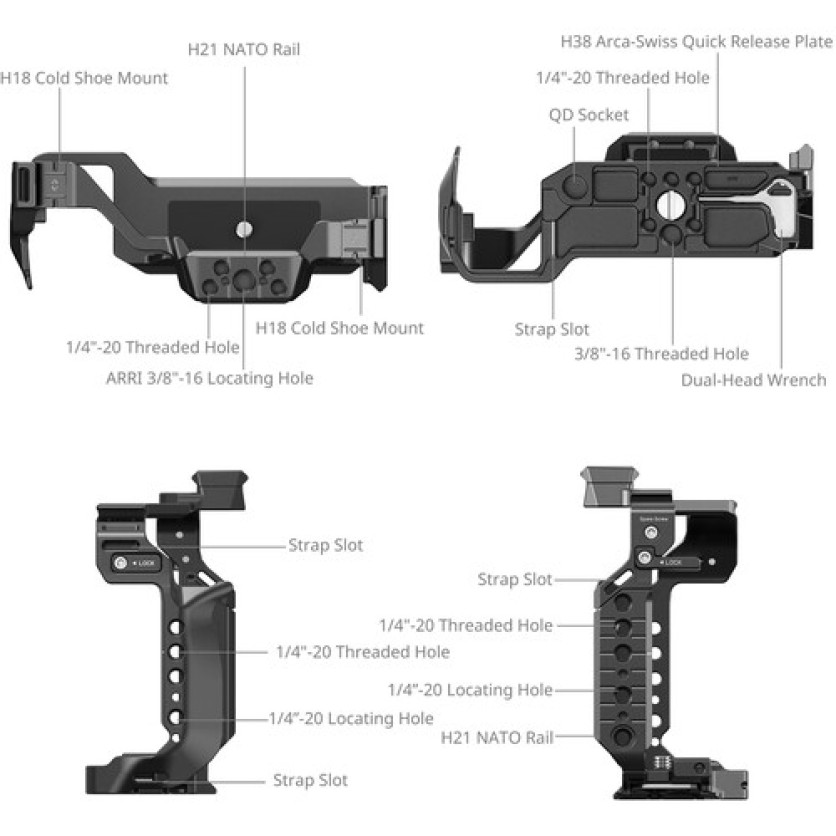

Accessory Mounting
- Top
- 4x 1/4"-20 Female Thread
1x Anti-Twist 3/8"-16 Female Thread - Sides
- 6x 1/4"-20 Female Thread
2x Anti-Twist 1/4"-20 Female Thread
Camera Mounting
- 1/4"-20 Male Screw
Tripod Mounting
- 1/4"-20 Female Thread, 3/8"-16 Female Thread, Built-In Arca-Type Plate
Shoe Mounting
- Top
- 2x Cold Shoe
- Rosettes
- No
- Rail Mounting
- 2x NATO Rail
- Cable Clamp
- No
- Materials
- Aluminum Alloy, Silicone, Stainless Steel

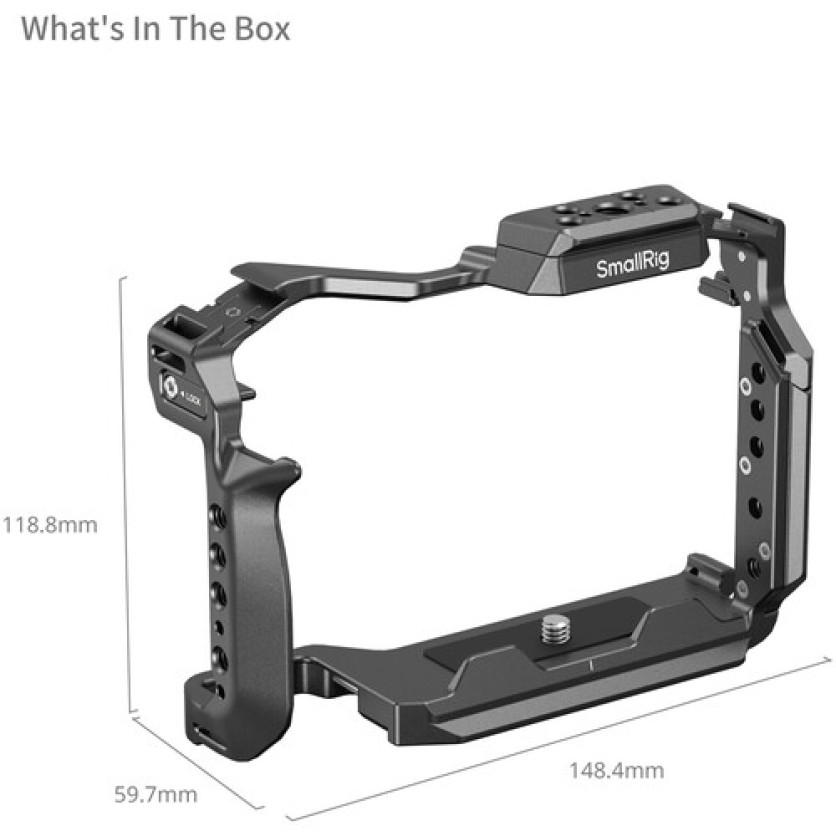

- Dimensions
- 7.3 x 4.7 x 2.4" / 184.4 x 118.8 x 59.7 mm
- Weight
- 5.8 oz / 164 g
