SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit Panasonic S5II G9II

Features

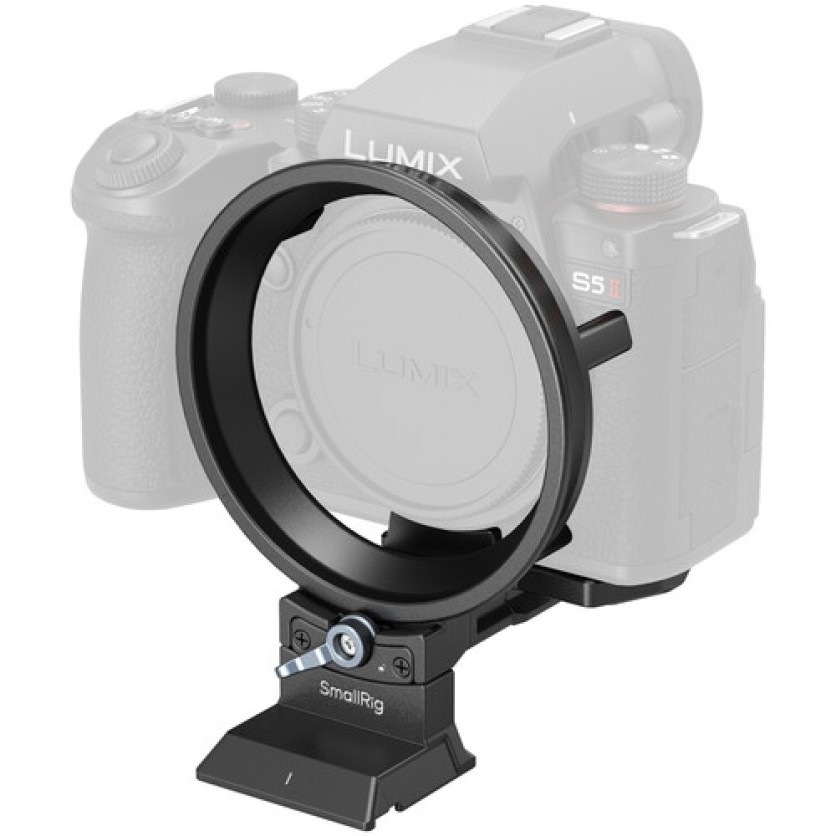

Designed for Panasonic Lumix S5 II, S5 IIX, and G9 II cameras, this Rotatable Horizontal-to-Vertical Mount Plate Kit from SmallRig quickly switches your camera between horizontal and vertical modes without adjusting the optical axis of the lens. The kit gives full access to the camera's LCD flip screen, buttons, and ports and is compatible with Arca-type and Manfrotto RC2 tripod heads, as well as DJI RS-series gimbals.

Easy Operation and Mounting Options

Operation is simple, and the lens collar mount plate rotates 90° by merely unlocking a knob to switch between horizontal and vertical shooting. It also features multiple mounting options, including a strap slot, a QD socket, and 1/4"-20 and 3/8"-16 threads.

Compatibility

• Panasonic Lumix S5 II, S5 IIX & G9 II

Specifications

Physical

Mounting

Arca-Type Plate

1x

Manfrotto RC2-Type Plate

1x

1/4"-20 Anti-Twist Thread

1x

Multiple 1/4"-20 Threads

1x

3/8"-16 Thread

1x

Strap Slot

1x

QD Port

1x

75mm Lens Mount Port

1x

Color

Black

Material of Construction

Aluminum, Stainless Steel, Silicone

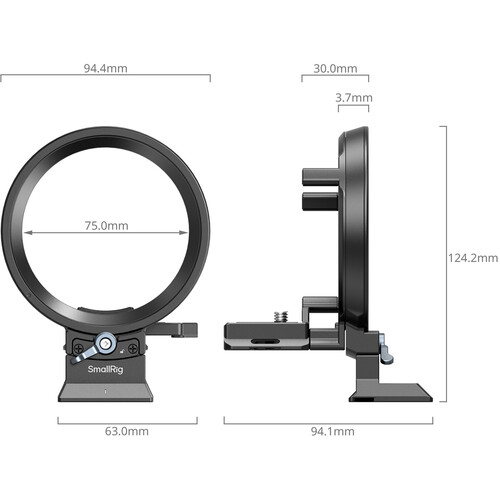

Dimensions

4.9 x 3.7 x 3.7" / 124 x 94.4 x 94.1 mm
3" / 75 mm (Diameter of Port Opening)

Weight

5.5 oz / 157 g
