SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323

SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Best Available Image
1023902_A.jpg - SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Image 1
1023902_B.jpg - SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Image 2
1023902_C.jpg - SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Image 3
1023902_D.jpg - SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Image 4
SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Thumbnail
1023902_A.jpg - SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Thumbnail 1
1023902_B.jpg - SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Thumbnail 2
1023902_C.jpg - SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Thumbnail 3
1023902_D.jpg - SmallRig V-Lock Battery Plate + 15mm LWS Base Kit for Small Cinema Cameras 4323 - Thumbnail 4
SKU: 1023902     MPN:

4323

$266.00

$231.30 excl. GST

in stock In Stock

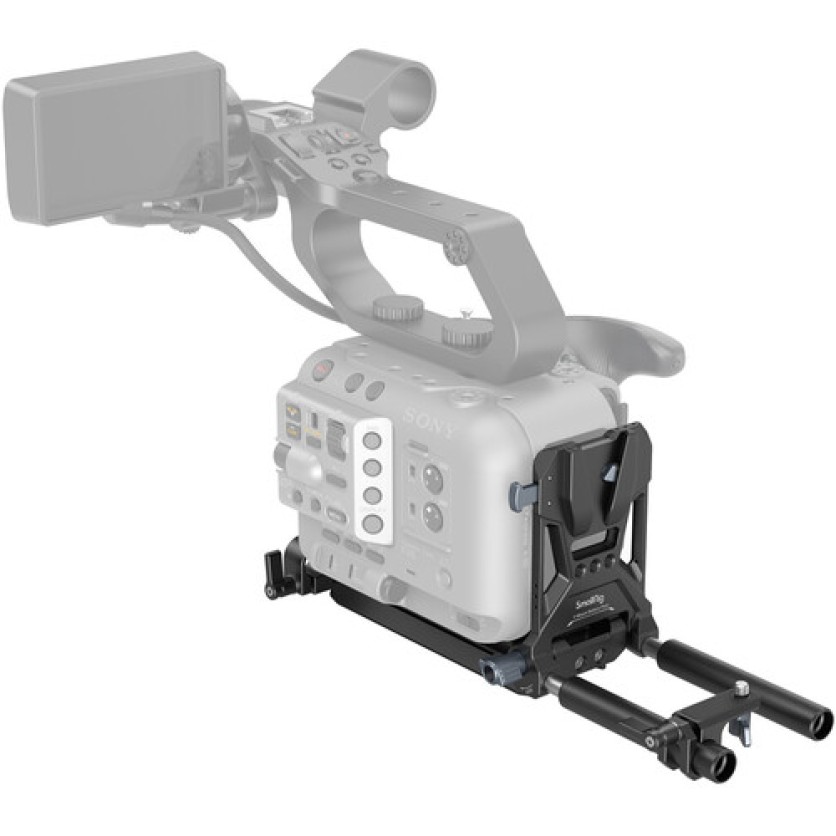

This product offers a lightweight and modular mounting solution for small cinema cameras. Its folding baseplate with a quick release allows easy switching between handheld and tripod use. The extendable baseplate provides balance adjustment, while the V-lock plate folds away for easy storage. Included rods and clamps support additional accessories, enhancing the camera rig's versatility without unnecessary bulk.

Features

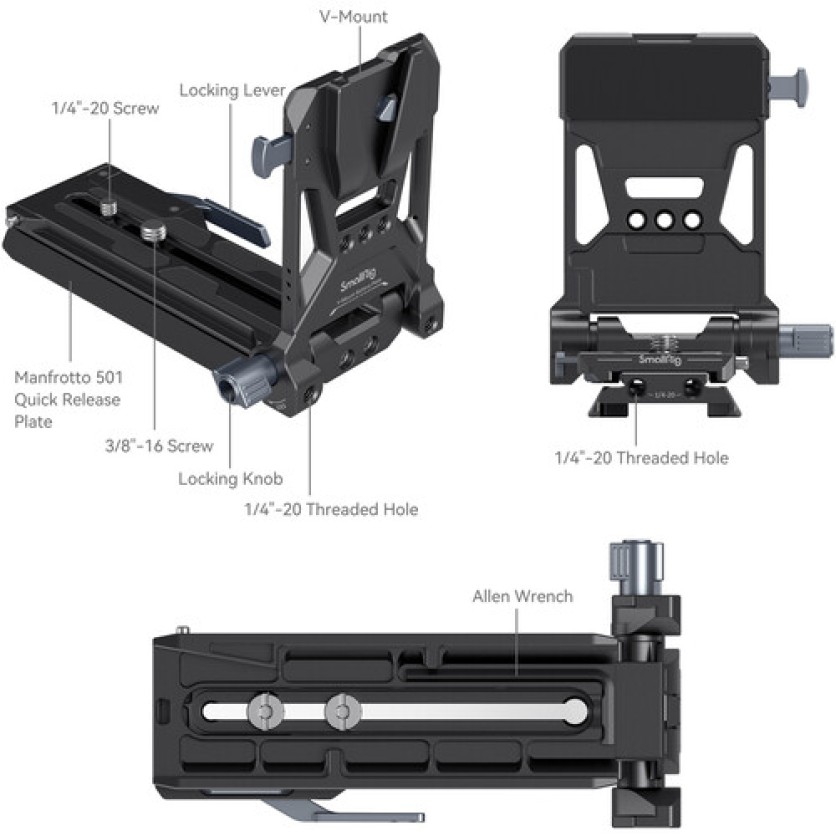

Add a lightweight mounting system to your small camera rig with this V-Lock Battery Plate with 15mm LWS Base Kit from SmallRig. This kit features a folding baseplate with a Manfrotto 501-type quick release plate on the base and a V-lock plate on the back that can fold down 180° to fold out of the way of the camera rear.

The V-lock Plate Design

The V-lock plate is designed for V-mount batteries with power outputs to mount onto the back of the camera but contains no electronics. The baseplate is extendable, allowing the camera to slide up to 3.9" for more space or to add counterbalance for cameras with larger lenses. Also included is a 15mm LWS rod clamp for the front, and the two included 4" 15mm rods screw onto the back of the baseplate for additional mounting of optional pads or counterweights. A wireless device mount is also included that mounts onto a 15mm rod that provides a 1/4"-20 screw.

Key Features

  • All-in-one design with V-mount battery mounting solution (there are no electronic contacts on the V-lock plate).
  • Lightweight, modular folding baseplate design.

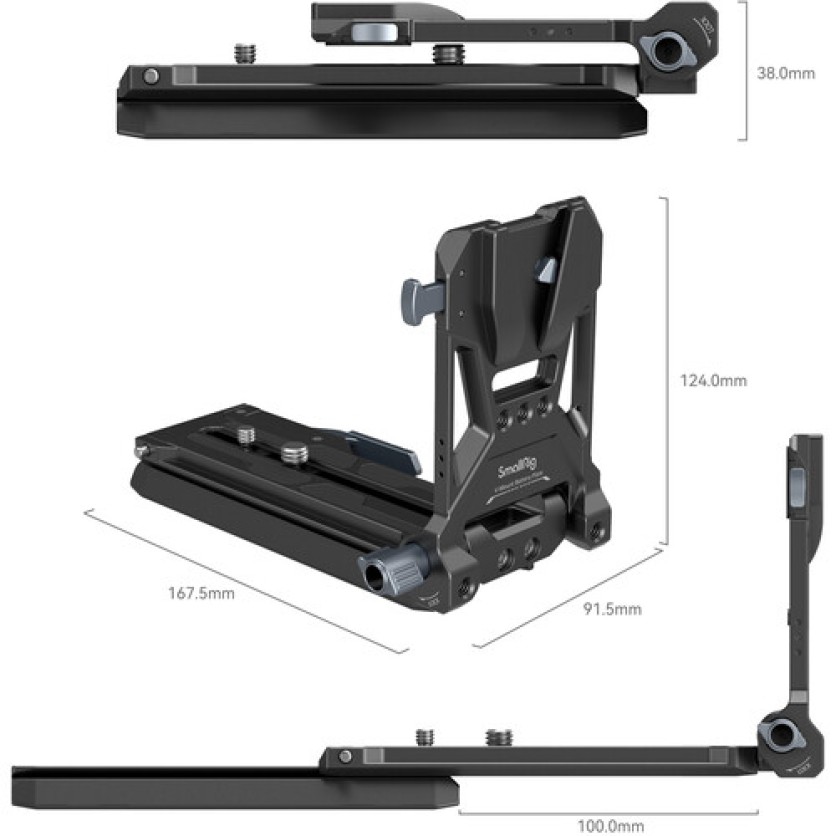

  • The base features a 3.9" sliding range to adjust the center of gravity.

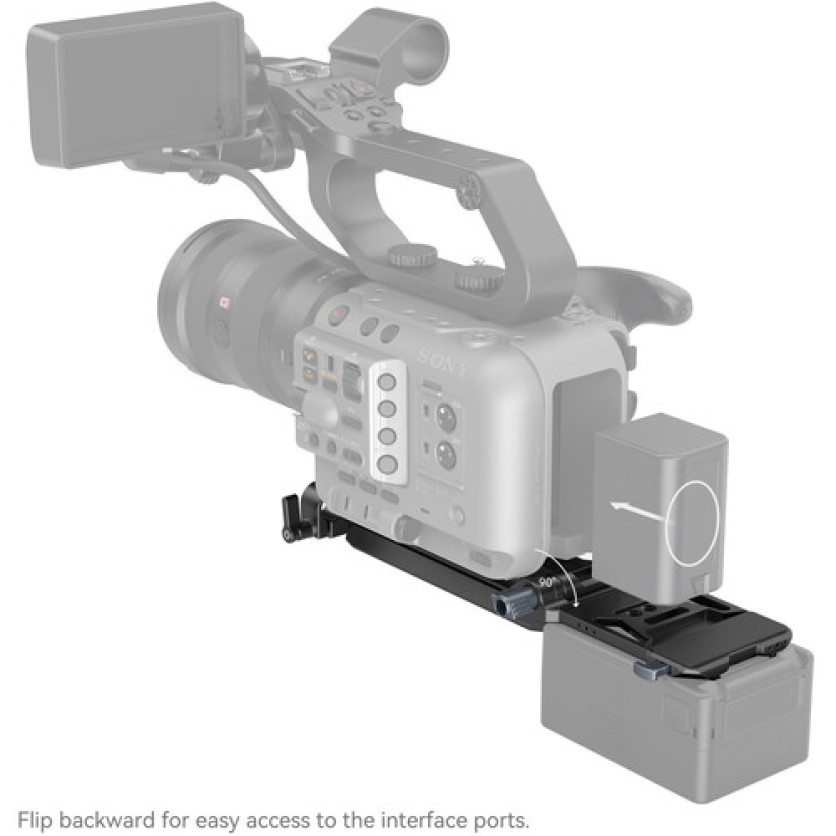

  • The V-lock plate folds down 180° for easy storage and to use the camera's rear plate.
  • Built-in Manfrotto 501-type quick release plate at the bottom for quick switching between handheld and tripod.

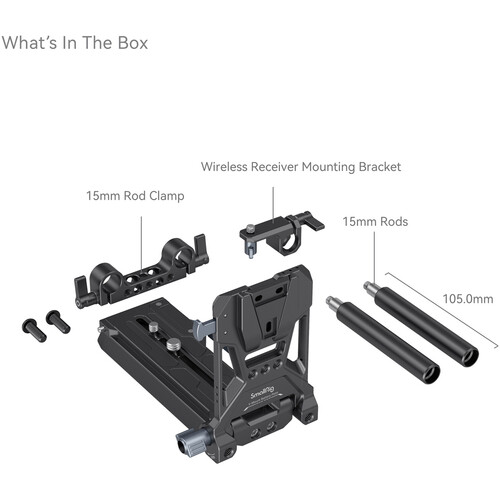

  • Includes a 15mm rod clamp, 4" 15mm rods, and a wireless device mounting bracket, which provide mounting for an optional follow focus, matte box, lens support, shoulder pad, and other accessories.

Specifications

Support Type
Baseplate
Configuration
Battery Mounting Plate
Grip Type
No
Camera Compatibility
Universal
Width
4.7" / 12 cm
Mounting
Rod Standard
15 mm LWS / 60 mm Spacing
Included Rods
2x 4.1" / 10.5 cm 15 mm Aluminum Rod
• M12 Male Screw
Battery Plate Type
No
Accessory Mounting
Rod Block, Front
2x 1/4"-20 Male Screw
Camera Mounting
Manfrotto 501 Plate with 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting
Baseplate
Manfrotto 501
Rod Ports
Rod Blocks
2x 15 mm Rod Port
Shoe Mounting
No
Rosettes
No
Cable Clamp
No
