JJC Camera Semiconductor Cooling System

Features

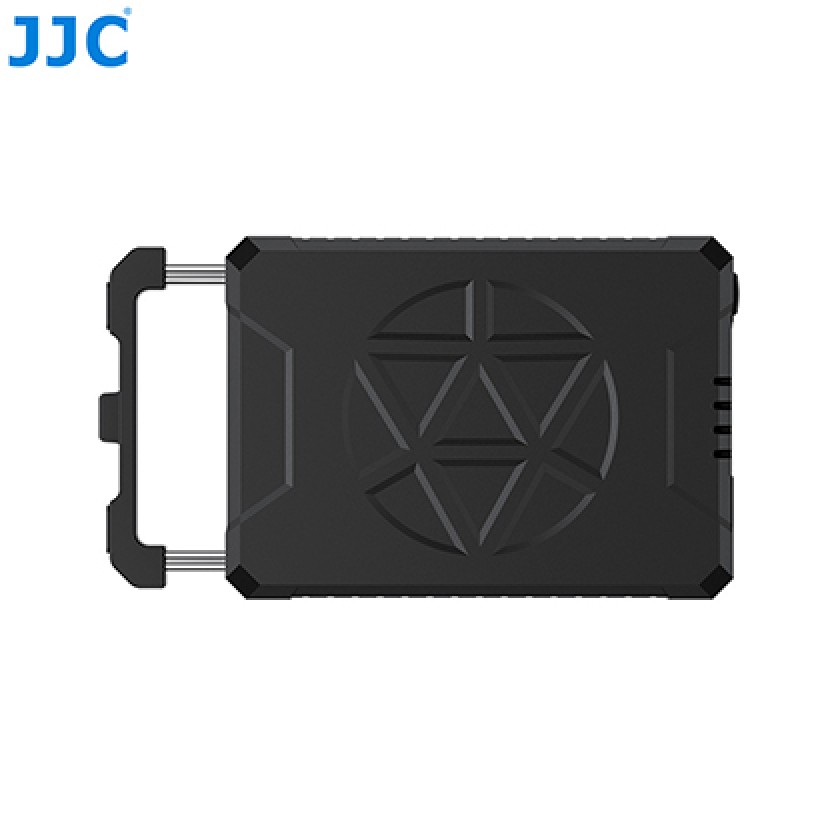

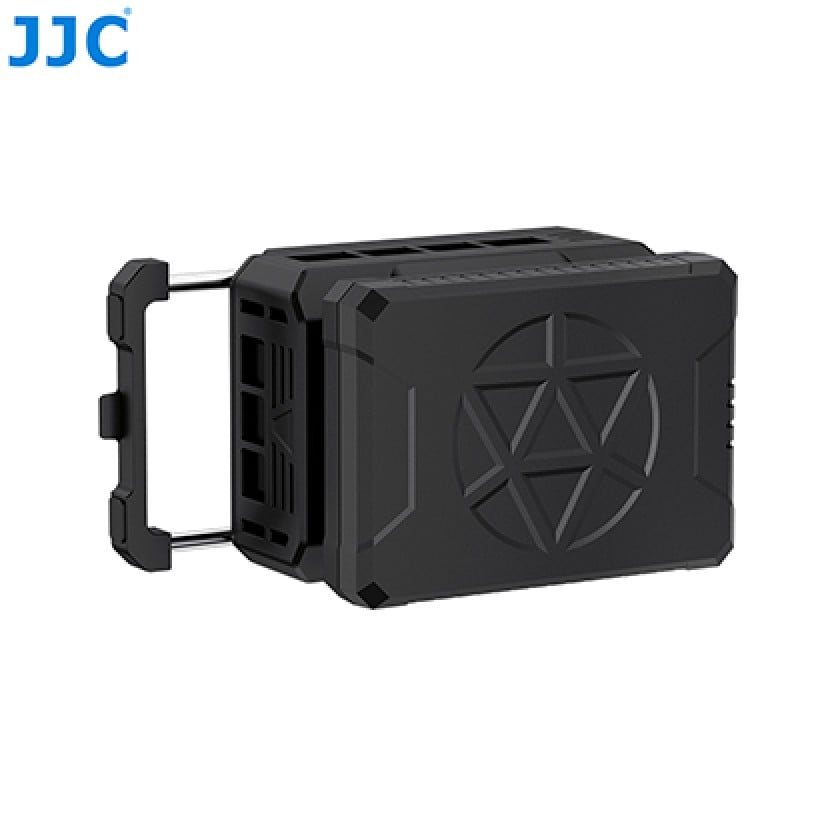

JJC CCS-UN1 Camera Semiconductor Cooling System

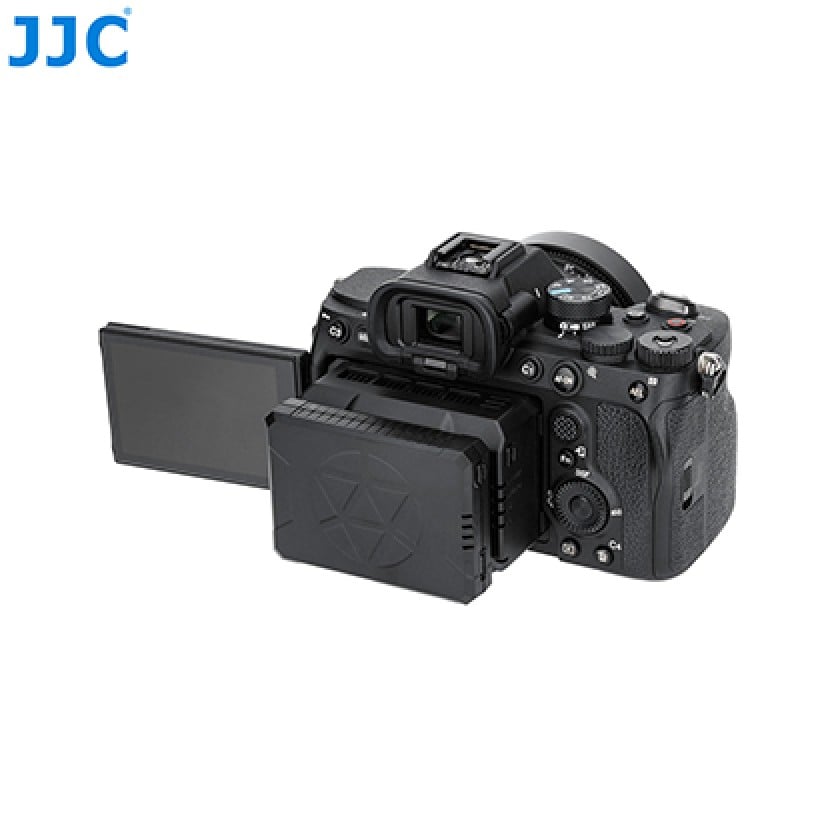

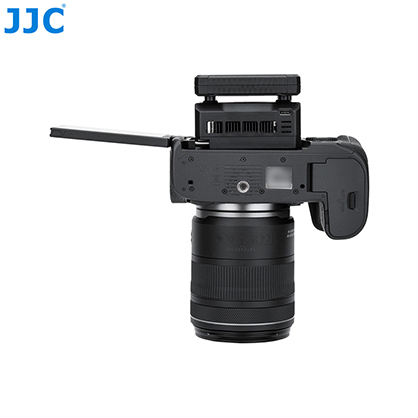

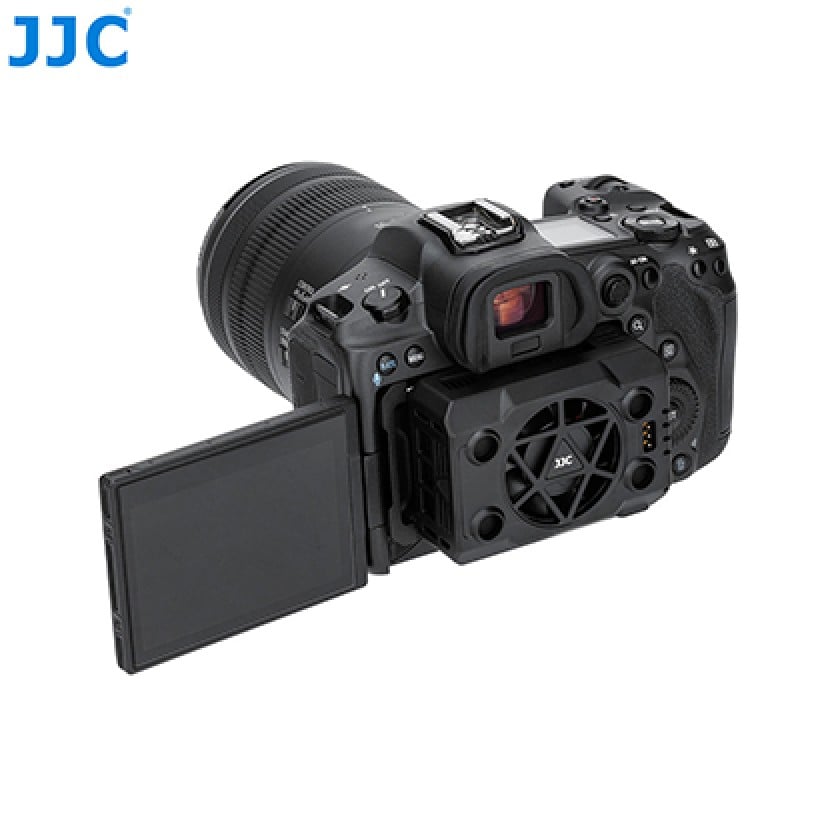

JJC CCS-UN1 Camera Semiconductor Cooling System is compatible with most cameras equipped with a flip-out LCD screen. It is specially designed for extended shooting, live streaming, and use in high-temperature environments. It effectively reduces the camera body's temperature to ensure stable and continuous performance. The cooler features a high-efficiency semiconductor heat dissipation structure, combined with a powerful fan and aluminum heat-conducting plate to quickly draw heat away from the camera. It helps prevent issues such as image quality degradation, automatic shutdown, or reduced battery life caused by overheating. It supports two power supply options: a Type-C external power source or a magnetic battery. The cooler offers three cooling modes: Low, High, and Auto. In Auto mode, it intelligently adjusts the fan speed according to the temperature to meet different cooling needs. The high-performance silent design ensures strong airflow while remaining quiet enough for recording or use in quiet environments. Multiple silicone pads are placed where the cooler contacts the camera, preventing scratches. With quick installation and a secure fit, this cooler is the ideal accessory for professional photographers, outdoor creators, and streamers working in summer or under high workloads. The battery features a magnetic design that allows it to attach directly to the cooler for power. It’s easy to install and remove, offering flexible use. With long-lasting battery life, it supports extended shooting sessions.

The product is compatible with cameras whose LCD screen slot dimensions fall within the following range:

• Slot length: 75–94mm / 2.95–3.70"
• Slot width: =53mm / 2.09"

All our products have undergone multiple inspections to ensure their quality. It is worth your trust!

Note:

Please ensure that the camera's slot is deep enough and that the sides are vertical or nearly right-angled. If the slot is too shallow or the edges are sloped or curved, the spring-loaded latch may not secure properly, which could affect stability during use.

Product Highlights

• Wide Compatibility: Fits cameras with a flip-out LCD screen slot (75–94mm / 2.95–3.70" in length, =53mm / 2.09" in width)
• Powerful Cooling System: Features a semiconductor cooling module, aluminum heat sink, and high-efficiency fan for rapid heat dissipation and overheating prevention
• Stable Long-duration Shooting: Ensures reliable performance during extended shoots, live streaming, or in hot environments—prevents shutdowns, image degradation, and battery drain

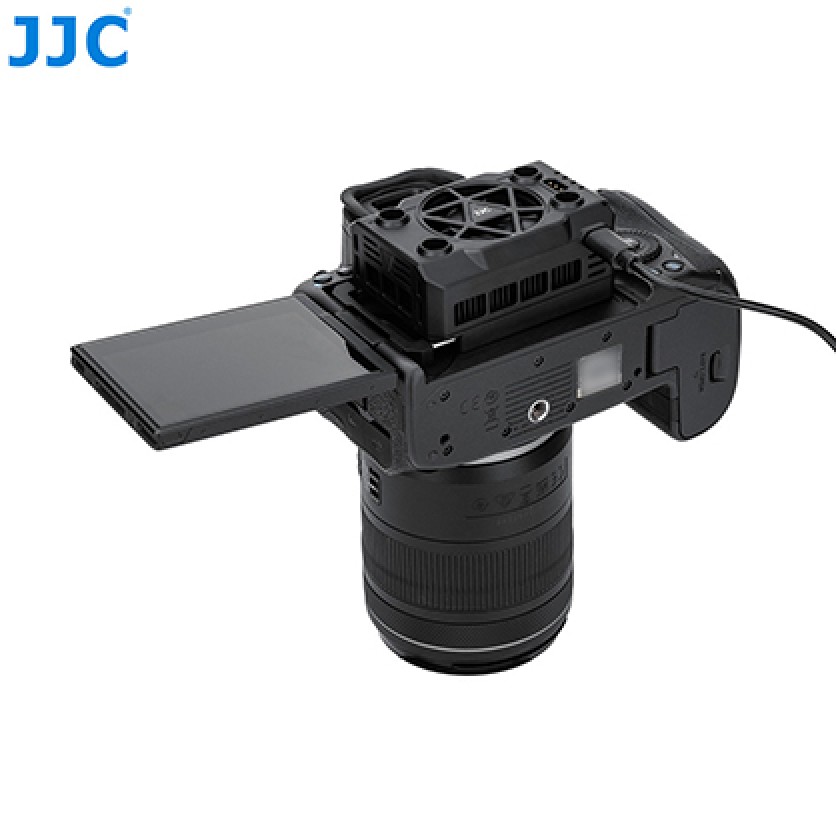

• Dual Power Options: Supports both Type-C external power and magnetic battery power to meet different shooting needs

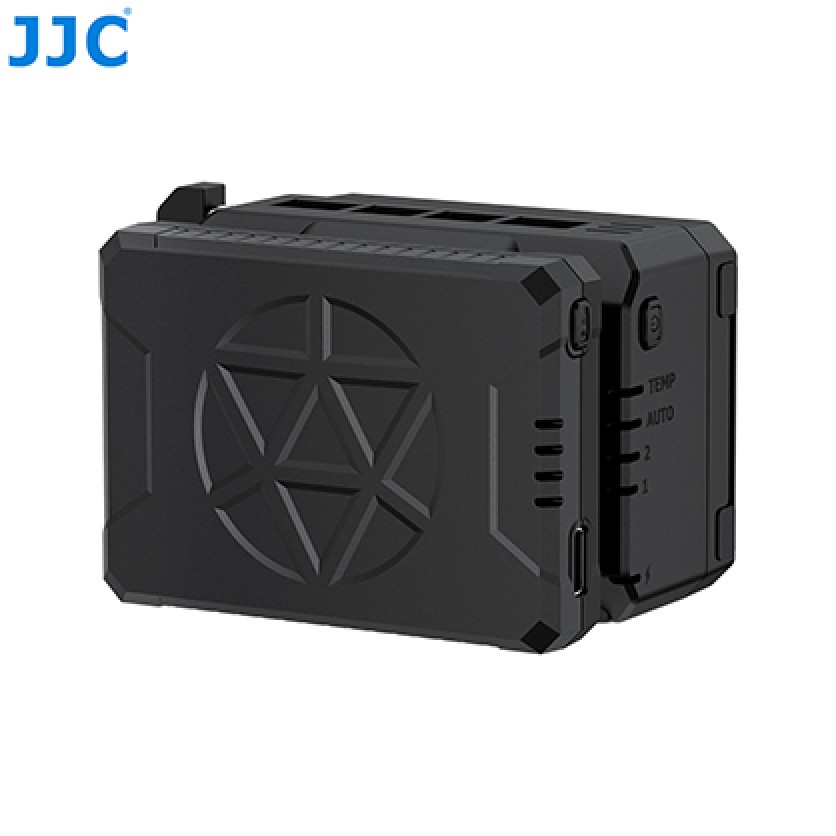

• Three Cooling Levels: Offers Low, High, and Auto modes—precisely control cooling performance based on usage
• High-performance Silent Design: Delivers strong airflow while staying quiet—suitable for audio recording and quiet settings
• Protective Contact Design: Soft silicone pads on contact surfaces protect your device from scratches
• Quick & Secure Installation: Easy to mount and remove, with a snug fit and stable usage
• Magnetic Battery Design: Battery with magnetic attachment—long-lasting and easy to replace

Specifications

Package Includes

Model

JJC CCS-UN1

Camera Semiconductor Cooler

×1

Magnetic Lithium Battery

×1

Storage Pouch

×1

Charging Cable

×1

User Manual

×1

Compatible

SON.

ZV-E10 II, A7CII, A7CR, A6700, FX30, ZV-1II, ZV-E1, ZV-1F, A7M4, A7C, FX3, ZV-E10, ZV-1, A7S3, A7R5, A7M4, A7C2II, A7CR, A6700

CAN.

R1, R5 Mark II, R6 Mark II, R3, R5, R6, R8, R7, R50, R10, RP, 90D, SX70 HS, R50V, R50, M50, RP, 600D, 750D, 77D, 800D, 200DII, 200D

PAN.

GH7, GH5M2, G9M2, G100D, G100, G95, G85, G9, GH5S, GH5, G7, G3

FUJI.

X-S20, X-H2S, X-H2, X-S10, X-T4, XT200, XT-100

NIK.

ZF, ZFC, Z30

OLY.

OM-1, E3

PEN.

K-70

*The models listed above are only a selection. For more compatible models, please confirm the dimensions of your camera’s LCD screen slot.

Camera Semiconductor Cooler

Power Port: Type-C
Input: 5V?2A
Power Level 1: 6.5W
Power Level 2: 7.5W
Material: Aluminum Alloy + Plastic + Silicone + Copper
Size: 96.3 ×53×33.7mm
Weight: 123.14g

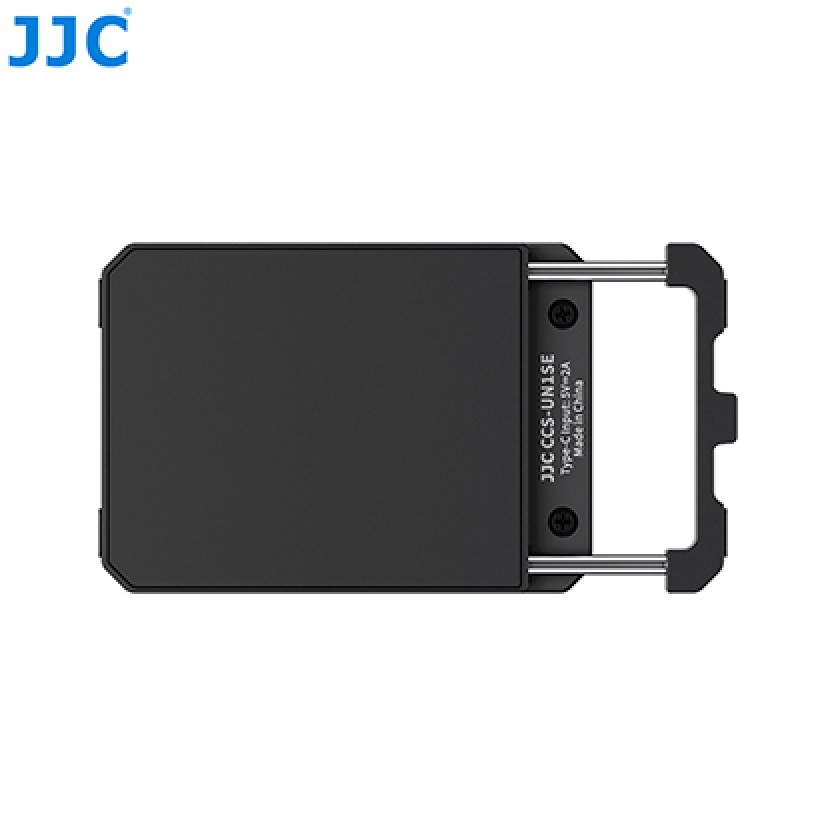

Width of Spring-loaded Clip: 75-94mm

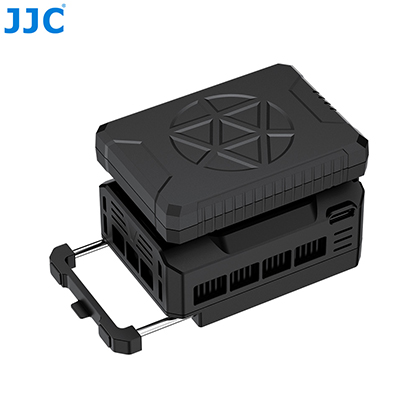

Battery Module for Camera Cooler

Battery Capacity: 2500mAh / 3.7V / 9.25Wh
Power Supply Port: Type-C
Input: 5V?2A
Usage Time: Level 1: 75 min, Level 2: 65 min, Automatic Level: 65–75 min (Automatic temperature adjustment, actual usage time depends on usage.)
Charging Time: Approx. 135 min
Material: Plastic + Copper
Size: 74.7×53×22mm
Weight: 66.22g
