SmallRig 28mm Waist-Level External Optical Viewfinder 6127

Features

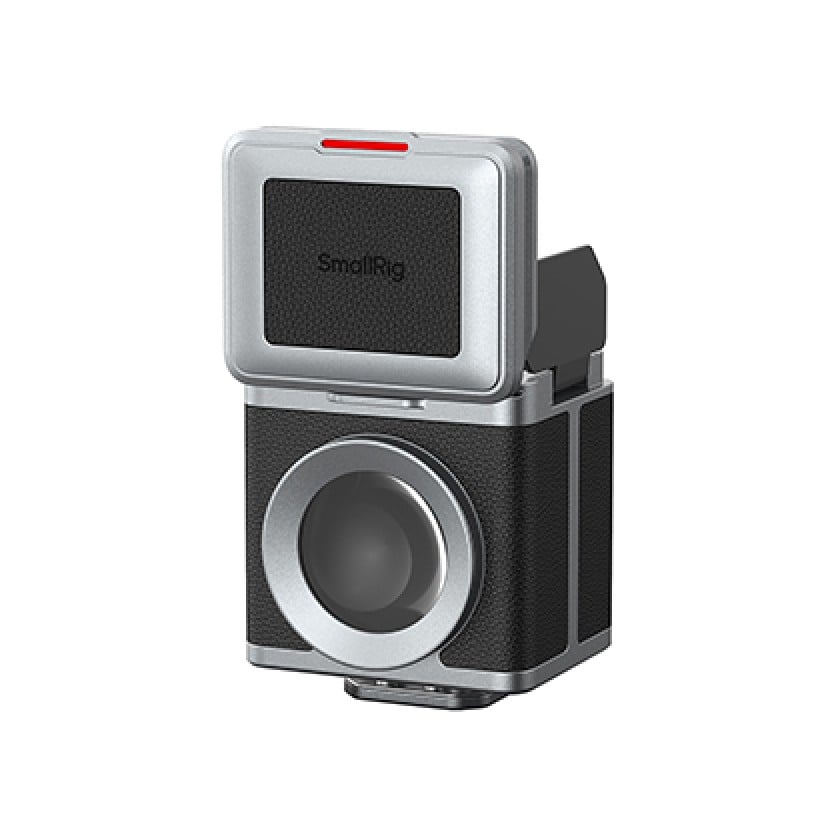

The SmallRig 28mm Waist-Level External Optical Viewfinder 6127

The SmallRig 28mm Waist-Level External Optical Viewfinder 6127 combines vintage leather-style detailing with a high-transmittance optical system, bringing a classic waist-level viewing experience to modern cameras. Designed to shift composition away from traditional eye-level framing, it offers a more discreet and deliberate approach to photography, allowing photographers to observe and capture scenes from a different perspective.

Features and Usage

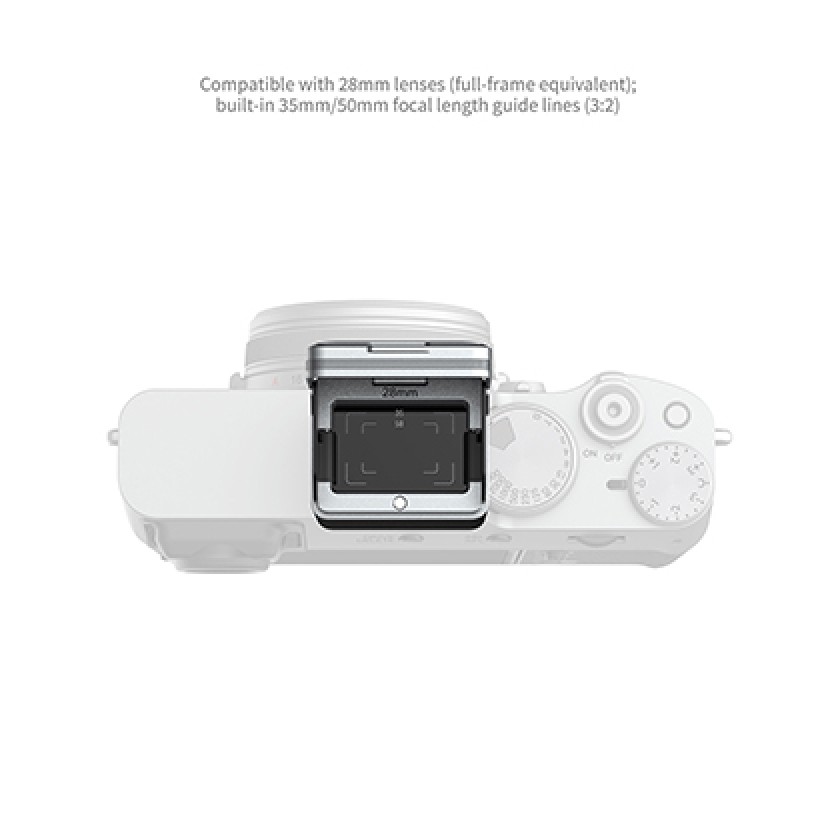

Featuring a 28mm full-frame equivalent field of view with built-in 35mm and 50mm bright frame lines, the viewfinder supports a range of focal lengths commonly used in street and documentary photography. Whether capturing everyday street scenes or experimenting with lower shooting angles, it encourages a more relaxed approach to composition while drawing less attention to the photographer. Its top-down viewing experience recalls the distinctive shooting style of classic Hasselblad and Rolleiflex cameras.

Optical Design and Construction

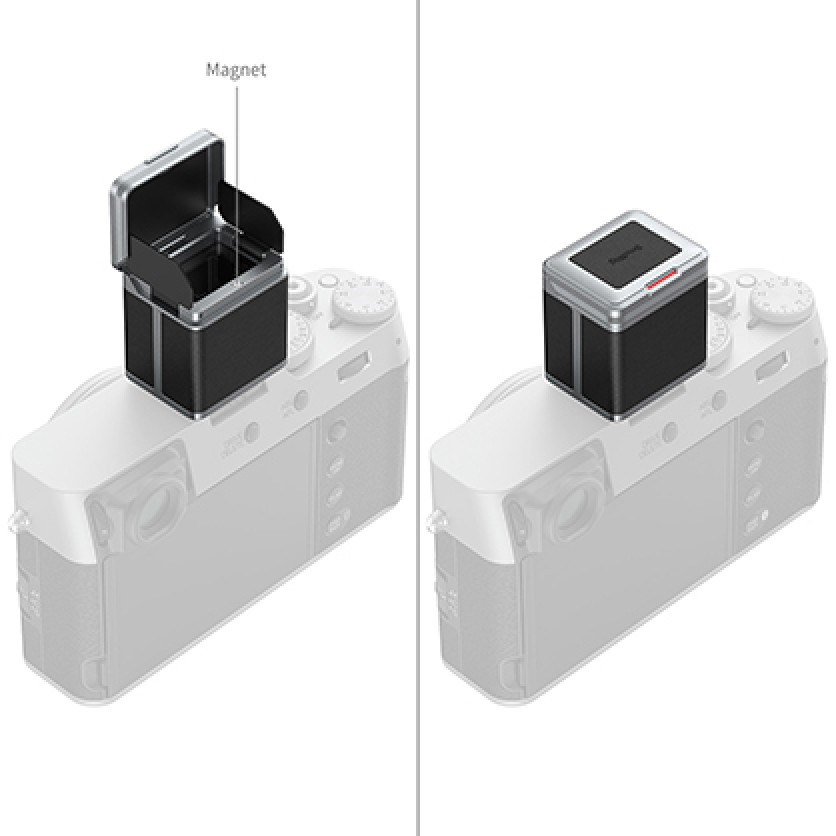

The precision four-element optical design incorporates a Fresnel lens and multi-layer nano anti-reflection coating, delivering up to 85% light transmittance for a bright and clear viewing experience. With optical distortion controlled within ±15%, the viewfinder provides a direct optical view with minimal colour fringing. Its innovative one-touch magnetic hood combines a protective cover and viewing hood into a single structure, opening quickly for shooting while helping reduce stray light in bright conditions. When closed, the hood

protects the optical elements during storage and transport.

Compatibility and Build

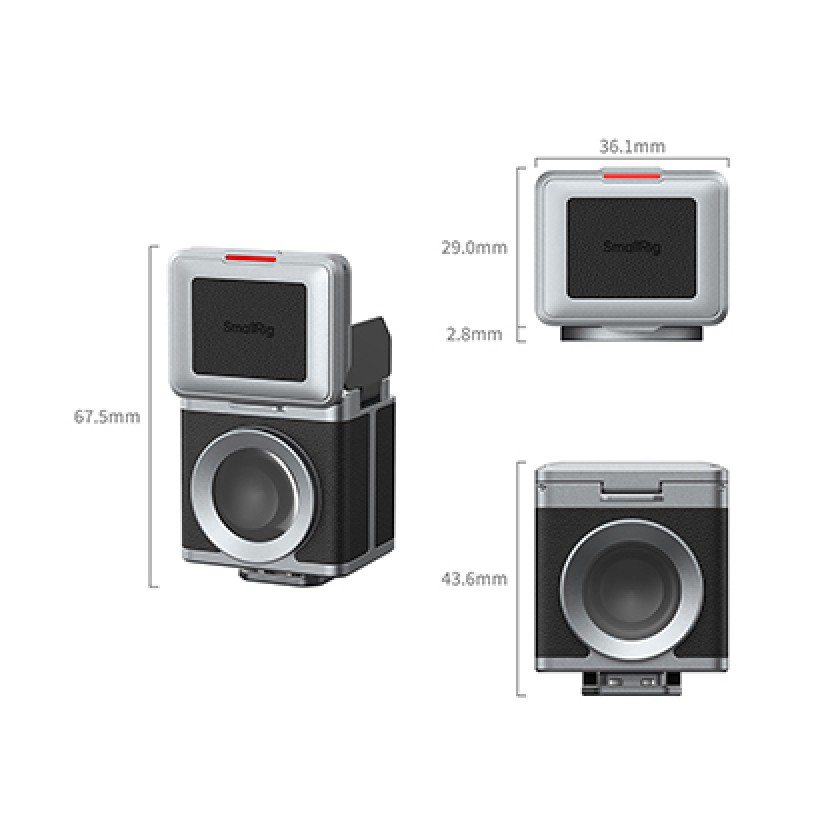

Constructed from aerospace-grade aluminium alloy with an anodised finish and vintage leather-style trim, the viewfinder complements the design of a wide range of modern cameras. Weighing just 62g, it offers a lightweight and compact addition to a camera setup without compromising portability. A standard spring-loaded hot shoe mount ensures secure attachment and broad compatibility with cameras from Fujifilm, Leica, Nikon and other manufacturers.

Specifications

Key Features

28mm full-frame equivalent field of view

Built-in 35mm and 50mm bright frame lines for versatile composition

Classic waist-level viewing experience inspired by traditional medium format cameras

Precision four-element optical construction with Fresnel lens

Multi-layer nano anti-reflection coating

Light transmittance

Up to 85% for bright, clear viewing

Optical distortion

Controlled within ±15%

One-touch magnetic viewing hood with integrated protective cover

Hood helps reduce stray light during outdoor shooting

Aerospace-grade aluminium alloy construction with anodised finish

Vintage leather-style detailing

Lightweight and compact design

Weighing just 62g

Spring-loaded standard hot shoe mount for secure attachment

Compatible with a wide range of cameras featuring a standard hot shoe

Ideal for street photography, documentary work and creative composition

Important Notes

Close-Range Parallax

The minimum subject viewing distance is 0.5 m. At shooting distances below 2 m, the captured image may appear slightly lower than the composition seen through the viewfinder. Frame slightly higher to compensate.

Eye Positioning

Maintain a comfortable viewing position and keep your eye close to the eyepiece for the best viewing experience. If you wear glasses, positioning your eye closer may help minimise edge vignetting.

Composition Guide

Built-in 35mm and 50mm guide frames assist with composition. When shooting at 28mm, keep the camera level to help minimise unwanted perspective distortion.

Optical Characteristics

Approximately 12% barrel distortion is a normal characteristic of the viewfinder's wide-angle optical design.

Care Instructions

The optical surfaces feature a protective nano-coating. Avoid wiping the glass when dry or using rough cloths. Do not leave the eyepiece facing strong direct sunlight for extended periods, as concentrated light may cause heat damage.
