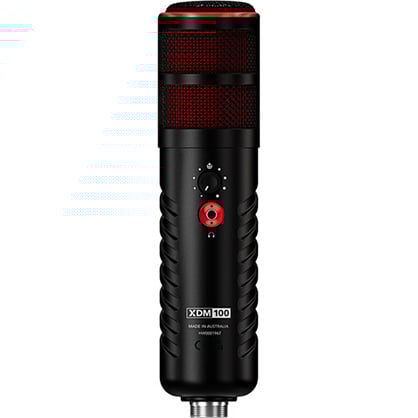

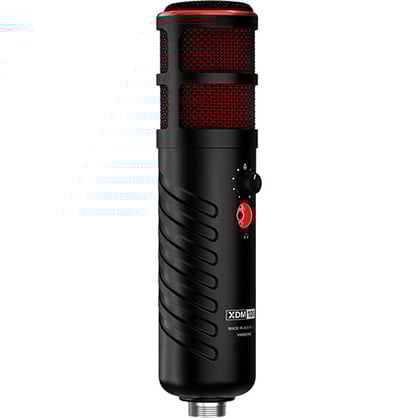

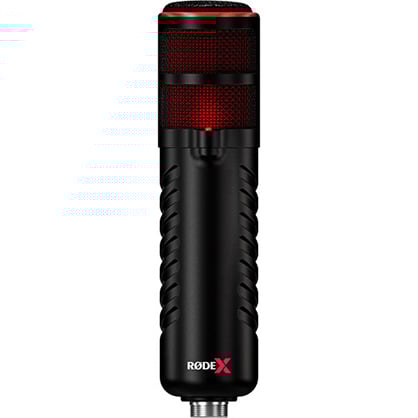

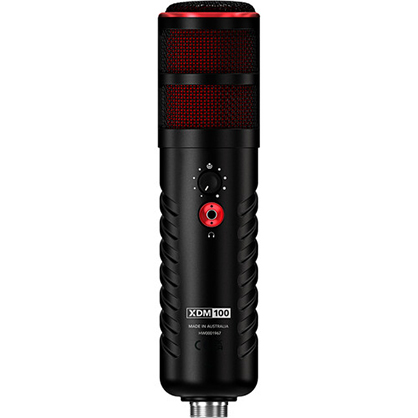

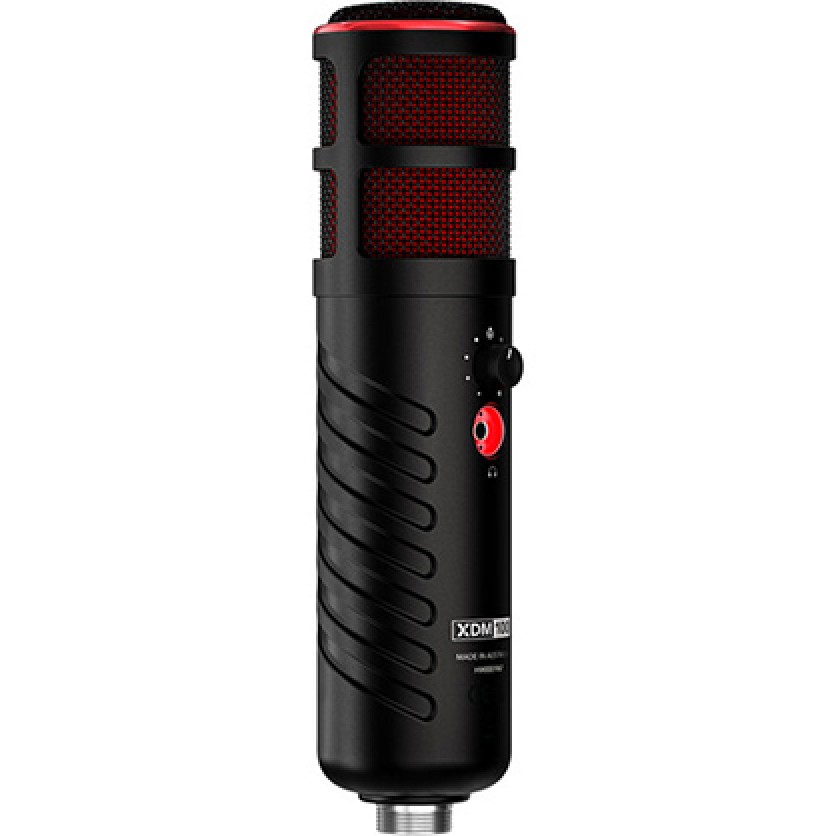

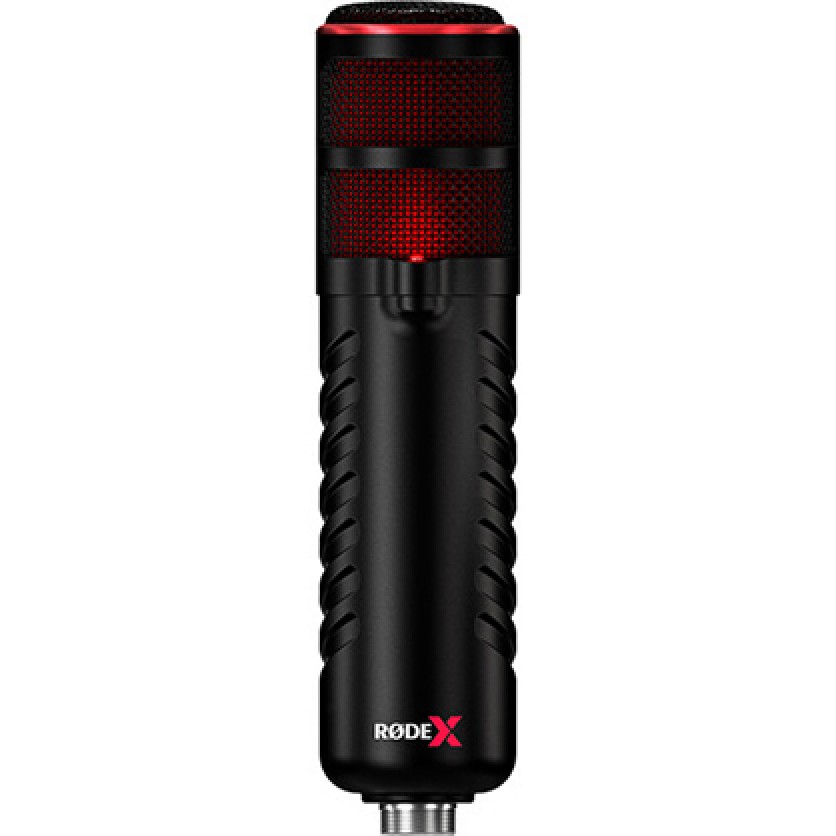

RODE X XDM-100 Dynamic USB-C Microphone

Features

The Rode X XDM-100 is a dynamic USB-C microphone, featuring advanced DSP and a built-in high-gain preamp for gaming and streaming applications. The microphone's dynamic capsule is designed to be positioned close to the subject and picks up less unwanted sounds and room reflections from further away, making the XDM-100 well suited for use in untreated rooms and home studios. In addition, the cardioid polar pattern focuses audio capture in front of the mic, picking up less sound from the back and sides for a cleaner and clearer vocal sound.

XDM-100 Features

The XDM-100 features Rode's ultralow-noise, high-gain Revolution preamp, powered via the USB-C bus connection and ensuring a robust signal level for the built-in 24-bit / 48 kHz analog to digital converter. A zero-latency 3.5mm headphone jack with volume control and mute button allows you to monitor your audio in real time, so you can hear exactly what the mic capsule is picking up, and a headphone extension cable is provided to give you ample room to move while you're podcasting, broadcasting, or gaming. Rode's free UNIFY software offers advanced processing via the mic's powerful internal DSP.

• Professional dynamic USB microphone
• Complete audio solution for streaming and gaming with included UNIFY software
• Rich, detailed audio capture optimized for voice applications
• Superior room noise rejection
• Zero-latency headphone output with level control and mute button
• Internal DSP for advanced audio processing
• Plug-and-play USB-C connectivity with 24-bit, 48 kHz analog to digital conversion

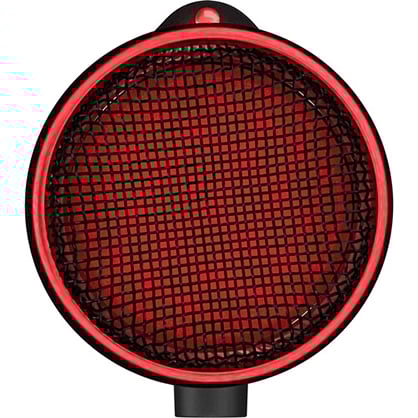

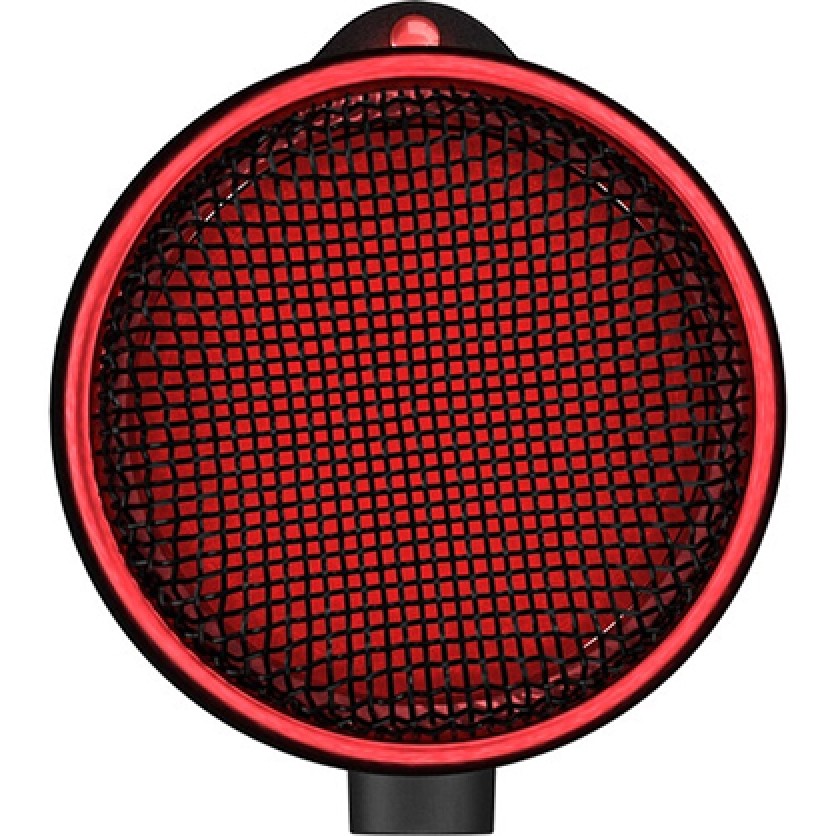

• Pop shield and shockmount included

UNIFY Software

• Virtual audio mixing solution for streamers and gamers
• Connect and control multiple sound sources, including microphones, chat audio, game audio, music, and system audio
• Intuitive interface with flexible routing and mixing capabilities
• Advanced APHEX audio processing using the Rode X mic's internal DSP
• Voice FX and multitrack recording

Specifications

Microphone

Primary Applications

Podcast, Conferencing

Form Factor

Stand/Boom Mount

Intended Sound Sources

Vocals, Speech/Voice Over

Sound Field

Mono

Capsule

Dynamic

Polar Pattern

Cardioid

Circuitry

Solid-State

Pad

None

High-Pass Filter

None

Tone Adjustment

None

Gain Adjustment

None

On-Board Controls

Headphone Volume

Performance

Frequency Range

20 Hz to 20 kHz

Connectivity

Output Connectors (Analog)

None

Output Connectors (Digital)

1 x USB-C Female (on Mic)

Headphone Connector

1 x 1/8" / 3.5 mm

Wireless Connectivity

None

Bluetooth

None

Digital Audio

A/D Conversion

24-Bit

Sample Rate

48 kHz

OS Compatibility

macOS 10.12 or Later
Windows 10

*As of October, 2022: Check with manufacturer for the most up-to-date compatibility

Power

Bus Power

USB

Physical

Color

Black

Mounting

Mounting Thread (via Integrated Hardware)
Shockmount (with Included Hardware)

Mounting Thread Size

5/8"-27 Female

Included Case

None

Included Filters

Pop Filter

Dimensions

?: 2 x L: 8.4" / ?: 52 x L: 213 mm

Weight

1.5 lb / 700 g

Packaging Info

Package Weight

4.315 lb

Box Dimensions (LxWxH)

11.1 x 8.3 x 4.6"
