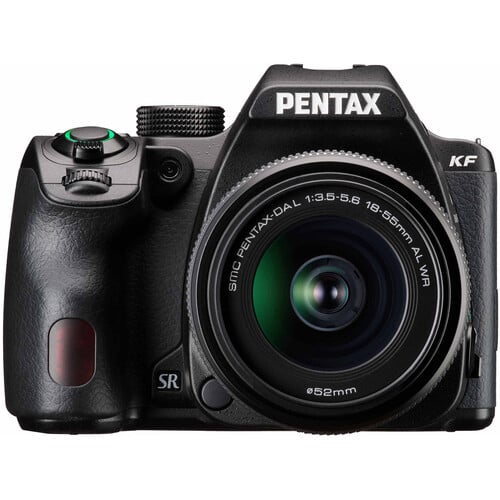

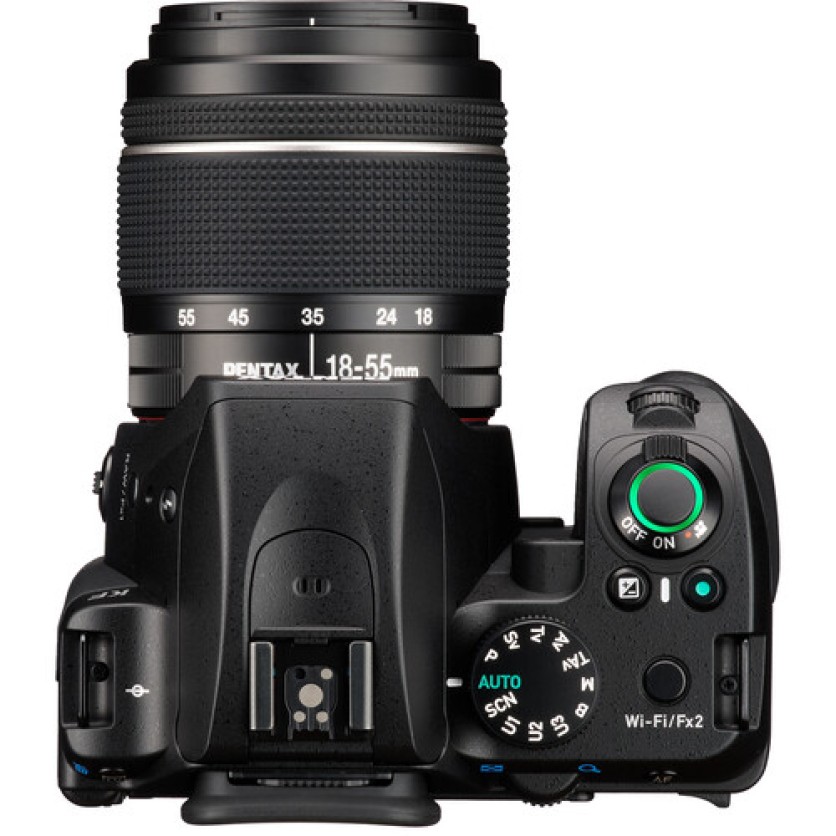

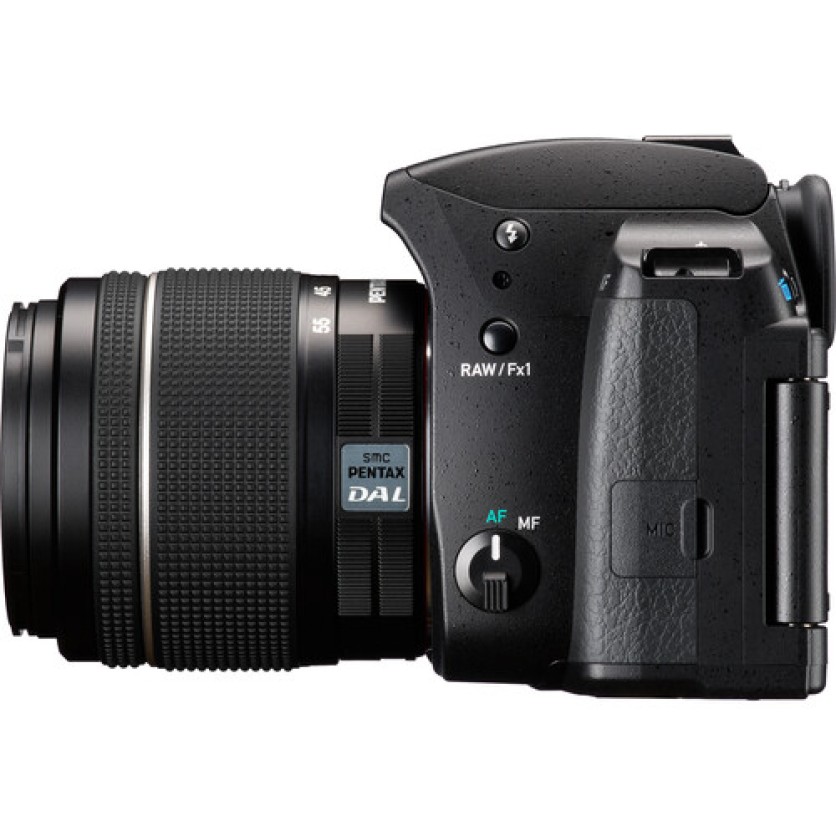

Pentax KF DSLR 18-55mm Kit Black

A Compact Digital SLR Camera Featuring Dustproof,

Weather-Resistant Construction Perfect for Outdoor Photography

The PENTAX KF with 18-55mm kit lens offers outstanding imaging performance in a compact body. Featuring dustproof, weather-resistant construction and dependable cold-proof performance down to temperatures as low as 14°F, it's optimized for all types of outdoor photography.

It incorporates a host of advanced functions and user-friendly features including a pentaprism-type optical viewfinder with a nearly 100% field of view and 0.95-times magnification and an in-body shake-reduction system with a 4.5-shutter-step compensation.

Built with the photographer in mind, the grip, control buttons on the back panel and mode dials are contoured to offer optimum comfort and operability. The high-definition vari-angle LCD monitor makes it easier to compose images in a wide variety of applications, while the unique Night Vision Red Light LCD function minimizes eye strain and fatigue for nightscape and astrophotography.

High-Performance Viewfinder

Optical Viewfinder Featuring a Glass Pentaprism

With an approximately 100% field of view and nearly 0.95-times magnification (with an FA 50mm F1.4 lens set at infinity), the PENTAX KF's viewfinder provides a large sharp view of the subject, allowing you to capture it exactly the way you want. With very little aberration even at the corners of the image field, it assures excellent ease of viewing in many different photographic situations.

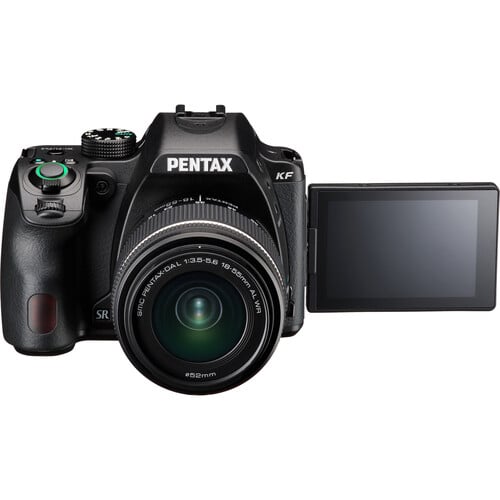

Vari-Angle LCD monitor

For Flexible Outdoor Shooting

The vari-angle LCD monitor allows you to position it at any desired angle, making image composition easier in a wide variety of situations: high-angle shooting using outstretched arms, low-angle shots taken from ground level or astrophotography with the camera pointed upwards toward a star-filled sky.

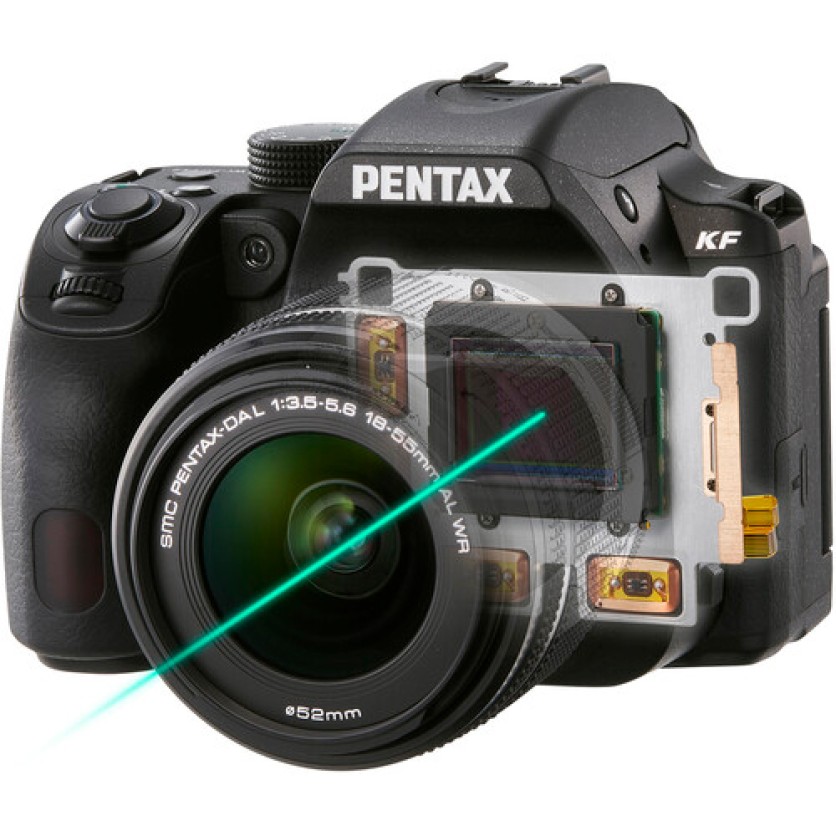

SR (Shake Reduction)

Effective Shake Reduction With All Lenses, Assuring Optimum Compensation Effects

The PENTAX KF features the PENTAX-original, in-body SR (Shake Reduction) mechanism with a compensation effect of 4.5 shutter steps.* It works effectively with all PENTAX interchangeable lenses - from wide-angle to telephoto models - and minimizes camera shake in shake-prone conditions, such as when shooting low-light scenes with ambient light only, using a telephoto lens, or photographing sunset scenes.

" ... * Measured in conformity with CIPA testing standards (using the smc PENTAX-DA 18-135mmF3.5-5.6ED AL [IF] DC WR lens, at a focal length of 135mm)

Weather-Resistant Design

Dustproof, Weather-Resistant Body, Perfect for Rugged Outdoor Photography

The PENTAX KF is a dependable performer even in such demanding settings as in the rain or at locations prone to dust and freezing temperatures. Its compact, easy-to-carry body features dustproof, weather-resistant construction with 100 seals throughout the body and outstanding cold-proof performance at temperatures down to 14°F (-10°C).

Pentax 18-55mm Kit Lens Included

The Pentax DA 18-55mm F3.5-5.6 AL WR lens is a standard zoom lens that has a focal length equivalent to 27.5mm to 84.5mm in 35mm film format. It features an optical system with a high-performance aspherical lens and Anomalous Dispersion Glass is used for correcting various types of aberration and enabling full edge-to-edge lighting and sharp resolution. Furthemore, the lens simple drip-proof construction prevent water from getting into the lens.

• Model Description
• Type
• TTL autofocus, auto-exposure SLR digital-still camera with built-in retractable P-TTL flash
• Lens Mount
• PENTAX KAF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts)
• Lens
• KAF4, KAF3, KAF2 (power zoom not compatible), KAF, KA mount lens
• Image Capture Unit
• Image Sensor
• Primary color filter, CMOS. Size: 23.5 x 15.6 (mm)
• Effective Pixels
• Approx. 24.24 megapixels
• Total Pixels
• Approx. 24.78 megapixels
• Dust Removal
• SP coating and CMOS sensor operations
• Sensitivity
• (Standard output)
• ISO AUTO/100 to 102400 (EV steps can be set to 1EV, 1/2EV or 1/3EV)
• Image Stabilizer
• Sensor-shift Shake Reduction
• AA Filter Simulator
• Moiré reduction using SR unit. OFF/Type1/Type2/Bracket (3 frames)
• File Formats
• File format
• RAW (PEF/DNG), JPEG (Exif 2.3), DCF2.0 compliant
• Recorded Pixels
• JPEG: L(24M:6000×4000), M(14M:4608×3072), S(6M:3072×2048), XS(2M:1920×1280)
• RAW: (24M:6000×4000)
• Quality Level
• RAW (14bit): PEF, DNG
• JPEG: ??? (Best), ?? (Better), ? (Good), RAW + JPEG simultaneous capturing available
• Color Space
• sRGB, AdobeRGB
• Storage Medium
• SD, SDHC and SDXC Memory Card (Conforms to USH-I standards)
• Storage Folder
• Folder Name: Date (100_1018,101_1019…) or User assigned folder name (Default “PENTX”)
• Recording File
• File Name: “IMGP****” or User assigned file name
• File name numbering: Sequential, Reset
• Viewfinder
• Type
• Pentaprism Finder
• Coverage (FOV)
• Approx. 100%
• Magnification
• Approx. 0.95x (FA50mmF1.4 at infinity)
• Eye-Relief Length
• Approx. 20.5mm (from the view window), Approx. 22.3mm (from the center of lens)
• Diopter Adjustment
• Approx. -2.5m to + 1.5m-1
• Focusing Screen
• Interchangeable Natural-Bright-Matte III focusing screen
• Live View
• Type
• TTL method using image sensor
• Autofocus
• Hybrid AF (Image plane phase-matching and Contrast detection)
• AF area: Face detection, Tracking, Multiple AF points, Select, Spot
• Focus Peaking: ON/OFF
• Display
• Field of View approx. 100%, Magnified view (up to 16x), Grid Display (4×4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Histogram, Bright area warning

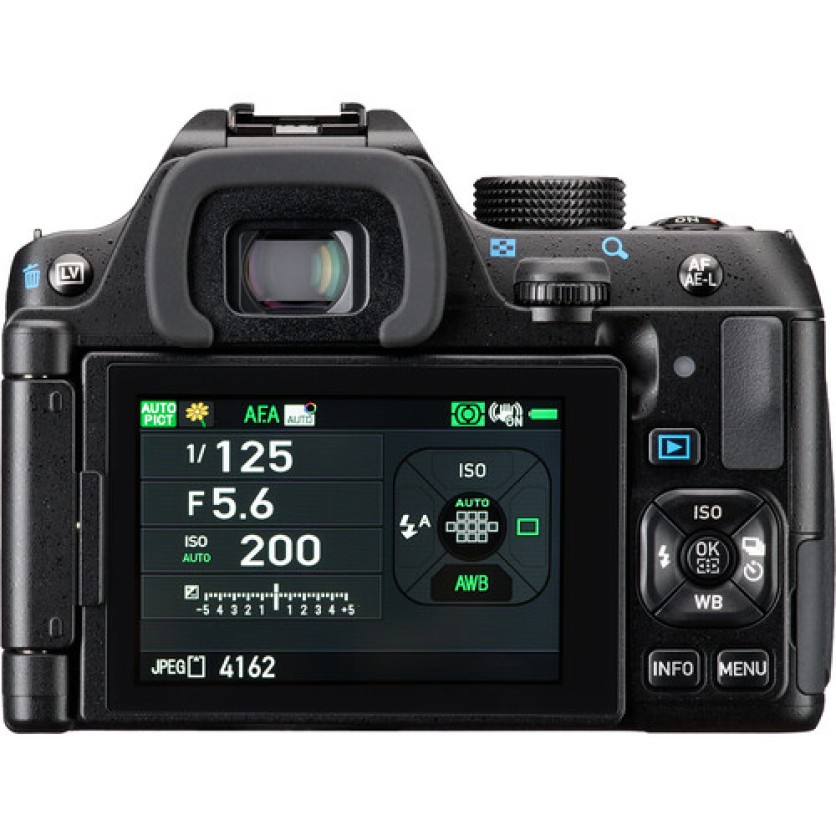

• LCD Monitor
• Type
• Vari-angle TFT color LCD monitor featuring an air-gapless structure, tempered-glass front panel
• Size
• 3.0 inch (aspect ratio 3:2)
• Dots
• Approx. 1037K dots
• Adjustment
• Brightness, Saturation and Colors adjustable
• Outdoor View Setting
• Adjustable ±2 step
• Night Vision LCD Display
• ON/OFF
• White Balance
• Type
• TTL method using image sensor
• White Balance
• AUTO WB, Multi Auto WB, Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image
• Fine Adjustment
• Adjustable ±7 steps on A-B axis or G-M axis
• Type
• TTL: Phase-matching autofocus
• Autofocus System
• Focus Sensor
• SAFOX X, 11 points (9 cross type focus points in the center)
• Brightness Range
• EV-3 to 18 (ISO 100 / at normal temperature)
• AF Modes
• Single AF (AF.S), Continuous AF (AF.C), Auto select AF (AF.A)
• AF Point Selection
• Auto:11 points, Auto:5 points, Select, Expanded Area Select, Spot
• AF Assist Light
• Dedicated LED AF assist light
• Metering
• Type
• TTL open aperture, 77 segmented metering, center-weighted and spot metering
• Metering Range
• EV0 to 22 (ISO100 at FA50mm F1.4)
• Exposure Modes
• Auto Picture mode (Standard, Portrait, Landscape, Macro, Moving Object, Night Scene Portrait, Sunset, Blue Sky, Forest), Scene Mode (Portrait, Landscape, Macro, Moving Object, Night Scene Portrait, Sunset, Blue Sky, Forest, Night Scene, Night Scene HDR, Night Snap, Food, Pet, Kids, Surf & Snow, Backlight Silhouette, Candlelight, Stage Lighting, Museum), Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb
• EV Compensation
• ±5EV (1/2EV steps or 1/3EV steps can be selected)
• AE Lock
• Can be assigned to the AF/AE-L button
• Shutter
• Type
• Electronically controlled vertical-run focal plane shutter
• * Electronic shutter when using Pixel Shift Resolution
• Shutter Speed
• Auto:1/6000 to 30 sec., Manual: 1/6000 to 30 sec. (1/3EV steps or 1/2EV steps), Bulb (Timed exposure setting possible from 10 sec. to 20min.)
• Drive Modes
• Mode Selection
• [Still Image] Single Frame, Continuous (H, L), Self-timer (12s, 2s, Continuous), Remote Control (0s., 3s., Continuous), Bracketing (2, 3 or 5 frames), Mirror-up, Multi-Exposure, Interval Shooting, Interval Composite, Interval Movie Record, Star Stream
• [Movie] Remote Control
• * Bracketing, Interval Shooting, Interval Composite, Interval Movie Record and Star Stream are possible to use with Self-timer/Remote Control
• * Mirror-up is possible to use with Self-timer
• * Multi-Exposure is possible to use with Continuous Shooting, Self-timer or Remote Control
• Continuous Shooting
• Max. approx. 6.0 fps, JPEG ( L: ??? at Continuous H): up to approx. 40 frames, RAW: up to approx. 10 frames, RAW+: up to approx. 8 frames
• Max. approx. 3.0 fps, JPEG L: ??? at Continuous L): up to approx. 100 frames, RAW: up to approx. 16 frames, RAW+: up to approx. 11 frames
• *ISO100
• Multi-Exposure
• Composite Mode(Additive/Average/Bright)
• Number of Shots(2 to 2000 times)
• Interval Shooting
• [Interval Shooting] Interval: 2s. to 24h./ Standby Interval: Min.?1s. to 24h., Number of shots: 2 to 2000 times, Start Interval: Now/Self-timer/Remote Control/Set Time
• [Interval Composite] Interval: 2s. to 24h./ Standby Interval: Min.?1s. to 24h., Number of shots: 2 to 2000 times, Start Interval: Now/Self-timer/Remote Control/Set Time, Composite Mode: Additive/Average/Bright, Save Process: ON/OFF
• [Interval Movie] Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min?1s. to 24h., Number of shots: 8 to 2000 times (8 to 500 times at 4K), Start Interval:Now/Self-timer/Remote Control/Set Time
• [Star Stream] Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min?1s. to 24h., Number of shots: 8 to 2000 times (8 to 500 times at 4K), Start Interval: Now/Self-timer/Remote Control/Set Time, Fade-out: OFF/Low/Medium/High
• Flash
• Built-in Flash
• Built-in retractable P-TTL flash, GN: approx. 12 (ISO100/m), Angle of view of 28mm lens (35mm format equivalent)
• Flash Modes
• Auto Flash Discharge, Auto Flash + Red-eye Reduction (Auto Picture, Scene) Flash On, Flash On+ Red-eye Reduction, Slow-speed Sync, Trailing Curtain Sync, Manual Flash Discharge (Full-1/128)
• Sync Speed
• 1/180sec.
• Flash Exposure Compensation
• -2.0 to +1.0 EV
• External Flash
• P-TTL, Leading Curtain Sync, Trailing Curtain Sync, Contrast-control-sync, High-speed sync, Wireless sync
• * Contrast-control-sync and High-speed sync requires two or more dedicated external flash
• Capture Settings
• Custom Image
• Auto Select, Bright, Natural, Portrait, Landscape, Vibrant/MIYABI, SATOBI, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
• Cross Process
• Random, Preset 1-3, Favorite 1-3
• Digital Filter
• Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome
• Clarity
• Adjustable ±4 step
• Skin Tone
• Type1, Type2, OFF
• HDR
• Auto, HDR1, HDR2, HDR3, Advanced HDR, OFF, Exposure bracket value adjustable, Automatic composition correction function
• Pixel Shift Resolution
• Motion Correction ON, Motion Correction OFF, OFF
• Lens Correction
• Distortion Correction, Peripheral Illumin. Correction, Lateral Chromatic Aberration Correction, Diffraction Correction
• D-RANGE Compensation
• Highlight Correction, Shadow Correction
• Noise Reduction
• Slow Shutter Speed NR, High-ISO NR
• Horizon Correction
• SR On: correction up to 1 degrees, SR Off: correction up to 1.5 degrees
• Electronic Level
• Displayed in viewfinder : Horizontal direction only, Displayed on LCD monitor: Horizontal and vertical direction
• Movie
• File Formats
• MPEG-4 AVC/H.264(MOV)
• Recorded Pixels
• Full HD(1920×1080, 60i/50i/30p/25p/24p)
• HD (1280×720, 60p/50p)
• Auto Focus
• Hybrid AF (Image plane phase-matching and Contrast detection)
• AF mode: Single AF (AF.S), Continuous AF (AF.C) * Continuous AF (AF.C) is available with the dedicated lens.
• AF area: Multiple AF points, Select, Spot
• Focus Peaking: ON/OFF
• Sound
• Built-in stereo microphone, external microphone (Stereo recording compatible)
• Recording Sound Level adjustable
• Recording Time
• Up to 25 minutes or 4GB ; automatically stops recording if the internal temperature of the camera becomes high.
• Custom Images
• Auto Select, Bright, Natural, Portrait, Landscape, Vibrant/MIYABI, SATOBI, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
• Cross Processing
• Random, Preset 1-3, Favorite 1-3.
• Digital Filter
• Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome
• Playback
• Playback View
• Single frame, Multi-image display (6,12, 20, 35, 80 segmentation), Display magnification (up to 16x, Quick Zoom view available), Grid display (4×4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Rotating, Histogram (Y histogram, RGB histogram), Bright area warning, Auto Image Rotation, Detailed information, Copyright Information (Photographer, Copyright holder), GPS information (latitude, longitude, altitude, Coordinated Universal Time) , Orientation, Folder Display, Calendar Filmstrip Display, Slide Show
• Delete
• Delete single image, delete all, select & delete, delete folder, delete instant review image
• Digital Filter
• Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim, Monochrome
• RAW Development
• RAW file select:
• Select Single Image, Select Multiple Images, Select a folderRAW Development Parameter:
• White Balance, Custom Image, Sensitivity, Clarity, Skin Tone, Digital filter, HDR, Pixel Shift Resolution, Shadow Correction, High-ISO NR, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space
• Edit
• Image Rotation, Color Moiré Correction, Resize, Cropping (Aspect ratio and Slant adjustment available), Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie, Saving RAW data in buffer memory, Image Copy
• Customization
• USER Modes
• Up to 3 settings can be saved
• Custom Functions
• 24 items
• Mode Memory
• 16 items
• Button Customization
• Fx1 Button, Fx2 Button (One Push File Format, Wi-Fi, Outdoor View Setting, Night Vision LCD Display, Preview, Red, Electronic Level, Change AF Area)
• AF/AE-L button (AF1, AF2, Cancel AF, AE Lock)
• Various settings for the action of the e-dials in each exposure mode can also be saved.
• AF Customization
• AF.S: Focus-priority/ Release-priority
• 1st Frame Action in AF.C: Release-priority/Auto/Focus-priority
• Action in AF.C Continuous: Focus-priority, Auto, FPS-priority
• Hold AF Status: OFF, Low, Medium, High
• AF in Interval Shooting: Locks focus at 1st exposure, Adjusts focus for each shot
• AF with Remote Control: OFF/ON
• Text Size
• Standard, Large
• World Time
• World Time settings for 75 cities (28 time zones)
• Language
• English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, englishese
• AF Fine Adjustment
• ±10 step, Uniform adjustment, Individual adjustment (up to 20 can be saved)
• Indicator Lamps
• Other indicator lamps (OFF/1/2), Self-timer (ON/OFF), Remote Control (ON/OFF), GPS (ON/OFF)
• Copyright Information
• Names of “Photographer” and “Copyright Holder” are embedded to the image file.
• Revision history can be checked using the provided software.
• Power Supply
• Battery Type
• Rechargeable Lithium-ion Battery D-LI109
• AC Adapter
• AC Adapter Kit K-AC168 (Optional)
• Battery Life
• Number of recordable images:
• (with 50% flash usage): approx. 400 images, (without flash usage): approx.: 460 images
• Playback time: Approx. 250 minutes
• * With a fully-charged Rechargeable Lithium-ion Battery under the temperature at 23°C. Tested in compliance with CIPA standard.
• Actual results may vary depending on the shooting condition.
• Interfaces
• Connection Port
• USB2.0 (micro B), HDMI output terminal (Type D) , Stereo microphone input / Cable switch input ( ø3.5mm connector)
• USB Connection
• MSC/PTP
• Wireless LAN
• Standards
• IEEE 802.11b/g/n (Standard wireless LAN protocol)
• Frequency (Center Frequency)
• 2412MHz to 2462MHz (channels: Ch.1 to Ch.11)
• Security
• Authentication: WPA2, Encryption: AES
• General
• Dimensions
• Approx. 125.5mm (W) x93.0mm (H) x 74.0mm (D) (excluding protrusions)
• Weight
• Approx. 684g (Including dedicated battery and SD Memory Card),
• Approx. 625g (body only)
• Temperature
• -10°C to 40°C (14°F to 104°F)
• Humidity
• 85% or less (no condensation)
