DJI Mavic 4 Pro Drone

Features

Elevating aerial cinematography once again with a leap forward in both design and functionality is the Mavic 4 Pro Drone from DJI. The standard hanging gimbal of the previous generation is gone, replaced with a ball-shaped 360° Infinity Gimbal at the front of the body, improving the Mavic 4 Pro's aerodynamics. Within, an upgraded triple-camera system. The wide-angle Hasselblad now offers 100MP stills, an adjustable aperture, and up to 6K60 HDR video. This is joined by a 48MP medium tele and 50MP standard tele for 4K60 HDR video. Low-light shooting is a big focus with a 0.1-lux nightscape omnidirectional obstacle avoidance system and front LiDAR. Additionally, video transmission, flight time, vertical shooting, and vehicle tracking have all been improved.

To Infinity and Beyond

The unique ball-shaped Infinity Gimbal offers a wide range of movement that includes 360° of rotation. This allows you to achieve aerial Dutch angles and other creative, dramatic, and gravity-defying movements. It is also capable of 70° upward shooting, letting you capture awe-inspiring framing of mountains and tall urban structures.

Triple-Camera System

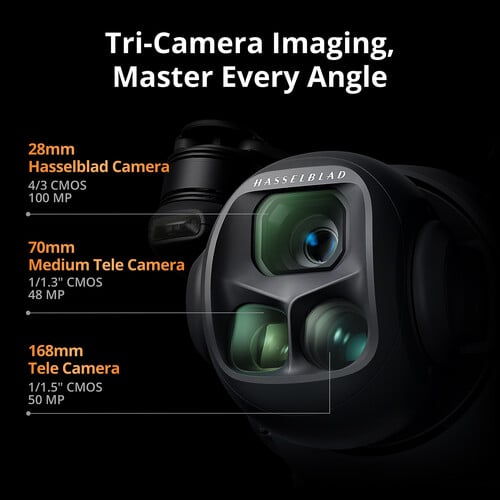

Within the Infinity Gimbal are a trio of camera lenses that let pilots cover image and video capture of a huge variety of content, with an emphasis on nature, architecture, and wildlife. The most advanced is a Hasselblad-designed 100MP wide-angle lens with an adjustable aperture for capturing clean low-light shots and 10-ray starburst effects. Video tops out at a stunning 6K60 HDR with support for the Hasselblad natural Color Solution (HNCS), a renowned standard of color fidelity. It's joined by a 48MP medium tele for compressed perspectives that highlight subjects for portraits, and a 50MP standard tele for incredibly clear long-range results that reduces depth perception and flattens perspective. All three share an enviable set of additional features.

• 4K60 HDR video (up to 6K60 HDR for 100MP Hasselblad)
• Slow motion video at up to 4K120 (Hasselblad & medium tele) and 4K100 (tele)
• Dual native ISO fusion that seamlessly blends the best of high and low ISO settings
• High resolution RAW stacking of up to 5 frames
• Free Panorama & Subject Focusing modes
• 10-bit D-Log profiles for consistent color

Improved Tracking

The previous generation sported ActiveTrack technology, which is upgraded to ActiveTrack 360 on the Mavic 4 Pro. The most important difference is that this drone can now track autonomously, making navigation decisions on its own. With the Mavic 4 Pro's low-light capabilities, tracking is now even better under city lights or at twilight. Tracking can even keep its focus if the lower half of the subject is partially obscured during the shot. The Mavic 4 Pro's tracking system also has better directional awareness and an up to 656' range when detecting vehicles, significantly improving your automotive cinematography.

Night Flight

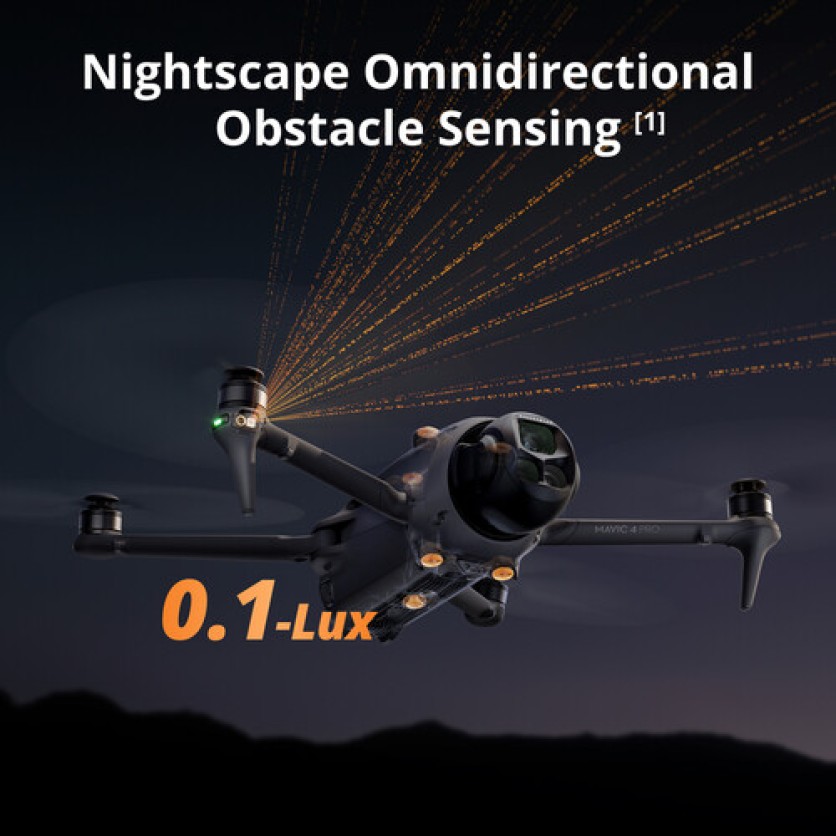

A total of six high-performance low-light fisheye sensors provide 0.1-lux sensitivity for omnidirectional obstacle sensing that supports safe nighttime filming. Dual processors help with high resolution awareness that equates to obstacle avoidance at speeds of up to 40 mph in low-light conditions, such as by street light illumination. This visual system ensures accurate positioning in near-pitch-black places and those with poor satellite signals. If light falls to below 0.1 lux, the Mavic 4 Pro's forward-facing LiDAR can still detect obstacles for quick braking and collision avoidance.

Low-Light RTH

Getting your Mavic 4 Pro home safely is more a certainty than ever before thanks to Nighttime RTH and Non-GPS RTH features. With Nighttime RTH, the forward-facing LiDAR can detect and avoid obstacles in low-light conditions. Non-GPS RTH uses the real-time vision positioning system and onboard map construction technologies to memorize flight paths in adequate lighting, even when taking off from locations without satellite signals.

O4+ Transmission

Better know what you're capturing from the ground with DJI's O4+ video transmission technology that delivers 10-bit HDR quality footage from up to 18.6 miles away. O4+ also features improved algorithms that help reduce disconnections in high-interference environments, such as in urban areas, and optimizes transmission during multi-drone flights.

Quick Transfer

There's no need to turn on the Mavic 4 Pro to transfer your clips and images. With Quick Transfer, leave the drone in your bag and use the DJI Fly mobile app to wake it for up to 80 MB/s transfers using Wi-Fi 6 (802.11ax). If Wi-Fi is not an option, you can always plug in the drone to your PC via USB without having to power it on.

Additional Features

• Up to 51 minutes of flight time
• Up to 90 kph top speed
• RC 2 remote controller with 5.5" 1080p display

Specifications

Performance

Maximum Horizontal Speed

60.4 mph / 27 m/s

Maximum Ascent Speed

22.4 mph / 10 m/s

Maximum Descent Speed

22.4 mph / 10 m/s

Maximum Wind Resistance

26.8 mph / 12 m/s

Maximum Take-Off Altitude

3.7 Miles / 6000 m

Maximum Flight Time

51 Minutes

Maximum Hover Time

45 Minutes

Maximum Tilt Angle

35°

Hovering Accuracy

Vision Positioning
Vertical: ±0.3' / 0.1 m
Horizontal: ±1.0' / 0.3 m

GNSS
Vertical: ±1.6' / 0.5 m
Horizontal: ±1.6' / 0.5 m

Aircraft

Rotor Configuration

Quadcopter

Operating Conditions

14 to 104°F / -10 to 40°C

Imaging

Number of Cameras

3 (Cannot Be Used Simultaneously)

Camera System

Wide
100 MP, 4/3"-Type CMOS Sensor with 28mm-Equivalent, f/2 Lens (72° FoV)

Medium Telephoto
48 MP, 1/1.3"-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV)

Telephoto
50 MP, 1/1.5"-Type CMOS Sensor with 168mm-Equivalent, f/2.8 Lens (15° FoV)

Digital Zoom

Wide
1 to 2.5x

Minimum Focus Distance

Wide
6.6' / 2 m

Medium Telephoto
9.8' / 3 m

Telephoto
9.8' / 3 m

ISO Sensitivity Range

Wide
Video: 100 to 12,800
Photo: 100 to 6400

Medium Telephoto
Video: 100 to 12,800
Photo: 100 to 6400

Shutter Speed

Wide
1/16000 to 16 Seconds (Photo/Video)

Medium Telephoto
1/16000 to 8 Seconds (Photo/Video)

Telephoto
1/16000 to 8 Seconds (Photo/Video)

Maximum Video Resolution

Wide
Up to 6016 x 3384 at 60 fps

Medium Telephoto
Up to 3840 x 2160 at 120 fps

Telephoto
Up to 3840 x 2160 at 100 fps

Still Image Support

Wide
Up to 100 MP (JPEG)

Medium Telephoto
Up to 48 MP (JPEG)

Telephoto
Up to 50 MP (JPEG)

Photo Modes

Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot

Media/Storage

Media/Memory Card Slot

In Aircraft Body
microSDXC Only [64 GB Maximum / U3/V30 or Faster Recommended]

Internal Storage

In Aircraft Body
64 GB

Gimbal

Number of Axes

3: Pitch (Tilt), Roll, Yaw (Pan), Vertical

Rotation Range

Controllable Range
Pitch (Tilt): 160° (-90 to 70°)

Mechanical Range
Pitch (Tilt): 324° (-164 to 160°)

Avoidance/Sensing System

Sensing System

Omnidirectional with LiDAR Enhancement

Sensing System Capabilities

Forward
Measurement Range: 1.6 to 78.7' / 0.5 to 24 m
Detection Range: 1.6 to 656.2' / 0.5 to 200 m
Max Speed: 40.3 mph / 18 m/s
Field of View: 180° (Horizontal) / 180° (Vertical)

Backward
Measurement Range: 1.6 to 72.2' / 0.5 to 22 m
Detection Range: 1.6 to 656.2' / 0.5 to 200 m
Max Speed: 40.3 mph / 18 m/s
Field of View: 180° (Horizontal) / 180° (Vertical)

Lateral
Measurement Range: 1.6 to 68.9' / 0.5 to 21 m
Detection Range: 1.6 to 656.2' / 0.5 to 200 m
Max Speed: 40.3 mph / 18 m/s
Field of View: 180° (Horizontal) / 180° (Vertical)

Upward
Measurement Range: 1.6 to 59.1' / 0.5 to 18 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 90° (Front-to-Back) / 90° (Side-to-Side)

Downward
Measurement Range: 1.6 to 55.8' / 0.5 to 17 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 180° (Front-to-Back) / 180° (Side-to-Side)

Remote Controller / Transmitter

Control Method

Included Transmitter

Transmission System

OcuSync 4.0 (OC4)
Frequencies: 2.4 GHz (2.400 to 2.4835) / 5.1 GHz (5.170 to 5.250) / 5.8 GHz (5.725 to 5.850)
Power at 2.4G: 33 dBm (FCC) / 20 dBm (CE/MIC/SRRC)
Power at 5.1G: 23 dBm (CE)
Power at 5.8G: 33 dBm (FCC) / 30 dBm (SRRC) / 14 dBm (CE)

Wi-Fi 6 (802.11ax)

Frequencies: 2.4 GHz (2.400 to 2.4835) / 5.1 GHz (5.150 to 5.250) / 5.8 GHz (5.725 to 5.850)
Power at 2.4G: 26 dBm (FCC) / 20 dBm (CE/MIC/SRRC)
Power at 5.1G: 23 dBm (CE/FCC/MIC/SRRC)
Power at 5.8G: 23 dBm (FCC/SRRC) / 14 dBm (CE)

Bluetooth 5.2

Frequencies: 2.4 GHz (2.400 to 2.4835)
Power at 2.4G: 10 dBm

Maximum Operating Distance

18.6 Miles / 30 km

Battery Type

Built-In Lithium-Ion (6200 mAh)

Operating Temperature

14 to 104°F / -10 to 40°C

Mobile App Compatible

No

Built-In Display

5.5" (1920 x 1080) Touchscreen LCD, 700 nits/ cd/m2

Dimensions

5.2 x 1.8 x 6.6" / 132.5 x 46.2 x 168.4 mm (Joystick Unmounted)
5.2 x 2.5 x 6.6" / 132.5 x 62.7 x 168.4 mm (Joystick Mounted)

Flight Battery

Battery Chemistry

Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2)

Battery Capacity

6654 mAh / 95.3 Wh

Battery Configuration

4 S / 14.32 V

Maximum Charging Power

17.2 V

Operating Temperature

41 to 104°F / 5 to 40°C

Weight

0.7 lb / 332 g

General

GNSS Support

GPS, BeiDou, Galileo

Overall Dimensions

4.9 x 4.2 x 10.1" / 124.8 x 106.6 x 257.6 mm (Folded)

Weight

2.3 lb / 1063 g (Takeoff)
