Godox LDX50R RGB LED Light Panel

Features

The LDX50R RGB LED Light Panel from Godox is a compact 14 x 12" fixture with RGBWW capability to enable you to quickly adjust the color temperature from 2500 to 10,000K. The light can be dimmed from 0 to 100% throughout its CCT range, giving you high CRI/TLCI ratings of 96 as indicators of advanced accuracy in color rendering. Furthermore, this panel provides a soft light well suited for video use with 14 special effects to lend realism to your shoot. Adjustments can be made either onboard, remotely through an optional wireless remote control, or via an app directly from your smartphone.

The LDX50R is rated for output up to 2340 lux at 3.3' and 5600K, drawing a maximum of 63W of power. For powering the panel, an AC adapter is included for connecting to a wall socket. Additionally, those looking to take the light outdoors can run it on on two optional NP-F batteries or a separately available V-mount battery connected by an optional D-Tap cable. Godox includes a carry bag for storage and transportation.

Bright, Soft Light Source

Designed to illuminate your creative vision, the LDX50R gives you access to literally millions of color combinations. For enhanced versatility, you can easily switch between CCT and FX modes. By short-pressing the built-in analog dials of the unit, quickly select and customize the intensity or lighting effect.

• RGB mode with four mixed colors
• HSI color mode allows for full-color control over hue, saturation, and intensity
• Gel mode allows for a variety of 60 popular color filters

14 Customizable Lighting Effects

• RGB cycle, party, police car, flash, lightning, cloudy, broken bulb, TV, candle, fire, fireworks, explosion, welding, and SOS. These 14 customizable creative lighting effects will help you achieve different looks.

Greater Control

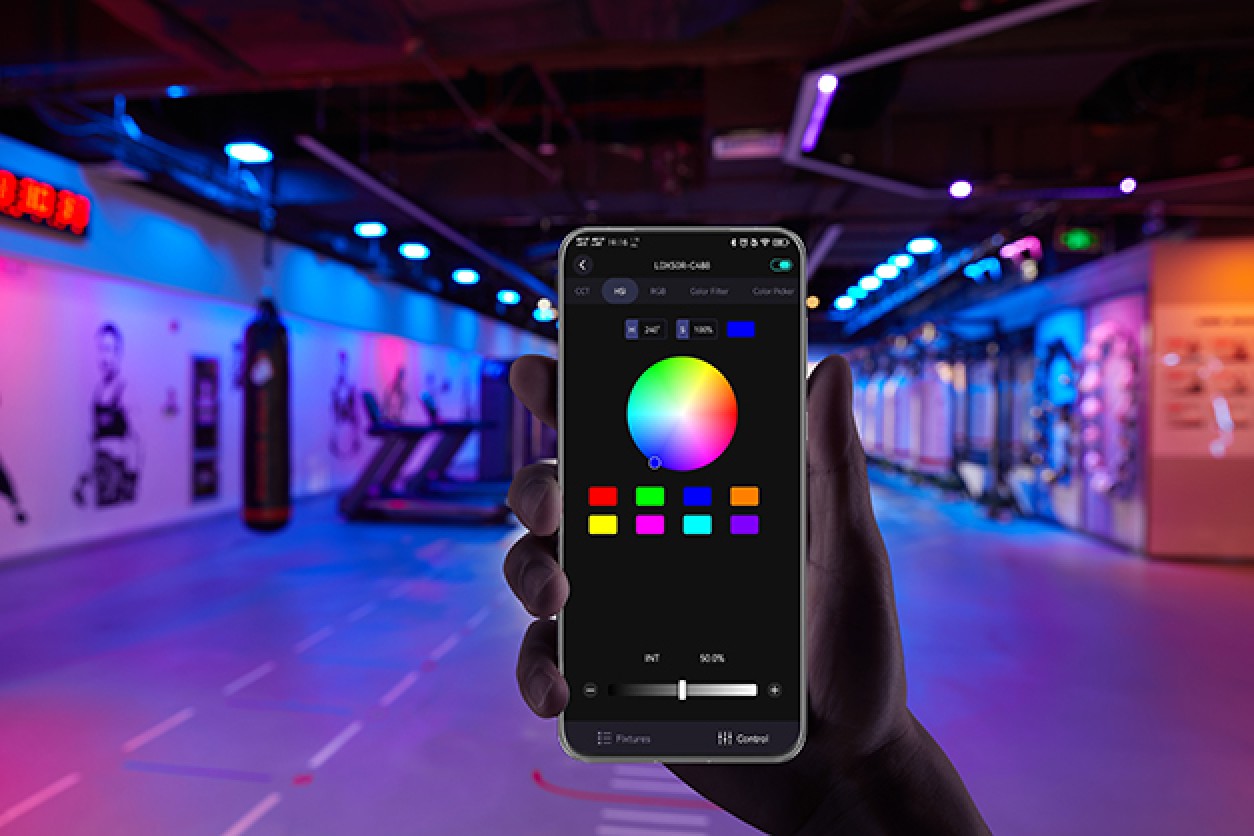

The Godox Light app from your mobile device controls the light via Bluetooth from up to 98.4' away

Optional RC-R9II remote controls the light via 2.4 GHz from up to 164' away

Construction Details

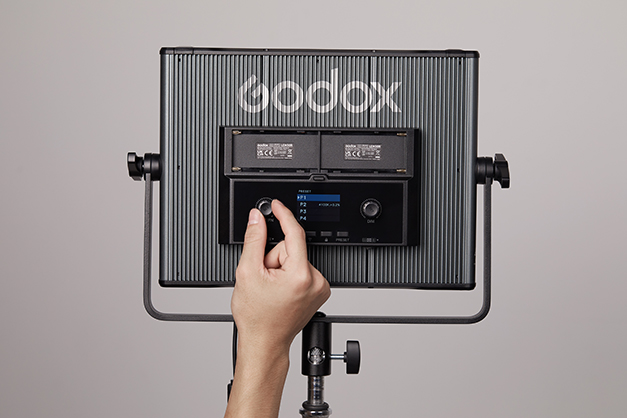

• Integrated screen for viewing settings
• Built-in dual NP-F plate

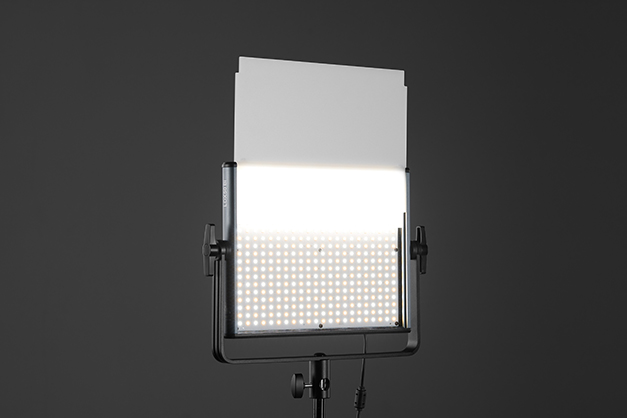

• Detachable diffuser and optional barndoors produce a soft and controllable quality of light
• 360° U-type yoke for flexibility
• Metal housing

Specifications

Light Fixture

Item Type

1x LED Light Panel

Included Filters

Diffusion

Included Storage Case

1x Case

Photometrics

3200K:
204 fc / 2200 Lux at 3.3' / 1 m*
760 fc / 8190 Lux at 1.6' / 0.5 m
55 fc / 594 Lux at 6.6' / 2 m

4300K:
208 fc / 2240 Lux at 3.3' / 1 m*
777 fc / 8370 Lux at 1.6' / 0.5 m
56 fc / 606 Lux at 6.6' / 2 m

5600K:
217 fc / 2340 Lux at 3.3' / 1 m*
808 fc / 8700 Lux at 1.6' / 0.5 m
58 fc / 633 Lux at 6.6' / 2 m

6500K:
223 fc / 2410 Lux at 3.3' / 1 m*
830 fc / 8940 Lux at 1.6' / 0.5 m
60 fc / 650 Lux at 6.6' / 2 m

*Standardized Measurement Supplied by the Manufacturer

Color Temperature

2500 to 10,000K

Color Modes

RGB

Color Accuracy Standard

CRI 96

TLCI 96

Dimming

Built-In Dimmer
• 0 to 100%

Cooling System

No

Umbrella Mount

No

Front Accessory Mount

No

Connectivity

Wireless Remote Control Type

Bluetooth
Radio/RF *Remote Not Included

Mobile App Compatible

Yes: Android & iOS

App Name

Godox Light

Wireless Channels

32

Wireless Groups

16

Wireless Frequency

2.4 GHz

Wireless Range

98.4' / 30 m (Bluetooth)
164' / 50 m (Radio/RF)

Power & I/O

Power Source

AC to DC Adapter (Included)
Battery (Not Included)

Battery Plate Type

2x Sony L-Series / NP-F (Built-In)

Battery

2x Sony-Type L-Series / NP-F Rechargeable (Not Included)
or
1x V-Mount Rechargeable (Not Included)

DC Input Power

20 VDC

Power Consumption

63 W

Mounting

Yoke Type

Manually-Operated Yoke

Fixture Mounting

Not Specified by Manufacturer

Environmental

Environmental Protection

No

General

Display

Yes

Materials

Metal

Dimensions

14.1 x 12 x 3" / 35.7 x 30.5 x 7.5 cm

Weight

4.1 lb / 1.86 kg
