Features
The updated version of the popular "F" series. "G" heads have an improved clamping system for more reliable braking, and stability when using the head with larger, heavier accessories, such as softboxes.
The included flashtube protection dome is now better-protected with a redesigned locking bayonet device. Voltage level is automatically sensed, modeling lights are changeable for 220V.
Compatibility and Features
This head will fit on almost any third party light stand, eliminating the need for the Broncolor adapter.
The familiar features of light angle focusing, 3200 w/s of consistent power, standard Broncolor Bayonet reflector mount and umbrella holder, and cooling fan are still built in. A power supply for this flash head is required.
Design and Handling
- Compact Design
- Sleek, and exactly balanced for ease of handling and transport.
- Sturdy Noryl Housing.
Control and Adjustment
The Pulso's light angle may be adjusted by a rotary knob fitted on the side of the lamp base. It utilizes an integrated tilt mechanism for continuous tilting for stand or suspension mounting. Focus is possible within a 26mm range, resulting in illumination angle adjustment from 60-90° with a P70 reflector.
Flashtube Features
Easily Replaceable Flashtube
The Pulso lamp base features a user replaceable flashtube. No tools are required to replace this "plug & play" flashtube.
The lampbase also comes standard with a protective glass dome that surrounds the flashtube for an added margin of safety. There are also many optional glass domes that come in a variety of coatings so that you have added control over the color temperature.
- Removeable Reflector
- The Pulso series heads feature the standard Broncolor Bayonet Mount that accepts all Broncolor reflectors accessories.
- Fan Cooled
- The lampbase is fan cooled for increased protection under the most demanding applications.
- Modeling Light
- The Pulso lampbase features halogen modeling lights that burn brighter and last significantly longer than a non-halogen incandescent bulb.
- Long-Reaching Cable
- A 16' (4.8M) cable is included. Additional 16 or 32' cables may be used for light heads that are in use at greater distances from the power pack.
Specifications
32.116.XX

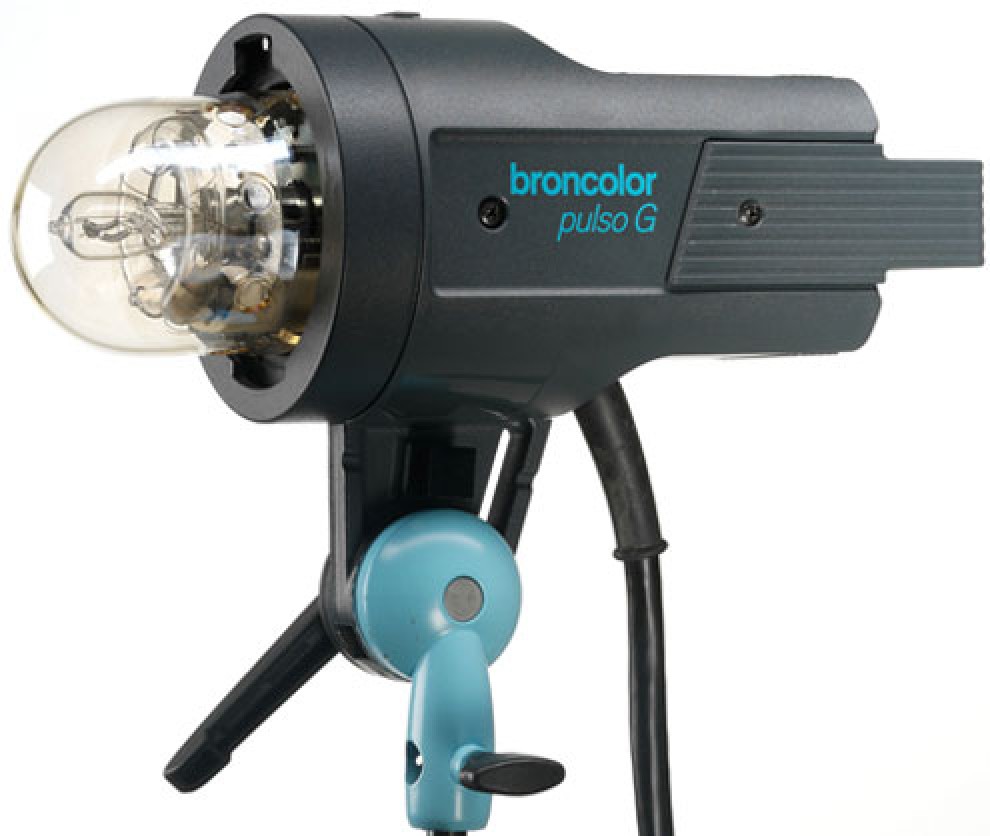

Broncolor G4 Pulso - 3200 Watt/Second Focusing Lamphead, 16' Cable
- Maximum Watt/Seconds
- 3200 w/s
- User Replaceable Flashtube
- Yes
- Changeable Reflector
- Yes, Broncolor Standard Bayonet Mount
- Circuit Protection
- Fuse
- Cable Length
- 16.4' (5M)
- Modeling Light Wattage
- 250W, 120V included
650W, 240V available
- Modeling Light On/Off Switch
- Yes
- Protective Glass Dome
- Yes
- Fan Cooled
- Yes
- Dimensions
- 11.6 x 4.75 x 5" (29.5 x 12.1 x 12.7cm)
- Weight
- 6 lbs (2.7kg)
