Celestron NexStar 4SE 102mm f/13 Maksutov-Cassegrain GoTo Telescope

Celestron's NexStar 4SE 125mm f/13 Maksutov-Cassegrain GoTo Telescope is a powerful, versatile, and user-friendly catadioptric-style scope that can be used for observing everything from the moon and planets to bright deep-sky objects like stars, galaxies, and nebulae. Using Celestron's proprietary StarBright XLT multicoating system, light transmission is increased throughout the entire optical path with anti-reflection multicoated lenses, highly reflective multicoated mirrors, and crown optical glass elements. Similar to their Schmidt cousins, the Maksutov design exchanges the conventional front corrector plate with a convex meniscus lens, which results in a smaller secondary mirror—limiting obstruction and increasing contrast, while eliminating the need for periodic collimation. While the focal ratio is a relatively slow f/13, the scope's optical performance, added to the mount's precision tracking system and integrated equatorial wedge, allows it to be a competent astrophotography/imaging platform for the moon and planets.

Driving the dual servo motors on the mount is the brain of the NexStar 4SE: the iconic NexStar+ computer hand controller. Packed with 40,000+ celestial objects, it can hold up to 100 additional user-defined destinations and is updatable via the Celestron website. It has multiple alignment procedures to get you observing fast—including the super-easy SkyAlign system. Capable of being used in the Northern or Southern Hemispheres, the NexStar has sidereal, lunar, and solar tracking speeds to accurately follow near- and deep-sky objects, plus nine slew speeds and the ability to automatically trigger a camera's shutter release for Fastar or piggyback wide-field photography or conventional prime-focus astrophotography.

Performance

4" (102mm) aperture

f/13 focal ratio

1325mm focal length

Maksutov-Cassegrain optical system

Front convex meniscus lens corrects spherical and chromatic aberrations and comas (off-axis aberration) across the entire field of view

Smaller secondary mirror versus Schmidt-Cassegrain reduces obstructions and increases contrast

BK7 optical glass primary mirror

StarBright XLT optical coatings: Multilayer aluminum/SiO2 (quartz)/TiO2 (titanium dioxide) mirror coatings with flat reflectivity across the light spectrum for both astrophotography/astroimaging and visual observation

Multilayer MgF2 (magnesium fluoride) and HfO2 (hafnium dioxide) anti-reflective lens coatings

High-transmission water white glass corrector lens with 97.4% light transmission

Resolution: Rayleigh: 1.36 arcsec / Dawes: 1.14 arcsec

Secondary mirror obstruction: 1.25", 34.4% by diameter, 11% by area

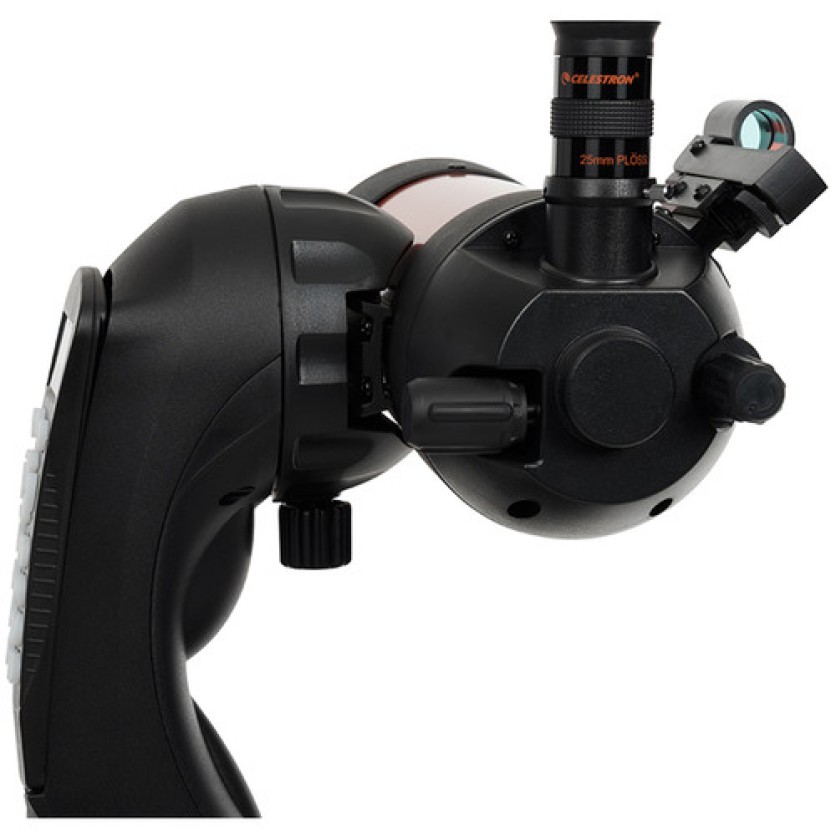

Internal 90° flip mirror: With the mirror flipped up, the 90° angle puts head in a comfortable viewing position when scope is pointed at or near the zenith; lay the mirror down to direct light to the visual back for astrophotography/imaging

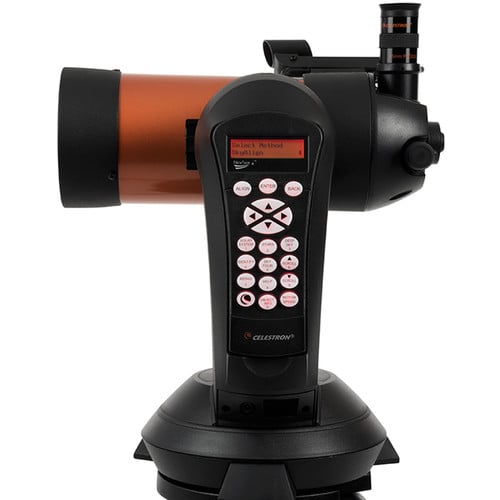

NexStar+ Computer Controller

2-line, 16-character LCD display

19 fiber optic backlit red LED buttons

Database of over 40,000 celestial objects plus 100 user defined

Automatically slew to planets, stars, constellations, and a variety of catalogs

Camera control: For piggyback wide-field or conventional astrophotography through the optical tube assembly, the controller can automatically trigger the shutter release to capture the image

Anti-backlash compensation programs out play between gears for more precise tracking

Tour Mode: Shows a selection of the most popular objects for the time and date you are observing

Constellation Tour: Allows you to take a tour of all the best objects within a particular constellation

Alignment procedures: SkyAlign, Auto 2-Star, 1-Star, 2-Star, and Solar System

SkyAlign alignment: Takes minutes, with minimal effort or experience—point the telescope at three bright objects in the sky, and the telescope does the rest

Nine slew speeds: 4°/sec, 2°/sec, 1°/sec, 0.5°/sec, 2x, 4x, 8x, 16x, and 32x

Sidereal, Solar, and Lunar tracking rates for observing the fast-moving moon, to slower-moving deep-space subjects

Tracking modes: Alt-Az (default, for general GoTo use), EQ North (use for long-exposure astrophotography in Northern Hemisphere with EQ wedge engaged), EQ South (use for long-exposure astrophotography in Southern Hemisphere with EQ wedge engaged), Off (no tracking when using as a terrestrial spotting scope)

RS-232 communication port allows for computer control

Flash updatable via the Celestron website

Database Details:

Solar system objects including the sun, moon, and planets

Named objects

Stars: Asterims, variable stars, double stars, named stars

Caldwell catalog

Messier catalog

NGC catalog

SAO catalog

Constellations

Mount & Tripod

Mount:

Single-fork alt-az

Dual-axis servo motors allow for precise tracking with virtually no vibration

Motor resolution: 0.26 arcsec

Optical encoders track mount movement to improve tracking and GoTo accuracy while allowing the mount to maintain alignment when moved manually

Communication ports: Autoguider port, Aux port, hand controller

Runs on eight user-supplied AA batteries or optional 12 VDC power supply

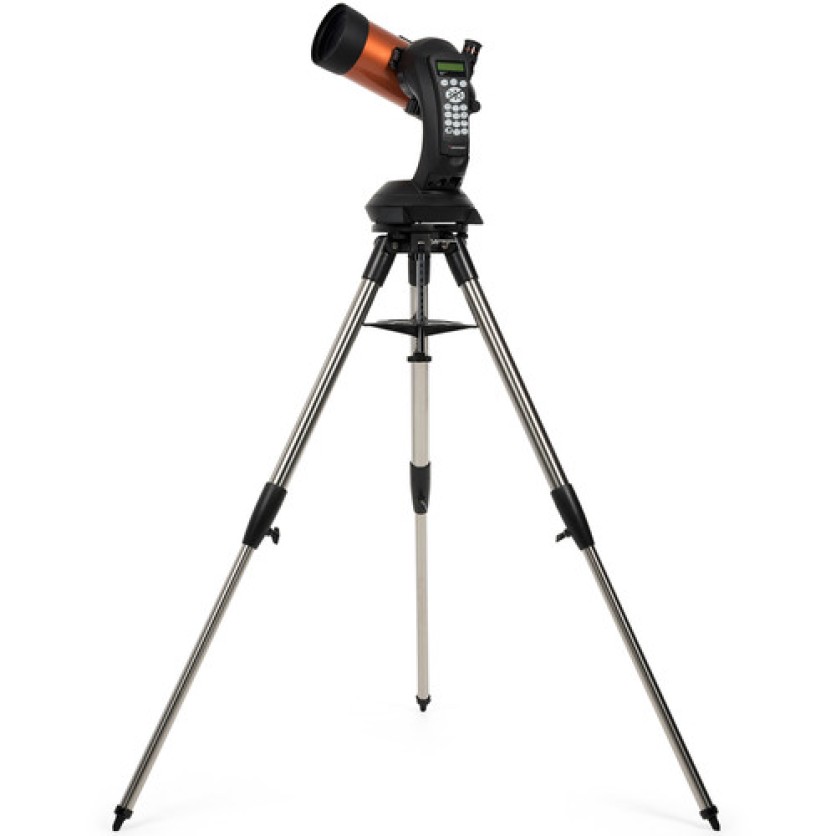

Tripod:

Stainless steel legs

Adjustable height accommodates a variety of observation positions or users

Built-in equatorial wedge enables more precise tracking accuracy during long-exposure astrophotography

Tray holds accessories such as eyepieces and filters and adds stability and vibration reduction

Weight: 10 pounds

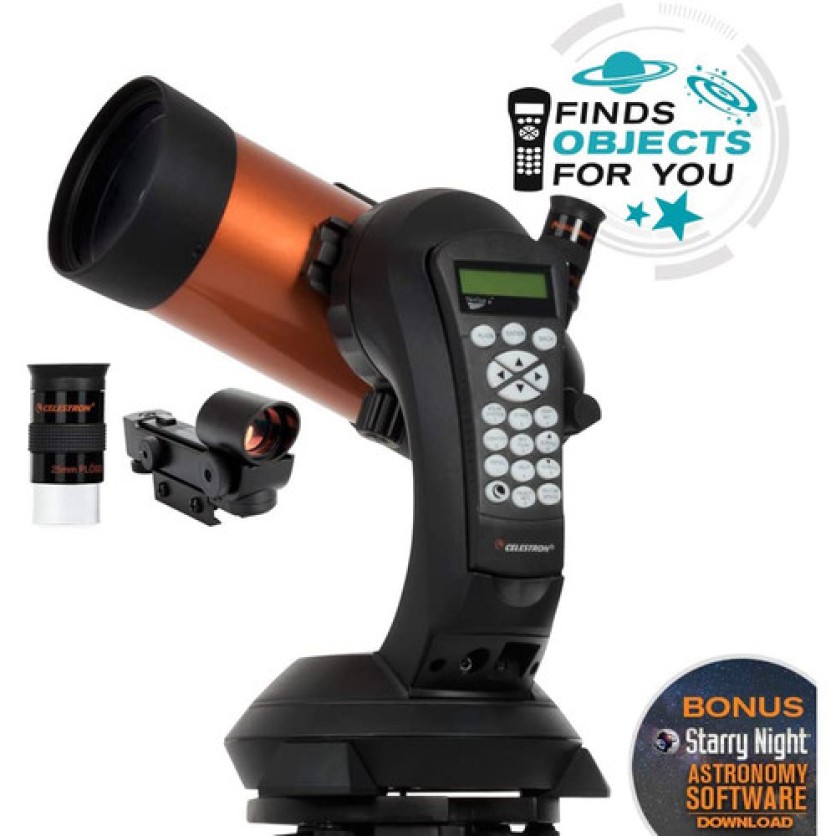

Included Accessories

Eyepiece:

1.25" diameter barrel

25mm focal length produces 53x magnification

Anti-reflection multicoated glass improves color rendition and contrast

Threaded barrel accepts most 1.25" astronomical filters

Fold-down rubber eyecup for use with or without eyeglasses

StarPointer Finder

Projects a single red dot in line of sight

Unmagnified to make finding objects faster and easier

Used primarily for alignment process

• Optical Design
• Maksutov-Cassegrain reflector
• Aperture
• 102mm
• Focal Length
• 1325mm
• Focal Ratio
• f/13
• Eyepiece Barrel Diameter
• 1.25"
• Diagonal
• Integrated 90° flip
• 1.25" eyepiece holders
• Finderscope
• Red-dot StarPointer
• GoTo Capability
• Yes, NexStar+ controller
• Tripod
• Stainless steel legs
• Adjustable height
• Built-in equatorial wedge
• Weight 10 lb / 4.5 kg
• Mount Type
• Motorized alt-az
• Single-arm fork
• Power Source
• 8 x AA batteries
• Optical Tube Length
• 13.5" / 342.9 mm
• Weight
• 21.0 lb / 9.5 kg, OTA and mount
