Manfrotto 504X Fluid Vid Head+645 FastT

SKU: 1020017     MPN:

MVK504XTWINFA

$2,369.00

$2,060.00 excl. GST

Tax Free Price: $2,060.00 (Save $309.00)
Available at AKL International on departing flights ... more »

in stock In Stock

This video system offers smooth and stable pan and tilt movements with its fluid head and 4-step counterbalance system, supporting up to 6.5 kg. Its flat base and lightweight aluminium design provide versatile shooting options. The FAST Lever Lock mechanism ensures quick setup, while the tripod's 100 mm half ball and included adapter allow for varied video head use. It includes a padded bag for easy transport, making it ideal for videographers seeking robust support and swift operation.

Features

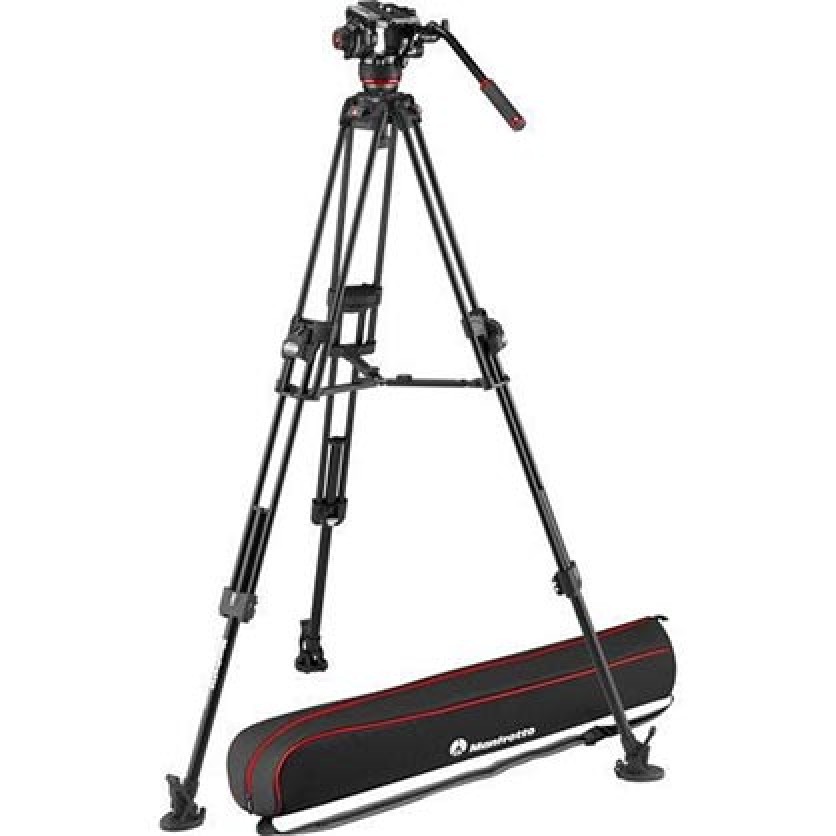

This video system includes the Manfrotto 504X Fluid Video Head and the 645 Fast Twin Tripod in aluminium.

  • Fluid video head with 4-step counterbalance system up to 6.5 kg
  • Maximum versatility thanks to flat base
  • FAST Lever Lock & 3-angle selection mechanism for easy set up
  • 100 mm half ball, compatible with a 75 mm half ball adapter. Side lock plate attachment and two 3/8'' easy link connectors.

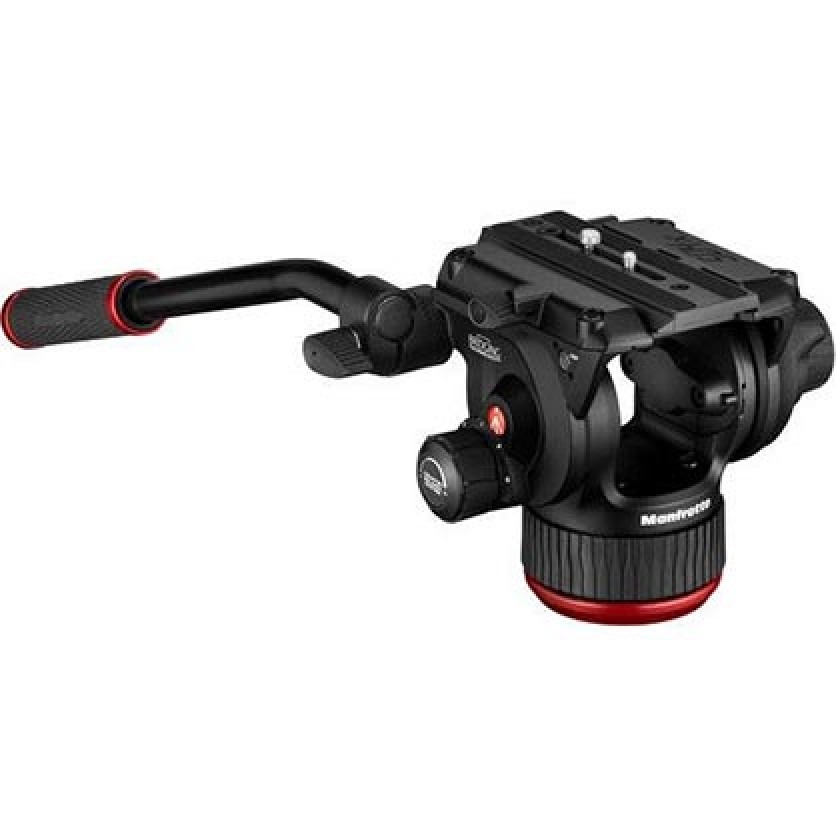

The Manfrotto 504X Fluid Video Head

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

Features of the 504X Fluid Video Head

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

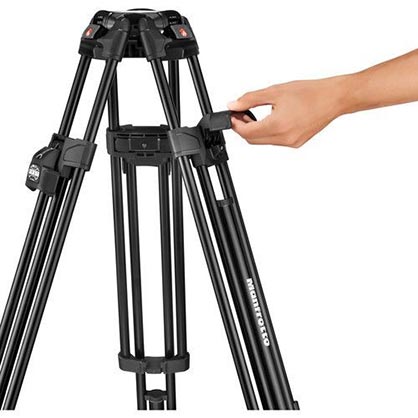

The 645 FTT Fast Twin Alu Tripod

The 645 FTT Fast Twin Alu Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The synchronized closure mechanisms between the upper and lower locks enable videographers to control the entire leg with a single lock and get to work in record time.

Additional Features of the Tripod

The tripod is provided with a 2-in-1 half ball: a standard 100mm bowl compatible with a 75mm adapter (included in the kit) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

It is compatible with the 2-in-1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

  • Supplied with its own padded carrying bag.

Specifications

Weight
6.2 kg
Safety Payload Uni/Pdr 105:2021
12 kg
Counterbalance System
Variable Steps
Counterbalance Weight
2.2, 4.4, 6.5 kg
Maximum Height
173 cm
Min Height
43.5 cm
Base Diameter
75 mm
Bubble Spirit Level (No.)
1
Center Of Gravity
55 mm
Carrying Bag Included
yes
Center Column
no centre column
Closed Length
89.5 cm
Colour
Black
Top Attachment
1/4" screw, 3/8" screw
Ball Flat
Flat
Safety Payload Weight
12 kg
Powered By (Batteries)
Lithium
Easy Link
Yes (with antirotation)
Front Tilt
-70° / +90°
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Angles
20°, 50°, 70°
Leg Lock Type
Flip Lock
Material
Aluminium
Maximum Working Temperature
60 °C
Minimum Working Temperature
-30 °C
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONGR-1
Quick Release
Yes
Spreader
mid level - variable arm length
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL
