Manfrotto MVH502A Fluid Head and 546B Tripod System with Carrying Bag

Features

• 15.4 lb Load Capacity
• Counterbalance Supports 8.8 lb
• Two-Stage Aluminum Legs
• 17.3" to 66.1" Height Range
• Mid-Level Spreader
• Spiked Feet with Rubber Overshoes
• Tripod Carrying Bag Included

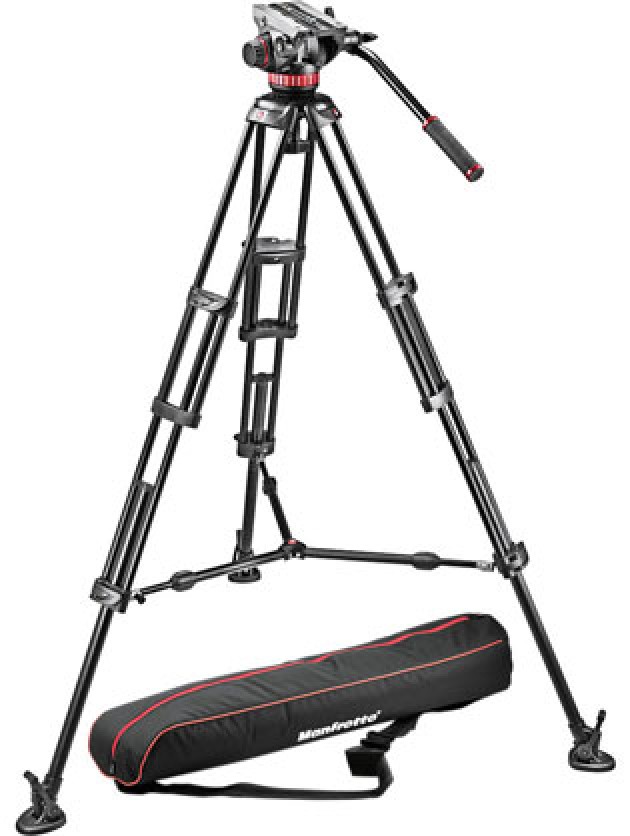

The MVH502A Fluid Head and 546B Tripod System

The MVH502A Fluid Head and 546B Tripod System with Carrying Bag is a professional tripod system designed for HDSLR and interchangeable lens cameras. The system combines the MVH502A 75mm half ball fluid head with the 546B tripod with mid spreader. The MVH502 head has a pre-set counterbalance of 8.8 pounds, but can support loads up to 15.4 pounds. It features two Easy Link connectors to allow an external monitor or other accessory equipment to be fitted directly on the head.

The 546B is a two-stage tripod with a built-in 75mm bowl. The tripod's telescopic mid-level spreader helps set leg angles accurately. Spiked feet with rubber overshoes are provided for solid grounding on both smooth floors and uneven terrain. A padded carrying bag comes included.

• Fluid video head supports 15.4 lb
• 8.8 lb counterbalance
• 75mm ball/bowl
• 2-stage, aluminum telescopic twin tube legs
• Mid-level spreader

Specifications

Head

Load Capacity

15.4 lb (7.0 kg)

Counter Balance System

Supports 8.8 lb (4.0 kg)

Center of Gravity

2.16" (5.49 cm)

Quick Release/Wedge Plate

504PLONG

Tilt Drag

Continuously adjustable from 0 to max level

Tilt Range

-80° / +90°

Leg Stages/Sections

Yes

Spring Loaded Counter Balance

Yes

Pan Range

360°

Pan Lock

Yes

Legs

Material

Aluminum

Head Attachment Fitting

75mm bowl

Leg Stages

Two/three

Center Brace

Yes

System

Load Capacity

15.4 lbs (7.0 kg)

Maximum Height

66.14" (168.00 cm)

Minimum Height

17.32" (43.99 cm)

Closed Length

32.68" (83.01 cm)

Leveling Bubble/Illuminated

Yes/No

Weight

12.13 lb (5.50 kg)
