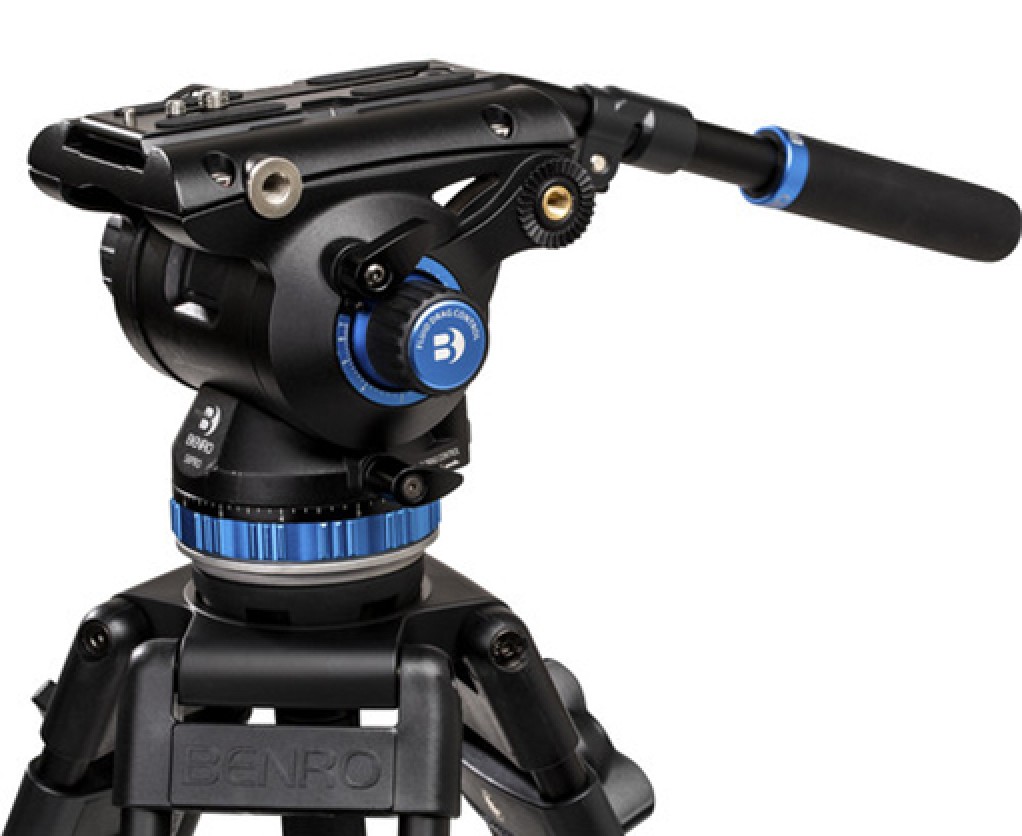

Benro S8PRO Video Head Max Load 8kg

Features

The Benro S8Pro is a versatile fluid video head for loads up to 17.6 lb. Featuring a 75mm flat base with a 3/8"-16 threaded hole, it can efficiently be moved between compatible tripods and sliders, jibs, monopods, and other support gear. To balance your heavy loads, the S8Pro offers 7+0 steps of counterbalance adjustable via a knob on the side. Another knob on the opposite side provides control over continuous pan and tilt drag. There are also independent pan and tilt locks. The tilt range is a wide +90/-75°, and the pan range is a full 360°.

Design and Build

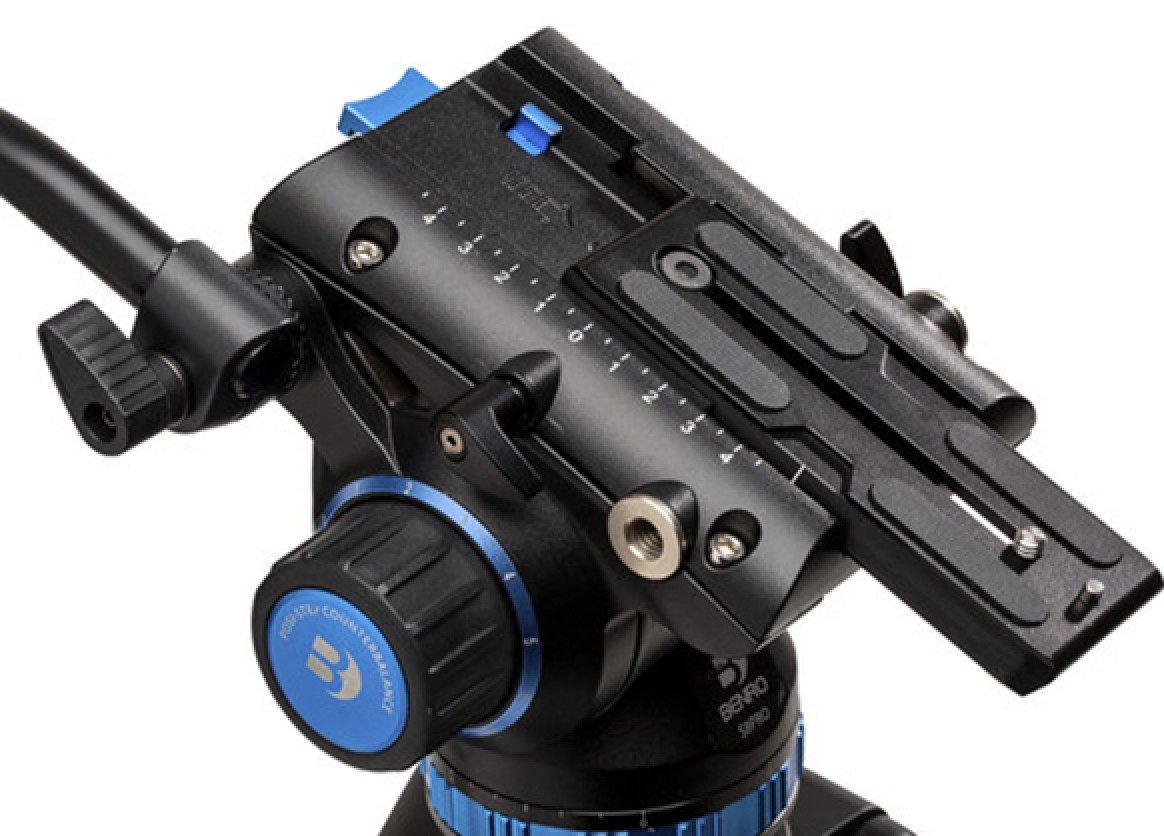

Some parts of the head are made of magnesium and other parts of aluminum. Virtually the entire head, including its knobs, is made of robust yet lightweight metal. A pan bar is included that can be attached to a rosette adapter on the left or right side of the head, for left- or right-handed users. A camera plate is included that can be adjusted forward/backward to let you find the optimal balance for your camera. A safety lock on the plate ensures that once mounted, the plate won't slip out if you move it in either direction too much. Two camera screws are supplied—1/4"-20 and 3/8"-16—that can be stored underneath the camera plate on the head itself, in dedicated slots. For attaching accessories, there's a 3/8"-16 threaded hole on each side of the head to which you can secure articulating arms.

Key Features

• 17.6 lb payload
• 75mm flat base with a 3/8"-16 thread
• Compatible with 75mm flat base tripods and can be mounted directly on most sliders, jibs, and monopods
• 7+0 steps of counterbalance

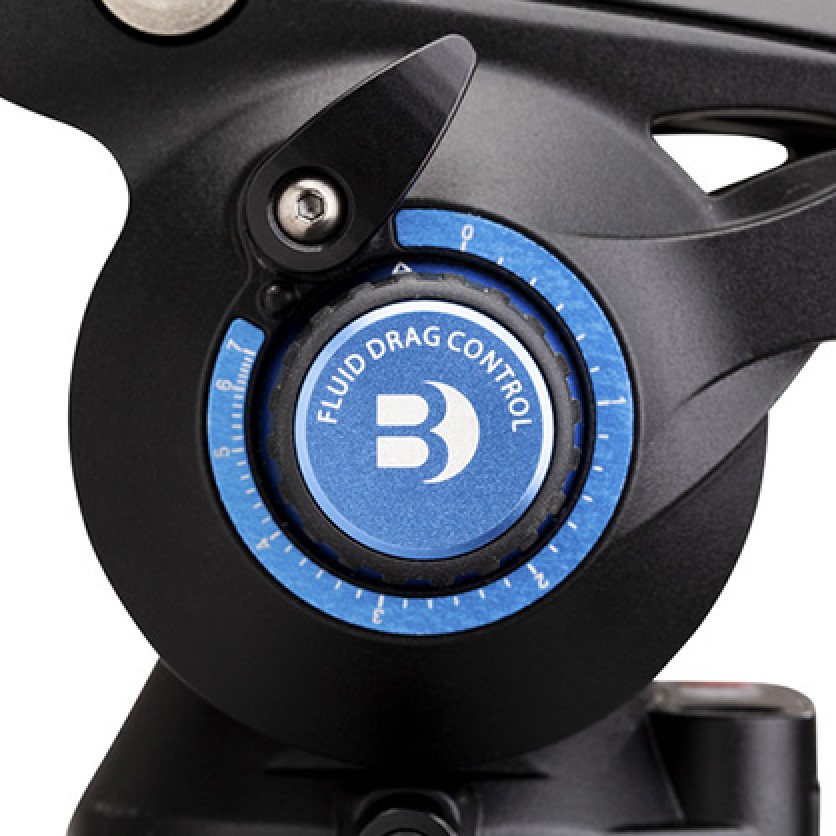

• Continuous pan and tilt drag
• Independent pan and tilt locks
• +90/-75° tilt range
• 360° pan range
• Made of magnesium and aluminum

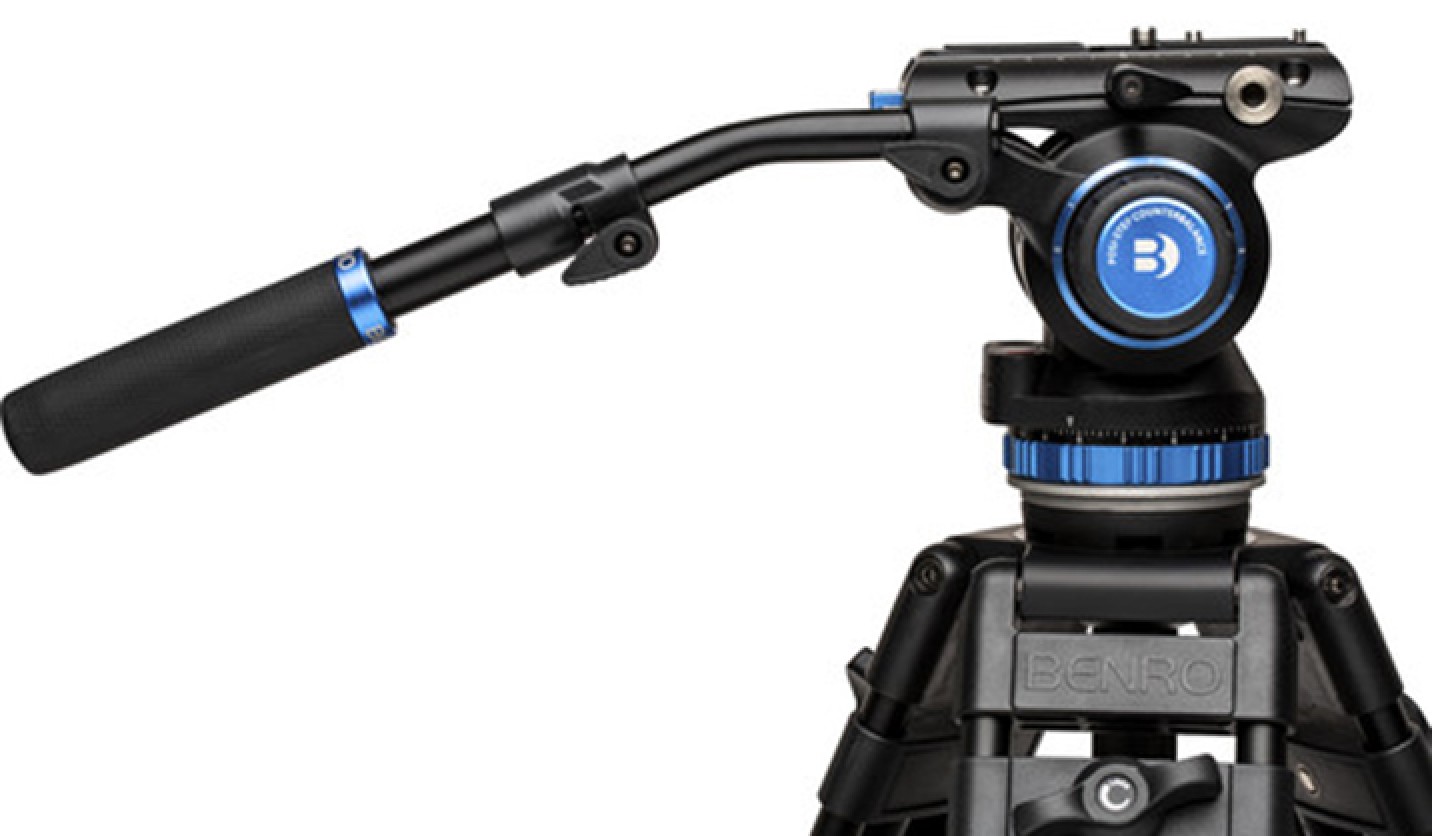

• Rosette adapters on the left and right side for attaching the included pan bar
• Sliding camera plate with safety lock
• 1/4"-20 and 3/8"-16 camera screws included and can be stored in dedicated spaces on the top of the head, underneath the camera plate
• Two 3/8"-16 threaded holes for accessories

Specifications

Camera Plate

Camera Plate Features

Sliding Balance Plate

Camera Mounting Screw

1 x 1/4"-20 Male
1 x 3/8"-16 Male

Safety Lock

Yes

Tripod Platform

Base Mount

3/8"-16 Female

Pan & Tilt

Drag Control

Pan: Continuous
Tilt: Continuous

Drag Type

Fluid

Vertical Tilt

+90° to -75°

Panning Range

360°

Independent Pan Lock

Yes

Independent Tilt Lock

Yes

Physical

Material

Aluminum, Magnesium

Load Capacity

17.6 lb / 7.98 kg

Counter Balance

Incremental 7-Step Plus 0

Pan Handle Fittings

2 x Rosette

Bubble Level

1 x Illuminated

Accessory Mounting

2 x 3/8"-16 Female Thread

Base Diameter

2.95" / 75 mm

Weight

5.4 lb / 2.45 kg
