Shop By Category Tripods and Supports Video Heads Manfrotto

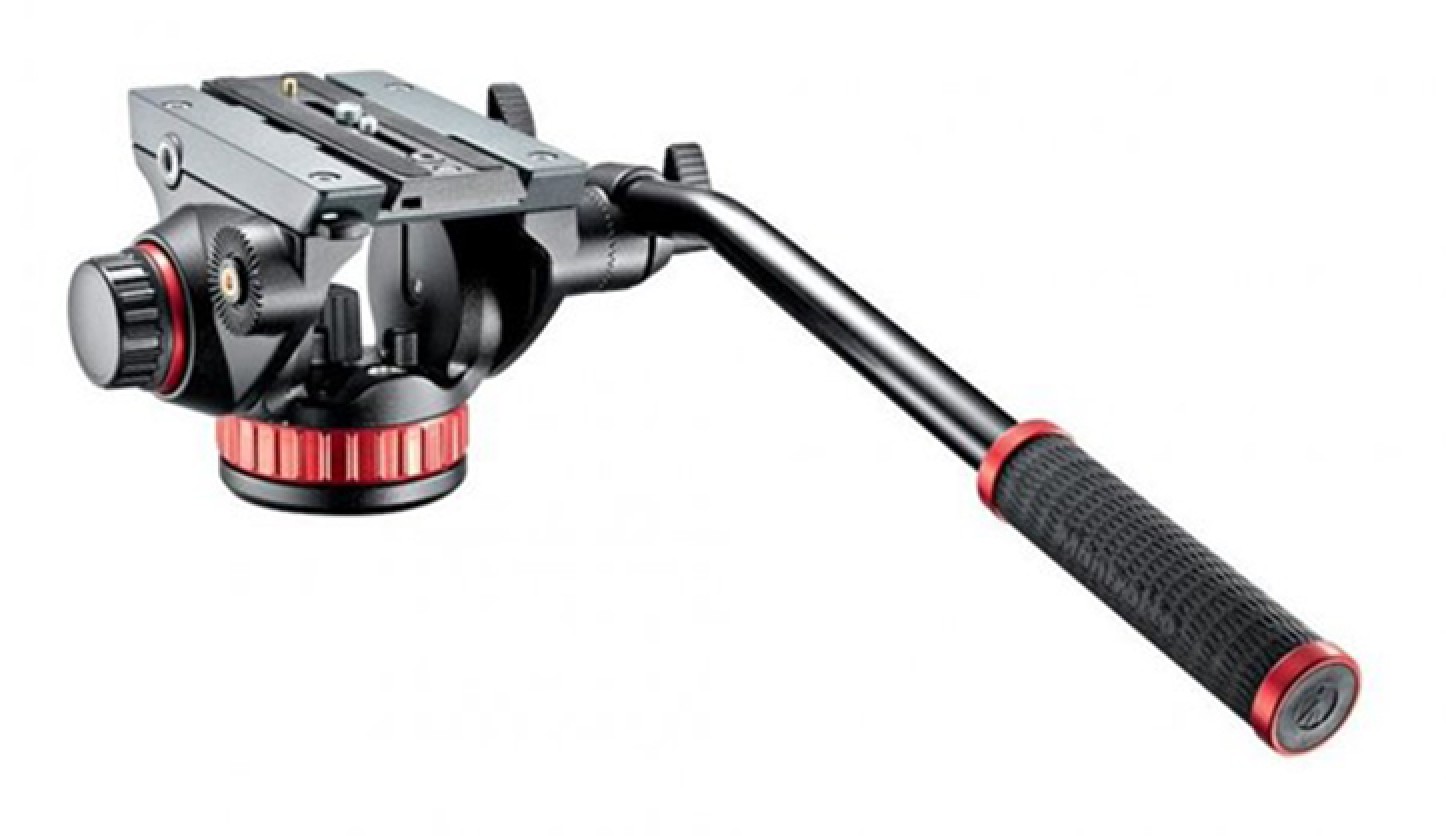

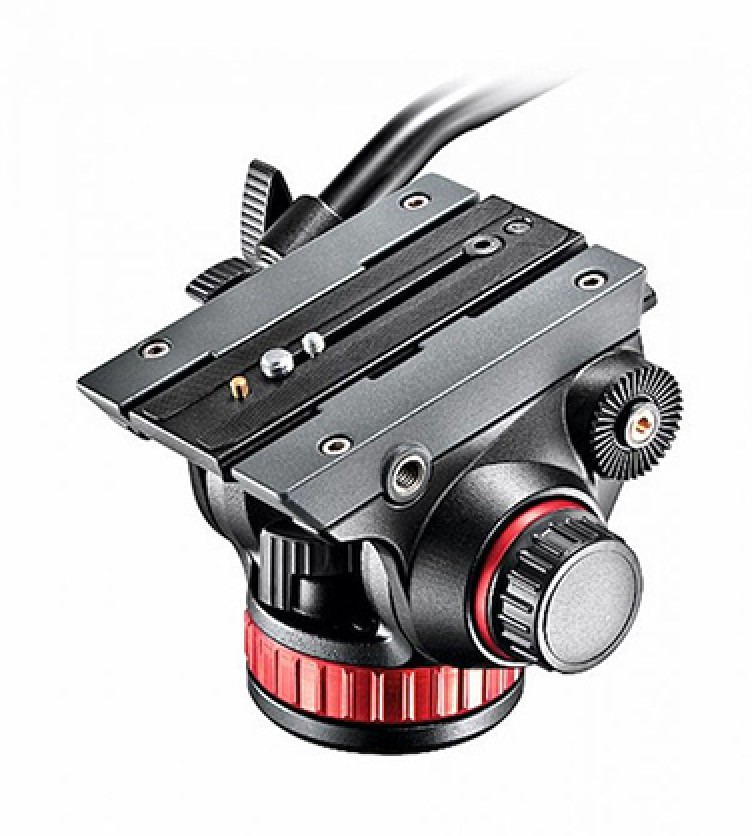

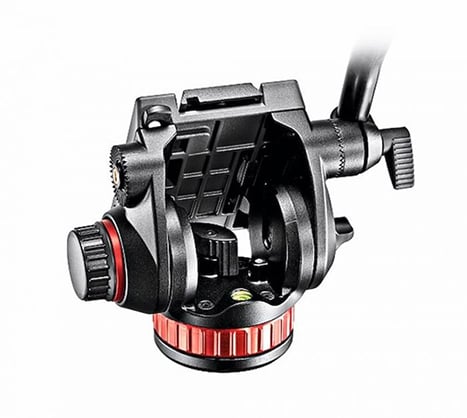

Manfrotto 502 Fluid Video Head With Flat Base
In Stock
The fluid video head offers smooth pan and tilt movements due to its variable fluid drag system. It's designed for quick setup with a sliding plate and supports up to 7kg, ideal for modern camcorders and HDSLR cameras with accessories. The flat base allows versatile support combinations, while 3/8” easy link connectors enable attachment of accessories like external monitors. Its robust aluminium build and fixed counterbalance system enhance stability and ease of use.
Features
The Manfrotto 502 Fluid Video Head with flat base features variable fluid drag system for pan and tilt movements that's cleverly incorporated into the design.
- Variable Fluid Drag System on PAN and TILT movements
- Fixed Counterbalance system
- Sliding plate for the fastest camera connection and set up
- Flat base for multiple support combinations
- 3/8” easy link connectors for accessories
Compatibility and Features
It's ideal for the latest camcorder and HDSLR cameras supplied with external accessories. It has a maximum capacity of 7kg and features a Ø75mm half ball connection to ensure compatibility with most equipment today.
This video head also has a fixed counterbalance system of 4 Kg Last but not least, 3/8'' Easy Link attachment points allow an external monitor or other accessory equipment to be fitted.
Specifications
- Weight
- 1.691 kg
- Safety Payload UNI/PdR 105:2021
- 10 kg
- Counterbalance System
- Fixed
- Counterbalance Weight
- 4 kg
- Base Diameter
- 75 mm
- Material
- Aluminium
- Bubble Spirit Level (No.)
- 1
- Center Of Gravity
- 55 mm
- Safety Payload Weight
- 7 kg
- Powered By (Batteries)
- 0
- Certifications
- None
- Top Attachment
- 1/4" screw, 3/8" screw
- Colour
- Black
- Easy Link
- Yes
- Front Tilt
- -80° / +90°
- Ball Flat
- Flat
- Head Type
- Video/Fluid Head
- Maximum Working Temperature
- 60 °C
- Minimum Working Temperature
- -20 °C
- Pan Bar Included
- Yes
- Pan Drag
- continuously adjustable from 0 to max level
- Panoramic Rotation
- 360 °
- Plate Type
- 504PLONG
- Quick Release
- Yes
- Tilt Drag
- continuously adjustable from 0 to max level
- Working Height
- 13 cm
