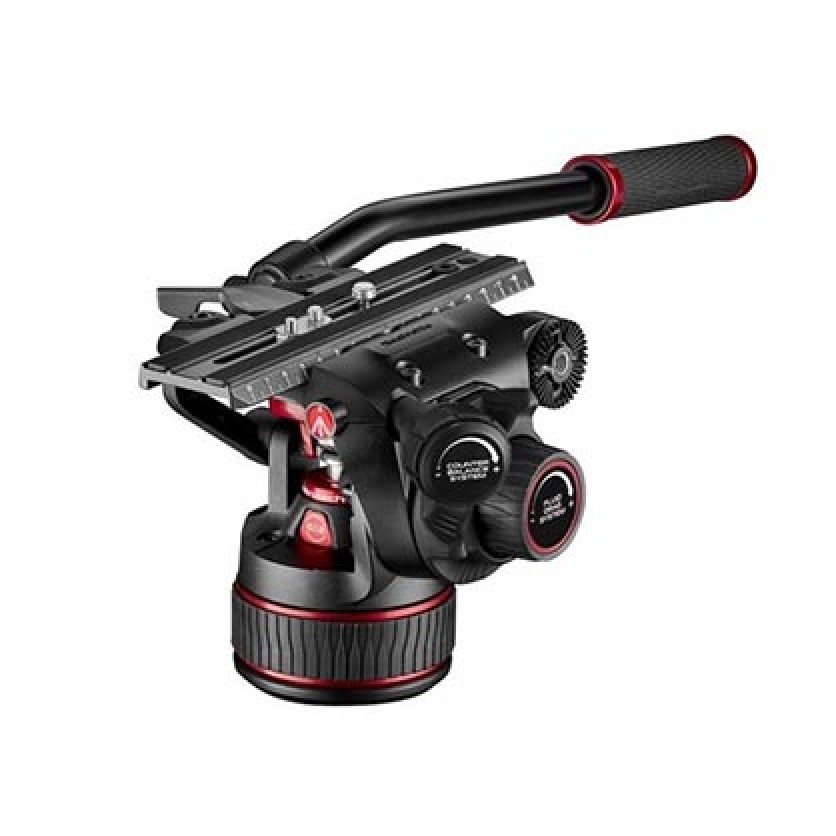

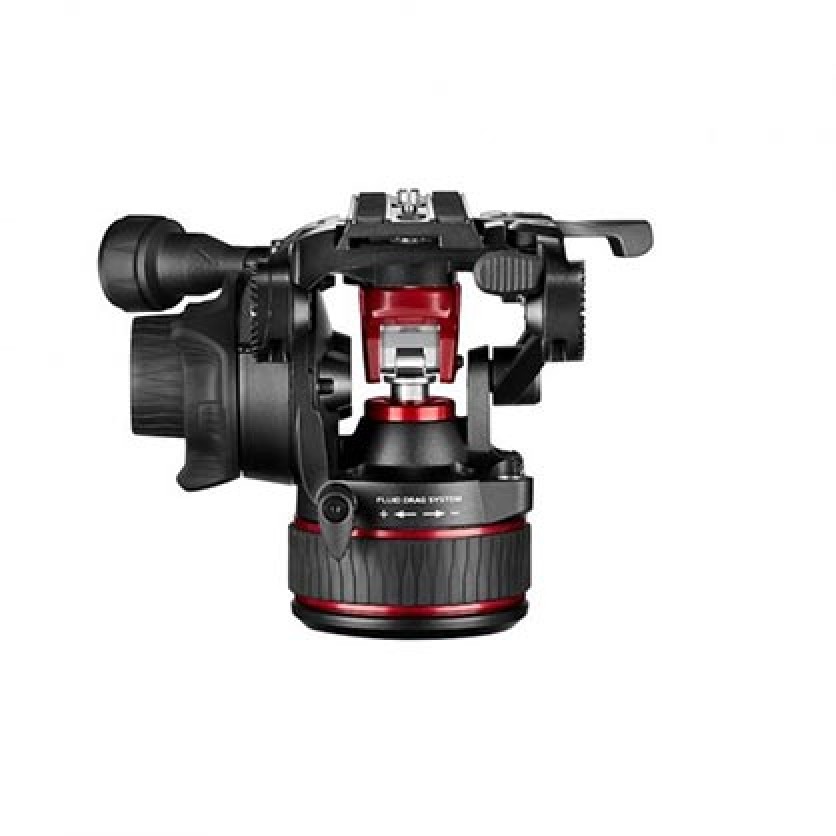

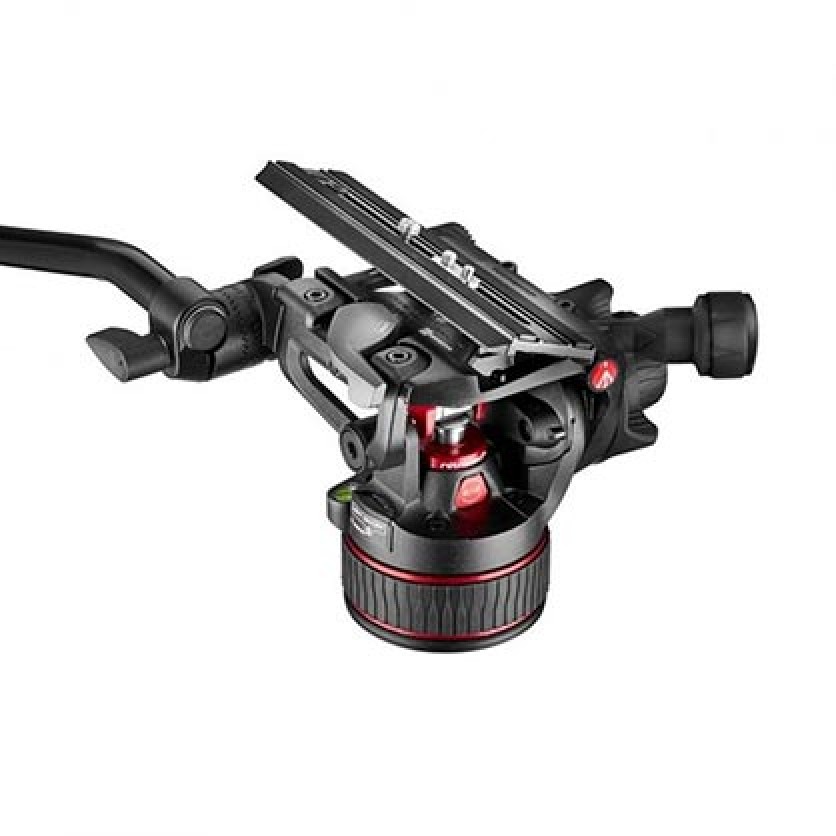

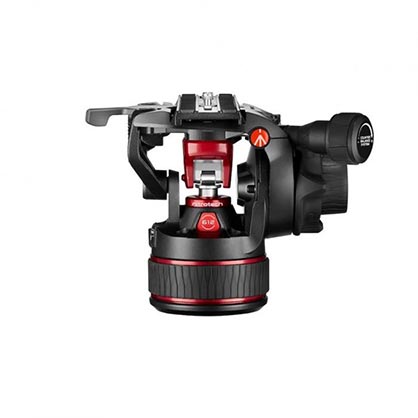

Manfrotto Nitrotech 612 Fluid Video Head with CBS

SKU: 1020030     MPN:

MVH612AH

$1,659.00

$1,442.61 excl. GST

Tax Free Price: $1,442.61 (Save $216.39)
Available at AKL International on departing flights ... more »

Out of stock
For more information about availability, please:

Experience effortless and precise camera control with a fluid video head that offers continuous counterbalance for smooth, judder-free movements, accommodating gear between 4 to 12 kg, and includes a versatile flat base mount for secure attachment and accessory integration.

Features

The NITROTECH 612 fluid video head features continuous counterbalance system that enables precise control of a camera and accessories from 4 up to 12 Kg at 55mm center of gravity. No matter the camera gear weight you are using you can have constant control despite the tilt degrees you will select. Camera operation will be much easier and effort free!

Nitrotech Fluid Video Head Features

  • Fluid video head with continuous counterbalance system (4-12 Kg)
  • Variable continuous fluid pan & tilt drag system
  • Side lock plate attachment
  • 3/8” easy link connector for accessories, with anti-rotation

Advanced Fluid Drag System

The variable continuous fluid drag system is powered by a brand new fluid technology that with Its formula sets a new level of performance in the Manfrotto range boosting the smoothest and judder-free pan and tilt movements.

Versatile Attachment and Mounting Options

The head also features a 3/8” Easy Link equipped with an anti-rotation systems both to accommodate Manfrotto arms equipped with an anti-rotation system or arms equipped with ARRI locating pins in order to enable an external monitor or other accessories to be fitted securely. The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment. The NITROTECH head has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane).

Specifications

Weight
2.27 kg
Safety Payload Uni/Pdr 105:2021
18 kg
Counterbalance System
Variable Continuous
Counterbalance Weight
4 ? 12 kg
Base Diameter
75 mm
Material
Aluminium

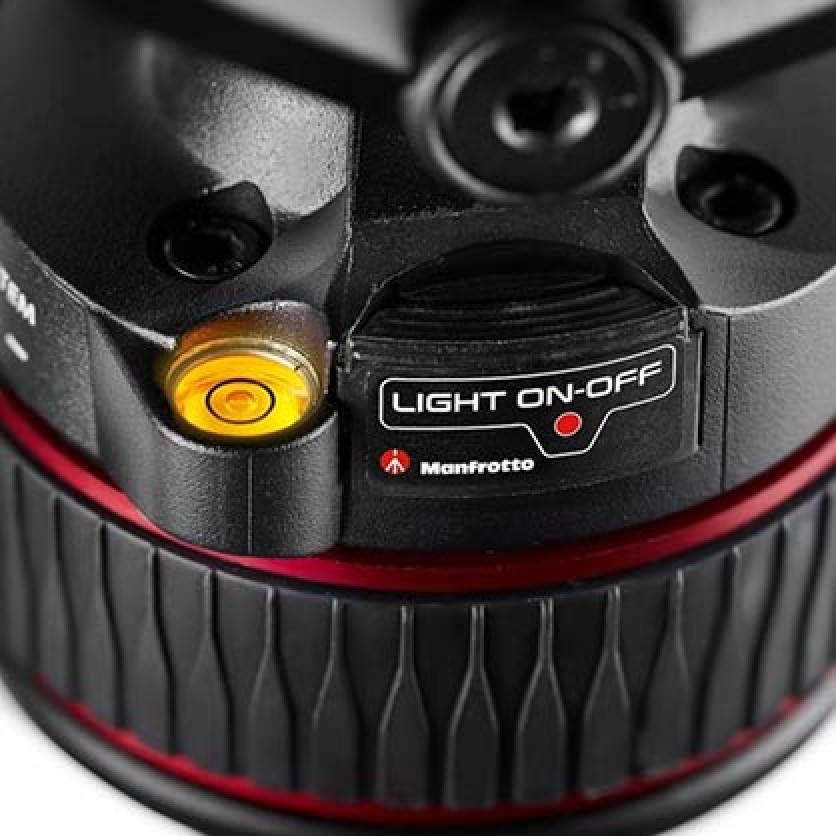

Bubble Spirit Level (No.)
1
Center Of Gravity
55 mm
Safety Payload Weight
12 kg
Powered By (Batteries)
Lithium
Certifications
WEEE; RoHS
Top Attachment
1/4" screw, 3/8" screw
Colour
Black
Easy Link
Yes
Front Tilt
-70° / +90°
Ball Flat
Flat
Head Type
Video/Fluid Head
Maximum Working Temperature
50 °C
Minimum Working Temperature
-20 °C
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONGRL
Quick Release
Yes
Tilt Drag
continuously adjustable from 0 to max level
Working Height
15 cm
Accessory Compatibility
MVAPANBARM; MVAPANBARL
