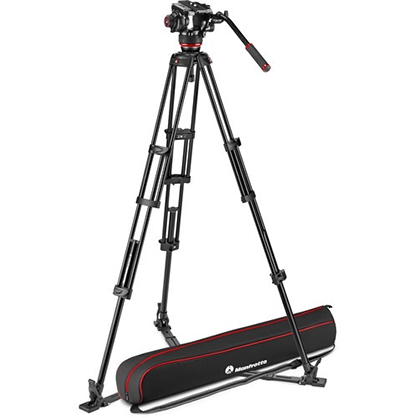

This video tripod kit offers a smooth and precise filming experience with its fluid drag system. It's lightweight yet strong, thanks to its aluminium construction, and supports up to 26.5 lb, accommodating various cameras. The four-step counterbalance system ensures quick setup and optimal performance, while the wide top surface and long sliding plate enhance stability. Easy to transport with a carry bag, it includes a levelling ball for stable horizons and independent locks to secure your setup.
Features
Fluid Head with 26.5 lb Maximum Load
Aluminium Tripod, Ground Spreader
Levelling Ball, Carry Bag
4-Step Counterbalance System
Flat Base Head with 3/8"-16 Thread

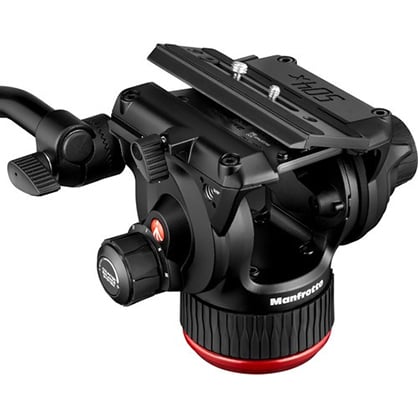

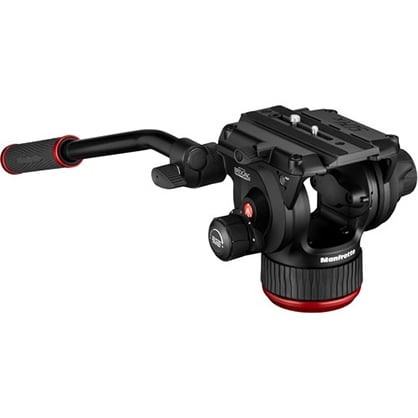

The 504X Fluid Video Head with Flat Base from Manfrotto
The 504X Fluid Video Head with Flat Base from Manfrotto features an open bridge design that provides a stable, smooth performance while reducing weight. The head's patented bridge technology allows for a wider top surface and longer sliding plate that add stability and balance. The head features a flat base with a 3/8"-16 female mounting thread that allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.
Support and Compatibility
With its ability to support up to 26.5 lb, the 504X can be used with a variety of video and photo cameras and rigs. The pan and tilt counterbalance system includes four presets from 0 to 4.8 to 9.7 to 14.3 lb, enabling proper balance no matter what the camera's size or weight.
At the same time, variable friction components with clearly marked degree scales and vibration-free movement bring new levels of fine-tuning to your tilts and pans. A levelling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.
Versatility and Durability
Whether you're using a pro camcorder or an accessorised DSLR, the 504X provides a 504PLONGR-1 sliding quick release plate with 1/4"-20 and 3/8"-16 threads to balance the camera properly on your rig. The head is made from durable aluminium and includes a pan bar that can be attached via rosettes on either the right or left side to help create smooth pan-and-tilt movements.
Key Features
Fluid drag system for precise, smooth movements
Wide top surface and long sliding plate for extra stability and balance while using video or photo equipment
Four-step counterbalance system ensures quick setup and optimal performance
Rigid structure for maximum precision and improved responsiveness
Lightweight aluminium for optimum balance of strength and size
Specifications
Camera Plate
Camera Plate Features
Quick Release, Sliding Balance Plate
Camera Plate Type
504PLONG
Camera Mounting Screw
1 x 1/4"-20 Male 1 x 3/8"-16 Male
Tripod Platform
Base Mount
3/8"-16 Female
Pan & Tilt
Drag Control
Tilt: Continuous Pan: Continuous
Drag Type
Fluid
Vertical Tilt
None
Panning Range
360°
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Physical
Material
Aluminium
Load Capacity
26.46 lb / 12 kg
Counter Balance
Incremental 4-Step Plus 0 (0 to 14.3 lb / )
Bubble Level
1
Dimensions
5.86" / 14.88 cm
Weight
4.41 lb / 2 kg
General
Head Mount Type
100 mm Bowl
Load Capacity
55 lb / 24.95 kg
Maximum Working Height
62" / 157.48 cm
Minimum Working Height
13" / 33.02 cm
Folded Length
27" / 68.58 cm
Materials
Aluminium
Weight
7.8 lb / 3.54 kg
Legs
Leg Sections
3
Feet Features
Rubber, Dual Spiked
Spreader
Ground (Included)
In The Box
Manfrotto 504X Fluid Video Head with Flat Base
Manfrotto Aluminium Twin Leg Video Tripod with Ground Spreader
Levelling Ball
Carry Bag
Reviews
0.0
(no ratings yet)
Own or use this product?
Give it a quick rating:
Share your thoughts with other customers:
Details
Product
Manfrotto 504X Fluid Video Head & MVTTWINGA Aluminum Tripod with Ground Spreader
Manufacturer
Manfrotto
Model
MVH504XAH
SKU
MVK504XTWINGA
In Stock
