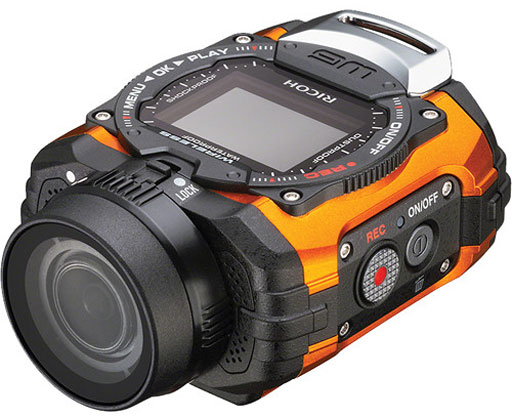

Ricoh WG-M1 Action Camera - Orange

Features

Capture all of life's adventures with the compact orange WG-M1 Action Camera from Ricoh. Ruggedly designed, the camera is waterproof at depths of 32', shockproof at drops up to 6.5', cold-resistant at temperatures down to 14°F, and dustproof. It features a 1/2.3" CMOS sensor that captures up to 14-Megapixel still images and Full HD 1080p video at 30 fps to microSD/SDHC memory cards. Sporting an ultra-wide angle lens with 160° viewing angle in photo mode and up to 137° in video mode, the WG-M1 is ready to capture a wide array of indoor, outdoor, and below-the-surface activities.

Inheriting the design theme from the waterproof WG series, the WG-M1 offers a heavy-duty polycarbonate plastic construction with large buttons and controls for ease of use - even when wearing gloves. It comes equipped with a 1.5" color LCD screen for real-time image monitoring and has a 1/4"-20 tripod socket on the bottom for attachment to mounting accessories. You'll also find a USB port for data transfer and charging the lithium-ion battery pack, as well as a micro HDMI port capable of simultaneous output of video clips with sound to external devices.

• Supports 1080p30 & 720p60 Video
• Capture 14MP Photos
• Ultra-Wide Angle Lens
• Waterproof to 32', Shockproof up to 6.5'
• Cold-Resistant Down to 14°F
• Slow-Motion 120 fps Recording Mode
• Rugged Design with Large Control Buttons
• Micro HDMI Output
• Built-In Wi-Fi Connectivity
• Flat Adhesive Mount Included

Built-In Wi-Fi Connectivity

Featuring built-in Wi-Fi connectivity, you can use the dedicated app to remotely control the camera and monitor videos and photos from your mobile device. You can also browse and download images and videos onto your mobile device to then share with family and friends on your favorite social media sites. The camera comes with a flat adhesive mount, carabiner strap, lens protector, underwater lens protector, battery, USB cable, and power adapter.

14-Megapixel Still Images

The WG-M1 delivers high-resolution still images thanks to the 1/2.3" CMOS sensor with an effective resolution of 14-Megapixels. It also provides high-speed continuous shooting of approximately 10 images per second.

Full HD Video Recording

The camera captures Full HD (1920x1080) videos at 30 fps in the H.264 recording format. It can also record 720p video at 60 fps. It also provides a host of creative tools, including "Motion detection," which automatically starts recording a movie when the camera detects a moving object within the image field; "Loop recording," which keeps recording movies while creating new files at five- or ten-minute intervals; "High-speed Movie," which records 848x480 resolution movies at 120 fps specifically for slow-motion playback; and "Time Lapse Movie," which produces time-compressed movies using a time-lapse recording technique.

Note: The 120 fps recording mode is fixed at 60 seconds. Ultra-Wide Angle Lens with Selectable Angle of Views The camera offers a choice of four angles of view, from ultra wide to more narrow, depending on the scene you are capturing. You can choose from Wide (160° in photo, 137° in video), Medium, Narrow, and Underwater. The underwater mode has an angle of field of approximately 97° in photo mode.

Note: The Medium and Narrow settings are selectable only with a still image size of 10MP or 14MP, or 1920x1080 video. Additional Features

• 32' Waterproof - IPX8 or JIS Class 8 rating
• 6.5' shock-resistant - JIS Class 6 rating
• 14°F Cold-resistant
• 1.5" LCD monitor
• USB 2.0 interface
• Micro HDMI output
• Metering system: TTL - AiAE, Face AE (not switchable)
• ISO 100-800; automatic
• Shutter: Programmed AE mechanical and electronic shutter mechanism
• Face Detection (up to 10 faces)

Specifications

Resolution:

14 MP

Camera

Sensor

1/2.3" CMOS

Color Filter

RGB

Effective Pixels

14,000,000

Optics

Focal Length

3 mm

35mm Equivalent Focal Length

16.8

Maximum Aperture

f/ 2.8

Lens Elements

6

Focusing Distance

23.6" / 59.9 cm - Infinity

Angle of View

160° (Still, 4:3)
137° (Movie, 1280x960)

Recording

Recording Media

Internal Flash Memory 100 MB
microSD/SDHC Up To 32 GB

Video Format

High Definition
MOV
1920 x 1080p / 30 fps
1280 x 960p / 50 fps
1280 x 960p / 30 fps
1280 x 720p / 60 fps
1280 x 720p / 30 fps

Standard Definition

MOV
848 x 480p / 120 fps
848 x 480p / 60 fps

Aspect Ratio

16:9
4:3

Still Image Resolution

JPEG: 14 Megapixel, 4320 x 3240 (4:3)
JPEG: 10 Megapixel, 4320 x 2432 (16:9)
JPEG: 5 Megapixel, 2592 x 1944 (4:3)

Channels

2.0-Channel Stereo

Audio Format

PCM

Display

Display Type

LCD

Touchscreen

No

Screen Size

1.5"

Pixel Count

115,000

Features

Image Stabilization

Digital

Shockproof Rating

6.6' / 2.0 m

Waterproof Depth Rating

32.8' / 10.0 m (Camera)

Dustproof Rating

IP6X

White Balance Modes

Auto
Cloudy
Daylight
Fluorescent
Underwater

Wi-Fi

Yes

Tripod Mount

1/4" - 20

Input/Output Connectors

Outputs
1x USB 2.0
1x HDMI D (Micro)

General

Languages

Arabic
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese

System Requirements

WindowsVista
7
8
USB 2.0 Interface
WindowsOS X 10.6, 10.7, 10.8, 10.9
USB 2.0 Interface

Battery

Rechargeable Lithium-Ion Battery Pack

Charging Method

AC Adapter
USB

Charging Time

3.3 hours

Dimensions (WxHxD)

2.6 x 1.7 x 3.5" / 6.6 x 4.3 x 8.9 cm excluding protrusions

Weight

5.3 oz / 150 g without battery, microSD card, and lens protector
6.7 oz / 190 g Fully loaded
