PGYTECH Action Camera Handlebar Mount

SKU: 1019686     MPN:

P-GM-137

$67.90

$59.04 excl. GST

Out of stock
For more information about availability, please:

This action camera handlebar mount allows you to easily attach your GoPro, DJI Osmo Action, Insta360, or similar camera to various rods or pipes, providing versatile shooting angles with its 360° rotating ball heads. The quick release system ensures swift camera attachment and removal, while the lightweight aluminum construction adds minimal weight to your setup. It's compatible with devices up to 10.6 oz and fits bars from 0.3 to 1.4" in diameter, offering flexibility and convenience for capturing dynamic footage.

Features

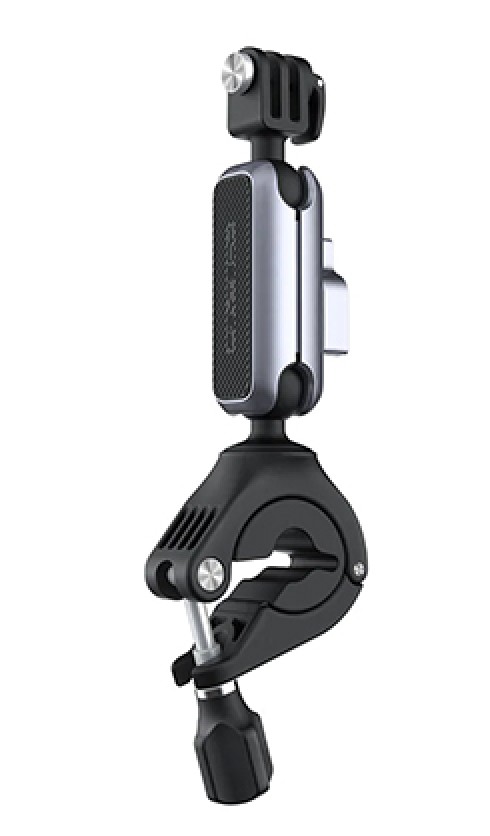

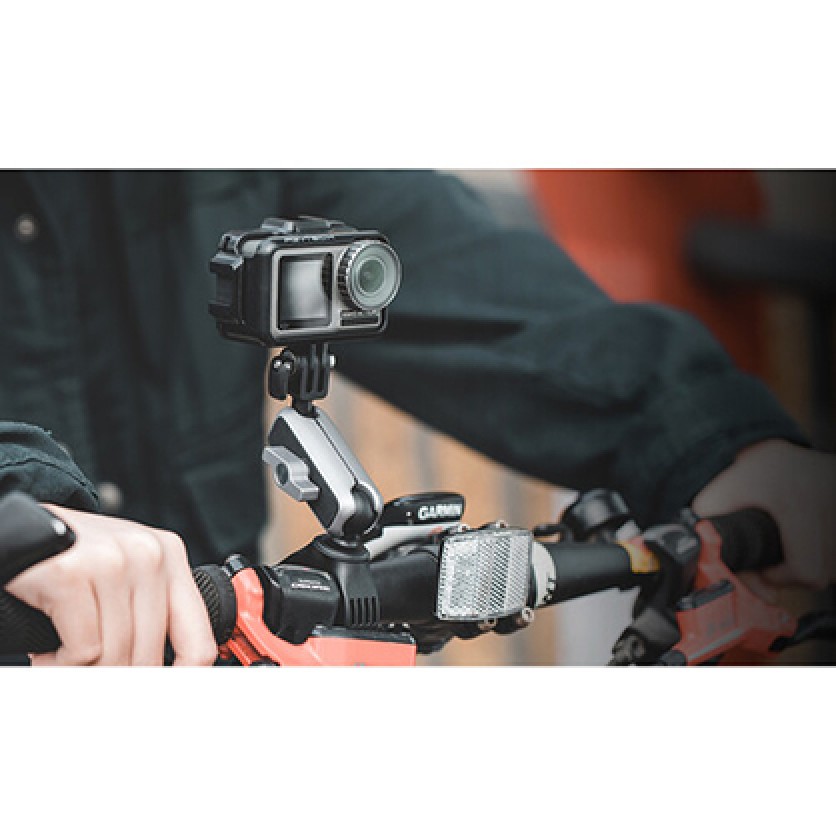

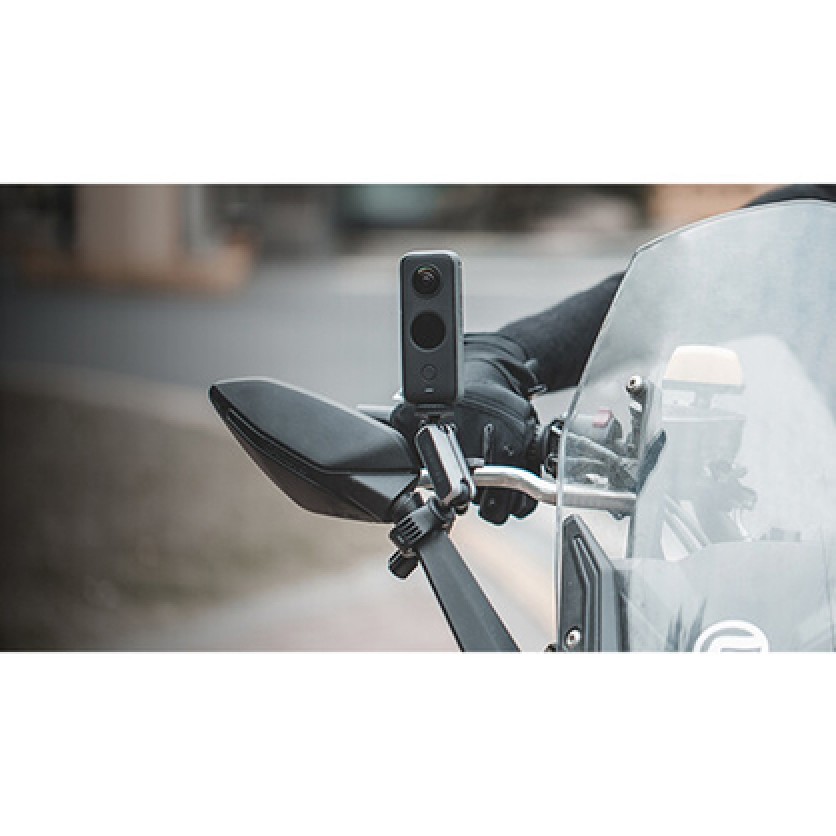

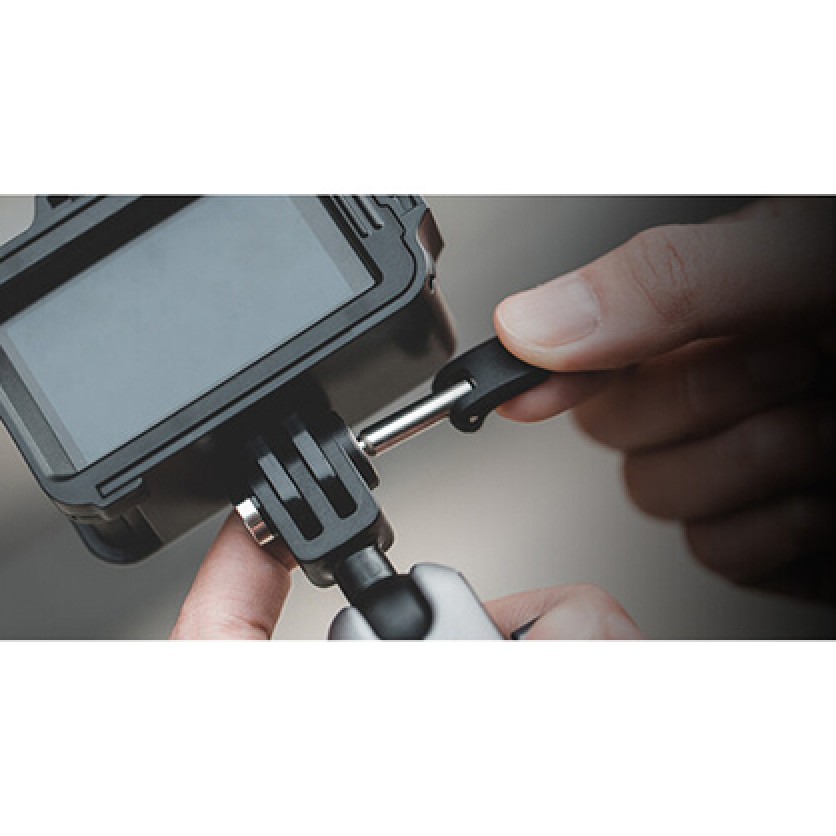

Mount your GoPro, DJI Osmo Action, Insta360, or other action camera weighing up to 10.6 oz to a handlebar, seat post, ski pole, or any other rod or pipe measuring 0.3 to 1.4" in diameter with this Action Camera Handlebar Mount from PGYTECH. The durable aluminum mount features a magic arm with a standard GoPro-style 3-prong action camera mount on one end and a quick release pipe clamp on the other end. The 3-prong mount features a quick release pin so you can mount and remove the camera quickly and easily, and two are included.

Flexible Positioning and Lightweight Design

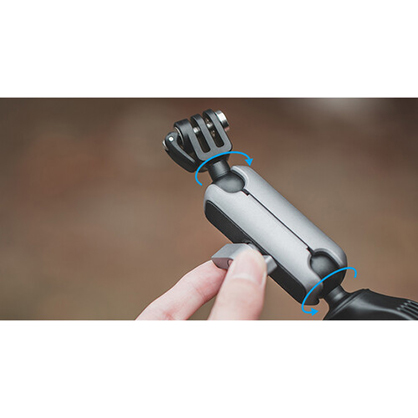

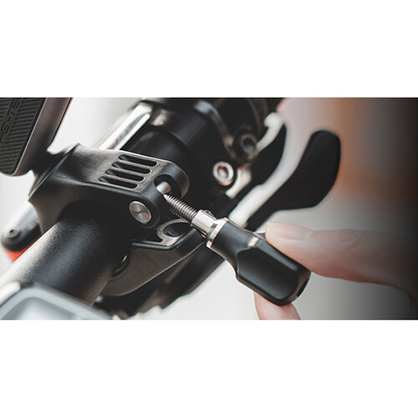

Both ends feature ball heads that can rotate 360°, allowing you to position your camera at a variety of angles. The ball joints are secured with a center locking lever, and the clamp secures around the bar or pipe with a large thumbscrew. The lightweight mount weighs only 4.9 oz, so it won't add much to your overall rig weight. A gasket is included for the clamp to fit bars, rods, or pipes smaller diameters. A 1/4"-20 ball head with screw is also included to add an alternative mounting option by replacing one of the ball ends.

Compatibility

  • Action cameras such as a GoPro, DJI Osmo Action, Osmo Pocket/Pocket 2, Insta360, or smartphone weighing up to 10.6 oz
  • Camera or mount compatible with 3-prong action mount
  • Rod, pipe, or bar from 0.3 to 1.4" in diameter

Specifications

Material of Construction
Aluminum, PA
Maximum Load
10.6 oz / 300 g
Clamp Diameter
Without Gasket: 0.9 to 1.4" / 22 to 35 mm
With Gasket: 0.3 to 0.6" / 8 to 16 mm
Rotation
360°
Mounting
1 x Pipe Clamp
1 x 3-Prong Action Mount
Operating Temperature
-10 to 40°C
Dimensions
7.2 x 2.4 x 1.4" / 18.2 x 6 x 3.5 cm
Weight
4.9 oz / 139 g

Packaging Info

Package Weight
0.46 lb
Box Dimensions (LxWxH)
6.2 x 4.4 x 1.9"
