PGYTECH U-Bolt Mount

Features

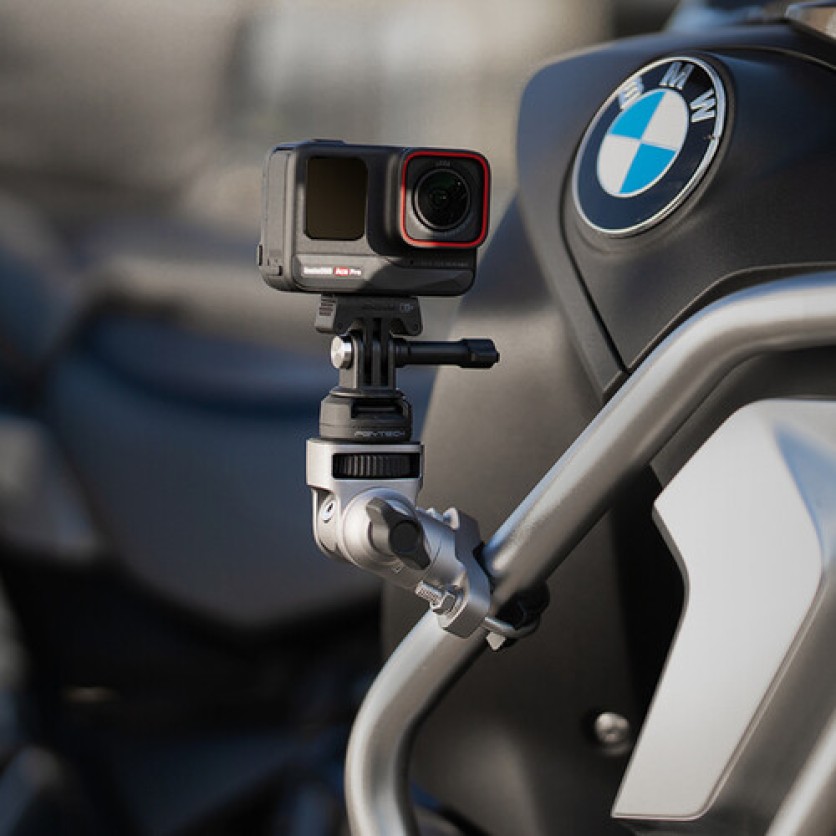

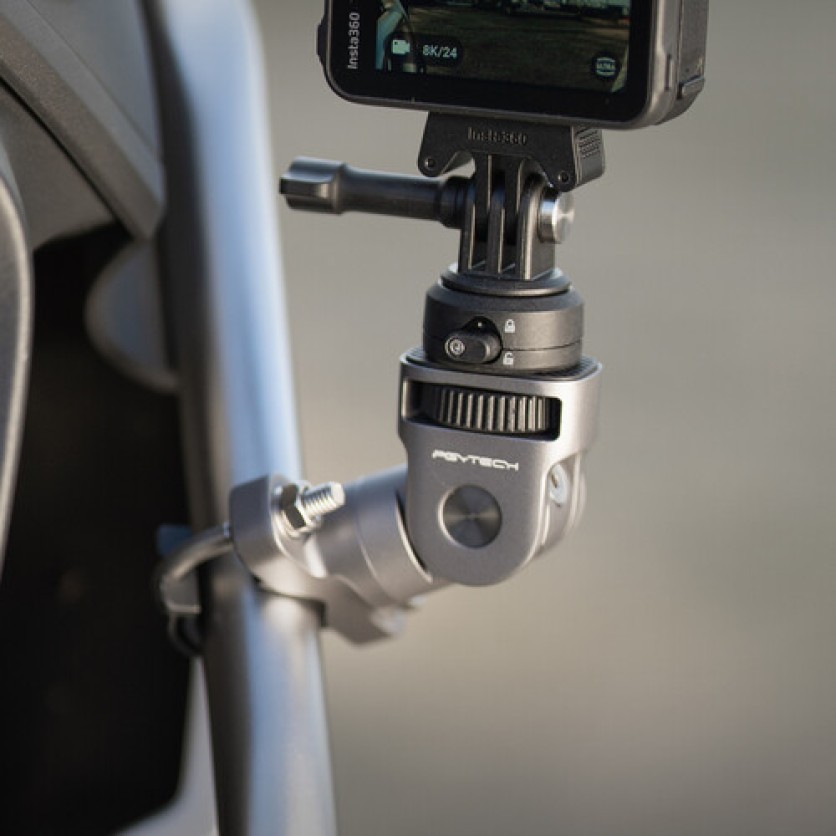

Securely attach your action camera to the handlebars of your motorcycle or bicycle to facilitate dynamic shooting in motion with this U-Bolt Mount from PGYTECH. With its patented rosette structure, this mount offers 360° rotation and 180° tilt for flexible angles and is easily secured by a single wing nut.

High-Quality Construction

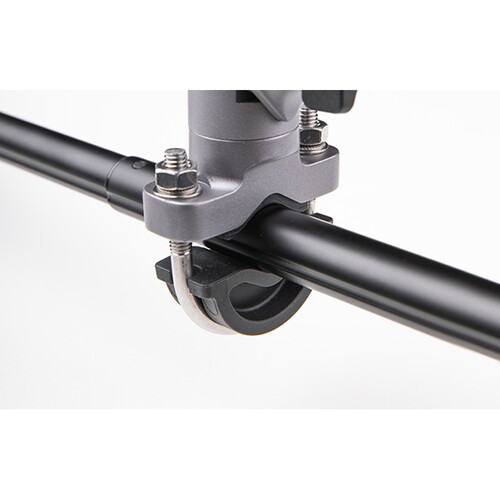

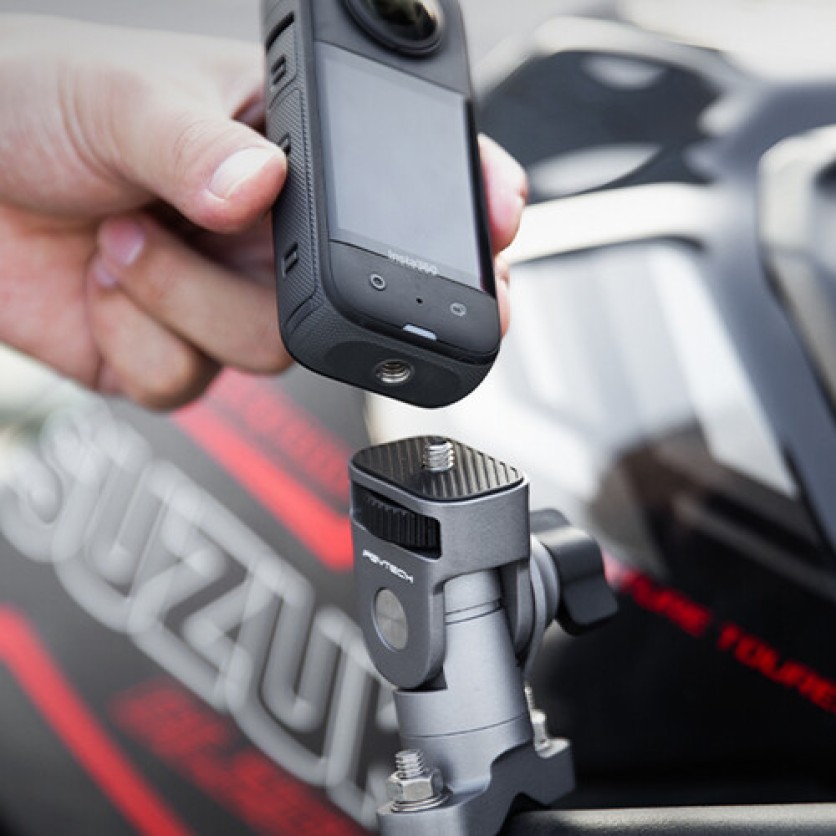

Constructed from high-quality aluminum alloy with a refined finish, the mount includes large and small cushion blocks for tubes measuring from 0.5 to 1.3" in diameter. The 1/4"-20 interface attaches seamlessly to action cameras, phone mounts, and extension poles. Included are a CapLock quick-release clamp and an action camera adapter to enhance the efficiency of the assembly and disassembly process.

Features at a Glance

• Patented rosette structure for enhanced safety and stability
• Effortless angle adjustment, locked with a single wing nut
• Bidirectional angle flexibility for unrestricted perspectives
• Multiple interfaces for wide adaptability
• Light and portable
• CapLock patented system for efficient assembly and disassembly
• High-strength aluminum alloy for enhanced durability

Important Safety Tips

• Safe load capacity: 12.3 oz

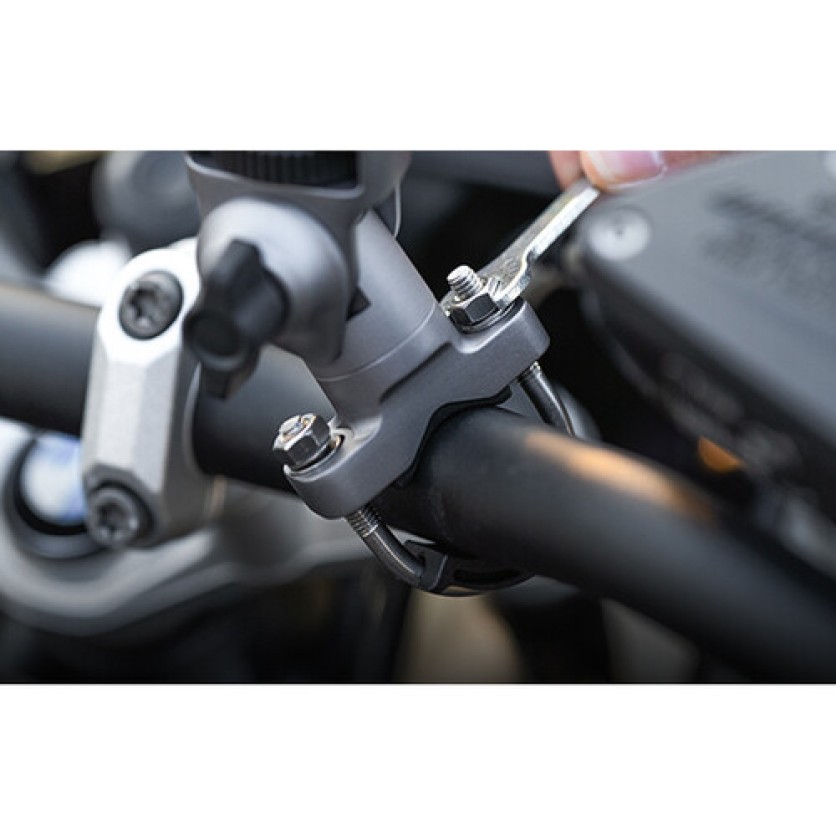

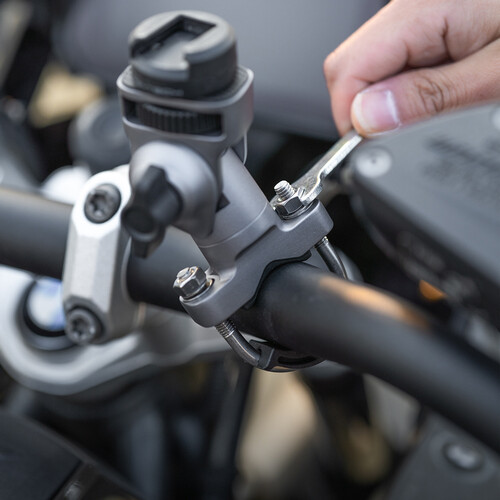

• Use the included tightening wrench to ensure a secure lock
• If mounting an action camera directly on the U-Bolt mount, do not exceed speeds of 50 mph while road cycling and do not exceed speeds of 25 mph while off-road cycling

Specifications

Clamp Type

Pipe

Jaw Shape

Round

Load Capacity

Load Capacity

12.3 oz / 350 g

Color

Color

Gray

Mounting

Camera Mount

1x 1/4"-20 Male Screw

Clamping Range

Clamping Range

0.5 1.3" / 12.7 to 33 mm

Environmental

Certifications

RoHS

Operating Temperature

14 to 104°F / -10 to 40°C

General

Materials

Aluminum Alloy, Rubber

Dimensions

4.2 x 2.2 x 2.1" / 106 x 57 x 53 mm

Weight

7.3 oz / 208 g
