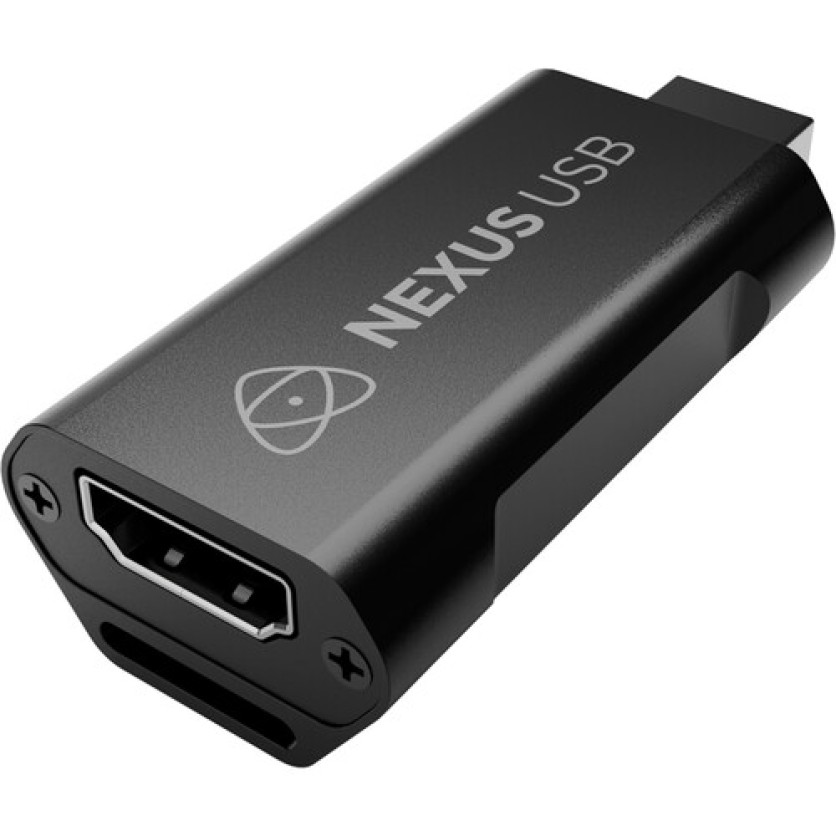

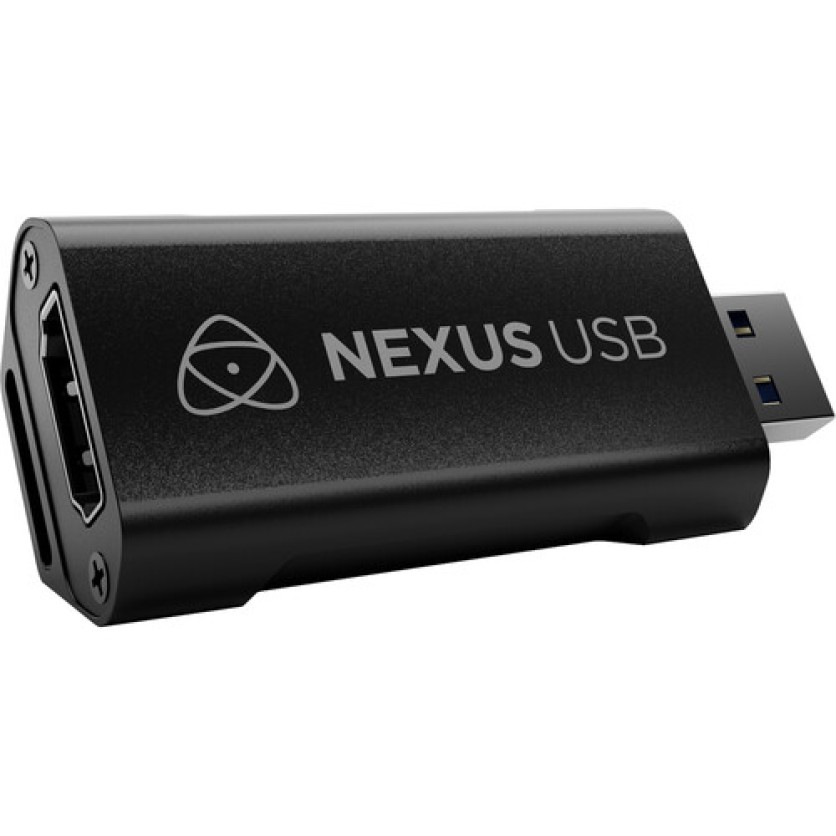

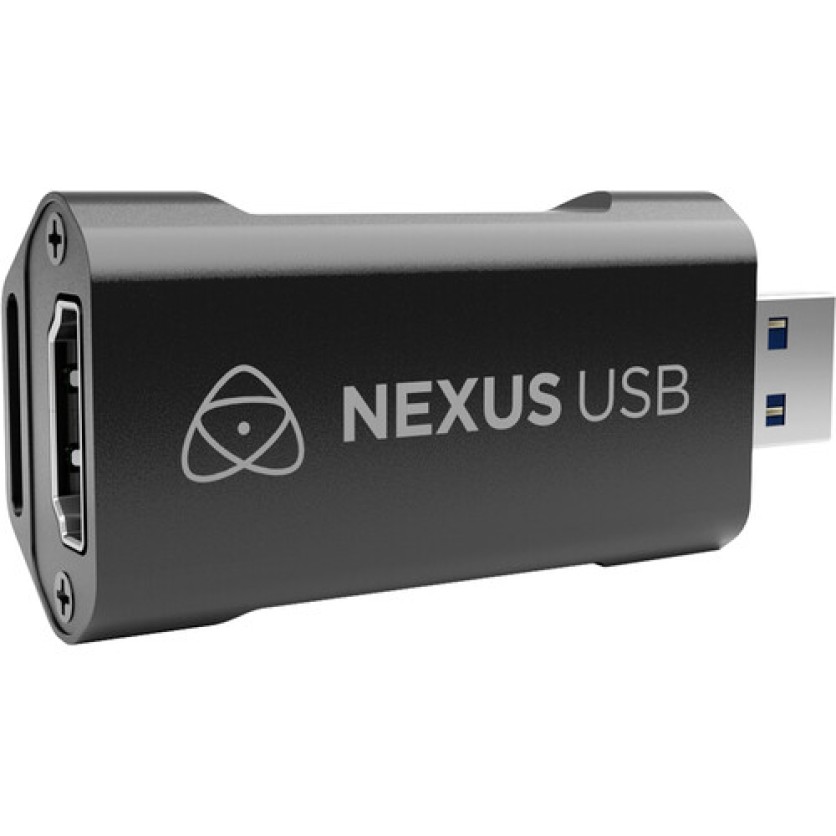

Atomos Nexus HDMI to USB Converter

Features

The Nexus HDMI to USB Converter from Atomos provides HDMI to USB conversion for live streaming applications. It allows you to run an HDMI signal to your Mac or Windows computer's USB port for use in streaming applications such as OBS, Twitch, and YouTube Live. The Nexus accepts up to a UHD 4K30 HDMI signal and outputs up to a 1080p60 signal over USB. You can connect an HDMI camera to use as a webcam, gaming systems for live streaming gameplay, monitor signals, and signals from various other devices. When used with the Atomos Shogun 7 monitor, which is capable of recording and switching four 1080p60 signals, Nexus allows you to send the switched feed to your computer for streaming.

The Nexus Compatibility and Power

The Nexus automatically converts your HDMI input to USB 3.1 Gen 1 Type-A for compatibility with popular CDN platforms such as Skype, MS Teams, Zoom, Twitch, YouTube, and many more. It can also be used with professional streaming applications such as OBS, StreamLabs OBS, Wirecast, and X-Split for enhanced multimedia streaming. The Nexus connects to your computer using the included USB cable, and it is powered from your computer's USB port and requires no external power supply. Two hook-and-loop strips are included to mount the unit.

Key Features

• HDMI to USB conversion for streaming applications such as OBS, Twitch, and YouTube Live
• Up to UHD 4K30 HDMI input
• Up to 1080p60 output over USB
• Can be used with the Atomos Shogun 7 monitor/recorder/switcher to send the switched feed to your computer for streaming

Specifications

Inputs/Outputs

System Connection

USB-A 3.0 / 3.1/3.2 Gen 1

Video Inputs

1x HDMI Female

Audio Inputs

No

Format Support

Input Video Format

HDMI
UHD 4K at 30 fps
1080p 60 fps
720p 60 fps

Output Video Format

USB-A
1080p at 60 fps

Embedded Audio

HDMI

Standards

OS Compatibility

Windows
macOS
