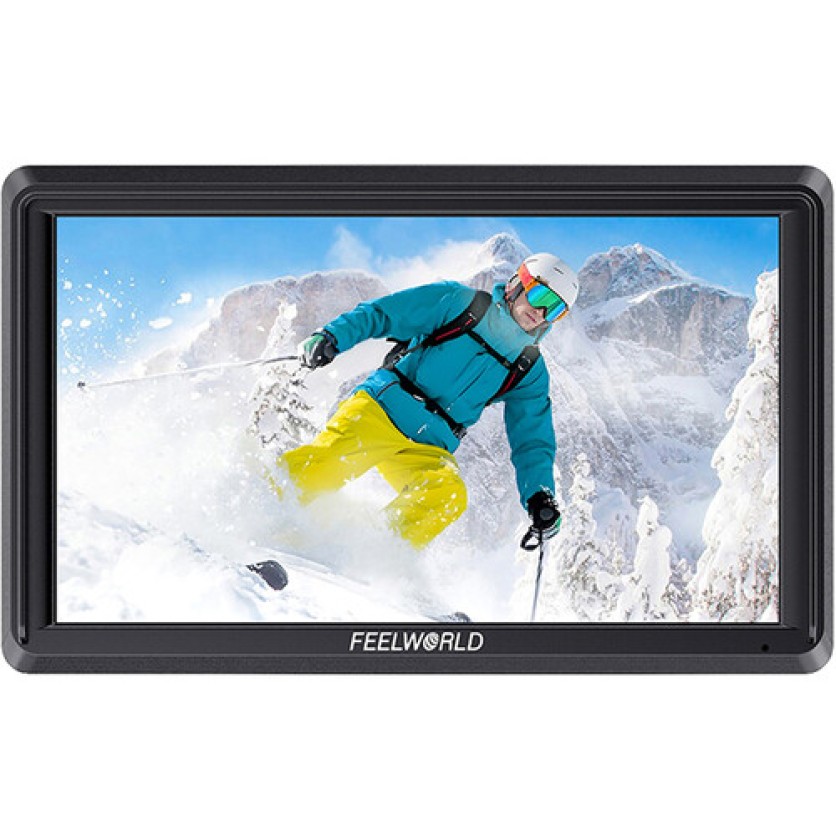

FeelWorld S55E 5.5" 4K HDMI Onboard Monitor 500 nits

SKU: 1026372     MPN:

S55E

$248.00

$215.65 excl. GST

in stock In Stock
Price On Application Pre-order now! in stock In Stock In our warehouse Available for home delivery Out of stock
For more information about availability, please:

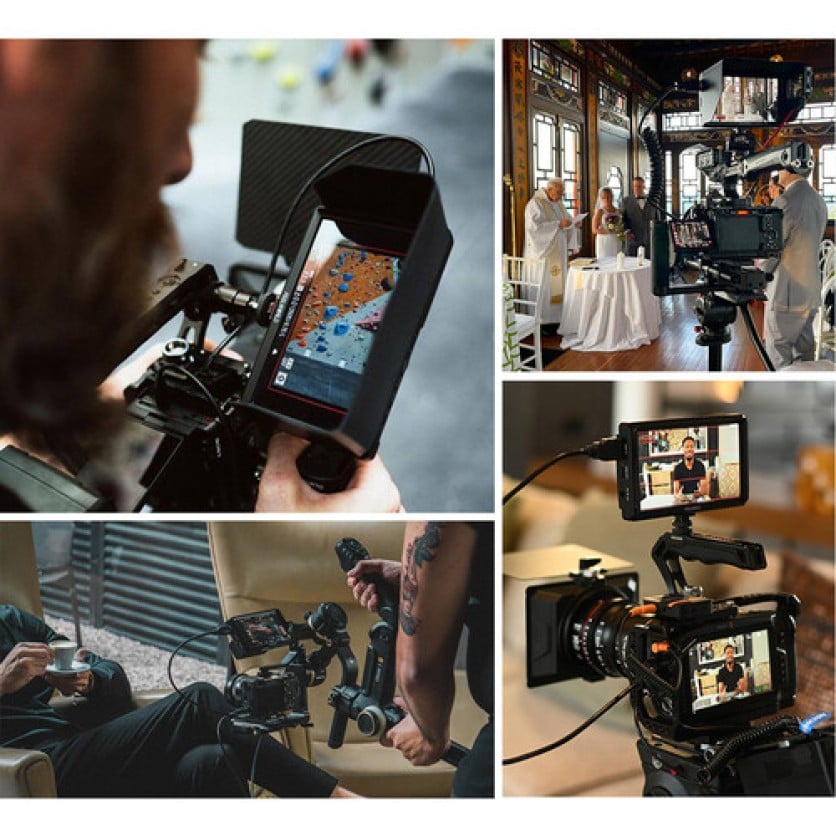

This 5.5" 4K HDMI monitor is perfect for gimbal and mirrorless camera setups due to its lightweight build. It offers excellent viewing with 500 nits brightness and 1000:1 contrast. The monitor supports DCI 4K60, HDR, and 3D LUTs, enhancing your footage. Versatile power options include compatibility with Sony L-series or LP-E6 batteries. It features various imaging tools like waveform and histogram, and a 9:16 marker for social media framing. The tilt arm and customizable shortcuts enhance ease of use.

Features

Super Lightweight Monitor

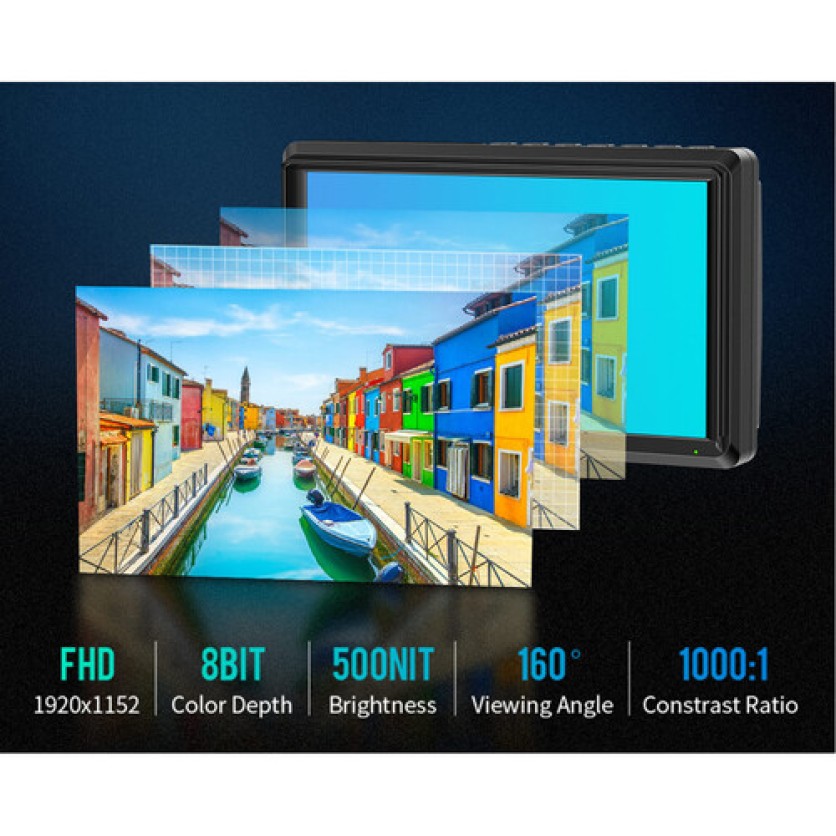

The S55E 5.5" 4K HDMI Onboard Monitor from FeelWorld has a super lightweight design that makes it ideal for gimbal and mirrorless camera use. It has a 1920 x 1152 display with 500 cd/m² brightness and a 1000:1 contrast ratio for easy viewing. It features HDMI input and output up to DCI 4K60, built-in and custom 3D LUTs, HDR support, and multiple power options.

Imaging Tools

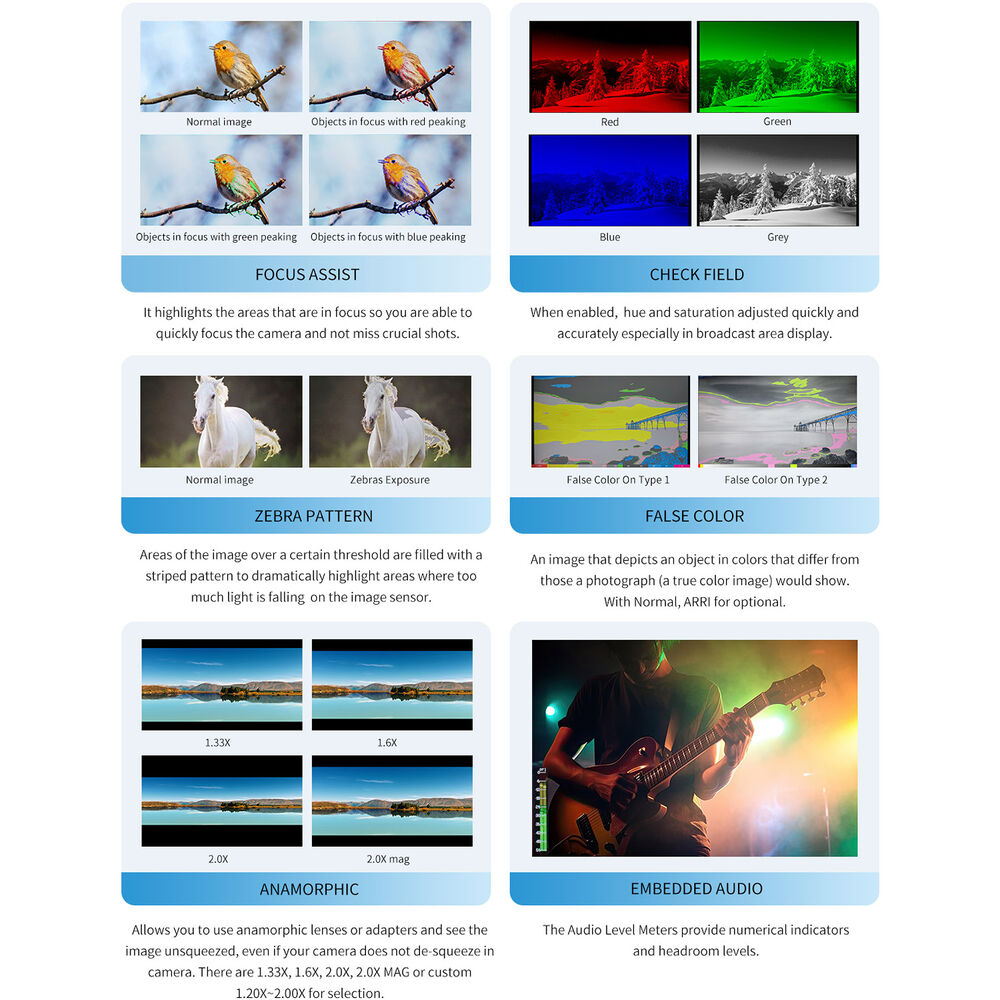

A large set of software features includes waveform, vectorscope, histogram, and anamorphic de-squeeze modes.

These can be accessed using the menu buttons on top of the monitor and via three customizable shortcut buttons for frequently used functions.

Power Options

Multiple power options include a 12 VDC input and an 8 VDC output for connecting optional dummy battery cables.

The battery slot accepts either a Sony L-series type battery or an LP-E6 battery.

Additional Details

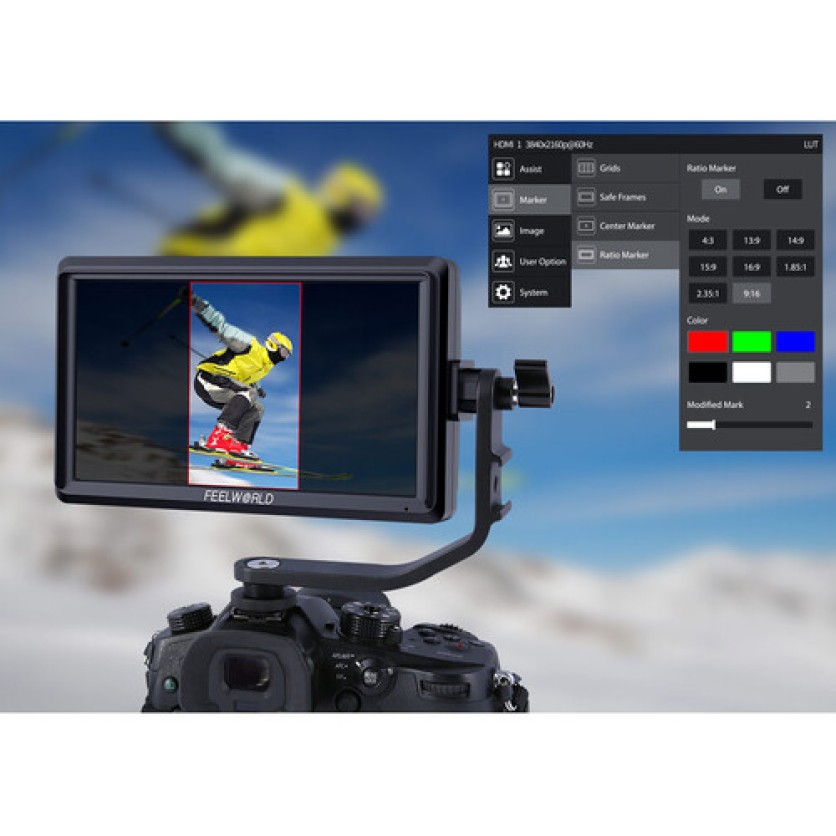

  • A 9:16 marker option lets you easily frame for social media.

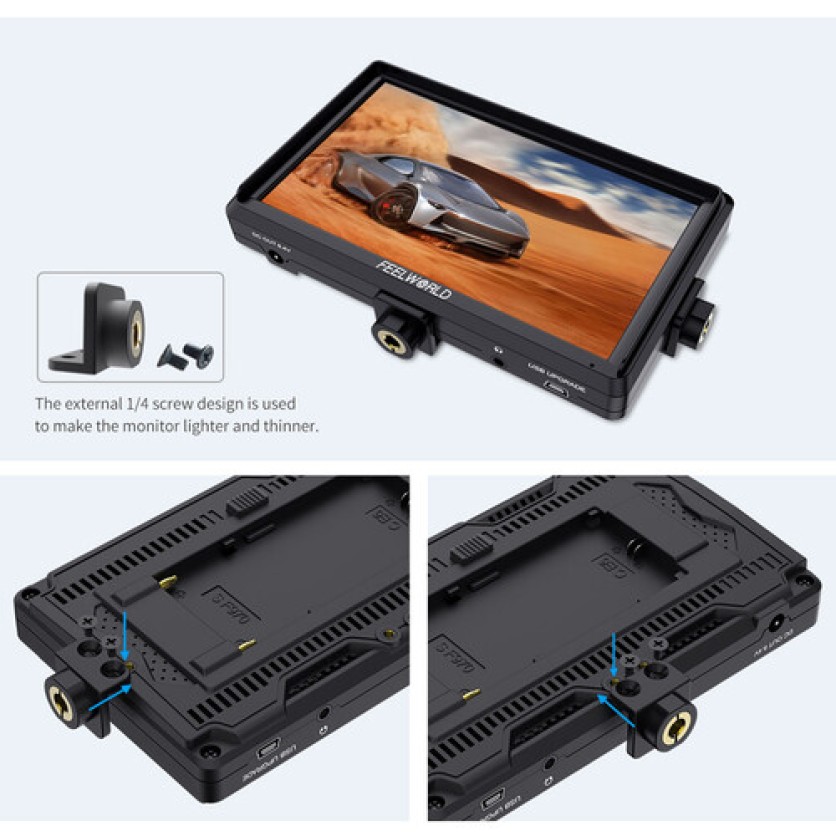

  • Includes a tilt arm that attaches to the 1/4"-20 thread on the side of the monitor.
  • Offers 12 menu language options.

Specifications

Display

Panel Type IPS-Type LCD Display Size 14.0 cm Native Resolution 1920 x 1152 Aspect Ratio 16:9 Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80) Touchscreen Yes Maximum Brightness 500 nits / cd/m2 Contrast Ratio 1000:1 HDR Support Yes LUT Support Yes Image Controls Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Zebra

Inputs/Outputs

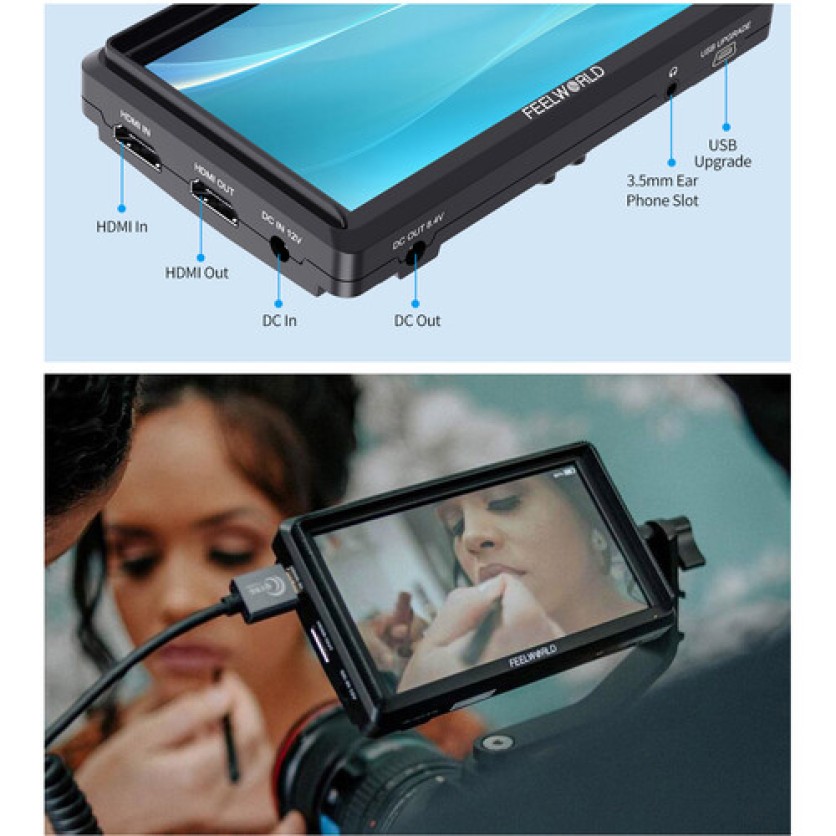

Video I/O 1x HDMI Input
1x HDMI Output Audio I/O 1x 3.5 mm Headphone Output Built-In Speaker No Power I/O 1x Barrel 2.1 mm (12 VDC) Input
1x Barrel (8 VDC) Output Other I/O 1x Mini-USB (Firmware/LUT Upload)

Media/Memory Card Slot

No

Wireless

Wi-Fi No Bluetooth No Mobile App Compatible No

Format Support

Video Format HDMI
DCI 4K: 60/50/30/29.97/25/24/23.98
UHD 4K: 60/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i

Power

Input Power 7 to 24 VDC Battery 1x L-Series/LP-E6 Combination Mount on Fixed Plate Power Consumption 9 W

Mounting

Tripod/Accessory Mounting Right
1x 1/4"-20 Female

General

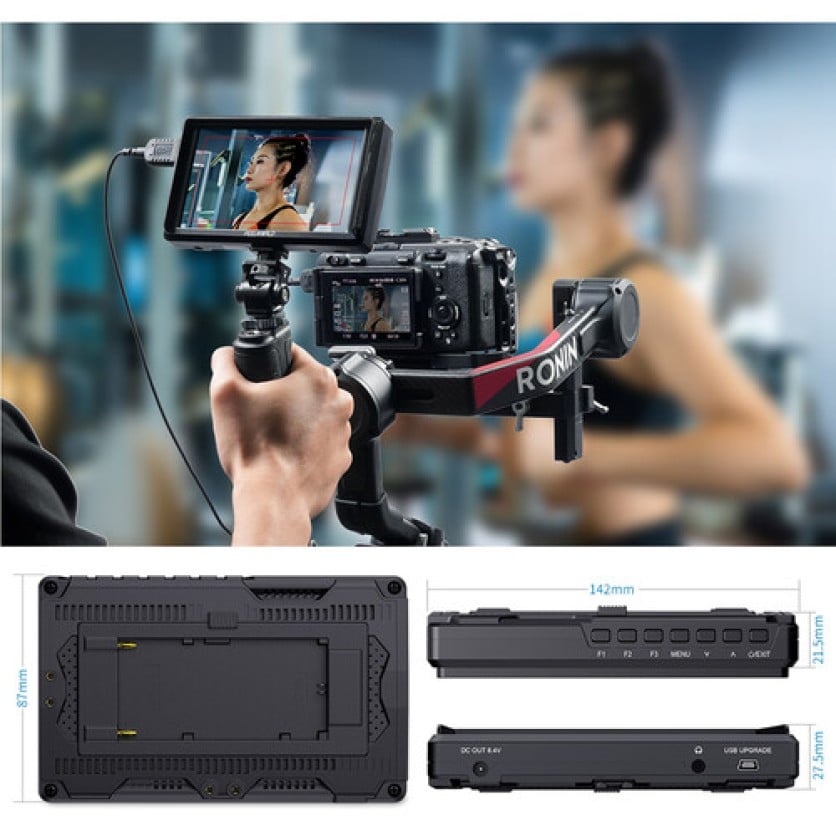

Environmental Resistance No Operating Conditions -20 to 55°C Storage Conditions -30 to 65°C Dimensions 142 x 87.2 x 27.5 mm Weight 175.00 g
