DJI Focus Pro Motor

SKU: 1022592     MPN:

190021096509

$250.00

$217.39 excl. GST

Out of stock
Price On Application Pre-order now! in stock In Stock In our warehouse Available for home delivery Out of stock
For more information about availability, please:

Enhance your camera control with this motor, offering a 30% speed boost and low latency for precise focus, iris, or zoom adjustments. Benefit from its compatibility with select RS gimbal stabilizers and control it from up to 524.9 feet away using 2.4 GHz technology. The updated rod mount allows for versatile camera setups, while pairing with DJI RS 4 Pro enables efficient lens control using onboard dials and joysticks. Ideal for seamless integration with DJI's range of stabilizers and focus accessories.

Features

Add focus, iris, or zoom control to your camera when mounted on select RS gimbal stabilizers with the DJI Focus Pro Motor. This updated motor features a 30% speed increase over the previous model with 300 gear teeth and 10ms low latency. Control the motor via 2.4 GHz transmission technology from up to 524.9' away.

Zoom Control Mode

When used in zoom control mode, the Focus Pro can perform Power Zoom for PZ lenses, Clear Image Zoom, and external focus motor zoom for precise focusing. Its updated 15mm rod mount makes it more universally compatible with camera mounting configurations. Pair two Focus Pro Motors with the DJI RS 4 Pro to adjust focus with the gimbal's onboard dial and zoom with the onboard joystick for efficient lens control.

Compatibility

  • DJI RS 3, RS 4
  • DJI RS 3 Pro, RS 4 Pro
  • DJI Ronin 4D Flex
  • DJI Focus Pro Grip, Focus Pro Hand Unit

Specifications

General

Compatibility DJI RS 3 Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex Max Transmission Distance 524.9' / 160 m

Gear Specs

30 Teeth, 0.8 MOD Max Torque 0.6 Nm Speed 300 rpm (Max)

Inputs / Outputs

USB I/O 1 x USB-C Female Input Wireless 2.4 GHz Radio/RF
*Built-In

Power

Power Source USB DC Input Power 6.6 to 17.2 VDC

Environmental

Certifications CE, FCC Operating Temperature -4 to 113°F / -20 to 45°C

Physical

Mounting 1x 15mm Rod
1x 1/4"-20 Screw

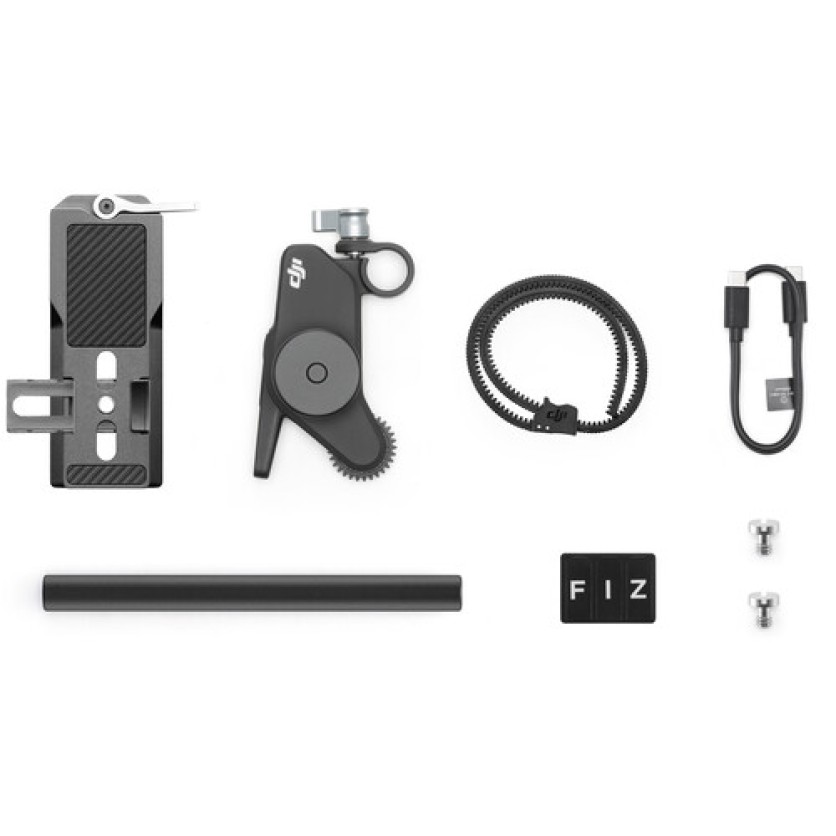

1x Rod Mount Kit Cable Length 11.8" / 30 cm Dimensions 3.9 x 2.4 x 1.3" / 100 x 61 x 34 mm Weight 4.3 oz / 123 g
