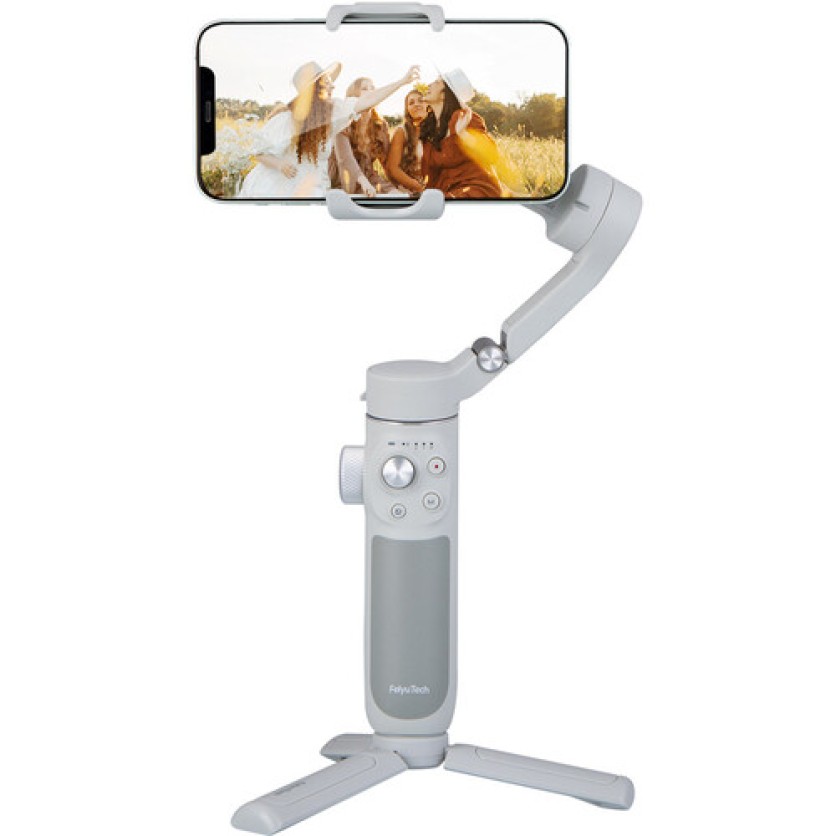

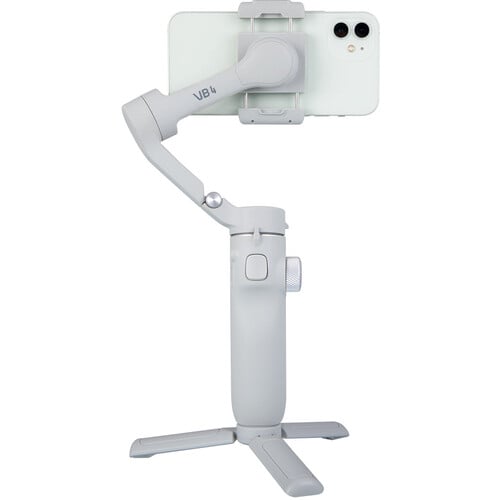

FeiyuTech VB4 3-Axis Smartphone Gimbal with Built-In Extension Rod

Stabilize your smartphone footage and capture shots at any angle with the lightweight and foldable VB4 3-Axis Gimbal with Built-In Extension Rod from Feiyu. Connect your smartphone wirelessly to the Feiyu ON app over Bluetooth for additional features such as time-lapse and panorama shooting modes. Optional accessories include Feiyu's AI Intelligent Tracking Module to add AI tracking and gesture control through the app and the Magnetic Fill Light. Both connect to the USB-C expansion port integrated to the phone mount.

On-the-Go Ergonomics

Designed to travel with you, the VB4 measures only 6.3¡± when folded and weighs only 11.8 oz with its durable nylon and fiber build. Despite its compact form factor, the VB4 retains comprehensive functionality with the built-in 8.5¡± extension rod, 9.2 oz payload, and included 1/4¡±-20 compact tripod. The gimbal also features a joystick for easy control, a multifunction knob for focus and zoom or axis control, an M button to quickly toggle between orientations, a trigger to lock or re-center the gimbal, an album review and shutter button, and status indicator lights.

Powerful Shooting Modes

In addition to the standard orientation, users can engage the underslung mode when holding the gimbal upside down to capture low-angle shots. Holding the gimbal horizontally automatically changes the smartphone orientation to landscape mode. The VB4 also features numerous follow modes to suit your application.

Pan and tilt follow mode, the default setting, follows user's pan and tilt motion but locks the roll axis.

Pan follow mode locks the roll and tilt axes following only panning movements.

FPV mode enables all three axes to follow user movement in all directions.

Lock mode locks the camera orientation and will not follow pan, tilt, and roll inputs.

Connectivity

Wirelessly control your smartphone's camera parameters by pairing over Bluetooth to the Feiyu ON app, which is available on both iOS and Android devices. Through the app, users can toggle between photo and video shooting and gain access to panorama, time-lapse, and dolly zoom shooting modes, to name a few. Additionally, users can upgrade the firmware through the app and toggle AI tracking and gesture control when paired with the optional AI Intelligent Tracking Module over the USB-C expansion port on the phone mount. Feiyu also offers a magnetic fill light that connects to the same expansion port. There is a dedicated USB-C charging port for the 950mAh internal battery on the grip.

• Gimbal
• Load Capacity
• 9.2 oz / 260 g
• Number of Axes
• 3: Pitch (Tilt), Roll, Yaw (Pan)
• Rotation Range
• Controllable Range
• Yaw (Pan): 365¡ã (-80 to 185¡ã)
• Roll: 120¡ã (-60 to 60¡ã)
• Pitch (Tilt): 55¡ã (-20 to 35¡ã)
• Compatibility
• Camera Control
• On Compatible Smartphones
• Smartphone Dimensions
• Width: 1.6 to 3.5" / 41 to 88 mm
• Thickness: 0.5" / 12.5 mm
• Connectivity
• Inputs/Outputs
• 1x USB-C (Power) Input
• 1x USB-C (Power / Control)
• Wireless Protocol
• Bluetooth 5.0
• Mobile App Compatible
• Yes: Android & iOS
• App Name: Feiyu ON
• Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed
• Battery
• Battery Type
• 1x Built-In
• Battery Capacity
• 950 mAh
• Battery Runtime
• 6.5 Hour
• Battery Charging Time
• 2.5 Hours
• Battery Chemistry
• Lithium
• Power
• Operating Voltage
• 6.8 to 8.4 VDC
• General
• Display Type
• No
• Operating Conditions
• 14 to 113¡ãF / -10 to 45¡ãC
• Materials
• Nylon
• Mounting
• 1 x 1/4"-20 Female
• Dimensions
• 11.1 x 4.9 x 2.1" / 282.5 x 124.7 x 53.5 mm
• 6.3 x 3.9 x 2.1" / 159.5 x 98.5 x 52.8 mm (Folded)
• Weight
• 11.8 oz / 335 g (without Tripod)
