ZHIYUN Smooth 5S Smartphone Stabilizer Combo

Features

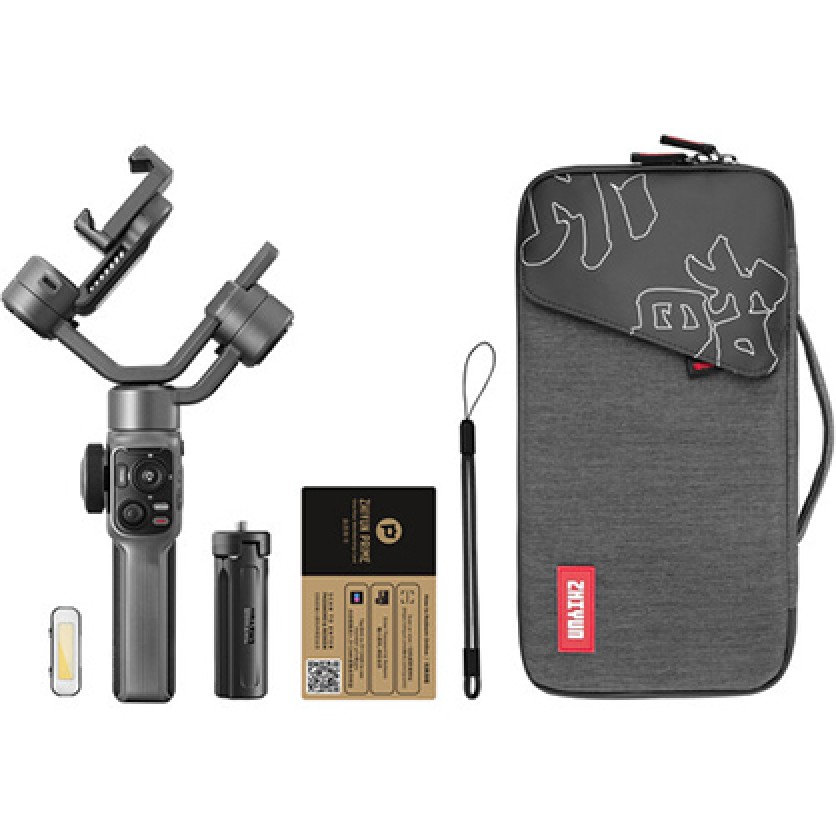

The grey SMOOTH 5S Smartphone Stabilizer Combo from ZHIYUN combines the smartphone gimbal with a magnetic fill light, a 1-year ZHIYUN Prime membership, a carrying bag, and a wrist strap. the SMOOTH 5S has been updated with a powerful integrated fill light, upgraded motors, a new algorithm, and a wider clamp. With support for larger smartphones weighing 5.3 to 10.6 oz and measuring 0.4" thick and 2 to 3.5" wide, the SMOOTH 5S will even support select external lens/smartphone combinations. A wider space between each of the three axes enables you to create more extreme, cinematic angles.

Designed for one-person capture, this gimbal stabilizer also offers intuitive panel control, quick-switch modes, a robust runtime of up to 25 hours, and fast PD charging of only two hours. Compatibility with three mobile apps geared towards users of various levels enables you to livestream, control focus, and create time-lapse, cloning, dolly/zoom, and slow-motion effects.

Smartphone Compatibility

The SMOOTH 5S gimbal can accommodate smartphones measuring 2 to 3.5" wide and up to 0.4" thick and weighing from 5.3 to 10.6 oz, enabling you to use it with select smartphone and external lens combos

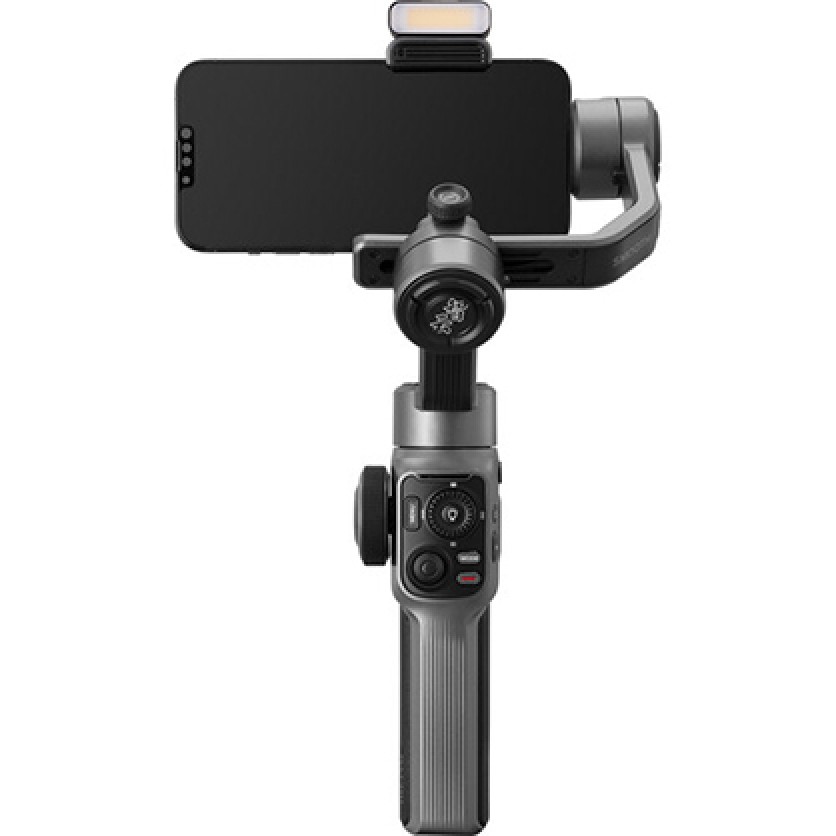

Integrated Fill Light

• Let your talent shine with the integrated fill light that provides a 5000K color temperature, a 90+ CPI rating, and 2W power

Magnetic Fill Light

• A 300-lumen magnetic fill light bolsters the output of the integrated fill light

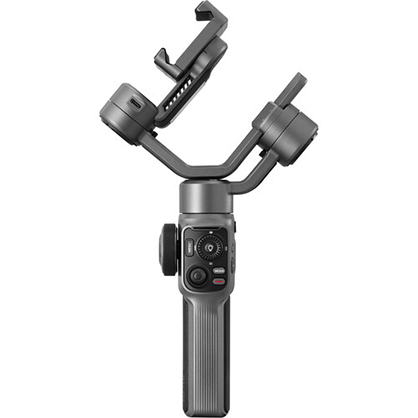

3-Axis Design

• The wider space between each axis facilitates extreme angle capture

Motor Performance

Magnetic motors, an upgraded algorithm, and a wider clamp support larger phones than earlier SMOOTH models

Intuitive Control Panel

The control panel includes a round-cap joystick and visible shooting modes that enable you to make smooth fingertip adjustments during single-handed capture

Smartphone Apps

ZY Cami

• The beginner-level ZY Cami app features a SMART mode, SmartFollow 3.0 mode, Gesture Control, Live Stream Master, and the ZY Cami Editor

StaCam

• The StaCam app features pro-level functions like Parameter fine-tuning, exposure setup, lens switching, zoom and focus control, focus peaking, false color, highlight clipping, and LUT use

Filmic Pro

• The pro-level Filmic Pro app offers features like manual override, lens switching, LED light control, set focus, and Reticle mode

Robust Runtime

With PD fast charging in just two hours and a maximum runtime of up to 25 hours, the SMOOTH 5S enables almost nonstop capture

Optimal Stabilization

The SMOOTH 5S provides optimal stabilization while preserving the original video quality

Quick-Switch Modes

• Multiple classic shooting options like PF (pan/follow), L (lock), F (follow), and POV (point-of-view) enable you to quickly switch modes to best suit the action

Dolly/Zoom Effect

The control wheel, focal length adjustment, and zoom-and-focus switch enable users to easily create dolly/zoom effects

AI Shooting Templates

The ZY Cami app provides multiple templates for easy content creation, while the StaCam app enables you to adjust pro parameters directly on the gimbal

Creative Effects

Smart Follow

• Use the Smart Follow mode with hand gesture control to keep your subject in the spotlight

MagicClone Pano

• Create an amusing clone effect using the MagicClone Pano function

Slow Motion and Timelapse

• Use the Slow Motion and Timelapse functions to create dynamic motion effects

Specifications

Grip Design

Single Handgrip (Slanted)

Gimbal

Load Capacity

5.3 to 10.6 oz / 150 to 300 g

Number of Axes

3-Axis (Pitch (Tilt), Roll, Yaw (Pan))

Rotation Range

Yaw (Pan): -180 to 180¡ã
Pitch (Tilt): -90 to 170¡ã
Roll: -50 to 50¡ã

Follow Speed

Pan/Tilt/Roll: 0.01 to 0.04¡ã/s

Compatibility

Camera Control

No

Smartphone Dimensions

Height: 2 to 3.5" / 50 to 90 mm
Thickness: 0.4" / 10 mm

Connectivity

Inputs/Outputs

1 x USB-C (1 A 5 VDC Power / Firmware Updates) Output

Wireless Protocol

Bluetooth 4.2

App Compatible

Yes
App Name: ZY Cami, StaCam, Filmic Pro
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed

Battery

Battery Type

1 x Built-In

Battery Capacity

2600 mAh

Battery Runtime

2.5 to 24 Hours

Battery Charging Time

3.75 Hours

Battery Chemistry

Lithium-Ion

Power

Operating Voltage

6.5 to 8.4 VDC

Operating Current

70 to 3000 mA

Environmental

Operating Temperature

32 to 113¡ãF / 0 to 45¡ãC

General

Display Type

None

Mounting

1 x 1/4"-20 Female

Dimensions

12.2 x 6.6 x 2" / 311 x 168 x 52 mm

Weight

1.4 lb / 625 g
