The compact, 2-channel receiver enhances your audio setup or acts as a backup, supporting stereo and mono channels. It can connect with up to four transmitters and seven receivers for multi-person capture. With timecode support, it improves postproduction. The 3.5mm output connects to your camera, while a headphone jack allows real-time monitoring. The receiver features dual-band wireless and Bluetooth 5.4 for up to 1312' range, with a 10-hour battery and AMOLED touchscreen for easy control.
Features
Part of DJI's Mic 3 wireless system, the Camera-Mount Wireless Receiver is a compact, 2-channel receiver available individually to expand your existing setup or serve as a backup. It supports stereo and mono audio channels and can be paired with up to four Mic 3 transmitters and seven additional receivers for multi-person audio capture across a variety of production environments. The receiver features support for both timecode input and output for improved postproduction workflows.
Audiovisual Features and Compatibility
A 3.5mm TRS output allows direct audio recording to your camera, while a dedicated 3.5mm headphone jack provides real-time monitoring. An included USB-C adapter allows you to plug it directly into your mobile device. Purchase the separately available Mic Series Camera Adapter for direct compatibility with Sony MI shoes. Dual-band wireless and Bluetooth 5.4 technology ensure communication from up to 1312' away. An AMOLED touchscreen and onboard controls let you adjust parameters directly from the receiver. Further control is available via the DJI Mimo mobile app. The built-in rechargeable battery delivers up to 10-hour runtime.
Additional Details
4-channel receiver pairs with up to four DJI Mic 3 transmitters and seven additional receivers
Dual-band wireless support, Bluetooth 5.4
Mounts on camera with built-in shoe adapter

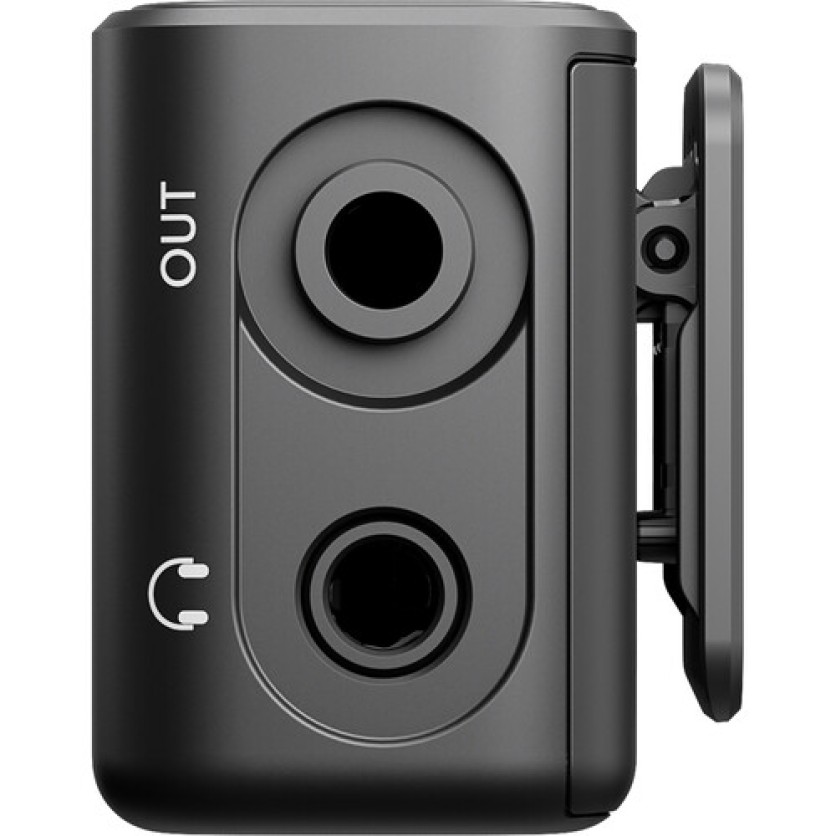

3.5mm TRS audio output to camera, 3.5mm headphone jack

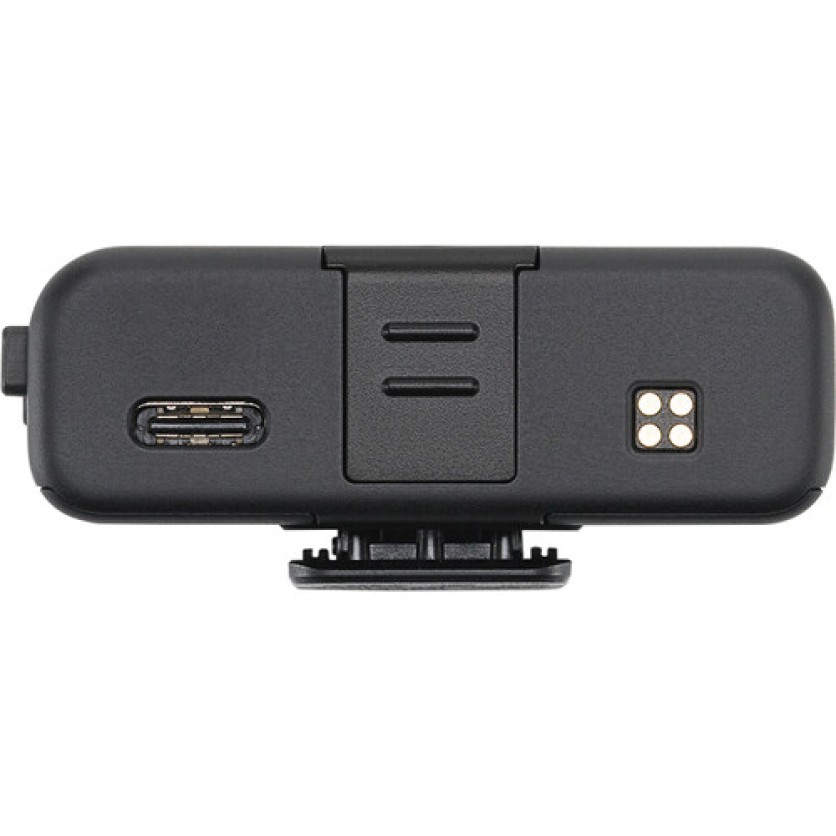

USB-C charging port, USB-C audio adapter
Separately available Camera Adapter connects receiver directly to MI shoes
Timecode I/O support

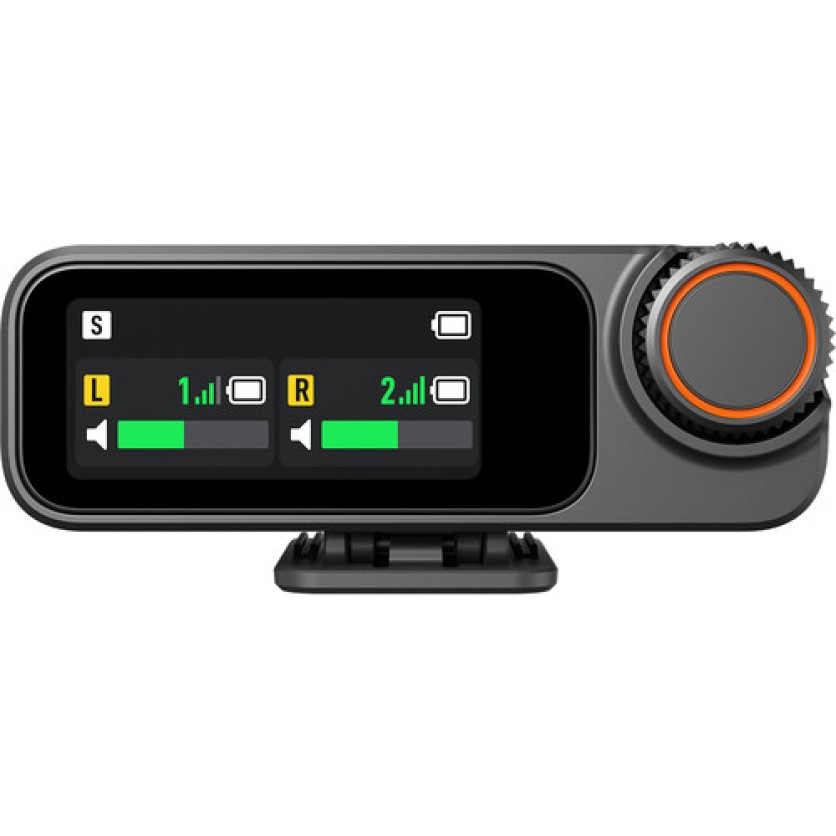

AMOLED touchscreen, onboard controls
Rechargeable battery with 10-hour runtime
Specifications
System
Wireless Technology
Digital 2.4 GHz / Digital 5.8 GHz / Bluetooth
Diversity
Non-Diversity
RF Frequency Band
2400 to 24,835 MHz / 5150 to 5850 MHz
Max Operating Range
1312.3' / 400 m (Line of Sight) 262.5' / 80 m (with Obstruction)
Max Transmitters per Band
4
Built-In Recorder
No
Timecode Support
Yes
Mobile App Compatible
Yes: Android & iOS App Name: DJI Mimo
Receiver
Receiver Type
1x Camera-Mount
Mounting Options
Shoe-Mount (with Included Hardware) USB-C Plug-In (with Included Adapter)
Antenna
1x Internal
Number of Audio Channels
2
Audio I/O
1x 1/8" / 3.5 mm TRS Unbalanced Output 1x 1/8" / 3.5 mm TRS Headphone Output
