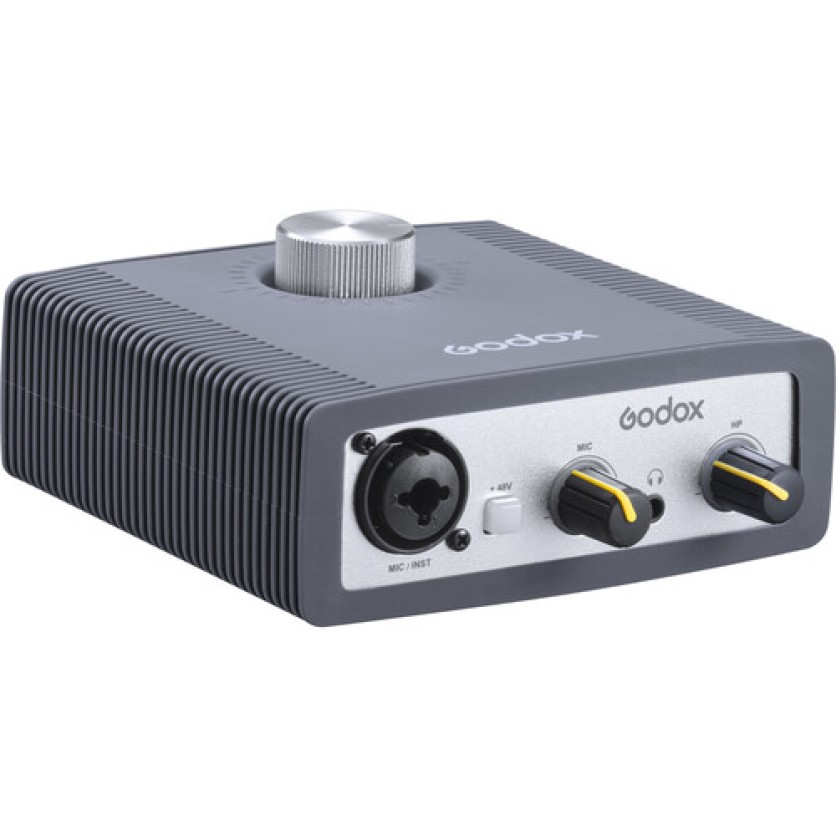

Godox AI2C 2-Channel USB Audio Interface
In Stock
This audio interface offers high-resolution sound with 24-bit/192 kHz support, ensuring exceptional audio clarity for recording or streaming. It accommodates sophisticated microphones with its XLR/¼" combo input and 48V phantom power, plus a 3.5 mm mic input for easy collaboration. Enjoy polished sound thanks to the built-in DSP and low-latency performance. It seamlessly integrates with Windows via USB-B and ASIO, and its compact design with a protective silicone cover ensures durability on the go.
Features
This interface supports sample rates up to 24-bit / 192 kHz, delivering crystal-clear sound whether you’re recording or streaming. It features an XLR/¼? combo input with selectable 48V phantom power for sophisticated microphones plus an additional 3.5 mm mic input—perfect for collaborative setups or plugging in handheld mics effortlessly. The DSP ensures your audio stays polished with low latency, while plug-and-play support via USB-B makes it seamless on Windows systems, complete with ASIO for enhanced DAW integration. A protective silicone cover keeps the unit safe in transit or on the go.
Key Features:
- High-resolution audio support: 24-bit / 192 kHz
- Dual mic/instrument input: XLR/¼? combo with 48V phantom + 3.5 mm mic-in
- Built-in DSP and mic preamp for clear, refined sound
- Low-latency performance, perfect for streamlined live and studio use
- ASIO support for professional recording workflows
- USB-B interface for reliable connection and power
- Compact and portable with a protective silicone sleeve
Specifications
General
- Display
- No
- Channels of I/O
- Analog:
- 2 Inputs
- Built-In DSP
- No
- Maximum Sampling Rate
- 192 kHz / 24-Bit
- Number of Microphone Inputs
- 1
- Built-In Microphone
- No
- Input Level Adjustment
- 1x Knob
- Signal Processing
- Pad
- No
- Gain/Trim Range
- 34 dB
- Solo/Mute
- No
Connectivity

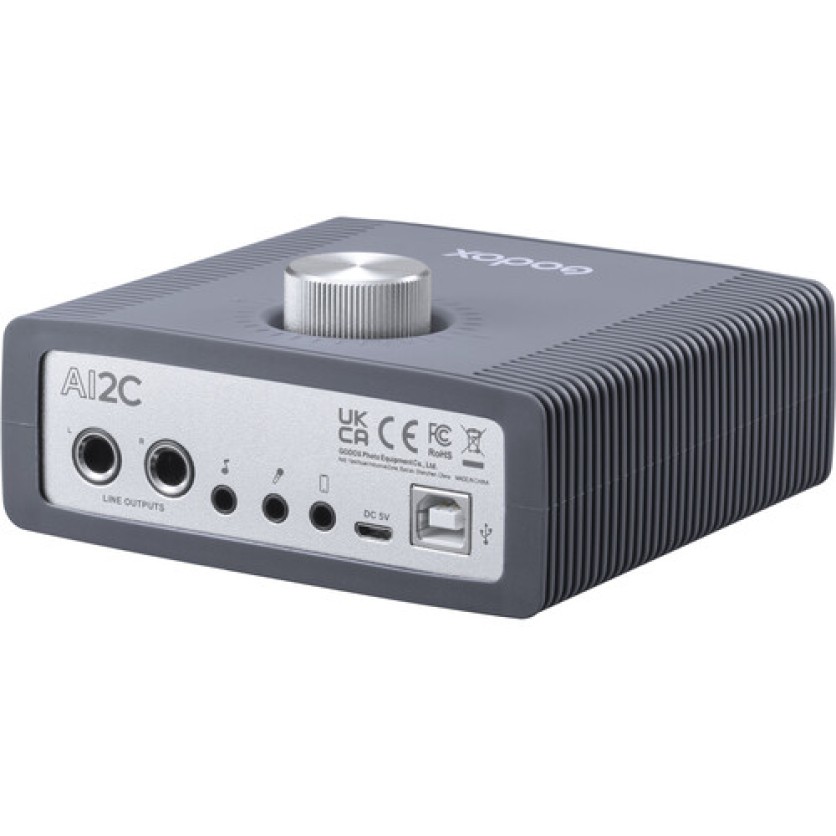

- Analog Audio I/O
- 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Mic Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Line Input
- 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
- 2x 1/4" TRS Balanced Line Output
- 1x 1/8" / 3.5 mm TRS Unbalanced Line/Smartphone Output
- Phantom Power
- 48 / 5 V, Selectable On/Off
- Digital Audio I/O
- No
- Host Connection
- 1x USB-B (on Interface)
- Host Connection Protocol
- USB 2.0
- USB (Non-Host)
- 1x Micro-USB (Power Input)
- Sync I/O
- No
- Network I/O
- No
- MIDI I/O
- No
- Expansion Slots
- No
Performance
- Frequency Response
- 22 Hz to 22 kHz
- Maximum Output Level
- +11 dB
- Impedance
- 75 Ohms
- Dynamic Range
- Mic Inputs:
- 101 dBA
- Line Outputs:
- 105 dBA
- SNR
- Line Outputs:
- -100 dBA
- Headphone Outputs:
- -90 dBA
- Mic Inputs:
- -94 dBA
Digital Audio
- Sample Rates
- Up to 192 kHz
- Sample Rate Conversion
- No
- Bit Depths
- 24-Bit
- Sync Sources
- No
Audio Storage & Playback
- Media/Memory Card Slot
- No
Compatibility
- OS Compatibility
- Windows 7 or Later
- Windows 7 (32-/64-Bit)
- Windows 8 (32-/64-Bit)
- Windows 8.1 (32-/64-Bit)
- Windows 10 (32-/64-Bit)
- Mobile App Compatible
- No
- Required Hardware
- USB 2.0 Port
Power
- Power Requirements
- USB Bus Power
