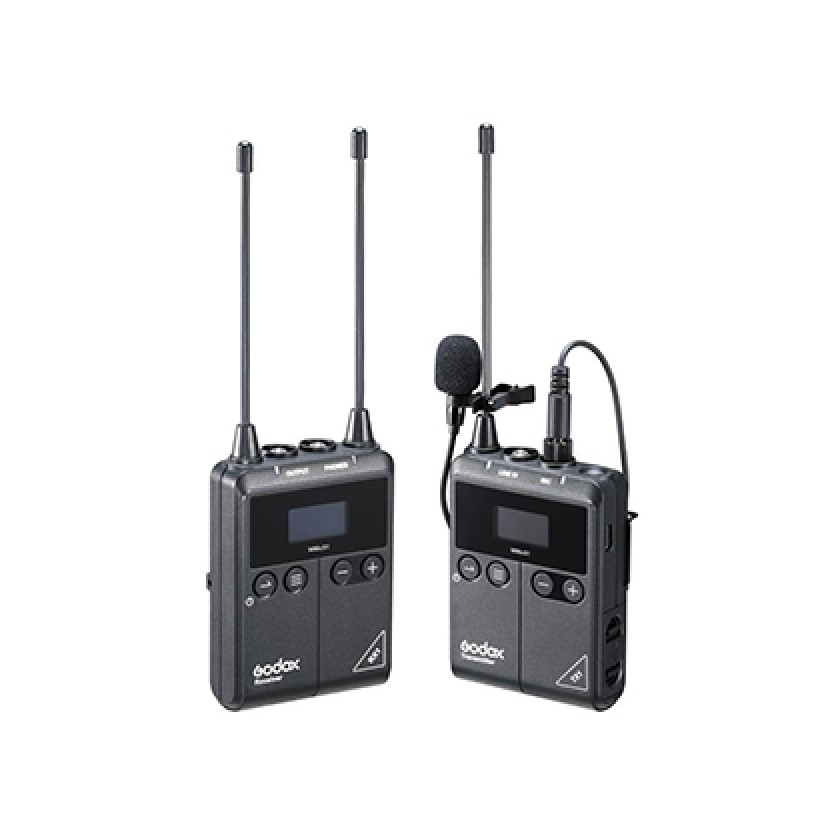

Godox WMicS1 Kit 1 Camera-Mount Wireless Omni Lavalier Microphone System

Features

Designed for mobile journalists, videographers, and vloggers, the Godox WMicS1 Kit 1 is a wireless system with one lavalier microphone and a dual-channel receiver that can also be used to receive a second microphone (available separately). It delivers reliable transmission with a clear sound at a distance up to 328' and offers a complete solution for streaming or recording dialogue, interviews, lectures, and speech with one person talking—directly to a mirrorless/DSLR camera, camcorder, or mixer. Easy-to-use with plug-&-play operation, this system is well suited for mobile journalists, YouTube/Instagram creators, TikTok personalities, vloggers, and more.

WMicS1 Kit 1 Components

The WMicS1 Kit 1 includes one bodypack transmitter with an omnidirectional lavalier mic. It also comes with a receiver that mounts on and plugs directly into your DSLR/mirrorless camera. The XLR output cable is for use with professional camcorders.

Frequency and Power Options

The system offers 96 frequencies to choose from to avoid wireless signal interference. The transmitter and the receiver both operate on two AA batteries but can also be powered via USB. If your camera doesn't have a headphone jack, you can monitor your sound via the receiver's 3.5mm headphone output while recording to ensure that you are capturing a clean signal.

Bodypack Transmitter with Lavalier Mic

• The lightweight bodypack transmitter is equipped with an On/Off switch that doubles as a mute button.
• The transmitter features an easy-to-read OLED display that indicates the mic's input level, muting, and battery life.
• RF power can be switched between 40mW for maximum transmission distance or 10mW for maximum battery life.
• The lavalier microphone features an omnidirectional pickup pattern that help to deliver consistent audio levels even when the subject turns away from the mic.

Compact Dual-Channel Receiver

If you need to expand your system with a second microphone, the two-channel receiver allows you to save space on your shooting rig by using a single receiver to simultaneously receive signals from two mic/transmitters.

When using just one mic, the sound is recorded on both the left and right channels of your camera. When using two microphones, each sound is recorded separately with one on the left channel of your camera and the other on the right channel—allowing you to isolate each person's voice and adjust each level individually later in post.

• There are 30 levels of volume adjustment to control the audio output of the receiver—for both mics individually.

Specifications

System

Wireless Transmission

Analog UHF

Number of RF Channels

96

Included Transmitters

1 x Bodypack with Microphone

Diversity

Non-Diversity

RF Frequency Band

514 to 596 MHz

RF Channel Scanning

Manual

Max Operating Range

328.1' / 100 m (Line of Sight)

Max Systems per Setup

2

Latency

12 ms

Receiver

Form Factor

Camera-Mount

Mounting Options

Shoe-Mount (with Included Hardware)

Antenna

2 x 1/4 Wave External, Fixed

Number of Audio Channels

2

Audio I/O

1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable)

Frequency Response

40 Hz to 18 kHz

USB/Lightning Connectivity

1 x USB Type-C (Bus Power)

Power Requirements

Battery, Bus Power (USB)

Battery Type

2 x AA (Not Included)

Display & Indicators

1 x OLED (Battery Status, Frequency, Output Level, Power, Transmitter Battery Status)

Operating Temperature

32 to 104°F / 0 to 40°C

Dimensions

2.5 x 7.5 x 1" / 63 x 190 x 25 mm

Weight

2.8 oz / 80 g

Transmitter 1

Form Factor

Bodypack

RF Output Power

10 / 40 mW

Audio I/O

1 x 1/8" / 3.5 mm TRS Female Input (Lockable)

Muting

Off/On Switch

Auto-Level Control

No

Sync Method

Manual

Antenna

1 x 1/4 Wave External, Fixed

Power Requirements

Battery, Bus Power (USB)

Battery Type

2 x AA (Not Included)

USB/Lightning Connectivity

1 x USB Type-C (Bus Power)

Display & Indicators

1 x OLED (Audio Level, Channel, Mute)

Operating Temperature

32 to 104°F / 0 to 40°C

Dimensions

2.5 x 7.5 x 0.9" / 63 x 190 x 22 mm

Weight

2.5 oz / 70 g

Microphone

Form Factor

Lavalier

Sound Field

Mono

Polar Pattern

Omnidirectional

SNR

70 dB

THD

< 5%

Output Connectors

1 x 1/8" / 3.5 mm TRS Male
