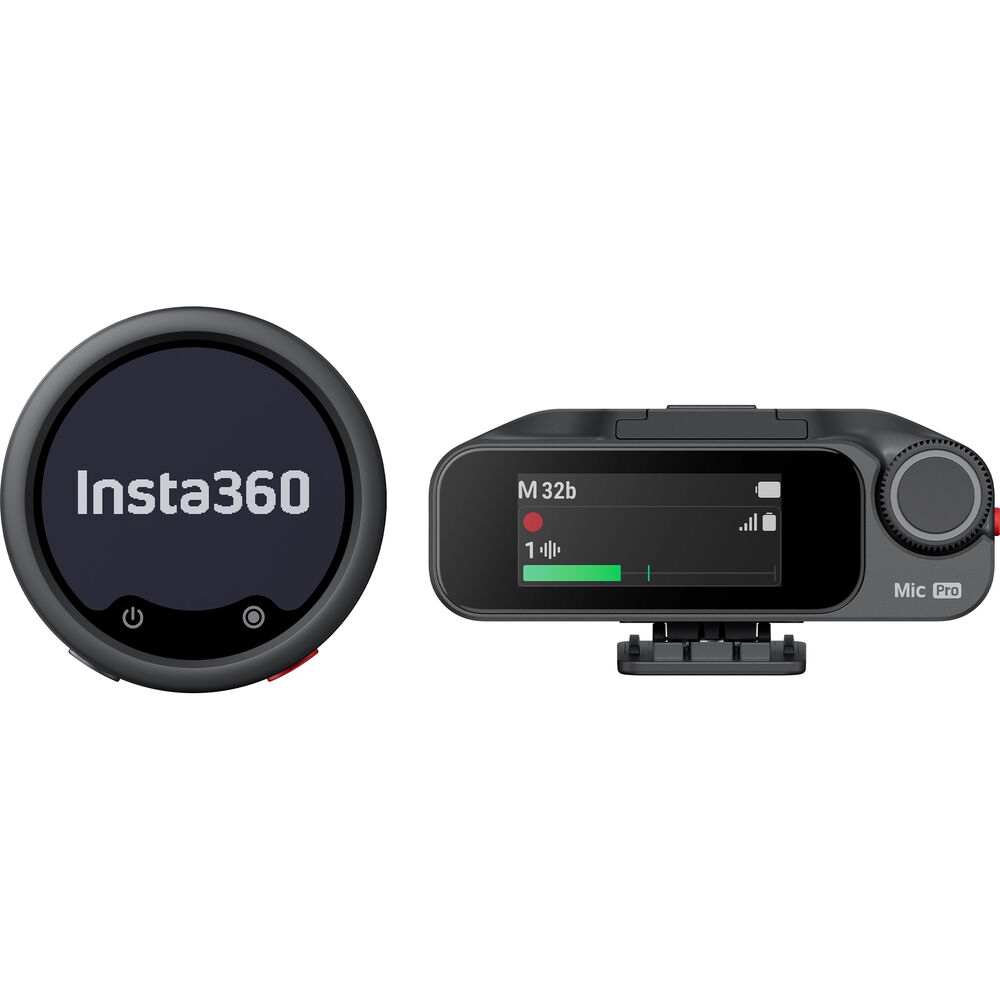

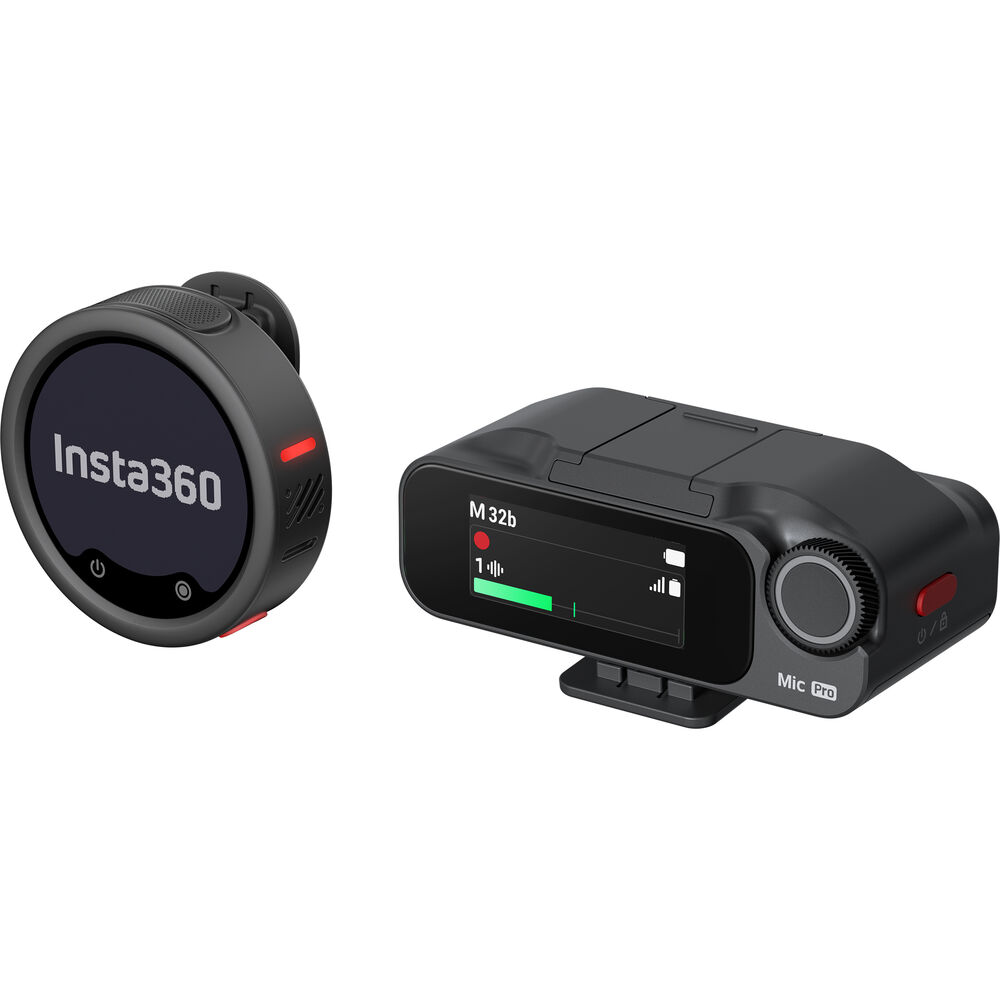

Insta360 Mic Pro Wireless Microphone 1 TX + 1RX

Features

Ideal for solo content creation and vlogging applications, the Insta360 Mic Pro Wireless System is a highly compact and lightweight 2.4 GHz wireless system designed to connect to a wide variety of devices. The included coin-shaped transmitter features a 1.22" E-Ink display that can be customized using the Insta360 app with your logo or other graphics. A camera-mount receiver with integrated cold shoe mount and integrated display and controls make for intuitive adjustment of recording parameters. The components communicate to one another from up to 1312' via 2.4 GHz wireless.

Transmitter with 32-Bit Onboard Recording

The transmitter easily records 32-bit float audio into its 32GB internal storage. An NPU-powered AI noise cancelling chip, auto gain control, and low-cut filter make for crystal-clear sound capture. Connect the transmitter to your computer or mobile device via USB-C to quickly export your files.

Receiver with Onboard Controls

The included camera-mount receiver features a touchscreen display and dial for intuitive adjustment over your wireless system. Use the 3.5mm TRS output for connection to compatible cameras and recording devices. The included USB-C adapter can be used to directly insert the receiver into a laptop or mobile device, with the option to add a Lightning adapter with a separately available accessory. On its own, the receiver can accommodate up to two audio channels, but optional accessories and built-in modes can expand that to four signals.

Multi-Cam and Multi-Person Modes

Toggle Multi-Person recording to route up to four transmitters to the receiver for four independent audio tracks synced together. Toggle Multi-Cam recording to pair up to four receivers to a single transmitter for synced audio. This function only works with the separately available Camera Adapter when paired with compatible Sony cameras. The receiver also supports timecode sync for streamlined postproduction.

Customizable E-Ink Display

A 1.22" E-Ink 6-color display on the transmitter supports images, logos, and other graphics for a professional appearance. Upload your desired image using the Insta360 app.

3-Mic Array and Directional Pickup Modes

A 3-microphone array ensures a wider sound field capture. Choose between three pickup modes—supercardioid for solo streams, ASMR, and voiceover; figure-8 for interviews and two person conversations; and omnidirectional for versatile capture. Use a separately available USB-C to 3.5mm adapter to make the transmitter compatible with a lavalier microphone for a more professional appearance.

Auto Gain Control, Voice Tone Presets

The transmitter automatically adjusts volume levels based on your vocal intensity without requiring manual gain. Two different modes can be toggles for different noise environments. Select between three different voice tone presets—standard, rich, and bright—to accentuate different tones within human speech.

Direct Camera Connection

Using Bluetooth 5.4 wireless technology, the Mic Pro transmitter connects directly to your Insta360 X5, Ace Pro 2, and GO Ultra camera models. Record high-fidelity 48 kHz audio to the action camera for simplified workflow.

Long Battery Life, 5-Minute Fast Charge

A 11-hour battery life with the receiver and a 10-hour battery life with the transmitter support all day recording to your camera, smartphone, or X5, Ace Pro 2, and GO Ultra action cameras. The components can be charged quickly in just five minutes to support an additional 1.5 hours of use.

Specifications

System

Wireless Technology

Digital 2.4 GHz / Bluetooth

Diversity

Non-Diversity

RF Frequency Band

2400 to 2484 MHz

Max Operating Range

400 m

Max Transmitters per Band

4

Encryption

No

Built-In Recorder

Yes (on Transmitter via Built-In Storage)

Timecode Support

Yes

Mobile App Compatible

Yes: Android & iOS

Receiver

Receiver Type

1x Camera-Mount

Mounting Options

Shoe-Mount (with Included Hardware)
USB-C Plug-In (with Included Adapter)
Lightning Plug-In (with Non-Included Hardware)

Antenna

1x Internal

Number of Audio Channels

4

Audio I/O

1x 3.5 mm TRS Unbalanced Output
1x 3.5 mm TRS Unbalanced Input

Network I/O

No

USB/Lightning Connectivity

1x USB-C Female (Charging)
1x USB-C Male (Audio)

Frequency Response

20 Hz to 20 kHz

Display

LCD (Non-Backlit)

Power Requirements

Battery

Transmitters

Included Transmitters

1x Clip-On with Microphone

Antenna

Internal

Input Level

Microphone

Audio I/O

No

Bias/Plug-In & Phantom Power

N/A: No External Mic Support

USB I/O

1x USB-C (Audio)

Auto-Level/Gain

Yes

Frequency Response

20 Hz to 20 kHz
100 Hz to 20 kHz

Sync Method

2.4 GHz QPSK

Display

Unspecified Backlit Display

Microphones

Microphone Type

3x Built-In (Clip-On Transmitter)

Polar Pattern

Figure-Eight, Omnidirectional, Supercardioid

Frequency Response

20 Hz to 20 kHz (Low Cut Filter Off)
100 Hz to 20 kHz (Low Cut Filter On)

Maximum SPL

130 dB

Sensitivity

-38 dBV (@ 1 kHz, 94 dB SPL)

Color

Black

Power

Receiver Battery Type

1x Built-In Rechargeable - 410 mAh

Receiver Battery Life

11 Hours

Transmitter Battery Type

1x Built-In Rechargeable - 240 mAh

Transmitter Battery Life

10 Hours

Battery Charging Time

5 to 60 Minutes

Included Charging Case

No, Available Separately

Charging Case

AC/DC Power Adapter
No

Input Power

5 VDC

Physical

Environmental Resistance

No

Dimensions

Receiver: 55.8 x 27.7 x 21 mm
Transmitter: 38 x 12.2 mm

Weight

Receiver: 29.8 g
Transmitter: 19.7 g

Packaging Info

Package Weight

0.535 lb

Box Dimensions (LxWxH)

4.9 x 4.7 x 2.7"
