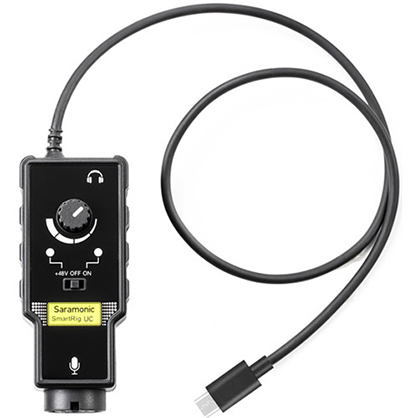

Saramonic SmartRig UC Single-Channel Interface for USB Type-C Devices

Features

Designed for people who require one audio input and little fuss, the Saramonic SmartRig UC is an interface that connects a microphone or instrument to a digital device with a USB Type-C connector. It accepts XLR or 1/4" connections by means of its single combination input. Thanks to the unit's 3.5mm output, you can monitor audio over most models of wired headphones.

Power and Functionality

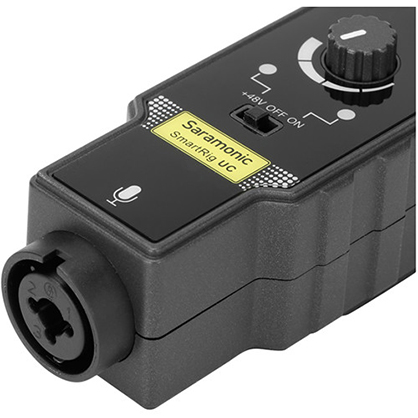

A 48V phantom-power selector is on hand to drive condenser mics. This selector also functions as the overall on/off switch for the unit. A gain knob controls the input level. The SmartRig UC draws power from a single 9V battery. It operates at 44.1 or 48 kHz.

Key Features at a Glance

• USB Type-C output connector
• Powered by 9V battery
• +48V phantom power
• 3.5mm headphone output for monitoring (requires app)
• +48V/OFF/ON switch
• Gain control

Specifications

Maximum Sampling Rate

Maximum Sampling Rate

48 kHz / 16-Bit

Number of Microphone Inputs

1 Preamp

Signal Processing

Gain/Trim Range

+23 dBu

Connectivity

Analog Audio I/O

1 x Combo XLR-1/4" TS Balanced/Unbalanced Mic/Hi-Z Input
1 x 1/8" / 3.5 mm TRS Headphone Output

Phantom Power

48 V (Selectable on Individual Inputs)

Digital Audio I/O

No

Host Connection

1 x USB-C

Host Connection Protocol

USB 3.0 / 3.1/3.2 Gen 1

MIDI I/O

No

Performance

Frequency Response

System:
20 Hz to 20 kHz ±0.5 dB

SNR

System:
80 dBu

THD

< 0.01%

Digital Audio

Sample Rates

44.1 / 48 kHz

Sync Sources

Internal

Compatibility

Required Hardware

USB Cable (Not Included)

Power

Power Requirements

Battery

Battery Type

1 x 9V

Physical

Anti-Theft Features

No

Dimensions

3.46 x 1.65 x 1.61" / 87.88 x 41.91 x 40.89 mm

Weight

2.6 oz / 75.0 g
