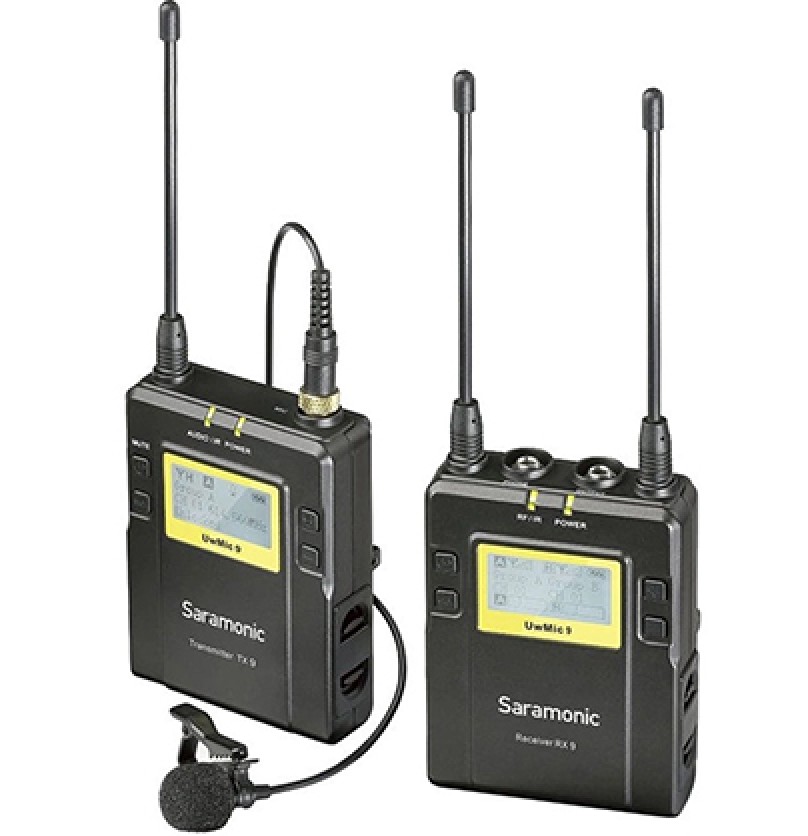

Saramonic UwMic9 Kit 1 RX9+TX9 Dual Channel UHF Wireless Transmitter and Receive
In Stock
This wireless microphone system is perfect for vloggers and content creators seeking high-quality, reliable audio. Its lightweight, all-metal design ensures durability in any production environment. With a two-channel receiver, you can easily expand for two-person interviews without needing an extra receiver. The system is simple to set up, offering clear, natural speech capture for various projects. Enjoy flexibility with adjustable RF power output and the option for different transmitter applications.
Features
The Saramonic UWMIC9 Digital UHF Wireless Lavalier 1x Transmitter and 1x Receiver Mic System provides vloggers, mobile journalists, and content creators with a quality-sounding, easy-to-use, flexible UHF system that packs a set of sophisticated features into a cost-effective solution.
Built for Production
Built for the rough-and-tumble world of production, the lightweight, all-metal components include a bodypack transmitter with a lavalier mic along with a two-channel receiver that's ready to plug into your DSLR/mirrorless camera, recorder, or smartphone (with a cable available separately).
The receiver's two-channel capability allows you to expand your system in the future with an additional transmitter and microphone (available separately) for 2-person interviews—with no additional receiver necessary.
Simple Operation
Simple to operate with minimal setup, the UwMic9 lets you capture clear and natural speech for projects ranging from YouTube vlogs and wedding videos to corporate spots and interviews.
Transmitter Features
The compact transmitter employs a crystal-controlled PLL synthesiser and is equipped with a muting function. The RF power output can be switched between high, middle, and low settings. A 1/8" type mic input is built into the transmitter. Also, included with this system is a lavalier microphone, a shoe mount adapter, and a 1/8" to XLR output cable.
Key Features
- Reliable, broadcast-quality audio.
- Wireless transmitter with lavalier microphone.
- 514 MHz – 596 MHz.
- 96 selectable channels in 2 groups.
- Headphone monitoring.
- Easy-to-read LCD displays.
- Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles.
- Optional handheld and XLR transmitter for different applications.
Specifications
- Receiver
- Channels
- 96
- Groups
- A & B group
- Oscillator Type
- PLL synthesiser
- Audio Output Connector
- 1/8" (3.5 mm) jack
- Antenna
- 1/4 wave wired
- Audio Output Level
- -60 dBV
- Headphone Output Level
- 30 mW (16 Ohms)
- Receiving Frequency
- 514 to 596 MHz
- Receiving Sensitivity
- -95 dBm
- Signal to Noise Ratio
- 70 dB or more
- Voice Delay
- 12 ms
- Reference Deviation
- ±5 kHz (-60 dBV, 1 kHz input)
- Frequency Response
- 40 Hz to 18 kHz (±3 dB)
- Distortion
- 0.5% or less
- Spurious and Harmonic Suppression
- -60 dB
- Batteries
- Two AA size batteries
- Dimensions
- 6.7 x 2.5 x 1.2" (17 x 6.4 x 3.0 cm)
- Weight
- Approx. 7.72 oz (219 g) excluding batteries
- Transmitter
- Channels
- 96, A & B group
- Oscillator Type
- PLL synthesiser
- Audio Carrier Frequencies
- 514 to 596 MHz
- Reference Deviation
- ±5 kHz (-60 dBV, 1 kHz input)
- Signal to Noise Ratio
- 70 dB or more
- Spurious and Harmonic Suppression
- -60 dB
- Voice Delay
- 12 ms
- Antenna
- 1/4 wave wired
- Input Connector
- 1/8" (3.5 mm) jack
- Audio Input
- -60 dBV (MIC input, 0 dB attenuation)
- RF Output Level
- 30 mW / 20 mW / 10 mW selectable
- Battery
- 2 x AA size batteries
- Operating Temperature
- 32 to 122°F (0 to 50°C)
- Storage Temperature
- (-20 to +55°C)
- Distortion
- 0.5% or less
- Dimensions
- 6.7 x 2.5 x 1.2" (17 x 6.3 x 3.0 cm)
- Weight
- Approximately 7.46 oz (211.4 g) excluding batteries
