Zoom F1 Field Recorder with Lavalier Microphone

SKU: 1014401     MPN:

F1-LP

$349.00

$303.48 excl. GST

Out of stock
For more information about availability, please:

This product offers videographers and journalists a portable solution to capture high-quality audio, even when the subject is distant from the camera. Its lightweight, low-profile design easily attaches to clothing or fits in pockets. With the ability to record stereo audio up to 24-bit/96 kHz, it ensures professional sound quality. The device features one-touch controls, an easy-to-read display, and runs on standard AAA batteries, providing up to 10 hours of operation, making it ideal for on-the-go recording.

Features

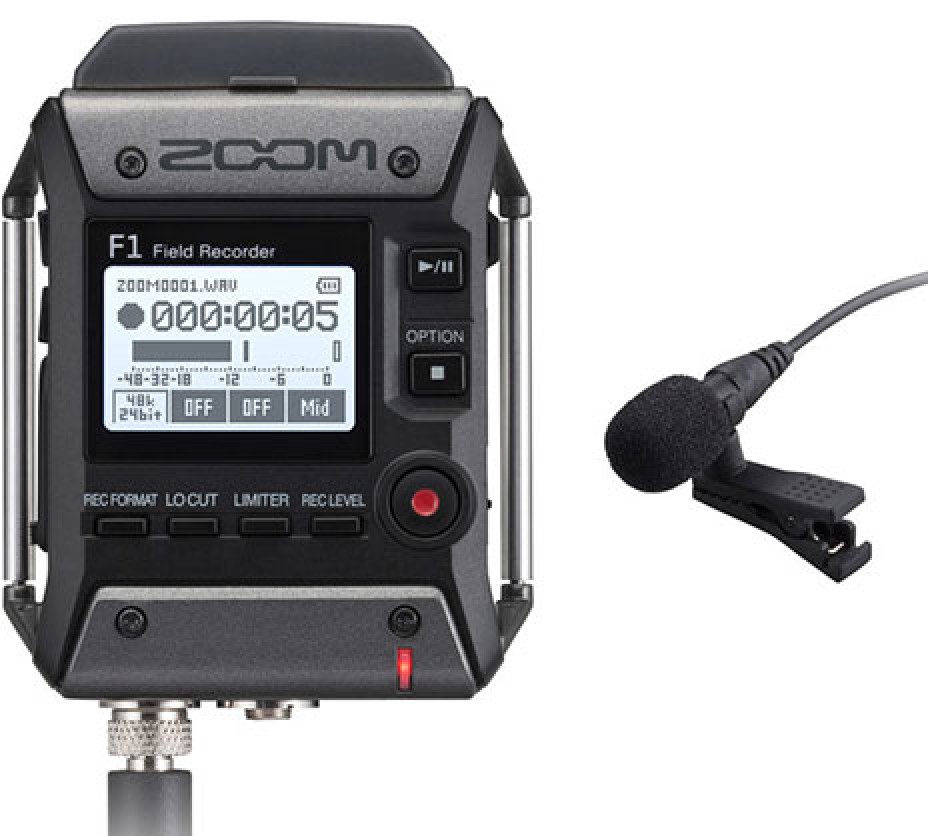

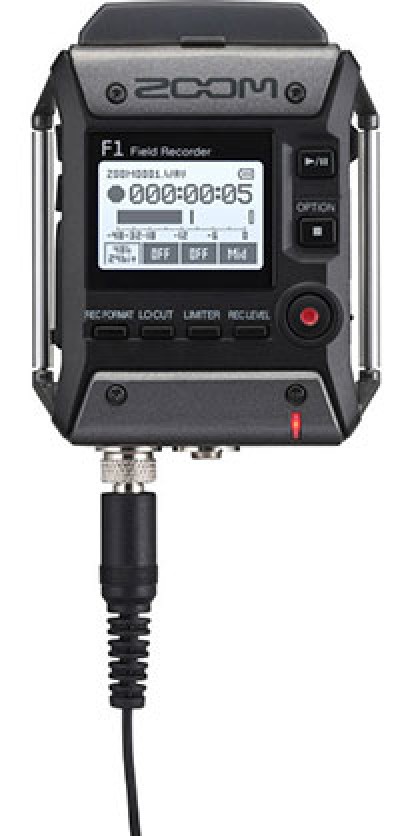

Zoom F1 Field Recorder with Lavalier Mic

The Zoom F1 Field Recorder with Lavalier Microphone

The Zoom F1 Field Recorder with Lavalier Microphone combines a two-channel, F1 audio recorder with an LMF-1 omnidirectional lavalier microphone. Lightweight (at 4.2 oz) and with a low-profile design, it attaches neatly to belts or waistbands, and fits inside pockets without being seen, providing videographers, vloggers, and journalists with a flexible solution to capture high-quality audio for video, no matter how far away the subject is from the camera.

Features of the F1

The F1 is equipped with a stereo 1/8" mic/line input that delivers plug-in power to small microphones, and a proprietary 10-pin connector compatible with all Zoom microphone capsules. It records stereo audio up to 24-bit/96 kHz in BWF-compliant WAV or a variety of MP3 formats, directly to microSD or microSDHC cards. The unit offers a series of one-touch buttons that give you quick access to record level, limiter control, lo-cut filter, and volume output as well as an 1/8" stereo phone/line output jack with a dedicated volume control, and a monochromatic LCD display, which is easy to read even in bright sunlight.

The recorder comes with essential features for videographers including a tone generator for setting levels, sound markers for aligning audio and video, an on-board limiter to keep your levels in check when loud spikes in volume occur, and a Rec Hold function to avoid accidental operation of buttons. A micro-USB port is available for data exchange to and from a computer, as well as for use as an audio interface with a computer or iOS device.

Power and Accessories

The F1 utilizes two standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or an AD-17 AC adapter (available separately), and offers a run time of up to 10 hours. The unit ships with a windshield, mic clip, and a belt clip.

Key Features

  • Two-channel audio recorder
  • Capture audio at weddings, interviews, and more
  • Includes LMF-1 omnidirectional lavalier microphone
  • Lightweight and low-profile design—attaches to belts and waistbands, or fits inside pockets without being seen
  • Compatible with all Zoom microphone capsules
  • Supports up to 24-bit/96 kHz audio
  • Broadcast WAV format (BWF)—files are automatically time-stamped
  • Multiple MP3 formats
  • One-touch button controls
  • 1.25" monochromatic LCD display can be read under bright light
  • Record Hold function to avoid accidental operation of buttons
  • Stereo 1/8" mic/line input jack with plug-in power (2.5V)
  • Stereo 1/8" phone/line output jack with dedicated volume control
  • Built-in limiter and auto level control to avoid clipping
  • Low-cut filter
  • Pre-Record function
  • Tone generator for calibrating audio levels between the F1 and a DSLR video camera without the need for an attenuation cable
  • Sound marker function outputs quick tone for syncing audio and video
  • Records directly to microSD and microSDHC cards up to 32 GB
  • Micro-USB port for data exchange to and from computer
  • Use as an audio interface to record directly to your computer or iOS device
  • Runs on two standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AD-17 AC adapter (available separately)
  • Up to 10 hours of operation with alkaline batteries (when using lavalier)

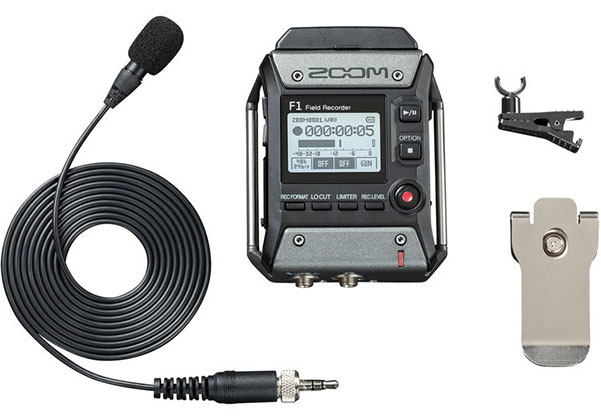

  • Includes windscreen, belt clip, mic clip

Specifications

Zoom F1 Specs

Type
2-channel audio recorder
Recording Formats
WAV
44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit
BWF-compliant
MP3
48, 128, 192, 256, 320 kb/s
Mono/stereo ID3v1 tags supported
Recording Media
microSD and microSDHC cards (Class 4 or higher, up to 32 GB)

Inputs

Mic In
Proprietary 10-pin connector, compatible with all Zoom mic capsules
Mic/Line In
Connector: 1/8" / 3.5 mm stereo mini, with screw lock
Plug-In Power: 2.5 V
Input gain: -12 dB to +36 dB
Input impedance: 2 kOhms or more

Outputs

Connector
1/8" / 3.5 mm stereo mini, with screw lock
Maximum Output Level
2 x 11 mW (into 32 Ohms load)

Lavalier Microphone

Type
LMF-1
Polar Pattern
Omnidirectional
Plug
1/8" / 3.5 mm stereo mini, with screw lock
Sensitivity
-32 dB/1 Pa at 1 kHz
Maximum Sound Pressure Input
115 dB SPL
Cable Length
5.2" / 160 cm

USB

Connector
Micro-USB
Mass Storage Operation
USB 2.0 high-speed
Audio Interface Operation
2 x in / 2 x out
44.1 kHz/16-bit, 48 kHz/16-bit
USB class-compliant
Transfer method
Asynchronous
Power
2 x AAA batteries, alkaline, NiMH, or lithium
AD-17 AC adapter (available separately): 5 VDC / 1 A
Recording Time
With Lavalier Mic (48 kHz/24-bit, Mono, Plug-In Power On):
Alkaline Batteries: 10 hours, approximately
NiMH Batteries (750 mAh): 9 hours, approximately
Lithium Batteries: 16 hours, approximately
Display
1.25", LCD monochrome
Dimensions (W x D x H)
2.5 x 3.1 x 1.3" / 64.0 x 79.8 x 33.3 mm
Weight
4.2 oz / 120.0 g (without batteries)

Packaging Info

Package Weight
0.9 lb
Box Dimensions (LxWxH)
8.9 x 6.4 x 2.1"
