Sevenoak SK-ECH03 Electronic pan and Tillt heads
In Stock
This electronic pan and tilt head offers smooth, precise camera movements with its remote-controlled joystick, allowing for 360-degree pan and tilt. It supports cameras up to 5 kg and is compatible with tripods, sliders, and jib arms. The adjustable speed settings and motor disengagement feature ensure precise control and easy camera balancing. Powered by an AC adaptor, it also offers optional battery use. The kit includes a control box, motors, cables, and a mounting bracket, all in a convenient case.
Features

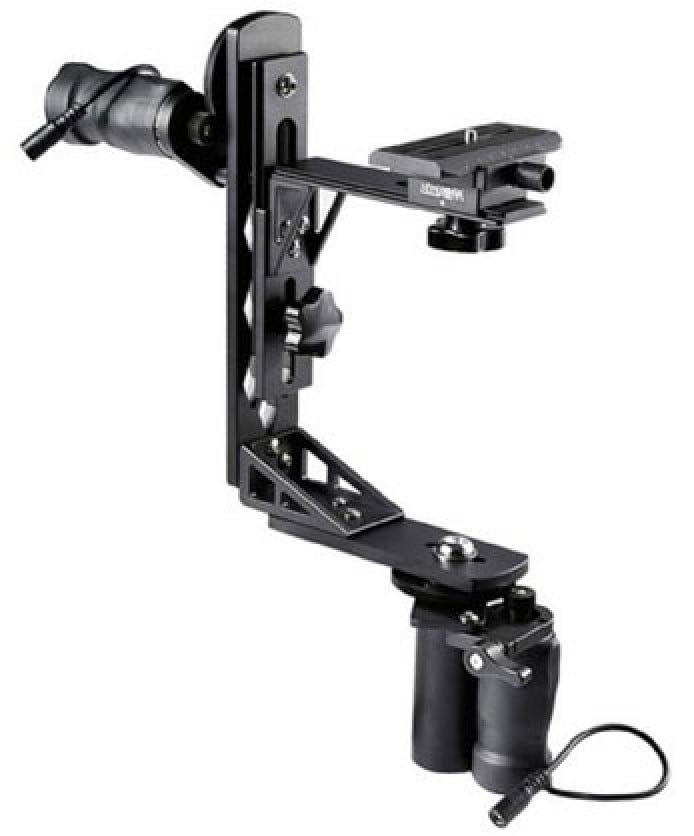

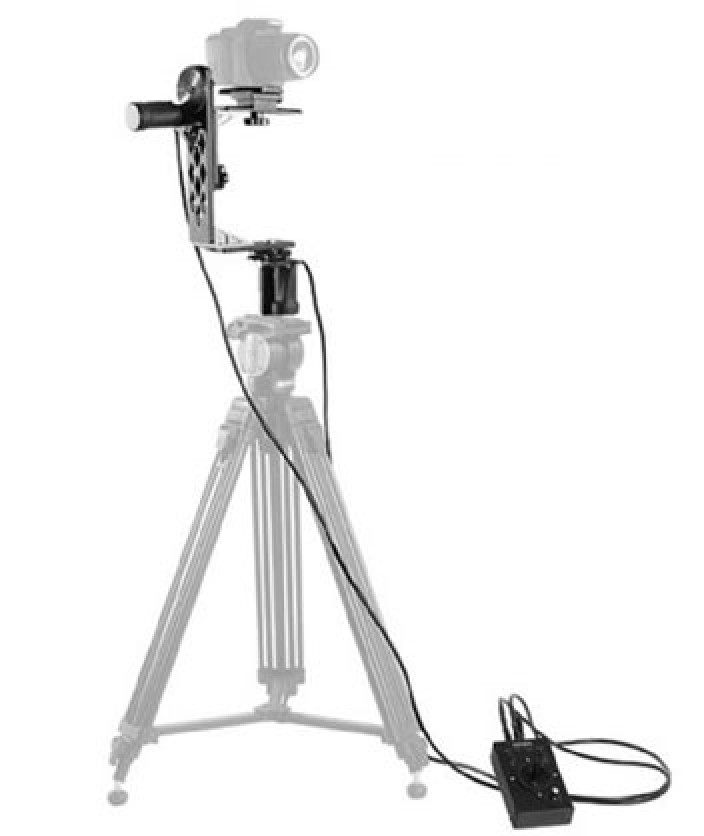

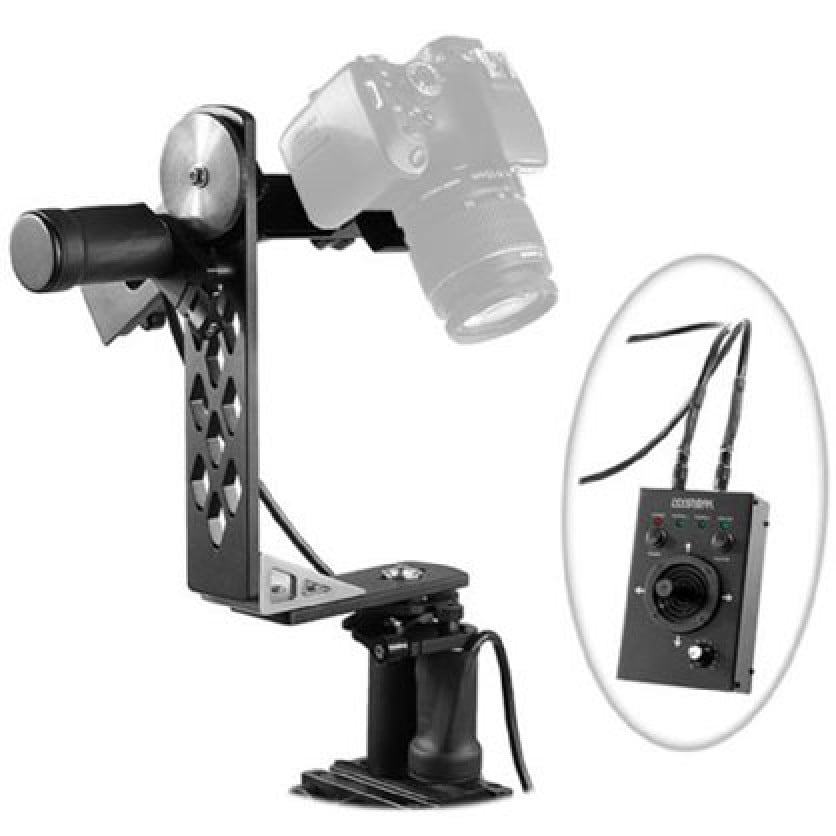

Sevenoak Panoramic Head SK-ECH03 with Motor is a 2 axis remote controlled Electronic ball head, designed for use on Jib Arms, Tripods or sliders (Female threaded bottom). It features adjustable positioning on 2 axies and provides smooth motion as a result of this design.
Controller Features
The controller that comes with the SK-ECH03 has a joystick that gives the head precision pan and tilt movement in either direction from a slow crawl up to the required speed. The joystick will also pan and tilt simultaneously. The head will pan and tilt through 360 degrees, this enables the camera to point directly upwards or downwards when required. It is driven by two custom-geared motors with belt drive. The motor drive can be easily disengaged to enable the camera to be balanced correctly on the camera plate. The head's camera plate is adjustable for different sizes of camera and will support up to 5 kg.

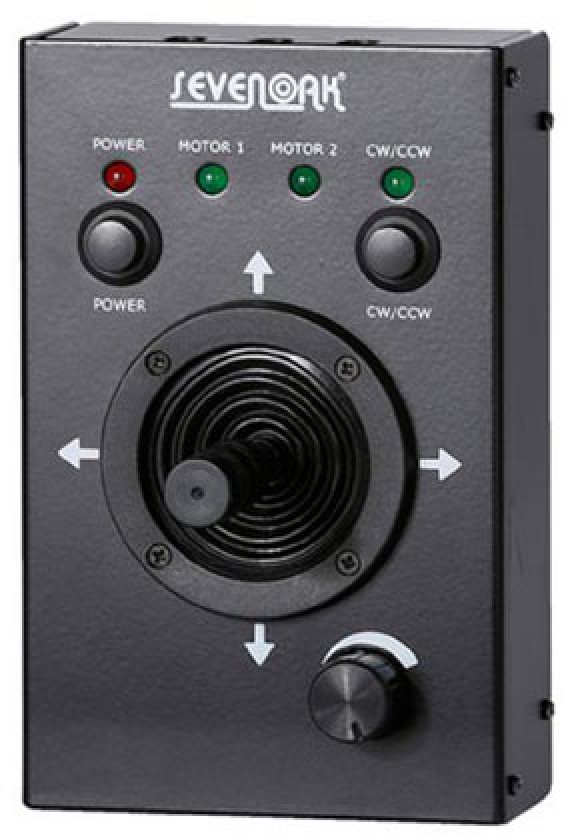

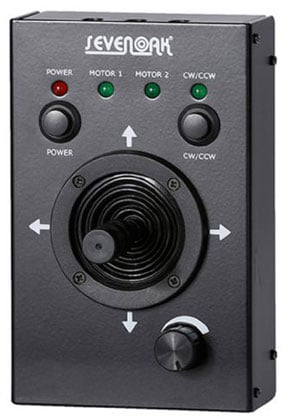

Joystick Control Box

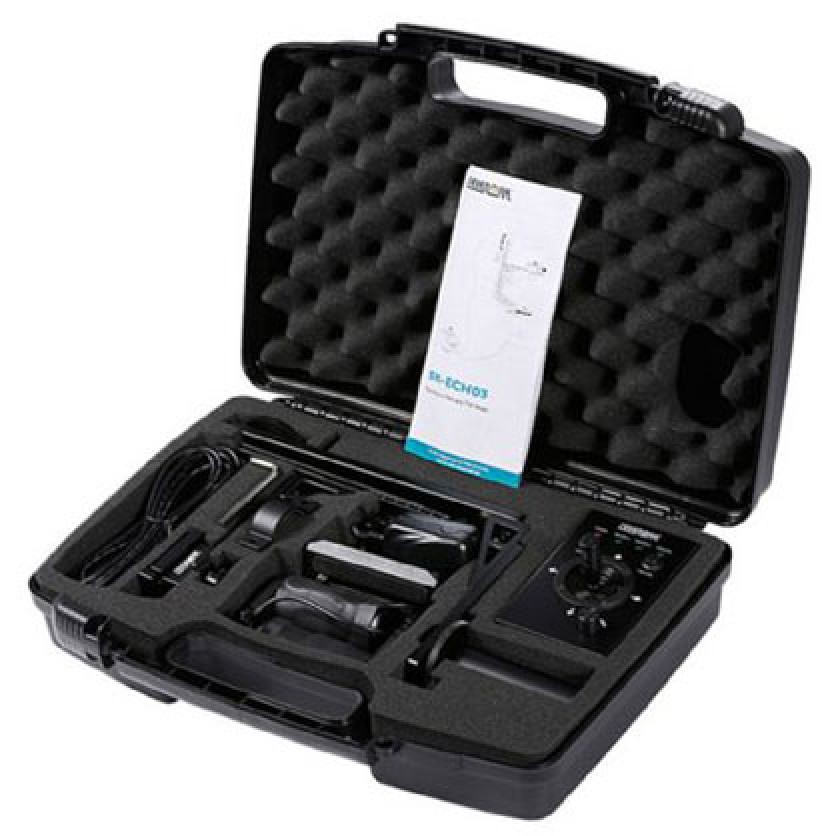

The joystick control gives the head precision pan and tilt movement in either direction from a slow crawl up to the required speed. The joystick will also pan and tilt simultaneously. On the side of the control box is a variable speed controller, so you can set the maximum speed for better control, there are also switches to change the direction of the joystick control and an on- and off switch. On the front of the control box are sockets for the control cables, 12V DC in and two motor sockets. The head is powered by the supplied AC adaptor. At the optional accessories you can find a accu pack and Battery Holder for the Sevenoak Panoramic Head SK_ECH03, in order to use it without the adapter. On the bottom of the control box is a mounting bracket to attach it to the Jibs and Cranes. The SK-ECH03 comes in a handy case.
Specifications
- Fastest speed: 3.3 rpm/min
- Slowest speed: 0.5 rpm/min
- Control cable length: 6 meters
Specifications
- Included:
- 1x Sevenoak Panoramic Head SK-ECH03
- 1x Controller
- 2x Control motors
- 2x Control cable
- 1x AC-adapter
- 1x Mounting bracket
