Atomos 7" Shogun HDR Classic Cinema Monitor-Recorder-Switcher

Features

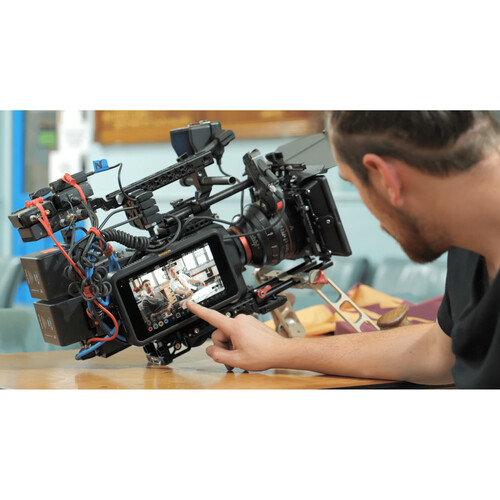

The 7" Shogun HDR Classic Cinema Monitor-Recorder-Switcher, one of the latest workhorses in the Atomos line of Shogun onboard camera video monitor-recorders, provides monitoring, recording, and switching in a single, compact tool. The ultra-bright 3000 cd/m2 display can input up to DCI/UHD 4K60 video and features HDMI and SDI input and output, so it's perfect for cinema capture, live events, and broadcast productions.

Ultrabright Screen

• 7.2" large 1920 x 1200 resolution display
• 1,000,000:1 contrast ratio
• 3000 cd/m2 brightness
• Play back your recently captured shots on the same pristine screen for reviewing

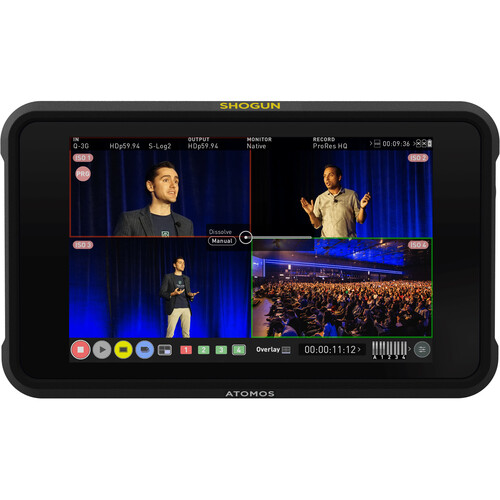

Multicamera Switching

Four SDI inputs transform the Shogun Classic into a portable, quad-view live switcher and recorder on your multicamera shoots. Record a fifth program channel of your switched feed and display the resulting mixed output (via HDMI or SDI) live.

• You can even output the switched feed for live streaming
• Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras

HDR I/O and Color Management

Deliver content via live HDMI out, in real time, from any HDR camera to a compatible HDR TV or monitor. Monitor every pixel of SDR or HDR as it's captured and view it in 10-bit HDR. Add the monitor to a high-end ARRI, RED, or Sony VENICE, and you'll get accurate HDR monitoring and all the tools you need to get your job done.

Recording

Use with your DSLR or mirrorless camera via HDMI to record up to 4K60 Apple ProRes and AVID DNx codecs for easy editing and archival quality. Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real time with a simple touch of the screen.

Additional Features

• LTC input via BNC
• 2-pin XLR audio input for 2-channel input and output
• Dual L-series battery plates
• 1/4"-20 mounting thread
• Fan and heat sink cooling
• Remote start/stop trigger via 2.5mm LANC jack
• 3.5mm headphone output
• Includes Master Caddy II; supports Master Caddy II and SSDmini

Monitoring Tools

The 7" Shogun Classic features numerous built-in monitoring tools, including:

• Custom 3D LUTs
• False color
• Focus peaking
• HDR exposure
• Pixel magnification (1:1, 2:1)
• RGB parade
• Vectorscope
• Frame guides
• Zebra
• Waveform
• Safe areas
• Markers
• Vertical flip
• Atomos Calibrator with Display Pro HL and Display Plus HL
• Downscaling to HD and crop
• Interlaced and PSF to progressive
• Anamorphic de-squeeze

Specifications

Display

Panel Type

IPS-Type LCD

Display Size

7.2" / 18.3 cm

Native Resolution

1920 x 1200

Aspect Ratio

16:10

Touchscreen

Yes

Maximum Brightness

3000 nits / cd/m2

Color Support

16.7 Million Colors (8-Bit+FRC)

HDR Support

Yes

Color Gamut

105% DCI-P3

LUT Support

Yes

Image Controls

Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, RGB Parade, Vectorscope, Waveform, Zebra

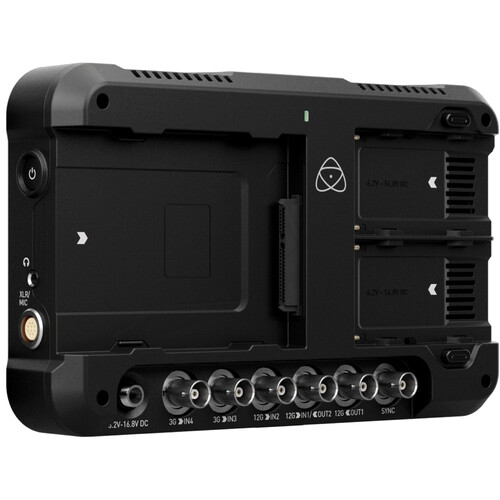

Inputs/Outputs

Video I/O

1x HDMI 2.0 Input

2x BNC (3G-SDI) Input

1x BNC (12G-SDI) Input

1x BNC (12G-SDI) Input/Output

1x HDMI 2.0 Output

1x BNC (12G-SDI) Output

Embedded Audio

HDMI/SDI

Audio I/O

1x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

No

Power I/O

1x Barrel (16.8 VDC) Input

Other I/O

1x BNC

1x 2.5 mm (Serial Remote)

Media/Memory

Media/Memory Card Slot

Single Slot: SSDmini/SSD with Master Caddy II/III [Supports Recording]

Wi-Fi

No

Bluetooth

No

Mobile App Compatible

No

Format Support

Video Format

HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)

DCI 4K

UHD 4K: 60

1080p

1080i: 60/50

720p: 60

Gamma Curve

ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, JVC J-Log, Nikon N-Log, Panasonic V-Log, REDlogFilm, REDWideGamutRGB, Sony S-Log, Sony S-Log 2, Sony S-Log 3

Video Signal Conversion

HDMI to SDI

SDI to HDMI

Timecode Support

Yes

Recording

Pulldown Conversion

2:2, 3:2

Camera Trigger

SDI, HDMI

Pre-Roll Record

4K: 2 Seconds

Full HD: 8 Seconds

Encoding Formats

ProRes 422, HQ, LT

DNxHD 36, 145, 220x, HQ, HQX, LB, SQ

Power

Input Power

6.2 to 16.8 VDC

Battery

2x L-Series Mount on Fixed Plate

Mounting

Tripod/Accessory Mounting

Top/Bottom

1x 1/4"-20 Female

General

Environmental Resistance

No

Operating Conditions

Up to 104¡ãF / 40¡ãC

Dimensions

8.4 x 5 x 1.8" / 214 x 127 x 45 mm

Weight

1.6 lb / 738.00 g
