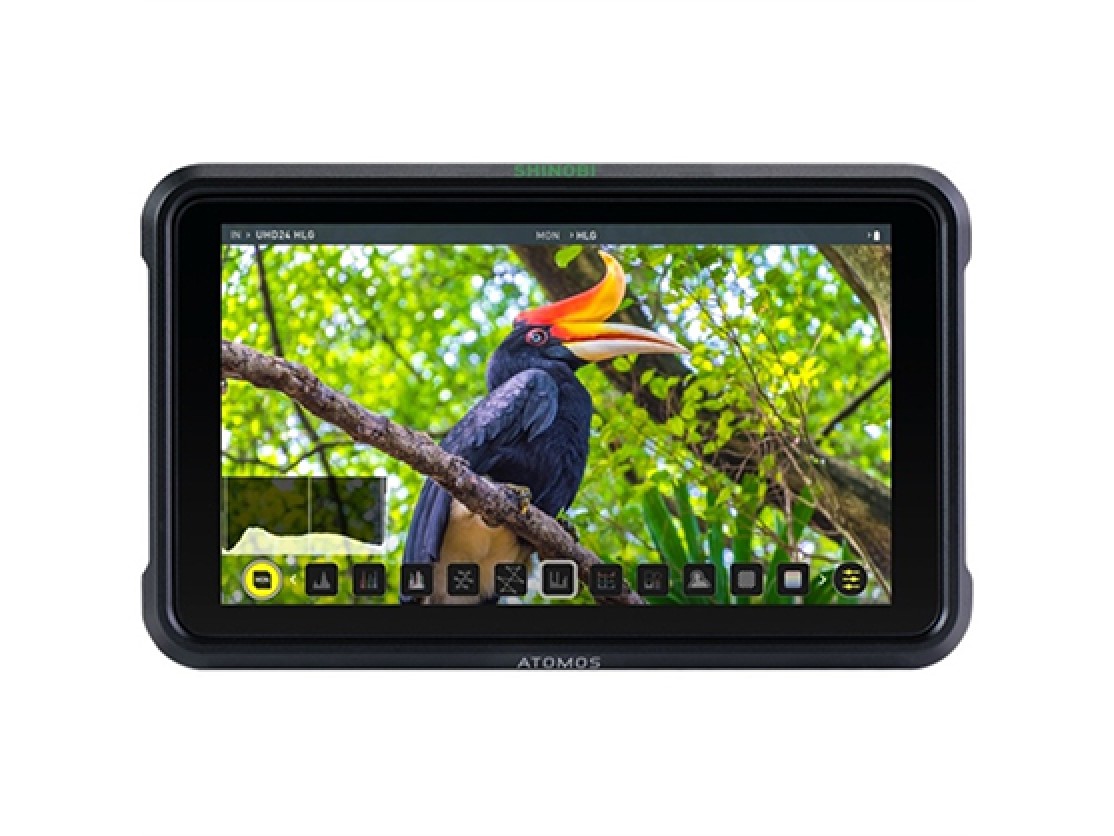

Atomos Shinobi 5" 4K HDMI Monitor

The Atomos Shinobi 5" 4K HDMI Field Monitor is a new cutting-edge HDMI easy-to-use 5” 4K field monitor with PRO features for ALL budgets.

A high brightness 1000nit 5 inch HDMI monitor that’s perfect for vloggers, creatives and photographers.

Atomos has been developing amazing monitor and recorder technology for years in order to simplify and improve video creation. The Atomos Shinob is the first stand-alone small monitor featuring all of these amazing screen processing technologies and professional monitoring tools – now packed into a 5 inch ‘monitor only’ device. Shinobi features a ‘run all day’ single battery, 1000nit high brightness screen, HDR capability and advanced functions that are easy to use. There’s even a new selfie Mirror Mode for vloggers and a new multi-tool Analysis View that’s a cinematographer’s dream. Set up your shots accurately using advanced histograms, waveforms and video scopes. Shinobi is the perfect companion to improve any photo or video production.

Ideal for on Camera use

Perfect for Vloggers and aspiring filmmakers

Pocket-sized powerhouse!

Compact lightweight design

The 5” SuperAtom IPS LCD provides:

better viewing for framing, view angles for creative shooting

Punch in zoom with 1:1 and 2:1

1000Nits / cdm2 HDR / Daylight viewable

441 PPI – higher then Apple’s Retina Standard

Calibrated out of the box with support with Xrite Calibration

Support for SD, HD, UHD and 4K up to DCI, with 1.4b HDMI input and support for 4k up to 30fps.

The perfect on-camera monitor for Photo and Video

Pocket-sized light monitor – perfect for Mirrorless cameras

Runs for 4 hours on a 2 cell NPF battery

AtomOS 10 – intuitive controls system

AtomHDR for log to HDR processing

3D LUTs for customer creative LOOKs

Advanced display Processing

10bit Inputs and Image processing

100% of Rec709 calibratable display

Camera Picture profile mapping with Atom HDR

3DLUT support via SD Card

Auto HDR for HLG inputs Manual select to view Sony

Alpha RAW photo files in HDR directly out of the Camera

Long Battery Run Time

All day runtime from a single battery!

2 cell 2600 mah up to 4 hours

4 cell 5200 mah up to 8 hours

6 cell 7800 mah up to 12 hours

• Operating power ... 4 - 6W
• Compatible batteries ... NP-F series and supporting accessories
• Input voltage (battery) ... 6.2V to 16.8V
• Battery time (based on 2 x 7.4V) ... 2600mAh - up to 4 Hours
• 5600mAh - up to 3hrs
• DC In ... Via Dummy battery or battery eliminator
• Weight without batteries & media ... 200 grams
• Dimensions (W x H x D mm) ... 151 x 91.5 x 31mm
• Construction ... ABS polycarbonate
• Mounting points ... 1/4-20 screw mount; 1x top, 1 x bottom
• Key Specifications:
• AtomHDR ... Yes
• Supported Log formats ... Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C
• Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog, Nikon N-Log
• HDR Monitoring (Gamma) ... Sony SGamut / SGamut3 / SGamut3.cine / BT2020
• Canon Cinema / DCI P3 / DCI P3+ / BT2020
• Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300
• Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
• HDR Monitoring (Gamut) ... Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 /
• DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide
• Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+
• / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out
• Bit depth ... 10bit (8+2 FRC)
• Brightness ... 1000nit (+/- 10% @ center)
• HDR input (PQ/HLG) ... Yes / Yes
• HDR output (PQ/HLG) ... No/ No
