FeelWorld F5 Pro X 5.5" High-Brightness HDMI Touchscreen Monitor

SKU: 1024007     MPN:

F5PROX

$310.00

$269.57 excl. GST

Out of stock
For more information about availability, please:

This monitor offers a high-brightness touchscreen that enhances visibility in bright conditions, and the ability to zoom in on details with ease. It supports DCI 4K video signals and includes tools like vectorscope and histogram for precise image analysis. Customise your viewing with 3D LUT support, and enjoy versatile mounting options. Power options include USB-C and battery, making it adaptable for various shooting environments. The included sun hood and tilt arm enhance usability in outdoor settings.

Features

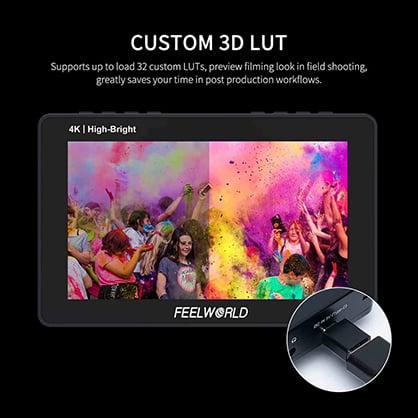

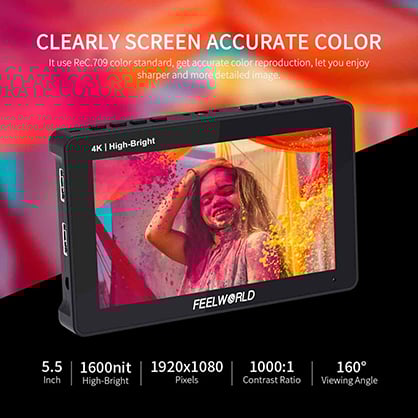

Add a high-resolution monitor to your 4K camera with the F5 Pro X 5.5" High-Brightness HDMI Touchscreen Monitor from FeelWorld. It features an improved 1600 cd/m² brightness, 1080p60 resolution, and 1000:1 contrast ratio. It includes 3D LUT support with four built-in LUT profiles, and up to 32 custom 3D LUTs can be loaded by the operator via an SD card.

Powerful Performance Tools

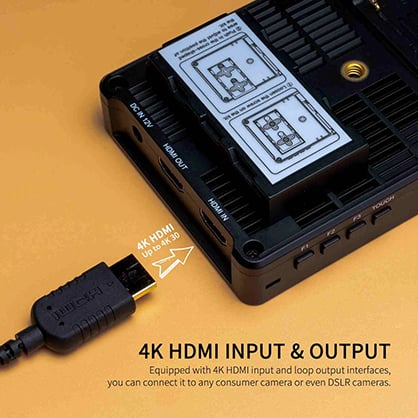

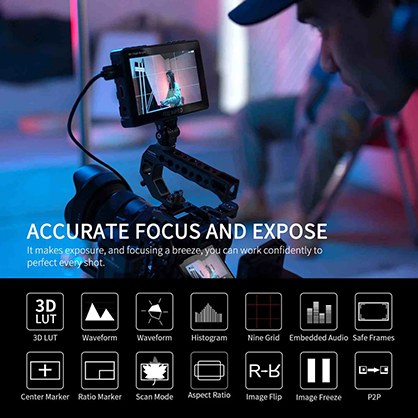

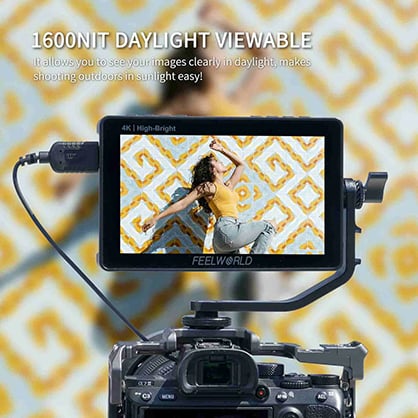

The F5 Pro X features an upgraded 1600 cd/m² brightness touchscreen, which allows you to zoom in or out with a pinch gesture to view closer detail in your images. The monitor has an HDMI input and loop output, and it supports up to DCI 4K video signals, as well as a headphone output for audio monitoring. Via the internal menu, touchscreen functionality can be turned off to prevent accidental swipes and other touchscreen commands, and you can then use the buttons on top of the monitor. For accurate exposure, focus, and other characteristics, the F5 Pro X is loaded with monitoring features such as vectorscope, histogram, anamorphic mode, and audio level meters. Its 3D LUT support allows you to utilize its four built-in Log LUTs when you're viewing Rec. 709 video, or you can upload up to 32 user LUTs using the USB input to utilize a variety of looks and camera formats.

Versatile Compatibility

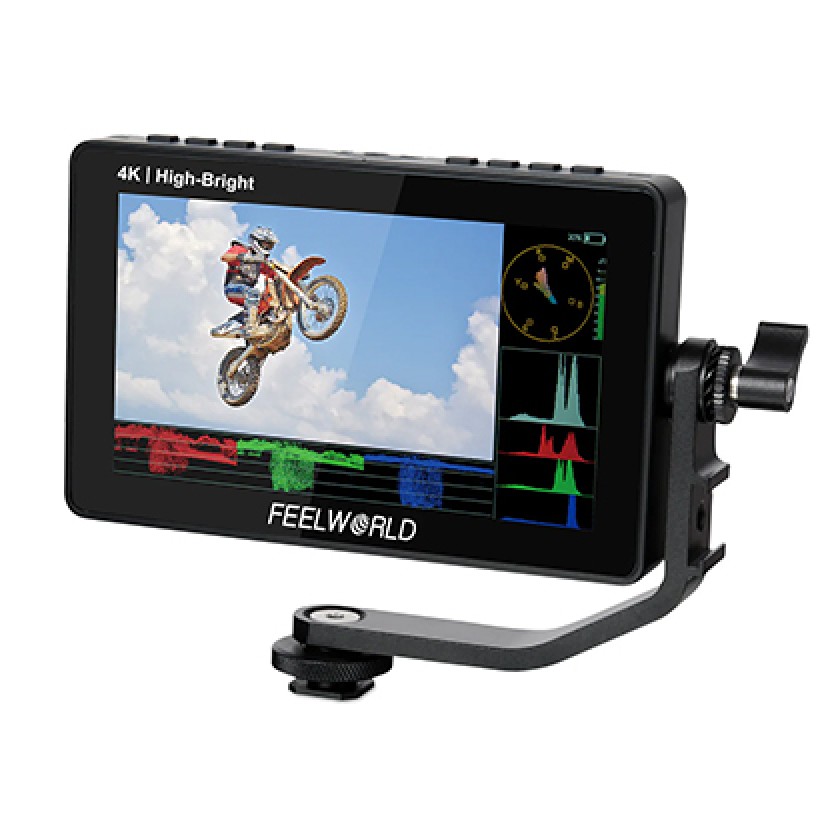

Multiple power options include a DC barrel input port for an optional power adapter, a 5 VDC USB-C port for connecting a USB power bank, and an L-series battery plate on the rear. There's also an 8.4 VDC barrel output port that allows you to power external devices such as cameras and accessories using a separately available cable. The monitor provides multiple 1/4"-20 mounting threads, so you can attach the monitor as it best suits your needs. There's one on the bottom, top, right, and middle rear. A 1/4"-20 to shoe mount tilt arm is included for attaching the monitor directly onto your camera and adjusting the tilt angle as needed. The tilt arm also offers an additional shoe mount on the side for mounting a mic or other accessory like the included LED light.The F5 Pro X also comes with an installation bracket secured on the back that allows you to attach transmitters, converters, and other devices. Also included is a sun hood for better viewing in bright outdoor conditions.

Specifications

Display

Panel Type
IPS-Type LCD
Display Size
5.5" / 14.0 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 160°
Vertical: 160°
Touchscreen
No
Maximum Brightness
1600 nits / cd/m2
Contrast Ratio
1000:1
Color Support
16.7 Million Colors (8-Bit)
HDR Support
No
Pixels Per Inch (ppi)
400 ppi
Finish
Glossy
LUT Support
Yes
Image Controls
Focus Assist, Histogram, R/G/B/Chroma Only, Waveform

Inputs / Outputs

Video I/O
1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel 5.5 mm (12 VDC) Input
1x USB-C (5 VDC) Input
1x Barrel 5.5 mm (8.4 VDC) Output
Media/Memory Card Slot
Single Slot: SD (Unspecified Type) [LUT Upload Only]

Connectivity

Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No

Format Support

Video Format
HDMI (8-Bit)
DCI 4K: 24
UHD 4K: 30/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i

Power

Input Power
12 VDC
Battery Type
1x L-Series
Power Consumption
9 W (Maximum)

Mounting

Mounting
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Bottom)
1x 1/4"-20 Female (Left)
1x 1/4"-20 Female (Right)

General

Environmental Resistance
No
Dimensions
5.8 x 3.7 x 0.97" / 148 x 93 x 24.75 mm
Weight
8.47 oz / 240.00 g, Including Battery Plate
