FeelWorld LUT7 PRO 7" Ultrabright HDMI Field Monitor with F970 Accessory Mountin

Features

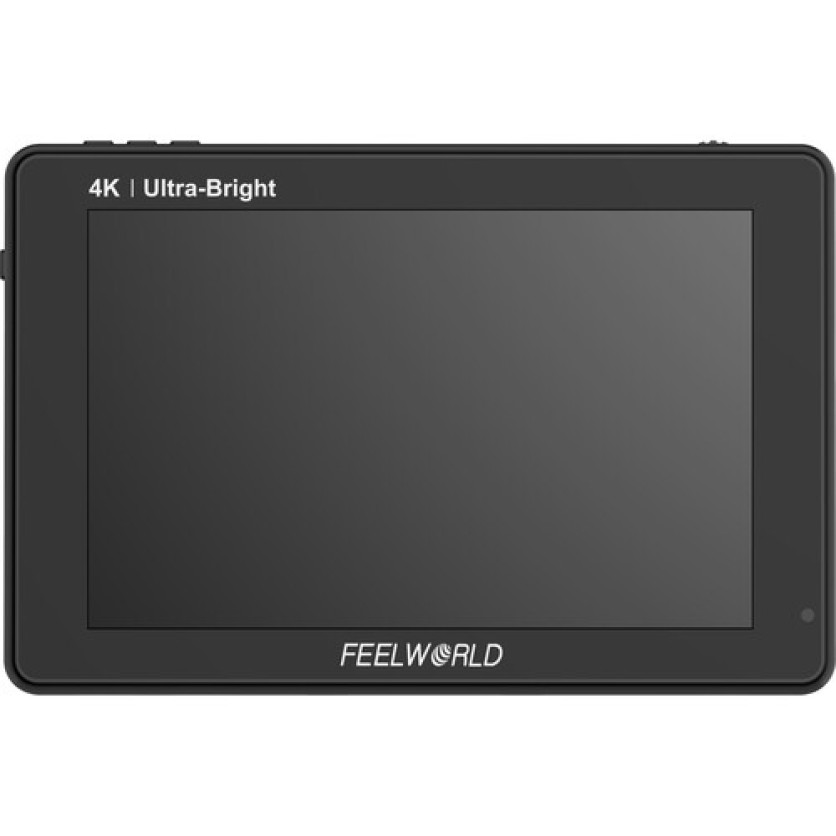

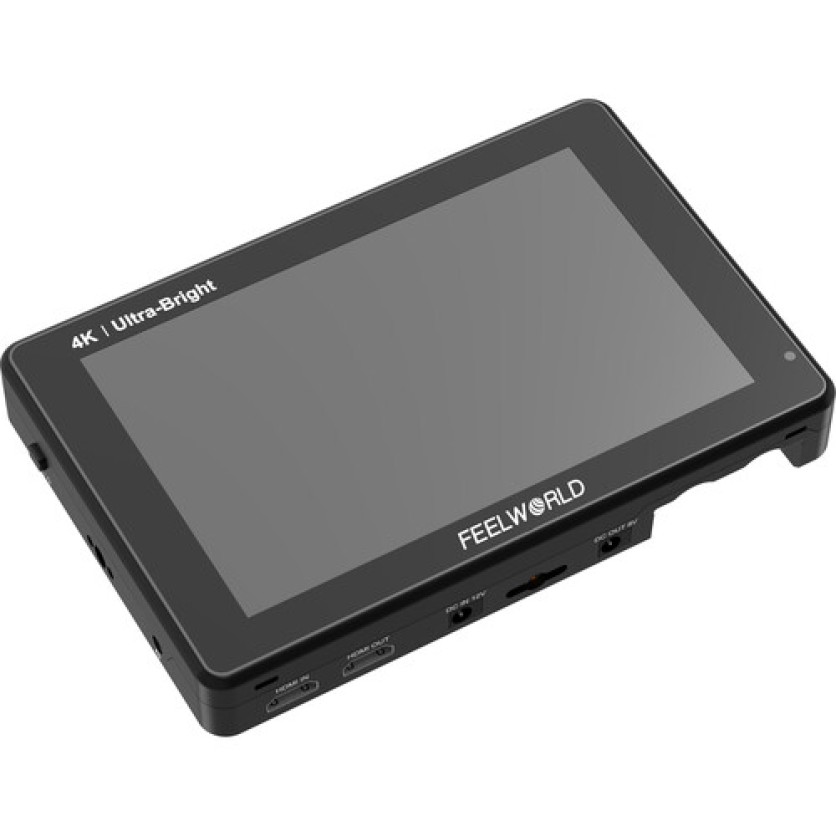

The LUT7 PRO 7" Ultrabright HDMI Field Monitor with F970 Accessory Mounting Plate from FEELWORLD features a sharp 323 ppi display and supports SD, HD, UHD, and DCI 4K video. This HDMI monitor has an integrated L-series battery slot, as well as a dummy battery plate that allows you to mount and power optional accessories, such as wireless transmitters or receivers with an L-series battery slot. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast.

Connectivity and Controls

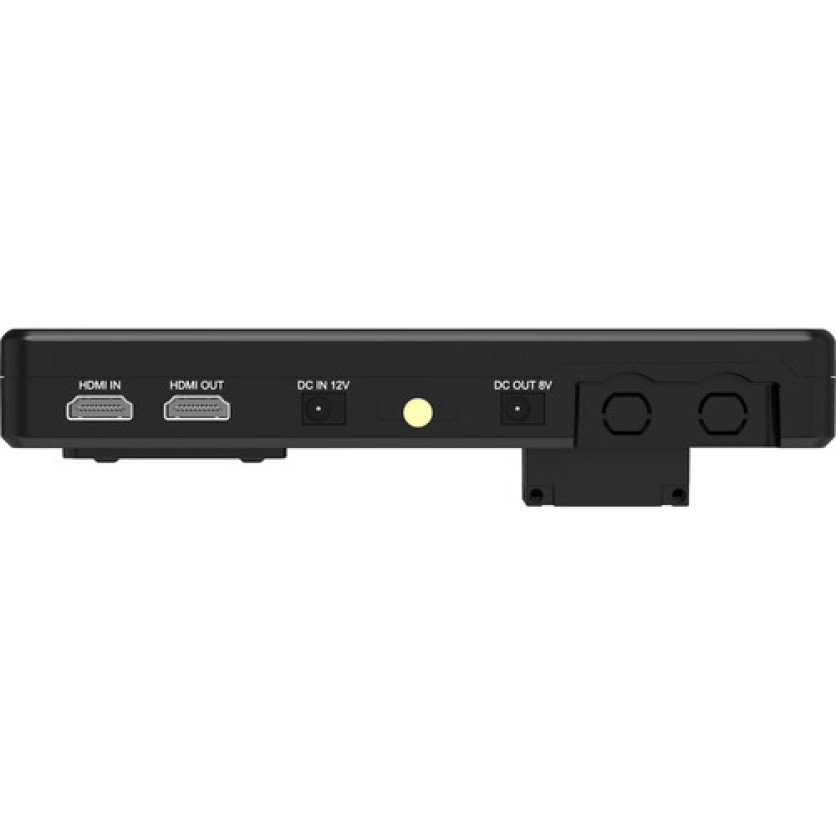

On the bottom edge of the monitor, you'll find HDMI input and output connections as well as a 1/4"-20 threaded mounting hole and power output port. On one side is a 3.5mm headphones port, while the control buttons reside along the top edge of the monitor.

3D LUT Support and Image Evaluation

The LUT7 PRO supports custom 3D LUTs to accurately view the camera color on the screen, uploaded via an integrated SD card slot on the side, and it supports professional Rec. 709 color calibration technology. A variety of image evaluating tools are built into the monitor including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.

Key Features

• High-resolution 1920 x 1200
• High contrast of 1200:1
• Ultrabright 2200 cd/m²
• 160° wide-view-angle IPS panel
• Histogram
• Peaking focus assist (red, green, or blue highlight over parts of the image in focus)
• False color
• Zebra exposure
• Nine-grid
• Embedded audio
• Scan mode (underscan, overscan)
• Zoom (4x, 9x, 16x)
• Anamorphic mode (1.3x, 2x, 2x mag)
• Pixel-to-pixel
• Center marker
• Safe area (80, 85, 90, 93, 96%, 2.35:1)
• Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
• Marker color (red, green, blue, white, black)
• Check field (red, green, blue, mono)
• Image flip (H, V, H/V)
• Image freeze
• Color temperature adjustment

Accessory Mounting and Power

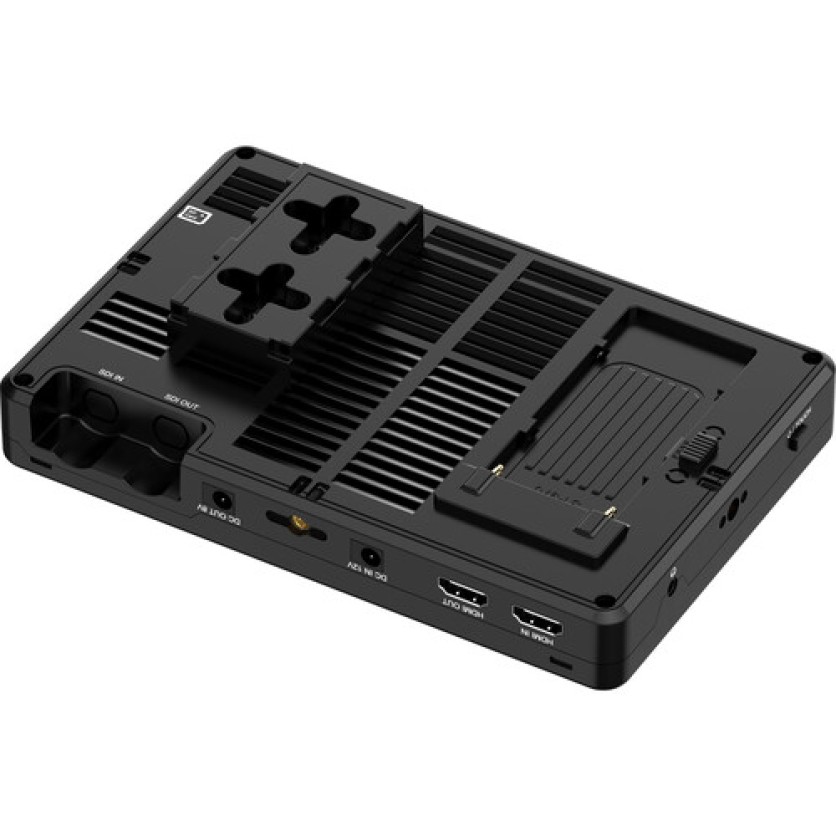

The L-series mounting plate allows you to directly attach and power accessories, such as a wireless transmitter or receiver, to the back of the monitor using the accessory L-series battery slot.

Battery

The single rear battery slot is compatible with Sony L-series batteries

Color Calibration and Menu Controls

FEELWORLD uses the professional Rec. 709 HD color standard and is calibrated at the factory. It can achieve monitor calibration efficiently and get accurate color reproductions easily, showing the image when you shoot without distorting the color.

The menu controls are intuitive and easy to use via the touchscreen design. Two different feature buttons are programmable to the various features you use the most.

Connectivity and Customization

The compact design includes 4K HDMI input/output, so you can connect it to 4K cameras and DSLRs. The HDMI connection is compatible up to 4K24.

Load custom 3D LUTs using the integrated SD card slot.

Image Tools and Anamorphic Support

Histogram is a quantitative tool to check the picture brightness.

The audio level meters provide numerical indicators and headroom levels.

The peaking filter displays a colored highlight on the screen where sharp edges appear.

Built-in selection of no-squeeze, 1.3x, or 2x allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in-camera.

Specifications

Display

Panel Type

IPS-Type LCD

Display Size

7.0" / 17.8 cm

Native Resolution

1920 x 1200

Aspect Ratio

16:10

Viewing Angle

Horizontal: 160° (80/80)
Vertical: 160° (80/80)

Touchscreen

Yes

Maximum Brightness

2200 nits / cd/m2

Contrast Ratio

1200:1

HDR Support

Yes, Hybrid Log Gamma

Pixels Per Inch (ppi)

323 ppi

LUT Support

Yes

Image Controls

Anamorphic De-Squeeze, Blue Only, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, Red Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Inputs / Outputs

Video I/O

1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output

Embedded Audio

HDMI

Audio I/O

1x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

No

Power I/O

1x Barrel 3.5 mm (8 VDC) Output

Media/Memory Card Slot

Single Slot: SD/SDHC [LUT Upload Only]

Wi-Fi

No

Bluetooth

No

Mobile App Compatible

No

Format Support

Video Format

HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p: 25
480p: 29.97
576i: 50
480i: 59.94

SDI

1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
576i: 50
480i: 59.94

Power

Input Power

7 to 24 VDC at 2 A

Battery Type

1x L-Series

Power Consumption

20 W

Mounting

Mounting

1x 1/4"-20 Female (Left)
1x 1/4"-20 Female (Bottom)
1x 1/4"-20 Female (Right)

General

Environmental Resistance

No

Operating Conditions

12 to 82°F / -20 to 50°C

Storage Conditions

-22 to 140°F / -30 to 60°C

Dimensions

7.5 x 5 x 1.1" / 190 x 126 x 27 mm

Weight

15.87 oz / 450.00 g, Including
