RODE RODECaster Video S All-in-One Audio/Video Console

SKU: 1025764     MPN:

RCV-S

$1,399.00

Was $1,799.00, offer ends Mon 30 Nov 2026 or while stocks last.

$1,216.52 excl. GST

Tax Free Price: $1,216.52 (Save $182.48)
Available at AKL International on departing flights ... more »

in stock In Stock
Price On Application Pre-order now! in stock In Stock In our warehouse Available for home delivery Out of stock
For more information about availability, please:

Be quick - save $400.00

This all-in-one console simplifies video and audio production for creators, offering powerful video switching, recording, and studio-grade audio control. Its intuitive design features a touchscreen and rotary encoder, allowing easy management of video and audio sources. Connect seamlessly with HDMI, USB-C, and NDI inputs. Enjoy wireless microphone integration and advanced audio processing. Stream and record directly with comprehensive scene-building, auto-switching, and remote control via the RODECaster App.

Features

Designed as a streamlined version of its predecessor the RODECaster Video, the RODECaster Video S All-in-One Audio/Video Console offers the same, powerful video switching and recording, as well as studio-grade audio control for podcasters, streamers, and solo creators. The console offers intuitive control over both video and audio sources with its onboard controls, 2" touchscreen display, and rotary encoder. A variety of connectivity options, including HDMI and USB-C ports, NDI inputs, and both wired and wireless network connections. Add the RODECaster Video S to your preexisting RODE audio ecosystem using the USB-C audio ports or RODE Central software for advanced device configuration.

Video Interface

The RODECaster Video S features nine mix-effect layers that can simultaneously display in both preview and program views. Two downstream keyers toggle overlays and logo, two chroma-keyers toggle different backgrounds, and one luma keyer and two media players can play simultaneous MP4 video, PNG/JPG photos, or WAV audio from a USB SSD or flash drive.

Multiview allows you to visualize the program and preview, all the live inputs with scene and media thumbnails, the audio mixer and channel status, and recording/network/storage status, as well as runtime, date, and time information. Nondestructive setup means the process can be done live or configured as a saved scene without interrupting the flow of your production.

  • Switch between four 1080p60 video sources (three HDMI and one USB-C) and create complex scenes with multiple layers of video, media, and graphics.
  • Save these scenes and recall them with the touch of a button.
  • You can also input up to four NDI streams such as PTZ cameras for streaming output.
  • Configure the single HDMI output to connect displays and view preview, program, and multiview feeds.
  • Use the program feed to see what is being streamed/recorded and the preview feed to view inputs, scenes, graphics, or media sources before they go live.

Audio Sources

Two studio-grade combo XLR-1/4" jacks on the console are equipped with low-noise, high-gain Revolution Preamps to ensure pristine audio capture from XLR microphones and instruments.

  • Use digital USB-C ports to connect RODE USB microphones, the RODECaster Pro II, or Duo Audio Production Studios.
  • Other USB-C ports support 2-in / 2-out multichannel outputs, mix-minus, and MFi protocols.
  • Internal wireless receivers can connect RODE series IV wireless microphones to the console, like the Wireless GO II and Wireless PRO.
  • Aphex VoxLab audio processing equips the RODECaster Video S with EQ, compressor, noise gate, high-pass filter, de-esser, Aural Exciter, Big Bottom, and Compellor effects per channel.
  • Integrated preamps provide up to 75 dB input gain and -131.5 dBV equivalent input noise.

Mix and process audio onboard using the touchscreen and rotary encoder or the software mixer in RODE Central.

RODE Ecosystem Connectivity

The USB4 port on the RODECaster support select RODE USB microphones including the RODECaster Pro II and Duo.

Intuitive Controls

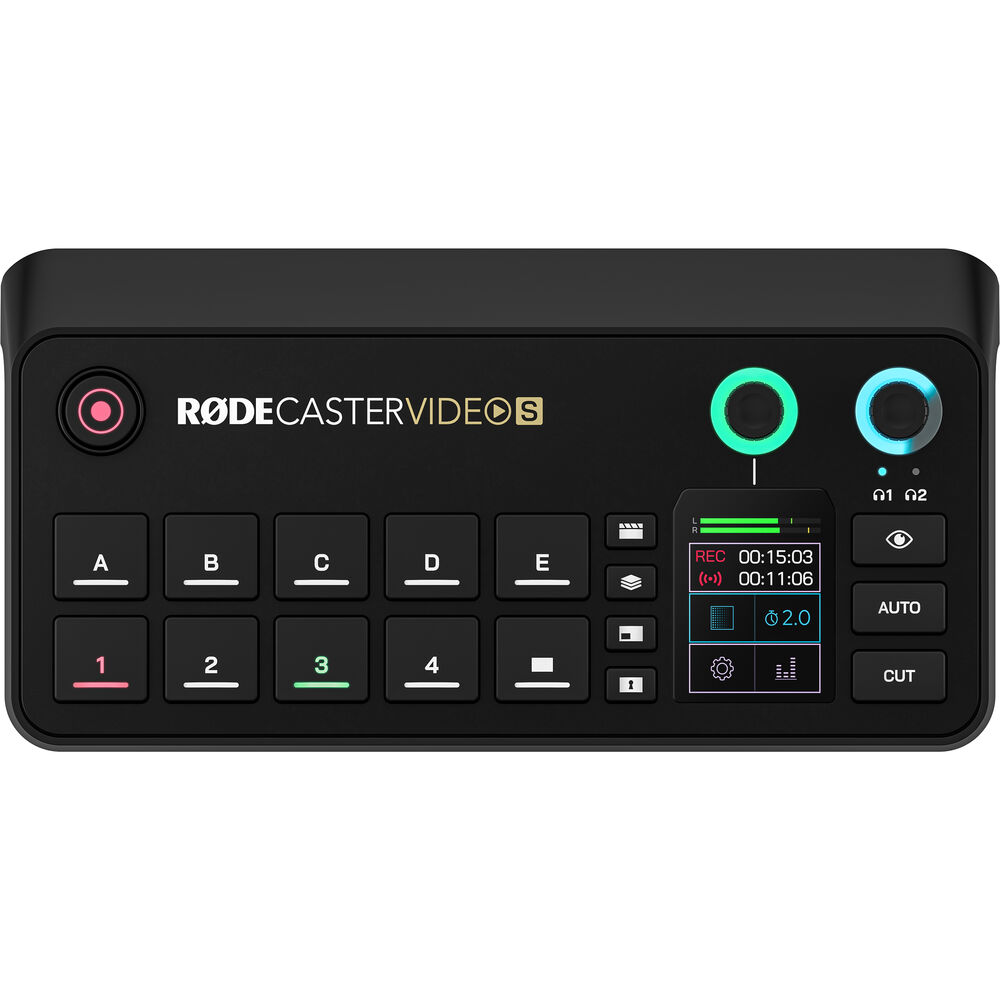

The RODECaster Video S prioritizes scene-based switching with an intuitive control layout. This gives users quicker access to the tools they need to create dynamic content without needing to access complicated settings. The front panel of the device includes a wide variety of controls specific to certain features.

Automatic chroma keying makes replacing backgrounds with media or live video inputs a breeze. Apply transparency to use the input in scenes or with various backgrounds. Choose between blue and green screen with advanced controls.

  • Media buttons load video clips, images, and sounds onto a USB drive for use in your production.
  • Two internal video players allow you to transition from one to another in your scene compositions.
  • Graphic buttons load images with transparency.
  • Dynamically trigger graphics to transition over an input or scene.

Intelligent Auto-Switching

Intelligent auto-switching provides seamless and creative hands-free switching between video sources. Any audio input can be linked to any video source, allowing intelligent level detection to automatically trigger switching when your talent is speaking to follow the conversation. Switching priorities and screen time algorithms provides a natural feel, as if a producer or technical director were calling the shots.

Intuitive Streaming and Recording

Stream up to 100 Mb/s directly using RTMP/RTMPS to major platforms like YouTube, Twitch, and Facebook Live via integrated Wi-Fi 6 or Ethernet connection. Real-time signal health reporting is displayed via multiview. Up to four NDI sources, such as PTZ cameras, can be input with a single NDI output via Ethernet streaming. The Video S can also utilize dual-cam streaming using the free RODE Capture app for iOS.

Record directly to an external USB storage device or the internal 24GB media storage, including isolated (ISO) recording for more flexible postproduction workflows. You can record your program feed as an H.264/AVC MP4 file with embedded AAC stereo mix. Multiple audio tracks can be recorded as nine independent stereo WAV files.

RODE Central

Use the RODE Central companion software when connected to a computer to adjust more advanced features of the RODECaster Video S. Construct scenes using remote control, configure automatic switching based on audio inputs, mix audio, and configure streaming settings and profiles as well as adjust advanced settings and customizations. The software supports macOS and Windows operating systems.

Custom Scene Builder

The scene builder in RODE Central allows you to create a completely customized scene from scratch. Select a RODE preset with default layouts and themes for your keying backgrounds or video borders. A live RTMP feed will update to show your changes in real-time. You can save up to five scenes and switch between them instantly at the press of a button.

Wireless Remote Control

For setups where you can't be close to the console, the RODECaster Video S boasts complete wireless remote control via the RODECaster App, allowing you to switch inputs, adjust settings and configure complex scenes from your computer.

Specifications

Mix Effects

Available M/E Layers 9 M/E Effect Types Graphic, Transition, Chroma Key, Luma Key Graphics Memory 24 GB Downstream Keys 2x Overlay

Audio Mixing

10-Channel Mixing

Processing

Switching Type Pushbutton, Software Processing Resolution 1080p at 60 Color Processing 8-Bit, 10-Bit, 12-Bit 4:4:4 RGB
8-Bit, 10-Bit, 12-Bit 4:4:4 YUV
8-Bit, 10-Bit, 12-Bit 4:2:2 YUV
8-Bit 4:2:0 YUV Audio Processing 48 kHz / 32-Bit

Input

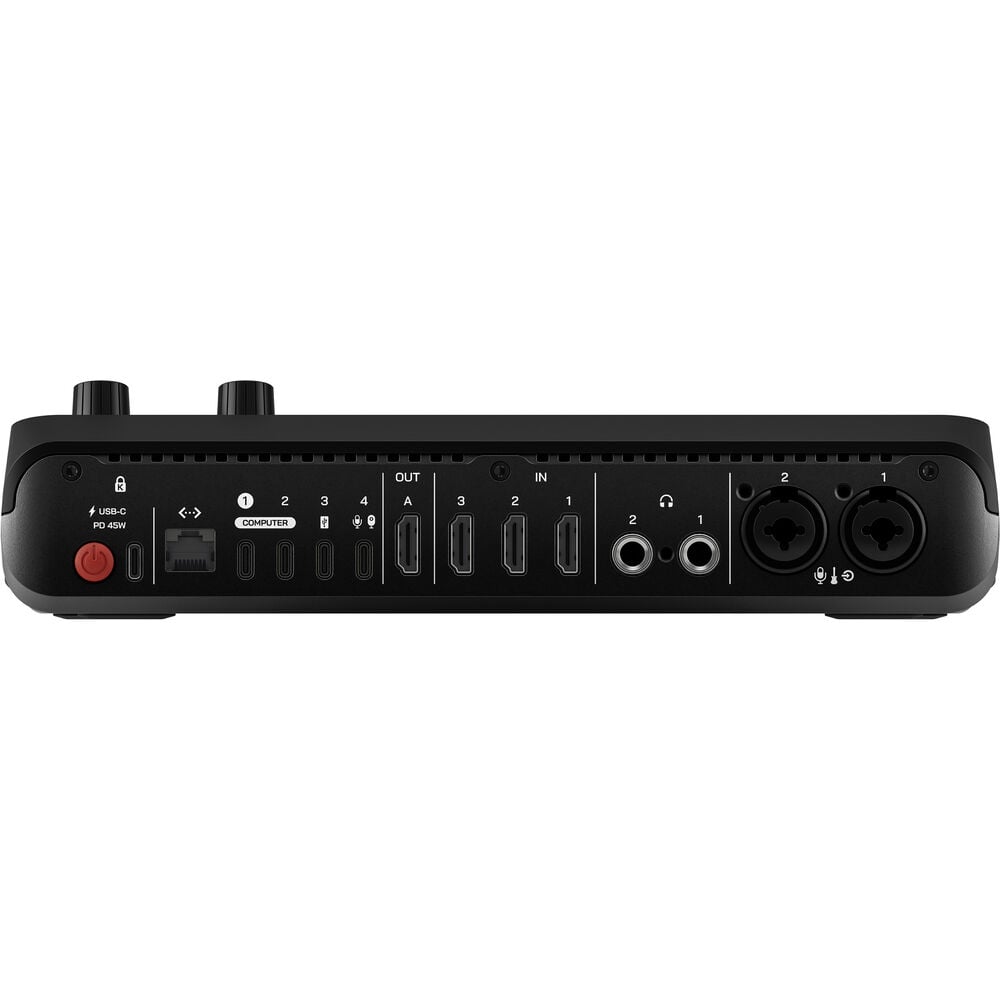

Number of Video Input Sources 4 Video Inputs 3x HDMI (1.4b) Female
1x USB-C (UVC) Female Input Video Format HDMI / USB-C
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 25/29.97/30 fps Audio Inputs 2x Combo XLR-1/4" TRS Mic/Line Female
2x USB-C Female Input Audio Format Analog Embedded Audio Input HDMI
USB-C

Output

Video Output Channels 1 Video Outputs 1x HDMI (1.4b) Female (Program) Output Video Format HDMI / RJ45
1080p 24/25/30/50/60 fps Audio Outputs 2x 1/4" TRS Analog Female Output Audio Format Analog Embedded Audio Output HDMI
RJ45 Multiview Output 4-Way Multiview via HDMI Monitor Output 1x HDMI

Connectivity

Other I/O 1x RJ45 Control, LAN, NDI Input/Output Digital Audio Decoding LPCM IP Encoding/Decoding IP Video
H.264/H.265:
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
IP Audio
AAC-LC: Encoding Transport Protocols NDI/HX2, NDI/HX3, RTMP, RTMPS Simultaneous Streams 1 Streams Compatible Services Facebook Live, Twitch, YouTube Live

Internal Recording

Recording Media 1x USB-A 2.0 (External Drives) Internal Storage 24 GB Recording Modes 1920 x 1080p at 30 fps (MP4 via H.264/AVC)

Display

Display Size 2"

Hardware

OS Compatibility macOS 11 or Later / Windows 10 or Later / Windows 11 or Later Wireless Wi-Fi 6 (802.11ax) / Bluetooth 5.3
*Built-In

Power

Power I/O 1x USB-C (20 VDC at 2.2 A) Input

General

Dimensions 253.5 x 128.4 x 60.2 mm Weight 875 g
