EIZO ColorEdge CG2700X 27" 4K HDR Monitor

The ColorEdge CG2700X 27" 4K HDR Monitor from EIZO delivers a 3840 x 2160 resolution, 500 nits of brightness, and HDR gamma support, allowing it to reproduce content with a high degree of detail. USB-C connectivity provides a streamlined experience so professionals in video editing, game development, photography, and more can spend their time creating.

EIZO designed the ColorEdge CG2700X with In-Plane Switching (IPS) technology, 10-bit support for 1.07 billion colors, a 16-bit LUT, a widescreen 16:9 aspect ratio, a static contrast ratio of 1450:1, 500 nits brightness, 164 pixels per inch, and a 13 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has one HDMI input and one DisplayPort input, plus a USB-C port that supports DP alt mode, data transfers of up to 5 Gb/s using the USB 3.2 Gen 1 standard, and up to 94W of power for device charging. Additional USB ports include one USB-B 3.2 Gen 1 input, two USB-A 3.2 Gen 1 outputs, and two USB-A 2.0 outputs. Additionally, there is an RJ45 Gigabit Ethernet port that provides network access when the CG2700X is connected to your host system via USB-C.

The ColorEdge CG2700X has been engineered to support 99% of the Adobe RGB and 98% of the DCI-P3 color gamuts, as well as HLG (Hybrid Log Gamma) and PQ (Perceptual Quantization) for displaying and editing HDR video. To further help improve viewing and accessibility, there is a vertical tilt of -5 to 35°, a left/right swivel of 344° (±172°), a clockwise rotation of 90°, and a height adjustment of 6.1".

4K UHD Resolution

The ColorEdge CG2700X displays at 4K UHD (3840 x 2160) resolution, which is four times the size of Full HD. This level of detail ensures that high resolution content is displayed crisply. The 27" screen provides ample space for displaying 4K content natively or Full HD content in full with enough space to show toolbars, palettes, and other windows or applications. This makes the monitor versatile for video editing, 3DCG creation, game development, photography, and other creative fields.

Single Cable Connection with USB-C

The ColorEdge CG2700X features USB-C connectivity that allows you to display video, transmit USB signals, and supply power to a connected device, such as a tablet or notebook computer. This convenient multi-purpose connectivity makes it faster and easier to connect when moving between workstations or working remotely.

Power Delivery

The ColorEdge CG2700X reliably charges a MacBook Pro or other high-end laptops with 94W power delivery. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.

Stable Network Connection

While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a stable wired connection. Connecting a laptop via USB-C provides access to the network through the monitor for sharing creative assets and files, carrying out post-production work remotely, and enables network-based color management via ColorNavigator Network.

Built-In Sensor to Automate Your Workflow

The ColorEdge CG2700X's built-in sensor can be set to calibrate the monitor automatically at designated times. This eliminates the need for a third-party calibration device and ensures your screen stays color accurate. In addition, the sensor swings onto the screen, taking up minimal space and allowing you to continue working even during calibration.

EIZO does not recommend carrying out color-critical work during recalibration, as the screen's colors will be adjusted.

ColorNavigator 7 Color Management Software

A monitor needs to be calibrated at regular intervals to maintain color accuracy. EIZO's proprietary ColorNavigator 7 software provides an intuitive and highly precise solution to color management. It allows you to schedule automatic recalibration, calibrate all color modes simultaneously, and conduct correlation with external sensors to match the studio's internal color management framework. Calibration information is saved to the monitor instead of the operating system, so users do not have to recalibrate even when using a different PC.

ColorNavigator Network Color Management Software

ColorNavigator Network provides centralized quality control (QC) of ColorEdge monitors for studios, printing houses, and other enterprises with multiple creators and editors who work on shared projects. With NetAgent or ColorNavigator 7 installed on the workstation, administrators can manage multiple ColorEdge monitors via web browser enabling quality control even from remote locations. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.

Vivid Colors Reproduced to Industry Standards

The monitor's wide color gamut faithfully reproduces 98% of the DCI-P3 standard used in digital cinema and supports the BT.2020 standard used in broadcasting. In addition, it covers 99% of the Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. It also covers almost the entire ISO-coated and US web-coated CMYK color spaces used in printing.

3D LUT for Accurate Color Display

The monitor uses a 3D LUT which adjusts colors individually on an RGB cubic table. With the supported ColorNavigator 7 software's emulation function, creators can check how content will appear to their audience. The 3D LUT also improves the monitor's additive color mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones.

10-Bit Simultaneous Display

Using the DisplayPort or HDMI input, the ColorEdge monitor offers 10-bit simultaneous display from a 16-bit look-up-table (LUT), which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.

A graphics board and software which support 10-bit output are also necessary for 10-bit display. Equipment that supports DeepColor is required for 10-bit display when connected via HDMI.

Broadcast and Cinema Presets

Preset modes for DCI-P3, BT.709, and BT.2020 ensure you can work in the appropriate color spaces and gamma values. In addition, preset modes for PQ (DCI and BT.2100) and HLG (BT.2100) are available for viewing HDR content. With the built-in calibration sensor, you can conveniently adjust or maintain the brightness setting for each preset.

HDR Gamma Support

The ColorEdge CG2700X features a high brightness level of 500 nits. It supports HLG (hybrid log-gamma) and the PQ (perceptual quantization) curve for displaying and editing HDR (high dynamic range) video content. The optimized gamma curves render images to appear truer to how the human eye perceives the real world compared to SDR (standard dynamic range). This ensures professional creators can reliably display HDR content for editing and color grading.

True Black Display

In compliance with the DCI standard, the monitor offers a high contrast ratio of 1450:1 for producing true blacks that are otherwise difficult to display on a typical LCD monitor. CG Series monitors are also equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.

DCI-4K Cropping

The DCI 4K Cropping function allows the user to display a DCI 4K (4096 x 2160) signal and crop content outside the bounds of the panel's native 4K UHD (3840 x 2160) resolution. Users can select from three options that determines which part of the image is cropped.

Nearest Neighbor Interpolation

The ColorEdge CG2700X offers Nearest Neighbor interpolation setting as an option for image scaling and resampling. When upscaling, Nearest Neighbor copies and aligns pixels to the closest adjacent position, maintaining color fidelity. When Nearest Neighbor is turned off, the monitor uses an interpolation method that balances gradation of the surrounding pixels for smooth color tone. Editors can easily choose the interpolation method best suited to the project via the monitor's OSD menu to ensure content looks as intended when upscaling to 4K.

Luminance Warning

The monitor includes a function that shows the areas of the image that cannot be displayed correctly at the current brightness settings. These areas are marked in yellow or magenta and can be viewed for brightness levels of 300, 500, 1000, and 4000 nits.

4K Zoom

Enlarge areas of the screen to confirm small details and check focus accuracy in images using the 4K zoom function. It is quickly and easily accessible using the monitor's front buttons.

BT.709 Out of Gamut Warning

The monitor includes a Gamut Warning preset that when selected, indicates areas of a BT.2020 image that cannot be reproduced using BT.709 by converting them to shades of gray. An additional mode called BT.709 Clipping allows the editor to view BT.2020 images within the BT.709 color space, simulating how it would look to their audience in an HDTV environment.

Automatic Color Settings

To ensure color settings stay consistent throughout production, the monitor includes a Sync Signal function which automatically adjusts the monitor's settings, such as input range and input color format, according to the video signal.

Adjusted at the Factory for Smooth Color Gradations

The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the 256 most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.

Stable Color In 3 Minutes

A typical monitor takes 30 minutes or more for its brightness, chromaticity, and tone characteristics to stabilize. The ColorEdge CG2700X takes a mere 3 minutes. Whether you are working in a studio or taking the monitor with you on location, you get reliable color display soon after turning the monitor on.

Stable Display Using AI

The color and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. ColorEdge CG Series monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this temperature sensing and estimation technology, the monitor adjusts in real-time, so gradations, color, brightness, and other characteristics continue to be displayed accurately. Furthermore, EIZO uses AI (artificial intelligence) in the estimation algorithm of the CG2700X so it can distinguish between various temperature changing patterns to calculate even more accurate correction.

Uniformity Across the Screen

LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting color accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.

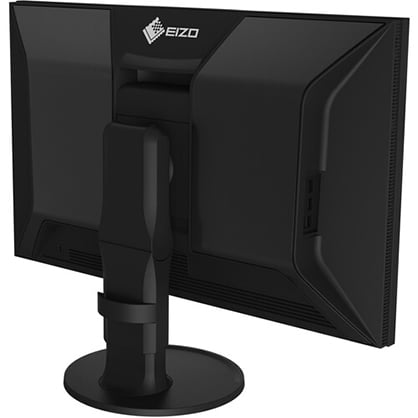

Punched Metal Design

The ColorEdge CG2700X's sleek, new design incorporates punched metal on the back side that allows for more airflow, keeping the monitor cool without a noisy fan. A carrying handle on the back of the monitor allows you to easily move it to other locations.

Light Shielding Hood

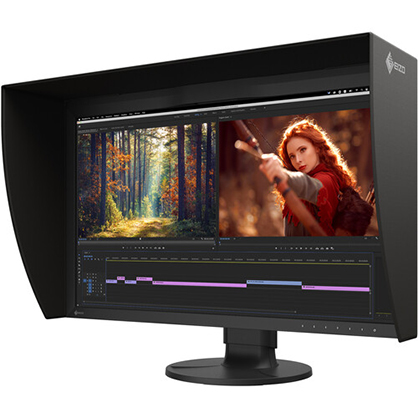

The ColorEdge CG2700X comes bundled with a light shielding hood that effectively prevents glare on the screen caused by ambient lighting. The hood is newly designed to be lightweight and easily attaches to the monitor magnetically without needing to connect separate parts.

Ergonomic Stand

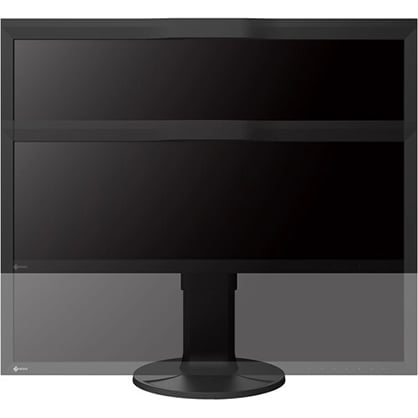

Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments. The stand is also equipped with a quick release that allows you to easily remove the screen from the stand with a single touch.

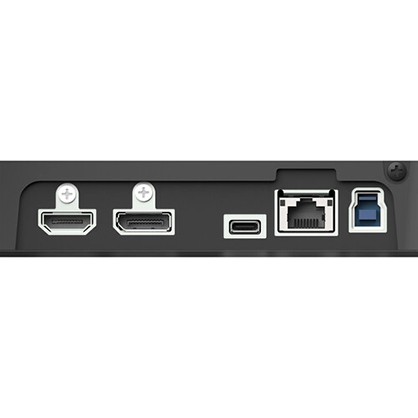

Multiple Inputs

In addition to USB-C, the monitor is equipped with DisplayPort and HDMI inputs. It also includes four USB ports (two USB-A 3.2 Gen 1 and two USB-A 2.0) for connecting additional devices or peripherals.

Limited 5-Year Manufacturer's Warranty

ColorEdge monitors are backed by a limited 5-year manufacturer's that covers all components, including the LCD panel, with up to 30,000 hours of usage time. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.

Zero Bright Pixels

EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.

Brightness and Color Warranty

The brightness and color of the ColorEdge CG2700X is warranted for up to 10,000 hours from the date of purchase. When used at a color temperature of 5000 to 6500K, a brightness level of at least 120 nits is warranted.

• Display
• Size ... 27"
• Screen Area ... 23.5 x 13.2" / 596.2 x 335.3 mm
• Panel Type ... IPS-Type LCD
• Touchscreen ... No
• Resolution ... 3840 x 2160
• Aspect Ratio ... 16:9
• Pixels Per Inch (ppi) ... 164 ppi
• Finish ... Anti-Glare / Matte
• Maximum Brightness ... 500 cd/m2
• Contrast Ratio ... 1450:1
• Variable Refresh Technology ... None
• Bit Depth / Color Support ... 10-Bit (1.07 Billion Colors)
• Look-Up Table ... 16-Bit
• HDR Compatibility ... Hybrid Log Gamma
• Color Gamut ... 99% Adobe RGB
• 98% DCI-P3
• Response Time ... 13 ms (GtG)
• Viewing Angle (H x V) ... 178 x 178°
• Dot Pitch ... 0.155 x 0.155 mm
• Inputs / Outputs
• Inputs/Outputs ... 1 x USB-C (USB 3.0 / 3.1/3.2 Gen 1, DisplayPort Alt Mode) Input/Output
• 1 x DisplayPort Input
• 1 x HDMI Input
• 1 x RJ45 (Gigabit Ethernet) Input
• 1 x USB-B (USB 3.0 / 3.1/3.2 Gen 1) Input
• 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) Output
• 2 x USB-A (USB 2.0) Output
• HDCP Support ... Yes, Version 2.3
• Built-In Speakers ... None
• Media Card Reader ... None
• Multi-Input Support (PIP/PBP) ... None
• Supported Languages ... English
• French
• German
• Italian
• Japanese
• Simplified Chinese
• Spanish
• Swedish
• Traditional Chinese
• Power
• Power Consumption ... 225 W (Maximum)
• 34 W (Typical)
• 0.5 W (Standby)
• AC Input Power ... 100 to 240 VAC, 50 / 60 Hz
• Power Adapter Type ... External
• USB Power Delivery ... 94 W (via USB-C)
• Environmental
• Operating Temperature ... 32 to 95°F / 0 to 35°C
• Operating Humidity ... 20 to 80% (Non-Condensing)
• Certifications ... CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy
• *as per Manufacturer
• Physical
• Height Adjustment ... 6.1" / 155 mm

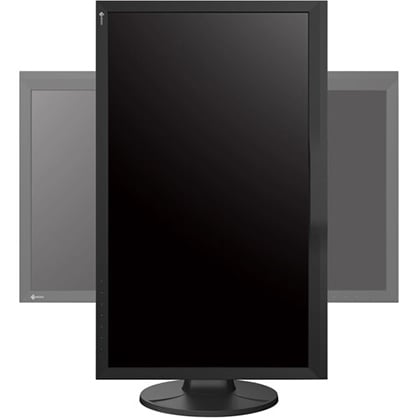

• Rotation Adjustment ... 90° (0 to 90°)
• Swivel Adjustment ... 344° (-172 to 172°)
• Tilt Adjustment ... -5 to 35°
• Max Arm Extension Length ... None
• Mounting-Hole Pattern ... 100 x 100 mm
• Lock Slot ... No
• Dimensions (W x H x D) ... 25.1 x 22.5 x 9.6" / 638.0 x 570.9 x 245.0 mm (with Stand)
• 25.1 x 15.4 x 3.4" / 638.0 x 390.0 x 86.2 mm (without Stand)
• Weight ... 21.4 lb / 9.7 kg (with Stand)
• 14.8 lb / 6.7 kg (without Stand)
• Packaging Info
• Package Weight ... 31.75 lb
• Box Dimensions (LxWxH) ... 28.8 x 21.3 x 13.3"
