Canon EOS C80 6K Cinema Camera

Features

6K Full-Frame Cinema Capture in a Mirrorless Form

Offering exceptional 6K30 full-frame capture in a compact form, the Canon EOS C80 6K Full-Frame Cinema Camera melds the EOS C400's CMOS sensor with a lightweight design similar to the EOS C70. Ideal for fast-paced capture and solo operators, this digital camera features triple ISO bases of 800, 3200, and 12,800 in log/raw, upgraded Dual Pixel CMOS AF II autofocus, and simultaneous 12G-SDI and HDMI video output. The EOS C80's RF mount provides compatibility with fast, reliable Canon RF lenses, and a motorized ND filter wheel enables on-the-fly exposure tweaking.

6K Full-Frame Sensor

The 6K full-frame CMOS sensor at the heart of the C80 camera enables it to offer exceptionally low noise, increased sensitivity efficiency, and better 4K imagery via 6K oversampling. All this is possible thanks to the improved light capture technology of the back-illuminated, stacked CMOS sensor.

Multiple Recording Formats

The C80's multiple recording formats include up to full-frame 6K30 Canon Cinema RAW Light LT and cropped S35 up to 4K30 in RAW ST and 4K60 in RAW LT.

• Oversampled 4K 120p or 2K 180p with maximized detail is available, all with 4:2:2 10-bit color.
• Slow and fast motion can be captured at rates up to UHD 4K120 in HEVC and AVC codecs.
• Make your editing process easier using XF-AVC S and XF-HEVC S codecs, featuring an easier naming system and folder structure, as well as metadata preservation, all within the established MP4 format.

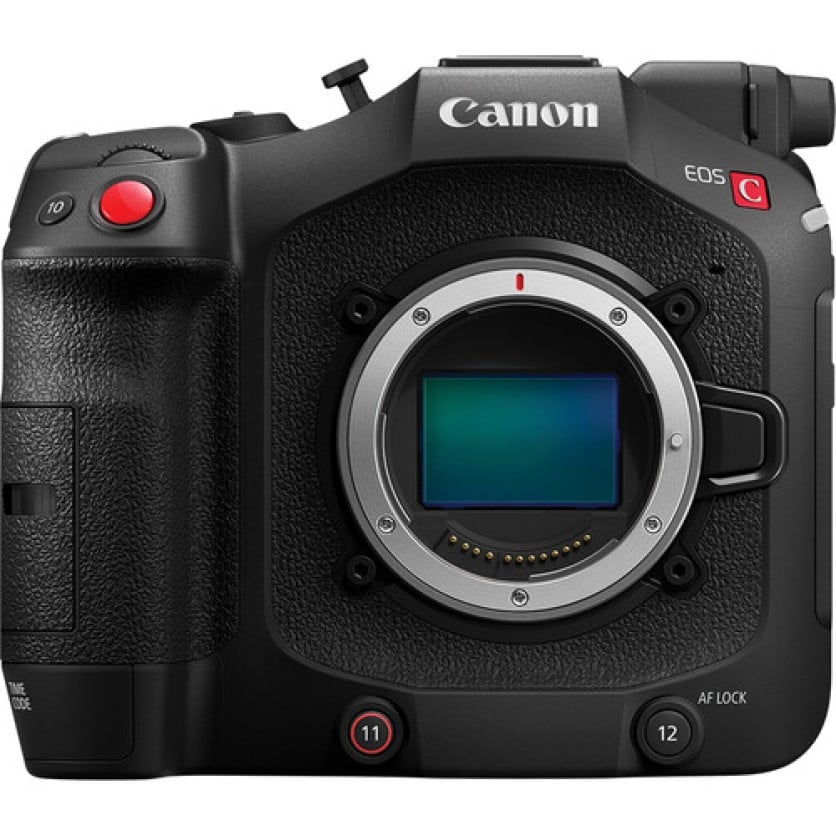

RF Lens Mount

A built-in RF lens mount lends the EOS C80 compatibility with Canon's line of fast, reliable RF-mount lenses with advanced coatings and image stabilization. With a short flange distance, the RF mount helps to noticeably reduce the camera body's depth, resulting in a more compact design.

Optional PL-RF Adapter

A new PL-RF lens mount adapter enables you to access a wide variety of ARRI PL-mount cine-style lenses. This adapter features Cooke/i metadata compatibility and locking plates for a secure fit.

Multiple Interfaces Including 12G-SDI

• Video outputs include full-size HDMI and 12G-SDI BNC outputs that can be used simultaneously for feeding an onboard monitor, video transmitter, or EVF.
• Use the USB-C port for UVC video output or to connect to a smartphone or the Canon GP-E2 GPS receiver.
• A BNC connector enables users to input and output timecode, making synching on multicamera shoots easier.

Dual-Pixel CMOS Autofocus

Improved Dual-Pixel CMOS AF Technology uses each pixel on approximately 100% of the CMOS sensor for focus detection and image information. The back-illuminated stacked sensor's excellent light capture widens the sensor area, which can be used for AF. The EOS C80 also offers the EOS iTR AF X autofocus function featuring an algorithm developed using deep-learning technology to detect the human form.

Mini-XLR Audio Inputs

Two mini-XLR inputs with phantom power and manual control dials provide professional audio recording options. The EOS C80 supports 4-channel audio using dual mini-XLR ports, an internal stereo mic, and a 3.5mm mic input.

Built-In ND Filters

Designed for the EOS C80 RF mount's short flange distance, a thin motorized ND filter unit enables users to quickly select up to 10 stops of neutral density. ND button controls on the right side of the camera enable operators to quickly adjust exposure while maintaining their shot's depth of field.

Log2/3 and 3D LUT Support

For greater post-production flexibility, the C80 offers Canon's Log 2 and Log 3 gamma modes, which provide an expanded dynamic range with excellent tonal reproduction for highlights and in low-light areas of your images. The EOS C80 also supports 3D LUTs, so you can get the most accurate color reproduction on both the LCD and your external viewing monitors.

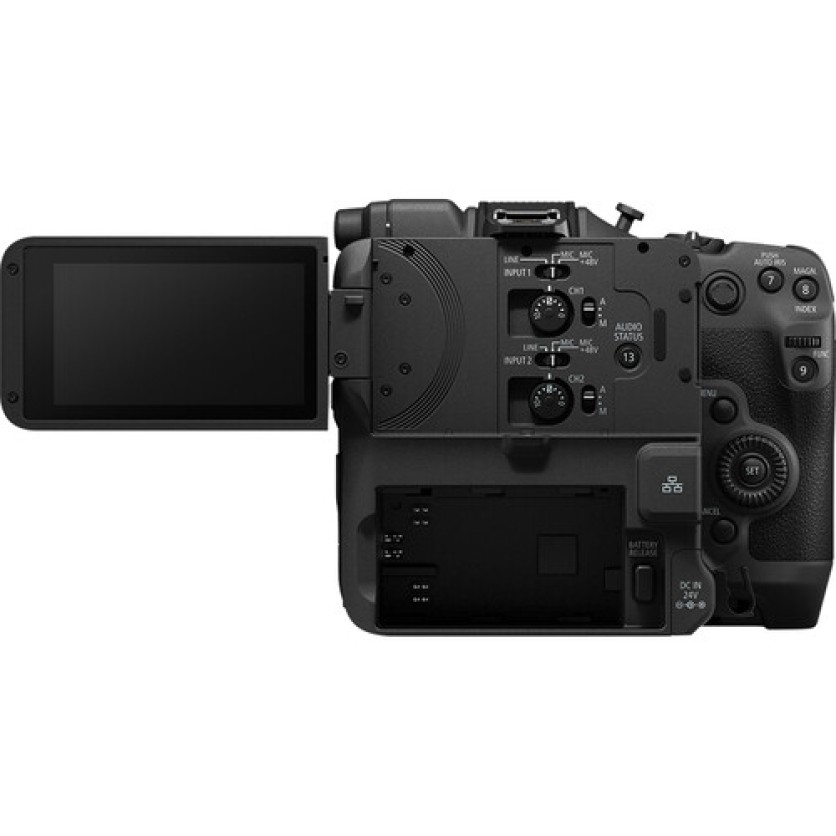

Compact Design with Tilting LCD

• The compact EOS C80 features a lightweight design with a built-in ergonomic grip and a joystick control.

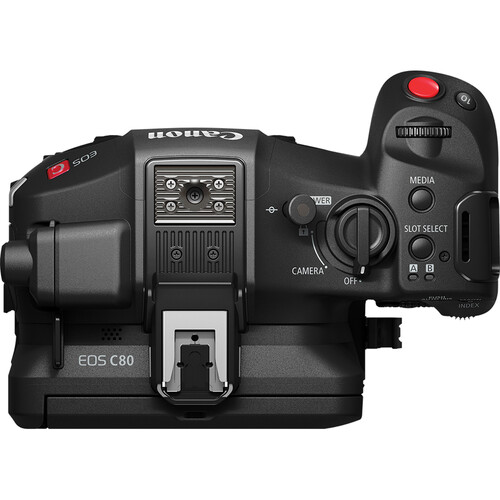

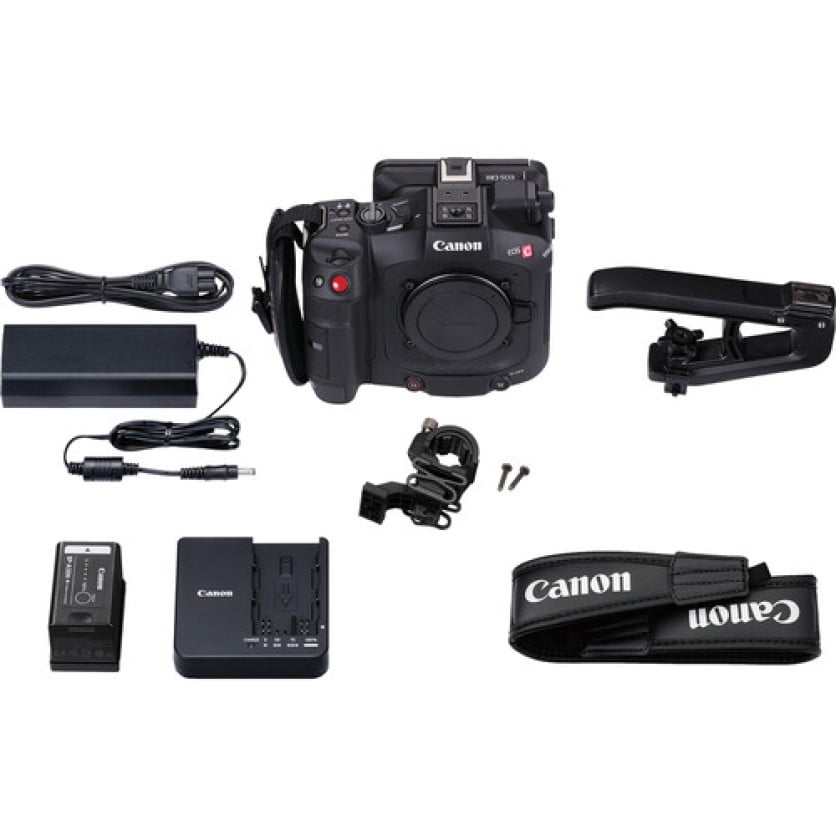

• It has a Multi-Accessory hot shoe on top and comes with a detachable handle and a mic holder.
• The LCD screen features a reinforced hinge and built-in controls like focus peaking, waveforms, and more.

Dual SD Card Slots / Multiple Recording Options

Dual SD card slots on the EOS C80 offer simultaneous, relay, and proxy video recording. The EOS C80 can also capture JPEG still photos.

Ethernet and Wi-Fi Control

Use the Ethernet port and built-in Wi-Fi with an optional Canon RC-IP1000 or RC-IP100 unit to access the XC protocol-base remote control. Compatibility with the Canon Multicamera Control app for iPhone provides monitoring and start/stop, focus, iris, zoom, ND filter, ISO, shutter, white balance, custom picture control, and more.

BP-AN Series Battery

Use the included BP-A30N battery, a BP-A60N battery, or a 24 VDC adapter to power the C80. Older BP-A batteries can also be used but will not power the Multi-Accessory hot shoe. Support your C80 with a third-party cage to add a V-mount or Gold mount battery plate to enable longer runtimes.

Specifications

Imaging

Imaging

Lens Mount

Lens Communication

Yes, Cooke /i

Sensor Resolution

Actual: 26.67 Megapixel (6202 x 4300)

Effective: 19.05 Megapixel (6008 x 3170)

Image Sensor

Full-Frame BSI Stacked CMOS

Image Stabilization

Digital, 5-Axis

Built-In ND Filter

Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters

Internal Filter Holder

No

Capture Type

Stills & Video

Exposure Control

Exposure Control

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/2000 to 1 Second

ISO Sensitivity Range

100 to 102,400

Shutter Angle

11.25 to 360°

Advertised Dynamic Range

16 Stops

Signal-to-Noise Ratio

67 dB

White Balance

2000 to 15,000K

Presets: AWB, Daylight, Set A, Set B, Tungsten

Video Capture

Video Capture

Internal Recording Modes

Cinema RAW Light 12-Bit

UHD 6K (6000 x 3164) at 23.98/24.00/25/29.97 fps [553 to 639 Mb/s]

4368 x 2304 at 23.98/24.00/25/29.97/50/59.94 fps [293 to 678 Mb/s]

XF-HEVC S Long GOP 4:2:2 10-Bit

4096 x 2160 at 50/59.94/120 fps [225 Mb/s]

3840 x 2160 at 23.98/24.00/25/29.97/120 fps [135 Mb/s]

2048 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]

1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]

XF-HEVC S Long GOP 4:2:0 10-Bit

4096 x 2160 at 50/59.94/120 fps [150 Mb/s]

3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]

2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]

1920 x 1080 at 23.98/24.00/25/29.97/59.94/180 fps [35 Mb/s]

XF-HEVC S Long GOP 4:2:0 8-Bit

2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]

1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]

XF-HEVC S Long GOP 4:2:0 8-Bit

1280 x 720 at 23.98/24.00/25/50/59.94 fps [6 Mb/s]

XF-AVC S Intra 4:2:2 10-Bit

4096 x 2160 at 59.94/60.00 fps [600 Mb/s]

3840 x 2160 at 50/60.00 fps [500 Mb/s]

2048 x 2160 at 59.94/120 fps [300 Mb/s]

1920 x 1080 at 50/120 fps [250 Mb/s]

XF-AVC S Intra 4:2:2 10-Bit

4096 x 2160 at 50/59.94/120 fps [250 Mb/s]

3840 x 2160 at 23.98/24.00/25/29.97/120 fps [150 Mb/s]

2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [50 Mb/s]

1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [120 to 300 Mb/s]

XF-AVC S Long GOP 4:2:0 8-Bit

4096 x 2160 at 50/59.94/120 fps [150 Mb/s]

3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]

2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]

1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]

XF-HEVC S Intra 4:2:0 8-Bit

2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]

1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]

1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [6 Mb/s]

External Recording Modes

SDI/BNC / HDMI / USB

4096 x 2160

Recording Sensor Crop

Recording Sensor Crop

Crops to Output Resolution When Using Super35 Mode

Fast-/Slow-Motion Support

Fast-/Slow-Motion Support

Yes

Gamma Curve

Gamma Curve

Canon Log 2, Canon Log 3, HDR-HLG, Rec709, Rec2020

Broadcast Output

Broadcast Output

NTSC/PAL

Built-In Microphone

Built-In Microphone

Stereo

Audio Recording

Audio Recording

Cinema RAW Light: 4-Channel 24-Bit 48 kHz LPCM Audio

XF-AVC: 4-Channel 24-Bit 48 kHz LPCM Audio

XF-AVC S, XF-HEVC S: 4-Channel 24-Bit 48 kHz LPCM Audio

XF-AVC S, XF-HEVC S: 2-Channel 16-Bit 48 kHz AAC Audio

IP Streaming

IP Streaming

H.264, MPEG2, RTP, RTSP, SRT, UDP

1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)

Still Image Capture

Still Image Capture

Image File Format

JPEG

Interface

Interface

Media/Memory Card Slot

Slot 1: SD/SDHC/SDXC

Slot 2: SD/SDHC/SDXC

Video I/O

Video I/O

1x BNC (12G-SDI) Output

1x BNC (3G-SDI) Monitor Output

1x HDMI (Unspecified Signal) Output

Audio I/O

Audio I/O

2x Mini XLR Input

1x 1/8" / 3.5 mm TRS Stereo Headphone Output

1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body

Power I/O

Power I/O

1x Barrel (23.7 to 25VDC) Input

Other I/O

Other I/O

1x RJ45 (XC) Control

1x USB-C Monitor

1x BNC (Timecode)

1x 2.5 mm Sub-Mini (LANC) Control

Wireless

Wireless

2.4 / 5 GHz Wi-Fi 5 (802.11ac)

Mobile App Compatible

Mobile App Compatible

Yes: iOS Only

App Name: Remote Camera Control App

Functionality: Adjust Settings, Remote Control, View Live Feed

Global Positioning (GPS, GLONASS, etc.)

Global Positioning (GPS, GLONASS, etc.)

No

Monitor

Monitor

Display Type

Included External Touchscreen LCD

Display Size

3.5"

Resolution

1280 x 720

Focus

Focus

Focus Type

Auto and Manual Focus

Focus Mode

Continuous-Servo AF, Focus Lock AF Area Mode, One-Shot AF

General

General

Operating Conditions

32 to 104°F / 0 to 40°C up to 85% Humidity

Storage Conditions

23 to 113°F / -5 to 45°C up to 60% Humidity

Battery Type

Canon BP-AN Series

Shoe Mount

1x Intelligent Hot Shoe

Tripod Mounting Thread

1x 3/8"-16 Female

2x 1/4"-20 Female

Accessory Mounting Thread

No

Dimensions (W x H x D)

6.3 x 5.4 x 4.6" / 160 x 138 x 116 mm

10.9 x 6.8 x 6.3" / 276 x 173 x 160 mm (With Handle, Included Battery, Mic Holder)

Weight

2.87 lb / 1.30 kg (Body Only)

3.406 lb / 1.545 kg (With Battery, Handle)
