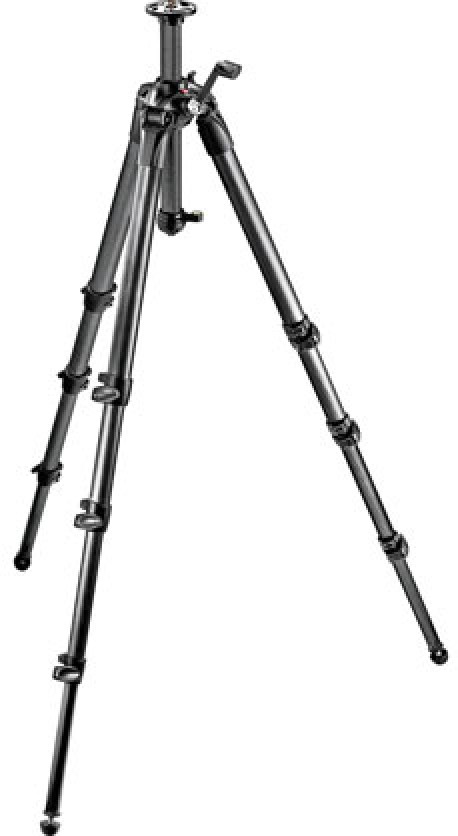

Manfrotto MT057C4-G Carbon Geared Tripod

Load Capacity: 26.5 lb

Max Height: 80.7"

Min Height: 9.1"

Folded Length: 26.2"

Leg Sections: 4

Weight: 8.2 lb

Leg Angle Selector: 23, 50, 75°

Low Angle Adapter

Spiked Feet

The Manfrotto 057 Carbon Fiber Tripod with Geared Column is a heavy-duty tripod that's intended for use with video cameras and large still cameras. With a 26.5 lb load capacity, the lightweight carbon fiber leg tubes of the 057 tripod provide rigid support even under a considerable amount of weight.

The tripod's geared center column provides maximum precision when you're setting the camera position. The column has a non-rotating, three-faceted design for increased system stability. You can unscrew the center-post collar, remove the center column, and attach the collar directly to the included low-angle adapter (through the chassis) to enable extremely low-angle shooting. With this method the 057 tripod can achieve a minimum height of 9.0".

The round carbon fiber legs feature user-adjustable flip locks to free and secure the leg stages. An included key for tightening the flip locks attaches to a leg for ever-ready access. With both the legs and the center column fully extended, the tripod reaches an extremely tall maximum height of 80.7".

Retractable spikes in feet

Bubble level near bottom of center column

Screw locks for tightening a tripod head to the center-post collar

Manfrotto suggests its 114 Video/Movie Heavy Dolly for this tripod

UPC: 719821324195

• Material of Construction ... Carbon fiber legs, aluminum alloy column, magnesium and aluminum alloy castings
• Maximum Height ... 80.7" (205 cm)
• Maximum Height w/o Column Extended ... 70.9" (180 cm)
• Minimum Height ... 9.0" (23 cm)
• Folded Length ... 26.2" (66.5 cm)
• Load Capacity ... Normal mode: 26.5 lb (12 kg)
• With short column: 39.7 lb (18 kg)
• Head Attachment Fitting ... 3/8"-16 screw
• Weight ... 8.16 lb (3.7 kg)
• Legs
• Material of Construction ... Carbon fiber, aluminum and magnesium alloy castings
• Leg Stages/Sections ... 3/4
• Leg Tube Diameters ... 39.2, 34.2, 29.2, 24.8 mm
• Leg Lock Type ... Flip-lock
• Independent Leg Spread ... Yes
• Leg Angles ... 23, 50, 75°
• Spiked/Retractable Feet ... Yes/yes
• Center Brace ... No
• Bubble Level ... Yes, 1
• Center Column
• Material of Construction ... Aluminum alloy
• Type ... Geared
• Center Column Sections ... 1
• Column Tube Diameter ... 35 mm
• Column Cross Section ... 3-Faceted
• Packaging Info
• Package Weight ... 10.0 lb
• Box Dimensions (LxWxH) ... 29.5 x 6.9 x 6.9"
