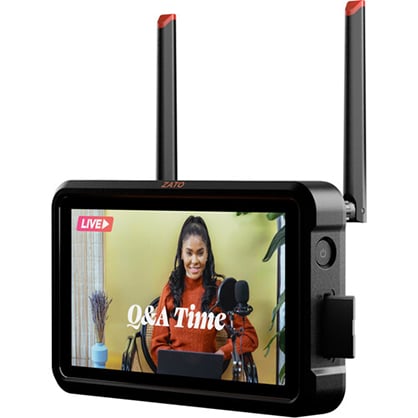

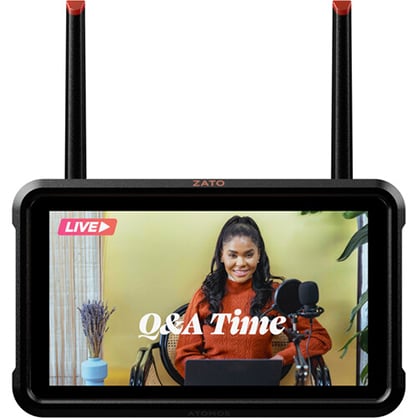

Atomos ZATO Connect 5.2 Network-Connected Video Monitor and Recorder 1080p60

Simultaneously stream and record HDMI and USB video with the ZATO CONNECT from Atomos and its 1920 x 1080 resolution 5.2" touchscreen display. The ZATO CONNECT works as a gateway to the ATOMOS Cloud Studio software thanks to its Wi-Fi 5, Gigabit Ethernet, and cellular hot spot connectivity. This allows you to fully customize your livestreaming experience by switching between video sources and mixing different audio sources—all with a single, compact device small enough to mount on a DSLR camera rig.

One HDMI input, one HDMI output, and two corresponding USB Type-C ports can transform various video equipment into livestream or webcam sources. The ZATO CONNECT can record up to 1080p60 HDMI video and up to 1080p30 USB video. One 3.5mm audio input integrates a microphone or line source, which can be easily mixed with the embedded HDMI or USB signals thanks to the ZATO's audio mixer. AtomOS Lite software further customizes your recordings and streams with effects and frame guides to reinforce your branding. Power to the device can be achieved with an L-series battery or via the USB Type-C PD input.

Stream from Anywhere

Support for HDMI and USB UVC cameras and video sources

Equipped with Wi-Fi 5 and Gigabit Ethernet via USB Type-C

Ability to join cellular hostspots

Stream to Facebook Live, Twitch, YouTube with ATOMOS Cloud Studio

Create high-quality video for Microsoft Teams, Slack, and Zoom

Each livestream is recorded as local H.264 backup to an SD card up to 128GB

Combine recorded sources with live content

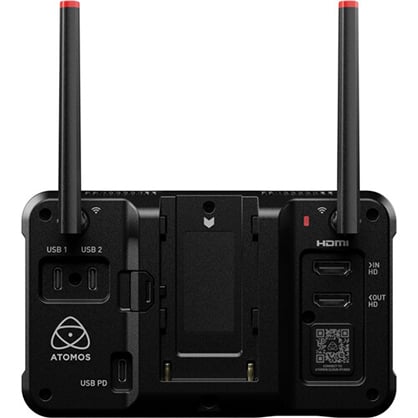

Comprehensive I/O

Input and output ports for both HDMI and USB to transform a wide variety of video equipment into a livestream or webcam source

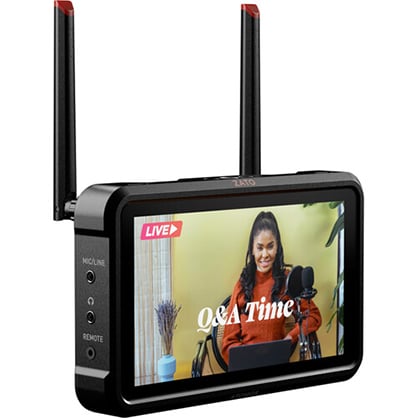

3.5mm audio jack can add microphone or line sources and mix them with embedded audio from HDMI and USB

Each channel can be adjusted independently and mixed down to a single stereo track for livestream, recording, or video presentation

AtomOS Lite Software

Configure streams, switch between sources, record and playback video, mix audio, and add effects

Key tools like overlay effects, image zoom, and frame guides

Add graphic overlays to streams or watermark recorded content

Display

5.2" SuperAtom IPS LCD panel with capacitive touch

1920 x 1080 resolution

178° horizontal and vertical viewing angle

427 ppi, 1000 cd/m² brightness

Rec709 color gamut

Monitor Assist Functions

Display flip (vertical and horizontal)

Frame guides (1:1, 4:3, 4:5, 9:26, 16:9, 1.91)

Grid markers (9 grid)

Zoom (tap to zoom)

Power Options

L-series battery compatibility up to 7.6V

USB Type-C PD input connector from 6.2 to 16.8V

DC input connector via locking DC jack on separately available battery eliminator

D-Tap via separately available D-Tap to DC cable

• IP Encoding/Decoding
• IP Video ... H.264:
• 1920 x 1080 at 30p Encoding
• H.264:
• 1280 x 720 at 60p Encoding
• H.264:
• 1920 x 1080 at 60p Encoding
• IP Audio ... AAC-LC: Encoding
• Transport Protocols ... RTMP, RTMPS
• Compatible Services ... Livestream
• Wireless
• Wi-Fi ... 5 GHz Wi-Fi 5 (802.11ac)
• Interfaces
• Video Connectors ... 1 x HDMI (HDMI 1.4) Input
• 1 x HDMI (HDMI 1.4) Output
• 1 x USB Type-C (USB Video) Input
• 1 x USB Type-C (USB Video) Output
• Audio Connectors ... 1 x 1/8" / 3.5 mm TRS Analog Input
• 1 x 1/8" / 3.5 mm TRS Analog Output
• 1 x 1/8" / 3.5 mm TRS Headphone Output
• Embedded Audio ... HDMI/USB Type-C: 2-Channel
• Internal Recording
• Recording Media ... 1 x SD (Unspecified Type) (UHS-I [104 MB/s])
• Recording Modes ... 1920 x 1080p at 60 fps (MP4 via H.264/AVC)
• Power
• Power Connector ... 1 x USB Type-C (6.2 to 16.8 VDC) Input
• Power Consumption ... Device: (20 W)
• Environmental
• Operating Temperature ... 104°F / 40°C
• General
• Display ... IPS LCD
• Materials ... ABS, Plastic
• Dimensions ... 5.9 x 3.6 x 1.2" / 151 x 91.5 x 29.5 mm
• Weight ... 8.6 oz / 245 g
